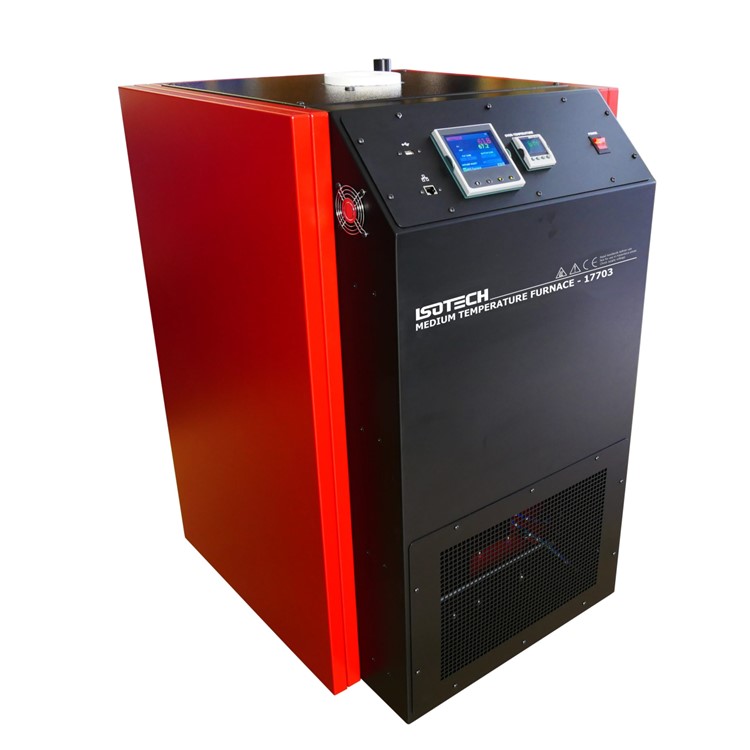

ISOTECH ITL-M-17703 MEDIUM TEMPERATURE FURNACE
가격문의(상세정보 참조)
ISOTECH ITL-M-17703 MEDIUM TEMPERATURE FURNACE
50°C to 700°C
The Medium Temperature Furnace is of a three-zone design. In addition to the main temperature controlled-zone, there are guard heaters at the top and bottom of the block. The furnace has been updated with additional features to make operation simpler and safer.
- Wide Operating Range
- Three Zone Control
- Long Plateau Length
클릭 하시면 이동합니다.
ISOTECH ITL-M-17703 MEDIUM TEMPERATURE FURNACE
50°C to 700°C
Whilst heat pipe furnaces offer the ideal environment to melt and freeze ITS-90 Fixed Points the temperature range is limited by fluid that flows inside the pipe. Three zone furnaces can offer wider operating ranges and still meet the requirements for “Optimal Realization of the Defining Points of the ITS-90…” CCT/2000-13. In place of a heat pipe the 17703 Medium Temperature furnace uses top and bottom guard heaters to minimise temperature gradients.
The Model 17703 Furnace can be used with Indium, Tin, Zinc and Aluminium Cells. The substantial furnace core is machined from aluminium bronze.
New Features
From our own ongoing experience and customer feedback we have updated the Isotech Furnace Range to deliver the same proven performance and advanced features but with a number of convenience upgrades to make your life easier.

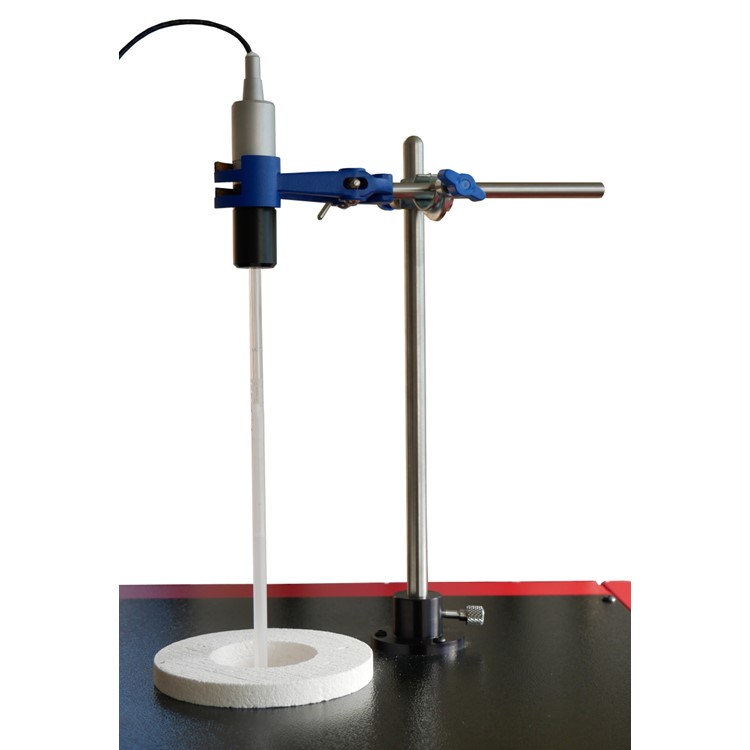

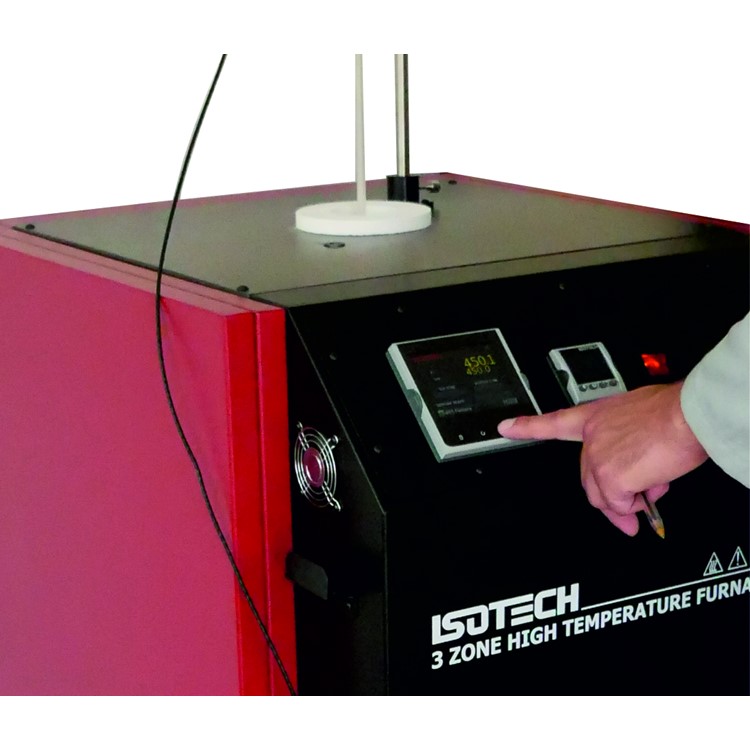

The controllers have now been relocated to the top for easier operation, we now include an SPRT Stand and Cable Tidies to keep your standards safe and Accessory Pods to keep the
furnace tops free from clutter. Our furnaces are programmable to automatically melt and freeze cells and feature both USB and Ethernet interfaces with bright crystal clear displays.

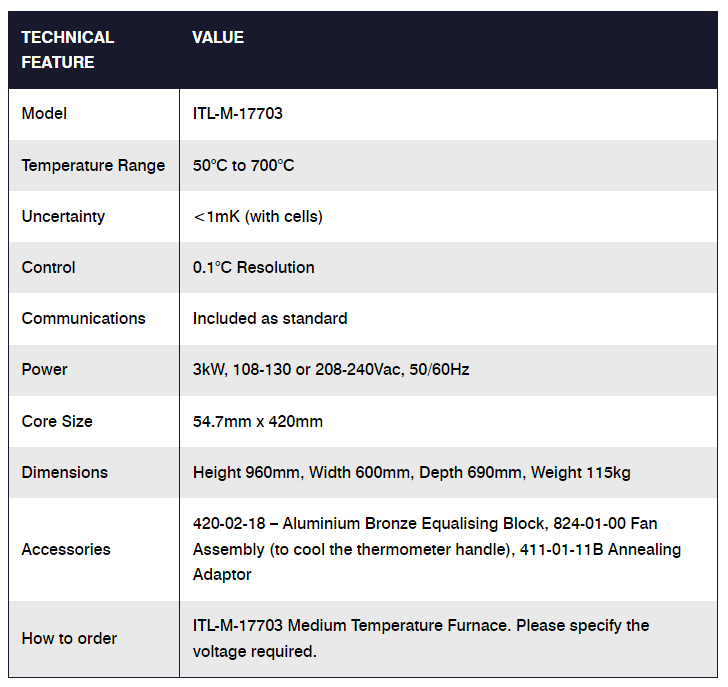

SPECIFICATION
가격이 궁금하신가요?
더 많은 자료는?
클릭 하시면 이동합니다.
ISOTECH ITL-M-17703 MEDIUM TEMPERATURE FURNACE
50°C to 700°C
Whilst heat pipe furnaces offer the ideal environment to melt and freeze ITS-90 Fixed Points the temperature range is limited by fluid that flows inside the pipe. Three zone furnaces can offer wider operating ranges and still meet the requirements for “Optimal Realization of the Defining Points of the ITS-90…” CCT/2000-13. In place of a heat pipe the 17703 Medium Temperature furnace uses top and bottom guard heaters to minimise temperature gradients.
The Model 17703 Furnace can be used with Indium, Tin, Zinc and Aluminium Cells. The substantial furnace core is machined from aluminium bronze.
New Features
From our own ongoing experience and customer feedback we have updated the Isotech Furnace Range to deliver the same proven performance and advanced features but with a number of convenience upgrades to make your life easier.
The controllers have now been relocated to the top for easier operation, we now include an SPRT Stand and Cable Tidies to keep your standards safe and Accessory Pods to keep the
furnace tops free from clutter. Our furnaces are programmable to automatically melt and freeze cells and feature both USB and Ethernet interfaces with bright crystal clear displays.
SPECIFICATION
