ADDITEL ADT835 포터블 교정 배스

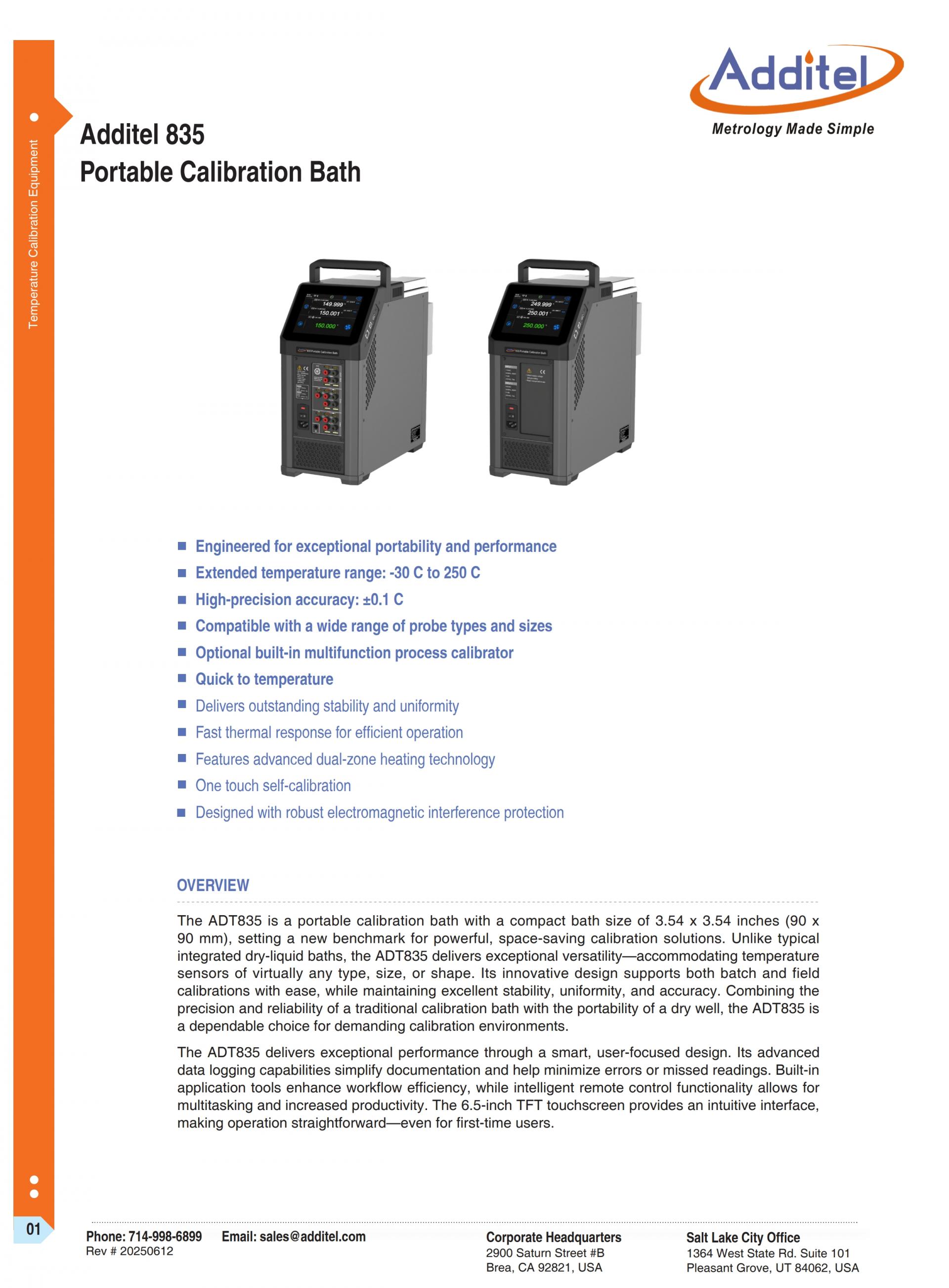

ADDITEL ADT835 Portable Calibration Bath
- Engineered for exceptional portability and performance
- Extended temperature range: -30°C to 250°C
- High-precision accuracy: ±0.1°C
- Compatible with a wide range of probe types and sizes
- Optional built-in process calibrator
- Quick to temperature
- Delivers outstanding stability and uniformity
- Fast thermal response for efficient operation
- Features advanced dual-zone heating technology
- One touch self-calibration
- Designed with robust electromagnetic interference protection
상품
원산지 USA
제조사 ADDITEL
브랜드 ADDITEL
배송
택배 · 기본 무료
클릭 하시면 이동합니다.
에디텔 ・ ADDITEL
ADT835
포터블 교정 배스
ADT835 Portable Calibration Bath
The ADT835 is a portable calibration bath with a compact bath size of 3.54 x 3.54 inches (90 x 90 mm), setting a new benchmark for powerful, space-saving calibration solutions. Unlike typical integrated dry-liquid baths, the ADT835 delivers exceptional versatility—accommodating temperature sensors of virtually any type, size, or shape. Its innovative design supports both batch and field calibrations with ease, while maintaining excellent stability, uniformity, and accuracy. Combining the precision and reliability of a traditional calibration bath with the portability of a dry well, the ADT835 is a dependable choice for demanding calibration environments.
The ADT835 delivers exceptional performance through a smart, user-focused design. Its advanced data logging capabilities simplify documentation and help minimize errors or missed readings. Built-in application tools enhance workflow efficiency, while intelligent remote control functionality allows for multitasking and increased productivity. The 6.5-inch TFT touchscreen provides an intuitive interface, making operation straightforward—even for first-time users.
ADT835-150 / ADT835PC-150
- The 835-150 heats to 150°C in 30 minutes, cools to -25°C in 45 minutes, and cools to -30°C in 55 minutes.
ADT835-250 / ADT835PC-250
- The 835-250 heats to 250°C in 55 minutes, cools to 100°C in 30 minutes, and cools to 33°C in 45 minutes.

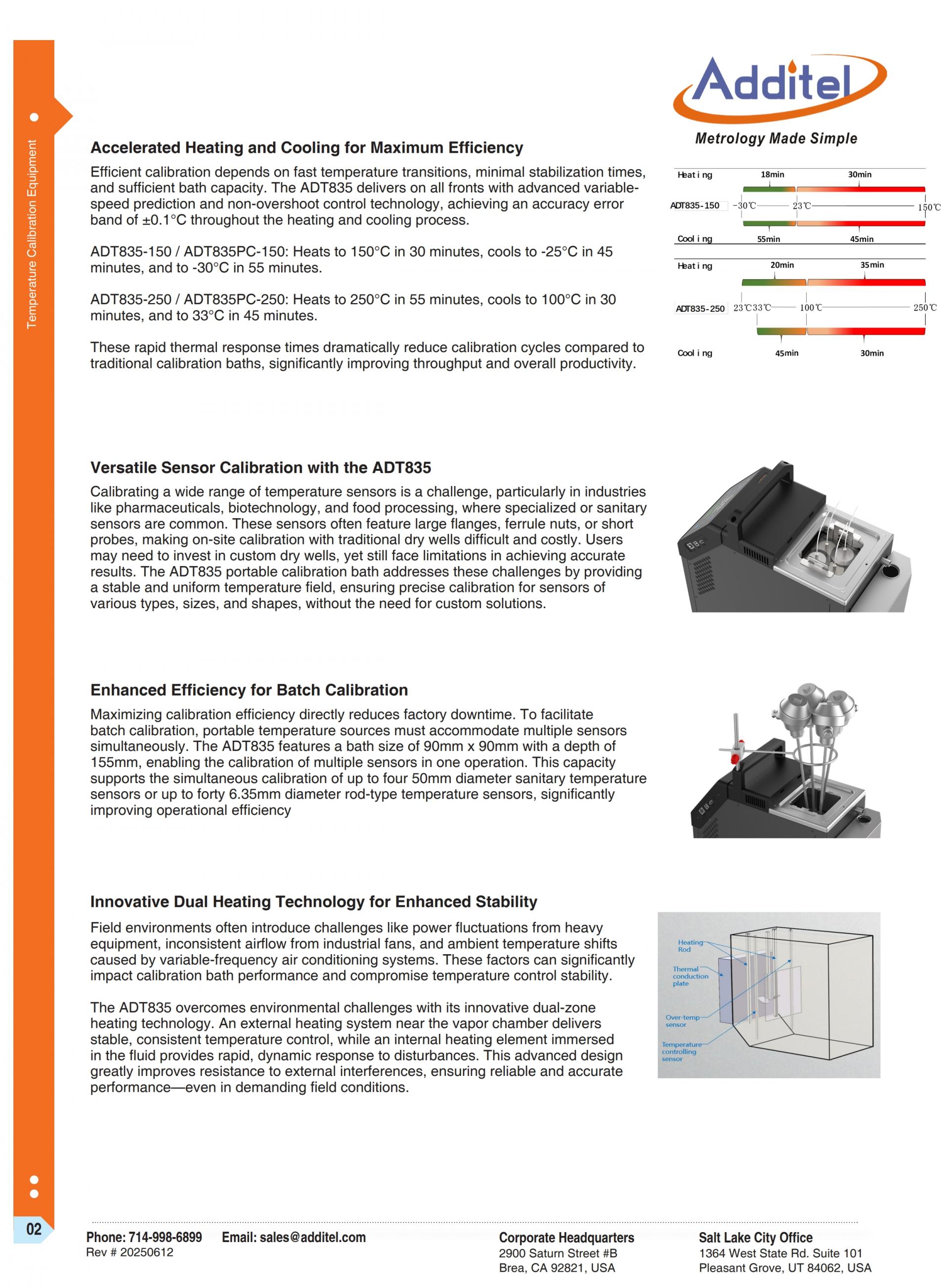

Accelerated Heating and Cooling for Maximum Efficiency
Efficient calibration depends on fast temperature transitions, minimal stabilization times, and sufficient bath capacity. The ADT835 delivers on all fronts with advanced variable-speed prediction and non-overshoot control technology, achieving an accuracy error band of ±0.1°C throughout the heating and cooling process. These rapid thermal response times dramatically reduce calibration cycles compared to traditional calibration baths, significantly improving throughput and overall productivity.
Versatile Sensor Calibration with the ADT835
Calibrating a wide range of temperature sensors is a challenge, particularly in industries like pharmaceuticals, biotechnology, and food processing, where specialized or sanitary sensors are common. These sensors often feature large flanges, ferrule nuts, or short probes, making on-site calibration with traditional dry wells difficult and costly. Users may need to invest in custom dry wells, yet still face limitations in achieving accurate results. The ADT835 portable calibration bath addresses these challenges by providing a stable and uniform temperature field, ensuring precise calibration for sensors of various types, sizes, and shapes, without the need for custom solutions.

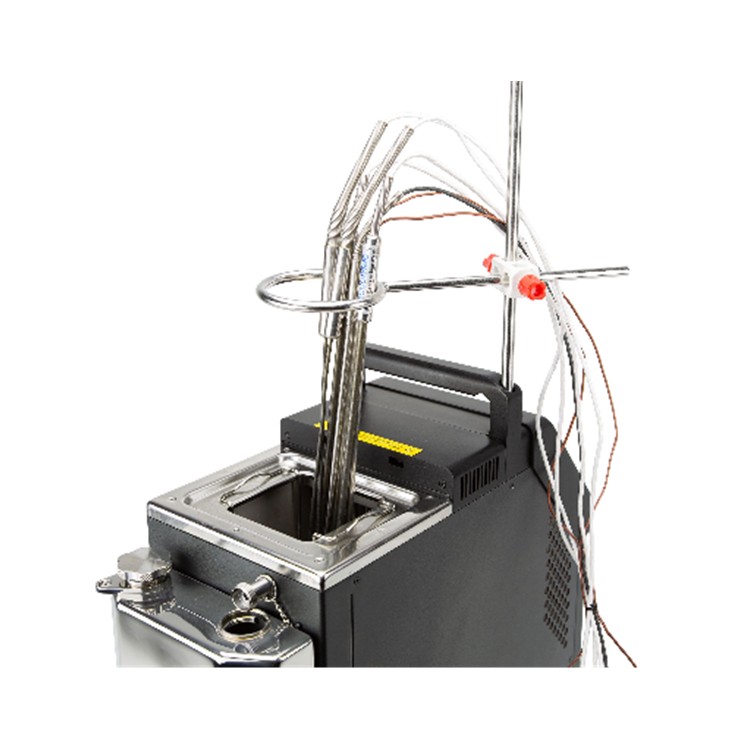

Enhanced Efficiency for Batch Calibration
Maximizing calibration efficiency directly reduces factory downtime. To facilitate batch calibration, portable temperature sources must accommodate multiple sensors simultaneously. The ADT835 features a bath size of 90mm x 90mm with a depth of 155mm, enabling the calibration of multiple sensors in one operation. This capacity supports the simultaneous calibration of up to four 50mm diameter sanitary temperature sensors or up to forty 6.35mm diameter rod-type temperature sensors, significantly improving operational efficiency
Innovative Dual Heating Technology for Enhanced Stability
Field environments often introduce challenges like power fluctuations from heavy equipment, inconsistent airflow from industrial fans, and ambient temperature shifts caused by variable-frequency air conditioning systems. These factors can significantly impact calibration bath performance and compromise temperature control stability. The ADT835 overcomes environmental challenges with its innovative dual-zone heating technology. An external heating system near the vapor chamber delivers stable, consistent temperature control, while an internal heating element immersed in the fluid provides rapid, dynamic response to disturbances. This advanced design greatly improves resistance to external interferences, ensuring reliable and accurate performance—even in demanding field conditions.

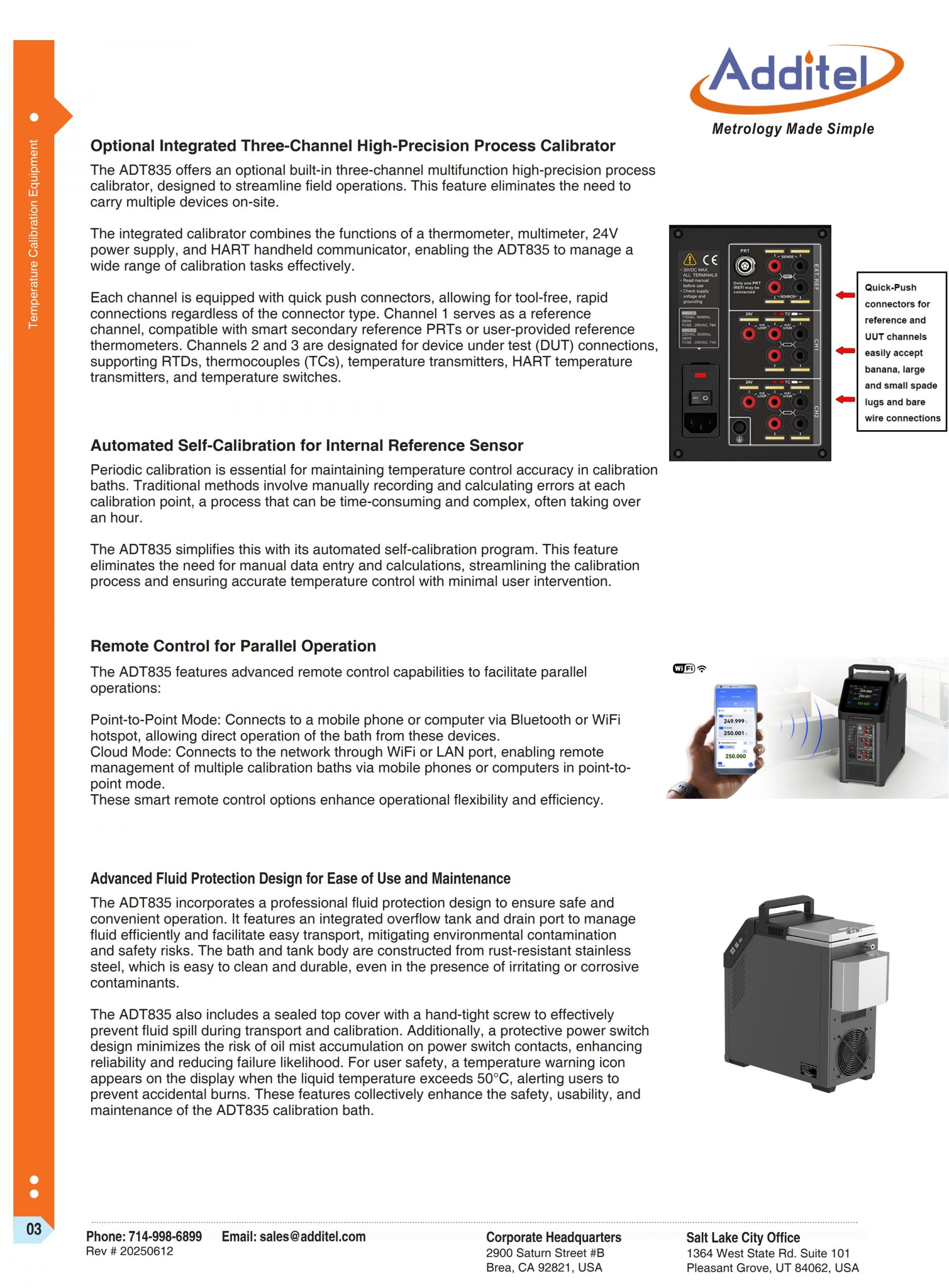

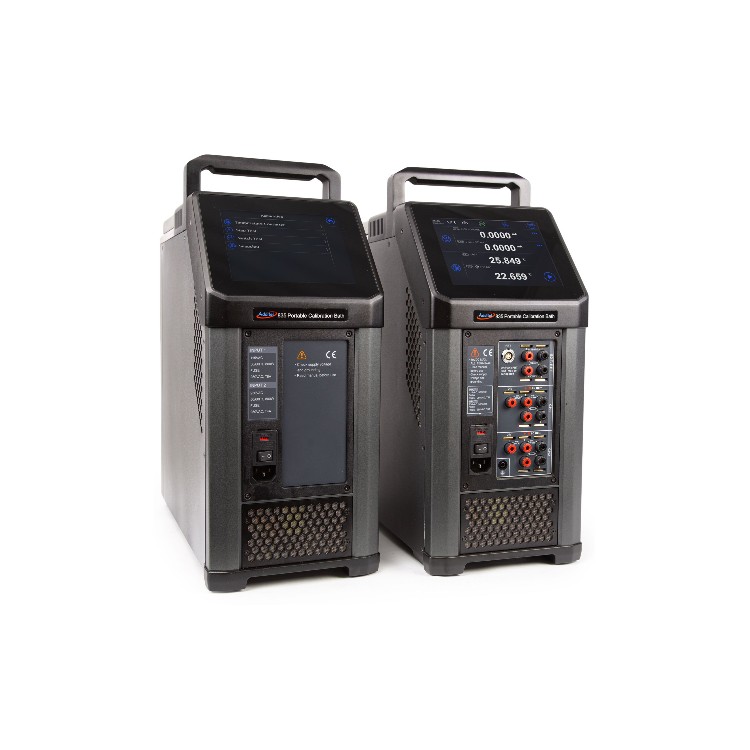

Optional Integrated Three-Channel High-Precision Process Calibrator
The ADT835 offers an optional built-in three-channel high-precision process calibrator, designed to streamline field operations. This feature eliminates the need to carry multiple devices on-site.
The integrated calibrator combines the functions of a thermometer, multimeter, 24V power supply, and HART handheld communicator, enabling the ADT835 to manage a wide range of calibration tasks effectively.
Each channel is equipped with quick push connectors, allowing for tool-free, rapid connections regardless of the connector type. Channel 1 serves as a reference channel, compatible with smart secondary reference PRTs or user-provided reference thermometers. Channels 2 and 3 are designated for device under test (DUT) connections, supporting RTDs, thermocouples (TCs), temperature transmitters, HART temperature transmitters, and temperature switches.
Automated Self-Calibration for Internal Reference Sensor
Periodic calibration is essential for maintaining temperature control accuracy in calibration baths. Traditional methods involve manually recording and calculating errors at each calibration point, a process that can be time-consuming and complex, often taking over an hour.
The ADT835 simplifies this with its automated self-calibration program. This feature eliminates the need for manual data entry and calculations, streamlining the calibration process and ensuring accurate temperature control with minimal user intervention.
Remote Control for Parallel Operation
The ADT835 features advanced remote control capabilities to facilitate parallel operations:
Point-to-Point Mode: Connects to a mobile phone or computer via Bluetooth or WiFi hotspot, allowing direct operation of the bath from these devices.
Cloud Mode: Connects to the network through WiFi or LAN port, enabling remote management of multiple calibration baths via mobile phones or computers in point-to-point mode.
These smart remote control options enhance operational flexibility and efficiency.

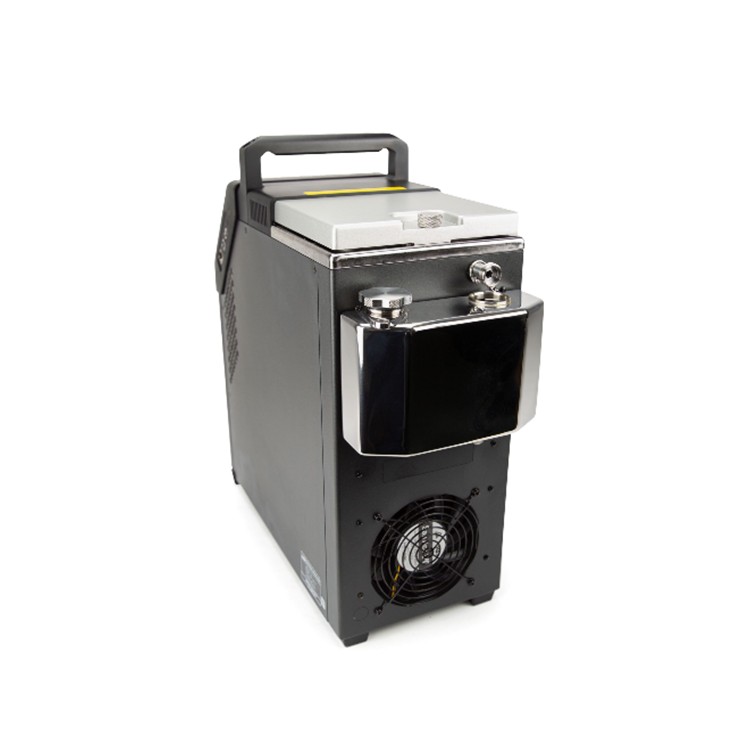

Advanced Fluid Protection Design for Ease of Use and Maintenance
The ADT835 incorporates a professional fluid protection design to ensure safe and convenient operation. It features an integrated overflow tank and drain port to manage fluid efficiently and facilitate easy transport, mitigating environmental contamination and safety risks. The bath and tank body are constructed from rust-resistant stainless steel, which is easy to clean and durable, even in the presence of irritating or corrosive contaminants.
The ADT835 also includes a sealed top cover with a hand-tight screw to effectively prevent fluid spill during transport and calibration. Additionally, a protective power switch design minimizes the risk of oil mist accumulation on power switch contacts, enhancing reliability and reducing failure likelihood. For user safety, a temperature warning icon appears on the display when the liquid temperature exceeds 50°C, alerting users to prevent accidental burns. These features collectively enhance the safety, usability, and maintenance of the ADT835 calibration bath.
