ADDITEL 997 핸드타입 유압 압력펌프
가격문의(상세정보 참조)
ADDITEL 997 핸드타입 공압 압력펌프
ADDITEL 997 Handheld Hydraulic Pressure Pump
- 유압 / 수압펌프 (0~10,000psi / 700bar)
- 듀얼 스테이지 피스톤으로 압력 발생 효율성 증대
- 레버형 핸들로 신속한 압력 발생 및 안정화, 미세 조정 나사로 정밀한 압력 조정
- 수직/수평 등 현장에 맞는 다양한 활용성

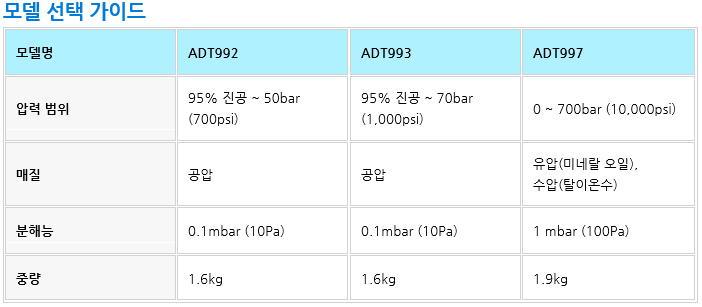

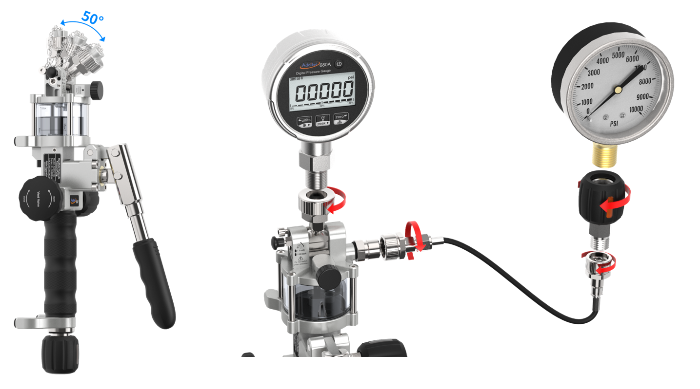

- 압력 게이지 연결단 각도 조절(ADT992 & 993: 60°, ADT997: 50°)
- 유지보수 비용 절감
- 다양한 연결 아답터 옵션 제공
- 어플리케이션에 따른 매질 선택 (공압, 유압, 수압)
클릭 하시면 이동합니다.
에디텔 ・ ADDITEL
997
핸드타입 공압 압력펌프
997 Handheld Pneumatic Pressure Pump

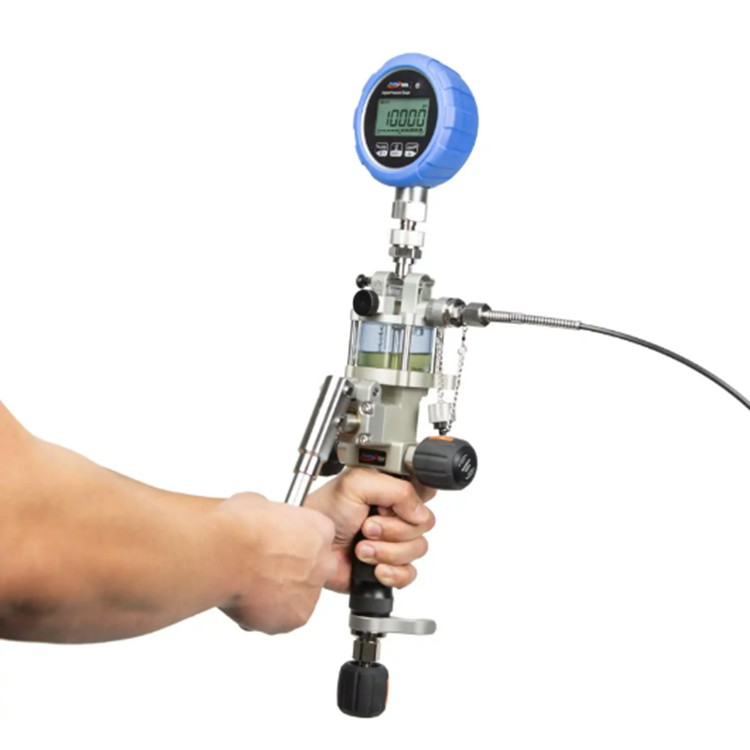

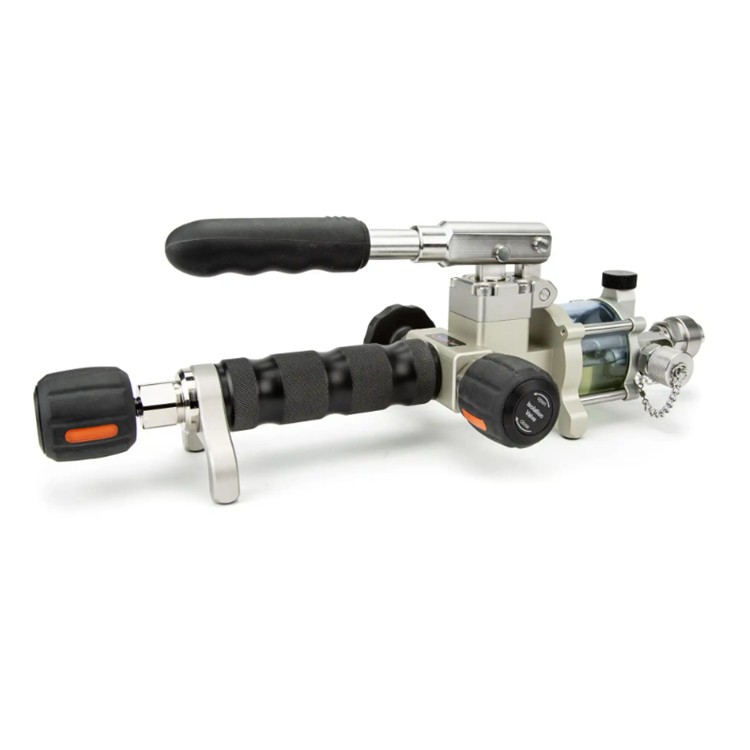

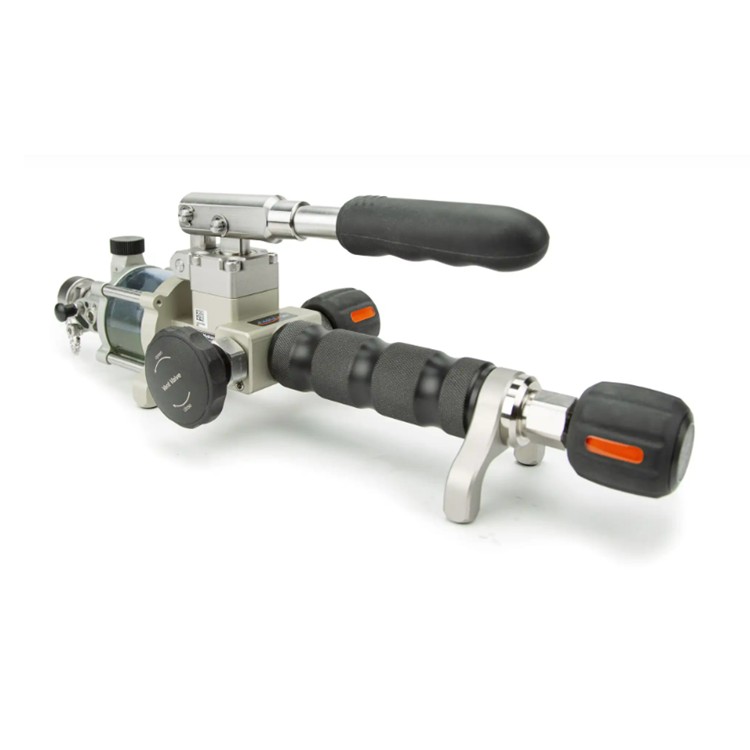

The ADT997 Handheld Hydraulic Pressure Pump delivers up to 10,000 psi (700 bar) using a dual-stage pre-pressure piston for efficiency and ease of use. Its lever-type pressurization ensures quick stabilization, while a fine adjust screw enables precise pressure adjustments. Due to its adjustable reference port and dual rubber grips, the ADT997 allows for operating positions to be utilized, making it a modern upgrade to traditional handheld pumps. The ADT997 can be operated using mineral oil, deionized water, hydraulic oil, and more.
- Pressure range: up to 1,000 psi (70 bar)
- Dual stage piston: Higher pressure with less effort
- Multi-position versatility for on-site use
- Lever pressurization: Efficient and quick stabilization
- Portable: Weighs 3.5 lb (1.6 kg)
- Low maintenance
Portable:
- Only 4 lbs
Durable and Minimal Maintenance
- Custom machined to handle rugged use while remaining leak-free
Easy-to-use
- Dual action piston allows for higher pressure with less effort
Multiple Operating Positions

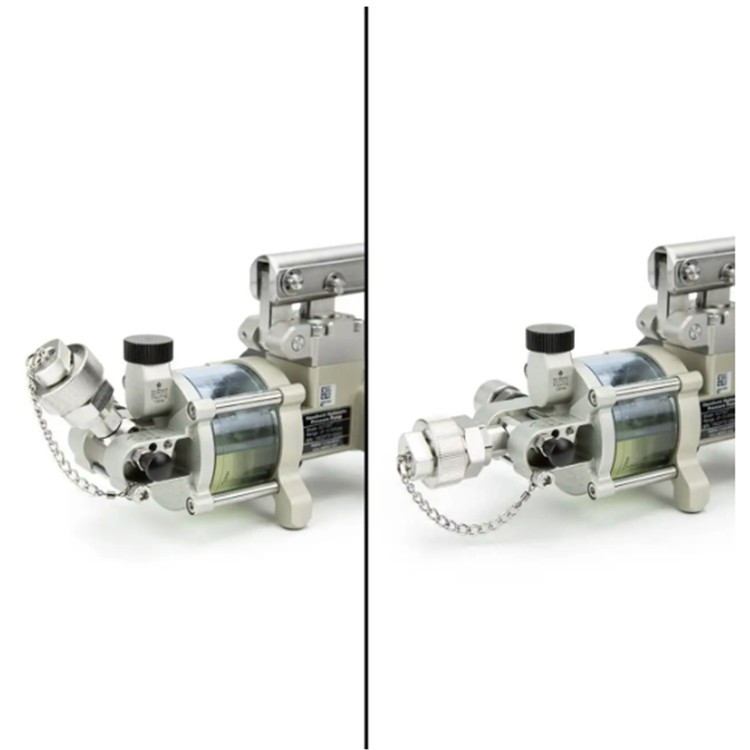

- Use either horizontally or vertically with the adjustable reference port and dual rubber grips
Hand-tight Quick Connectors

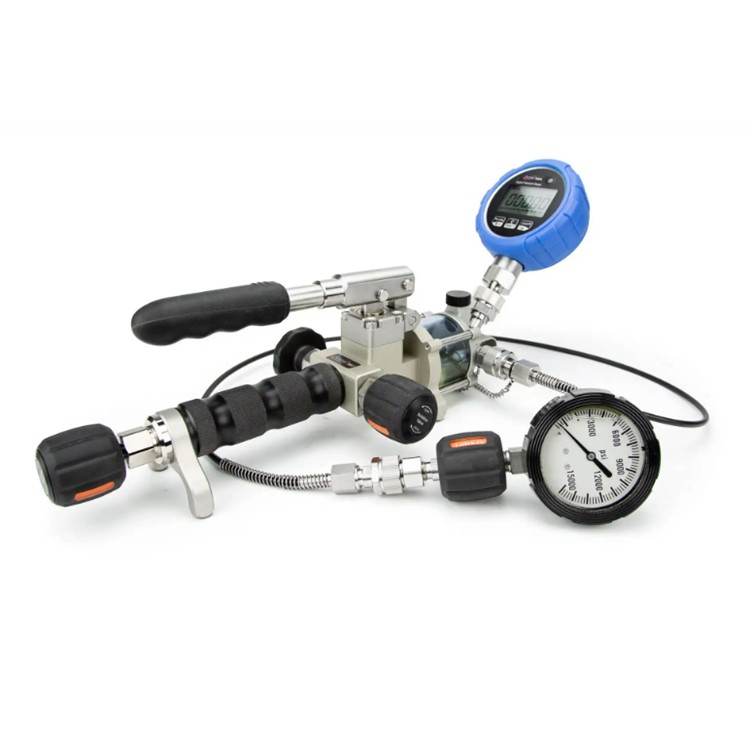

- Included hose features hand tight quick connectors and prevents leaks while changing DUTs
가격이 궁금하신가요?
더 많은 자료는?
클릭 하시면 이동합니다.
에디텔 ・ ADDITEL
997
핸드타입 공압 압력펌프
997 Handheld Pneumatic Pressure Pump
The ADT997 Handheld Hydraulic Pressure Pump delivers up to 10,000 psi (700 bar) using a dual-stage pre-pressure piston for efficiency and ease of use. Its lever-type pressurization ensures quick stabilization, while a fine adjust screw enables precise pressure adjustments. Due to its adjustable reference port and dual rubber grips, the ADT997 allows for operating positions to be utilized, making it a modern upgrade to traditional handheld pumps. The ADT997 can be operated using mineral oil, deionized water, hydraulic oil, and more.
- Pressure range: up to 1,000 psi (70 bar)
- Dual stage piston: Higher pressure with less effort
- Multi-position versatility for on-site use
- Lever pressurization: Efficient and quick stabilization
- Portable: Weighs 3.5 lb (1.6 kg)
- Low maintenance
Portable:
- Only 4 lbs
Durable and Minimal Maintenance
- Custom machined to handle rugged use while remaining leak-free
Easy-to-use
- Dual action piston allows for higher pressure with less effort
Multiple Operating Positions
- Use either horizontally or vertically with the adjustable reference port and dual rubber grips
Hand-tight Quick Connectors
- Included hose features hand tight quick connectors and prevents leaks while changing DUTs
