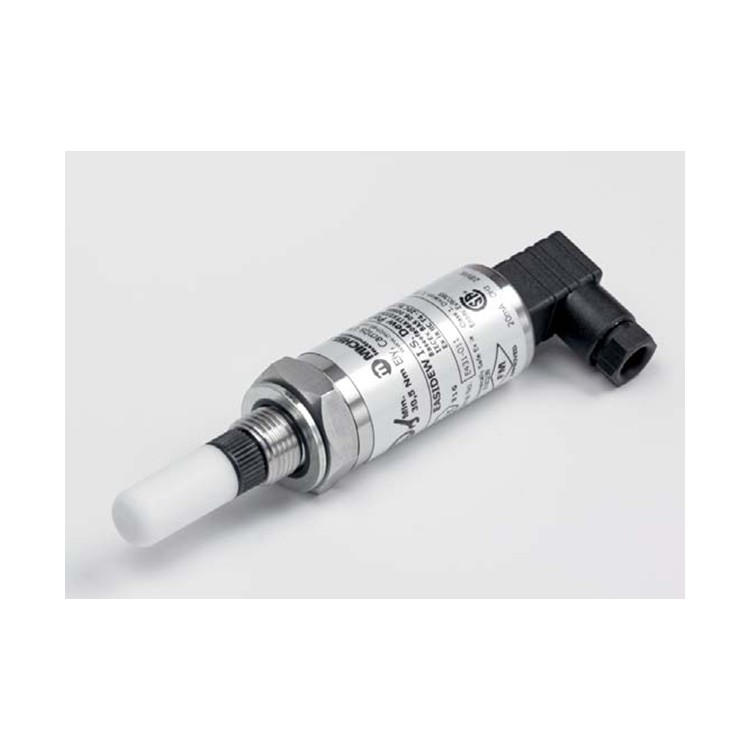

MICHELL EASIDEW IS 본질안전 노점 트랜스미터
가격문의(상세정보 참조)
MICHELL EASIDEW IS 본질안전 노점 트랜스미터
MICHELL EASIDEW IS Dew-Point Transmitter
- 노점범위 -100 to +20°Cdp
- 노점정확도 ±2°Cdp
- 출력신호 4-20 mA
- 공급전원 12 to 28 V DC
- 사용온도 -40 to + +60°C
- 사용압력 45MPa (450 barg/6500 psig) max
- 적정유량 1 to 5 Nl/min mounted in standard sampling block; 0 to 10m/sec direct insertion insertion
- 연결Thread 5/8 inch 18 UNF
클릭 하시면 이동합니다.
미쉘 ・ MICHELL
EASIDEW IS
본질안전 노점 트랜스미터

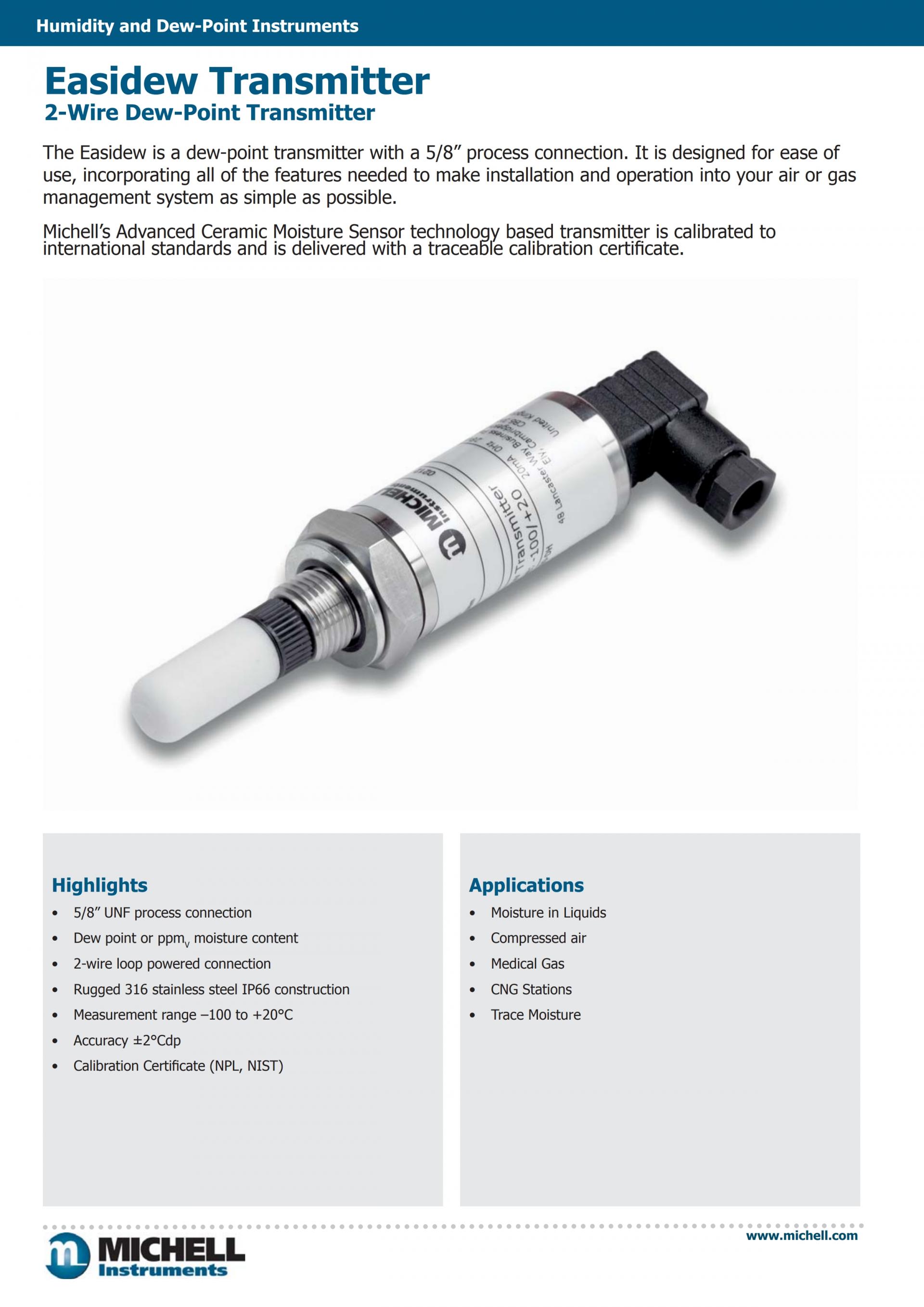

EASIDEW IS Dew-Point Transmitter
* IECEx, CSA, FM, ATEX certified transmitter for use in hazardous areas
* 5/8” UNF process connection
* Dew point or ppmV moisture content
* 2-wire loop powered connection
* Rugged 316 stainless steel IP66 construction
* Measurement range -100 to +20°Cdp
* Accuracy ±2°Cdp
* Calibration Certificate (NPL, NIST)
가격이 궁금하신가요?
더 많은 자료는?
클릭 하시면 이동합니다.
미쉘 ・ MICHELL
EASIDEW IS
본질안전 노점 트랜스미터
EASIDEW IS Dew-Point Transmitter
* IECEx, CSA, FM, ATEX certified transmitter for use in hazardous areas
* 5/8” UNF process connection
* Dew point or ppmV moisture content
* 2-wire loop powered connection
* Rugged 316 stainless steel IP66 construction
* Measurement range -100 to +20°Cdp
* Accuracy ±2°Cdp
* Calibration Certificate (NPL, NIST)
