MICHELL EASIDEW PRO IS 본질안전 수분 트랜스미터
가격문의(상세정보 참조)

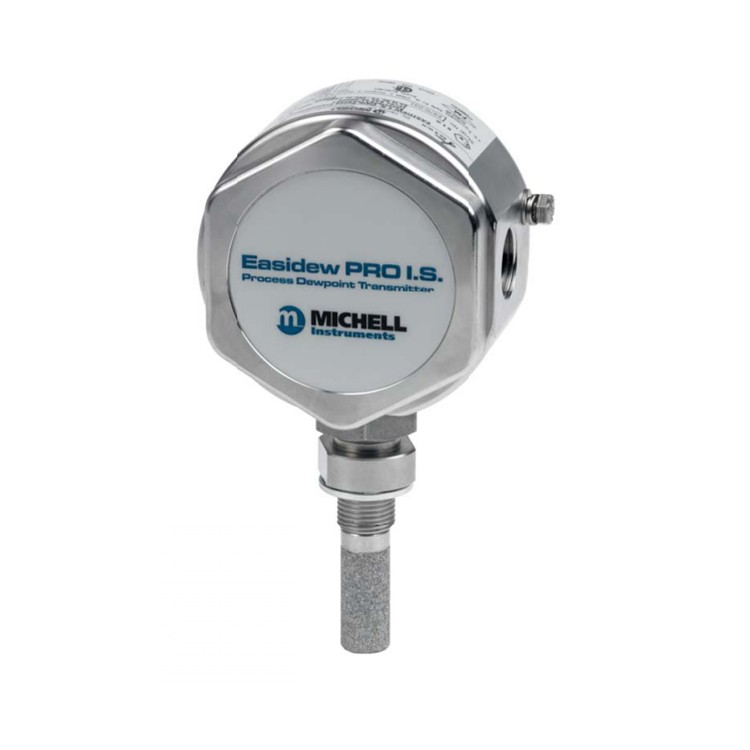

MICHELL EASIDEW PRO IS 본질안전 수분 트랜스미터
MICHELL EASIDEW PRO IS Intrinsically Safe Moisture Transmitter
- 노점범위 -(110)100 to +20°Cdp
- 노점정확도 ±1 ~ 2°Cdp
- 출력신호 4-20 mA
- 공급전원 14 to 28 V DC
- 사용온도 -40 to + 70°C
- 사용압력 45MPa (450 barg/6500 psig) max
- 적정유량 1 to 5 Nl/min mounted in standard sampling block; 0 to 10m/sec direct insertion insertion
- 연결Thread 5/8 inch 18 UNF
클릭 하시면 이동합니다.
미쉘 ・ MICHELL
EASIDEW PRO IS
본질안전 수분 트랜스미터
EASIDEW PRO IS Intrinsically Safe Moisture Transmitter
* Measurement range –110 to +20°Cdp
* ATEX, IECEx, cCSAus, FM, TC TR Ex certified
* Accuracy ±1°Cdp
* 2-wire 4–20 mA output
* Traceable 13-point calibration certificate
* 450 barg pressure rating
* Alternative process connections available
* Material certification to BS EN 10204 3.1
* Moisture in gases and liquids
* Service exchange program
가격이 궁금하신가요?
더 많은 자료는?
클릭 하시면 이동합니다.
미쉘 ・ MICHELL
EASIDEW PRO IS
본질안전 수분 트랜스미터
EASIDEW PRO IS Intrinsically Safe Moisture Transmitter
* Measurement range –110 to +20°Cdp
* ATEX, IECEx, cCSAus, FM, TC TR Ex certified
* Accuracy ±1°Cdp
* 2-wire 4–20 mA output
* Traceable 13-point calibration certificate
* 450 barg pressure rating
* Alternative process connections available
* Material certification to BS EN 10204 3.1
* Moisture in gases and liquids
* Service exchange program
