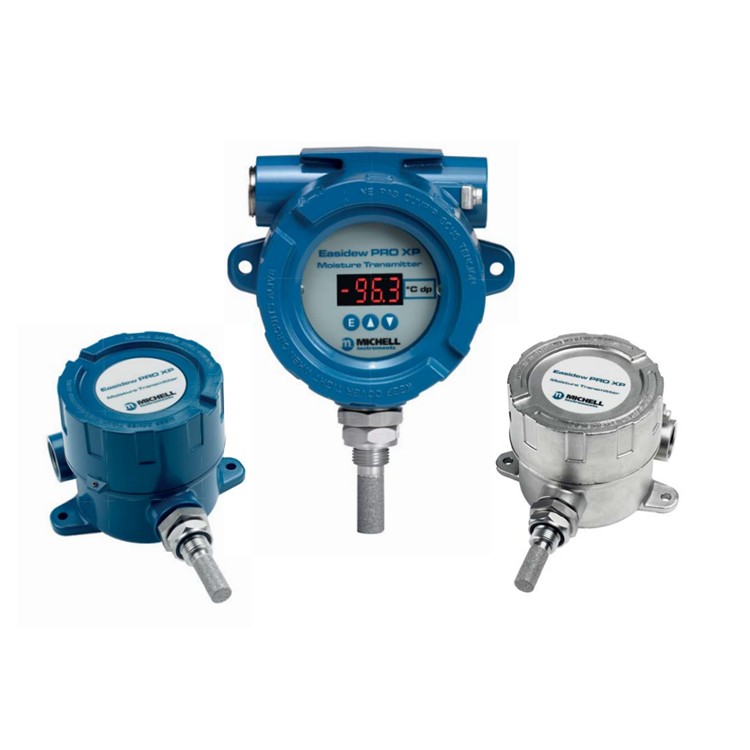

MICHELL EASIDEW PRO XP 내압방폭 수분 트랜스미터
가격문의(상세정보 참조)
MICHELL EASIDEW PRO XP 내압방폭 수분 트랜스미터
MICHELL EASIDEW PRO XP Moisture Transmitter
- 노점범위 -110 up to +20°Cdp
- 노점정확도 ±1°Cdp
- 출력신호 4-20 mA
- 공급전원 14 to 28 V DC
- 사용온도 -20 to +70°C
- 사용압력 45 MPa (450 barg) maximum
- 적정유량 1 to 5 Nl/min mounted in standard sampling block 0 to 10 m/sec direct insertion
- 연결Thread 3/4” - 16 UNF with recessed Viton® o-ring
클릭 하시면 이동합니다.
미쉘 ・ MICHELL
EASIDEW PRO XP
내압방폭 수분 트랜스미터
EASIDEW PRO XP Moisture Transmitter
* Measurement ranges -110 up to +20°Cdp
* Global explosion / flameproof certification
* Accuracy ±1°Cdp
* 2-wire 4-20 mA output
* Traceable 13-point calibration certificate
* 450 bar pressure rating
* 3/4” UNF industry standard process connection
* EN 10204 3.1 material certification
* Moisture in gases and liquids
* Optional integral display meter
가격이 궁금하신가요?
더 많은 자료는?
클릭 하시면 이동합니다.
미쉘 ・ MICHELL
EASIDEW PRO XP
내압방폭 수분 트랜스미터
EASIDEW PRO XP Moisture Transmitter
* Measurement ranges -110 up to +20°Cdp
* Global explosion / flameproof certification
* Accuracy ±1°Cdp
* 2-wire 4-20 mA output
* Traceable 13-point calibration certificate
* 450 bar pressure rating
* 3/4” UNF industry standard process connection
* EN 10204 3.1 material certification
* Moisture in gases and liquids
* Optional integral display meter
