슈미트 ・ SCHMIDT
IL 30.015 MPM
질량 유량 센서

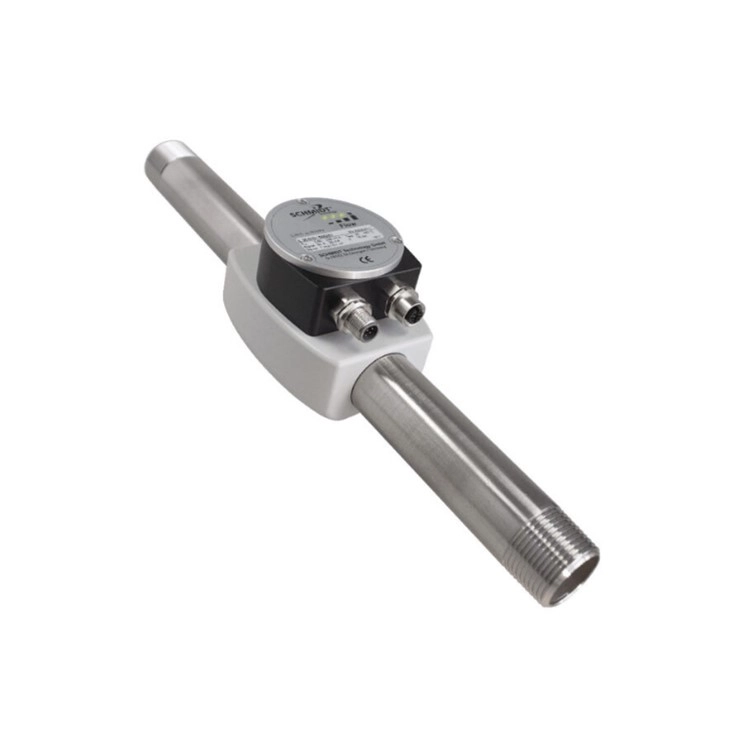

IL 30.015 MPM Mass Flow Sensor
The air flow sensor is used for flow measurement in compressed air and gases. The sensor applies in the compressed air consumption measurement, flow measurement of passivation gases as well as for consumption measurement of compressed air tools and air-powered machines. Beginning from connection thread size 1" the mass flow sensor is equipped with the intelligent Multi-Point-Measurement-Technology (MPM), which allows highly precise and reproducible measurement values even in installations with a poor flow profile. An inlet distance of only 3 x D is sufficient to achieve best measurement results.
Shortest inlet and outlet distances due to
Multi-Point-Measurement
- High measuring accuracy even in installations with a poor flow profile
- Direct measurement of volume flow and medium temperature
- Measuring ranges 76.3 / 229 / 417 / 712 Norm-m³/h
- Low pressure loss
- Additional modules for enhanced functionality
- Simple installation due to integrated measuring distance
- Dual LEDs to indicate volume flow or operating status of sensor
- 2 analogue outputs (4 … 20 mA)
- 1 pulse output
- Pressure resistant up to 16 bar
- SCHMIDT® Bluetooth® Module BT 10.010 as accessory
- SCHMIDT® PC Programming Kit as accessory
- MPM Technology - demo video about its functional principle (under product category compressed air)
The following parameters can be set:
- Sensor name
- Scaling and damping of analogue outputs
- Units of measurement (flow and temperature of medium)
Android App V2 for free download under:
Service & Support for Sensors --> Product Downloads --> SCHMIDT Sensor App V2
Available versions:
- IL 30.005 (0.5")
- IL 30.010 MPM (1.0")
- IL 30.015 MPM (1.5")
- IL 30.020 MPM (2.0")
Perfect for use in air consumption and air and gases flow measurement, as well as for compressed air operated tools and machines.
