슈미트 ・ SCHMIDT
SS 20.260
유량 센서

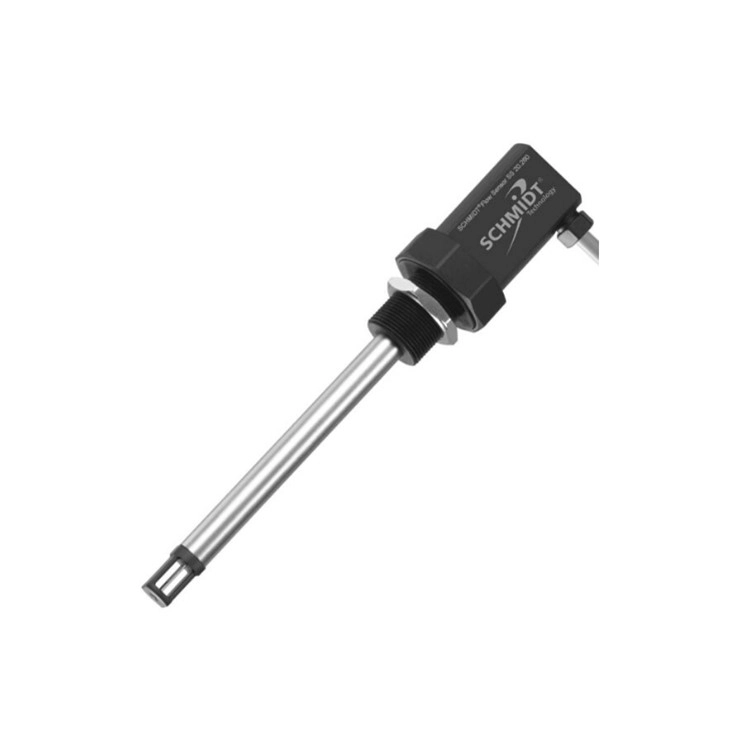

Flow Sensor SS 20.260
- Chamber head (fast response time)
- Flow and temperature signal (optional)
- Probe length 50 … 500 mm
- Measuring ranges 0 … 10 m/s to 0 … 60 m/s
- Temperature range +120 °C
SCHMIDT Technology offers a price sensitive flow sensor under the designation SS 20.260, which is characterised by its compact and rugged design. With a measuring range up to 60 m/s and its linear output signal, it is an universal sensor for measuring flow velocity, volume flow or mass flow under atmospheric conditions. The sensor element is well protected against mechanical stress by the impact resistant chamber head. Via two LEDs, the sensor indicates whether the supply voltage is sufficient and if it works properly.
- Industrial processes
- Flow measurement in air ducts
- Control of the combustion air in oil, coal, wood or gas burners
- Ventilation and air conditioning
- Flow control in cooling and drying systems
가격이 궁금하신가요?
더 많은 자료는?
슈미트 ・ SCHMIDT
SS 20.260
유량 센서
Flow Sensor SS 20.260
- Chamber head (fast response time)
- Flow and temperature signal (optional)
- Probe length 50 … 500 mm
- Measuring ranges 0 … 10 m/s to 0 … 60 m/s
- Temperature range +120 °C
SCHMIDT Technology offers a price sensitive flow sensor under the designation SS 20.260, which is characterised by its compact and rugged design. With a measuring range up to 60 m/s and its linear output signal, it is an universal sensor for measuring flow velocity, volume flow or mass flow under atmospheric conditions. The sensor element is well protected against mechanical stress by the impact resistant chamber head. Via two LEDs, the sensor indicates whether the supply voltage is sufficient and if it works properly.
- Industrial processes
- Flow measurement in air ducts
- Control of the combustion air in oil, coal, wood or gas burners
- Ventilation and air conditioning
- Flow control in cooling and drying systems
