FLUKE 287/FVF 콤보키트 디지털멀티미터

주요 기능

Equipped with new functionality

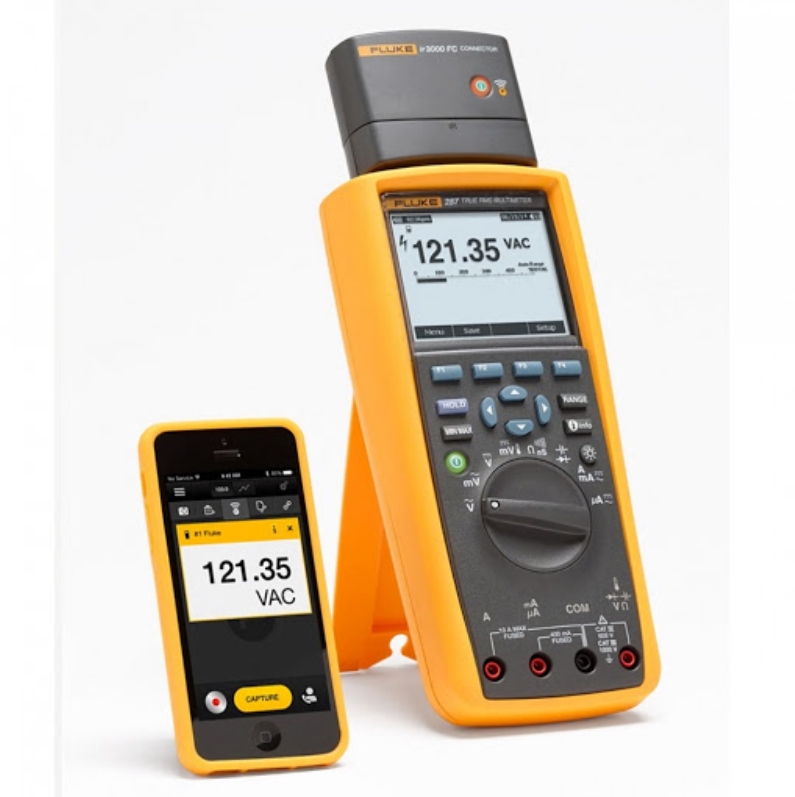

• NEW – Now compatible with Fluke Connect mobile app and all Fluke FC enabled test tools with optional ir3000 FC infrared connector (sold separately).
• NEW – Let your team see what you see in an instant with ShareLive™ video call (requires Fluke Connect mobile app and ir3000 FC wireless connector).
• TrendCapture quickly graphically displays logged data session to quickly determine whether anomalies may have occurred.
• Zoom on trend provides unprecedented ability to view and analyze TrendCapture data; zoom in up to 14 times.
• Selectable AC filter (smoothing mode) helps display a steadier reading when the input signal is changing rapidly or noisy.
• Adjustable recording and auto hold thresholds, specify a percentage change in the readings that begins a new event.

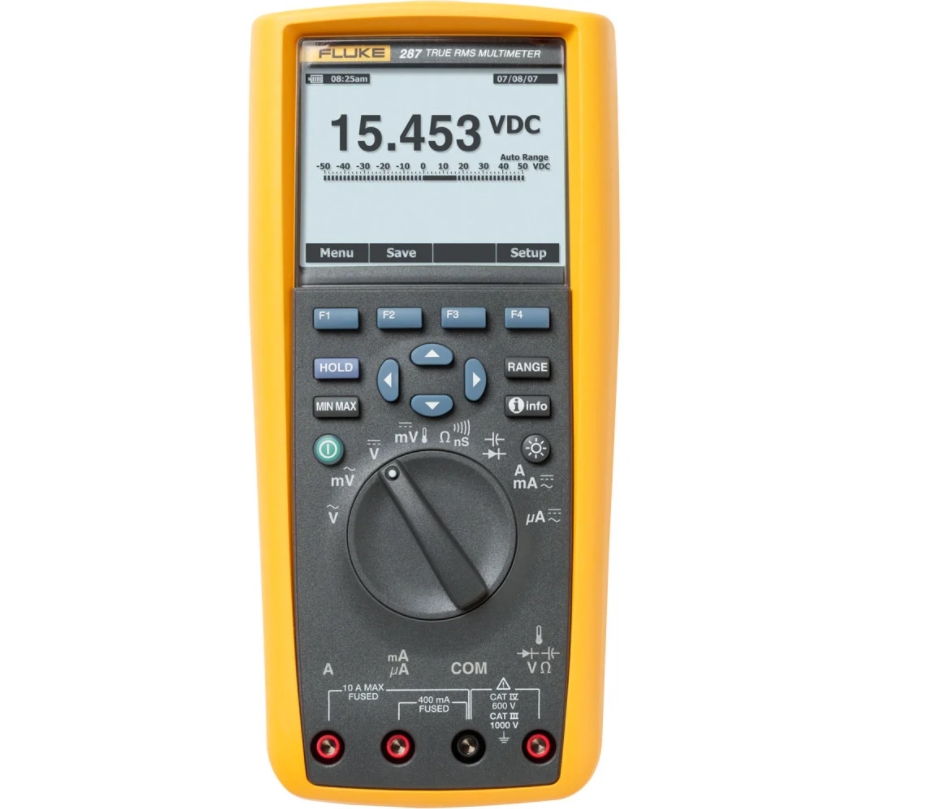

• Large 50,000 count, 1/4 VGA display with white backlight. Multiple sets of measurement information can be simultaneously displayed at the same time.
• Logging function with expanded memory for unattended monitoring of signals over time. Using on-board TrendCapture users can graphically review logged readings without needing a PC. Store up to 15,000 recorded events.
• On board help screens for measurement functions.
• Saved measurements allow you to name and recall measurements made in the field.
• Multi-lingual interface.
• Multiple logging sessions possible without download.
• 0.025% basic DC accuracy.
• 100 kHz ac bandwidth.
• Real time clock for automatic time stamping of saved readings.
• True RMS AC voltage and current for accurate measurements on complex signals or non-linear loads. AC bandwidth specified to 100 kHz.
• Measure up to 10 A (20 A for 30 seconds).
• 100 mF capacitance range.
• Temperature function.
• Relative mode to remove test lead resistance from low ohms or capacitance measurements.
• Peak capture to record transients as fast as 250 μs.

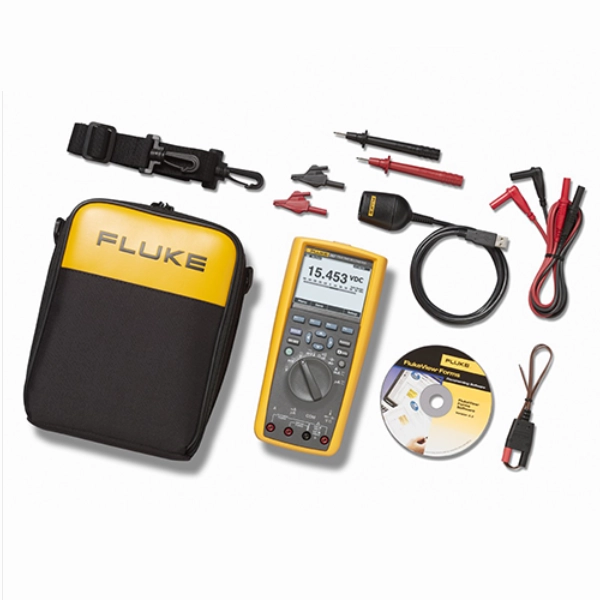

• Premium test leads and alligator clips included.
• Amp jack plugs included.
• FlukeView forms enable you to document, store and analyze individual readings or a series of measurements, then convert them into professional-looking documents.
• Optional magnetic hanger allows you to hang the meter for easy viewing while freeing your hands to focus on the job.
• Limited lifetime warranty.
