FOERSTER STATOGRAPH CM+ / CM 와류 균열 테스터
가격문의(상세정보 참조)
FOERSTER STATOGRAPH CM+ / CM 와류 균열 테스터
FOERSTER STATOGRAPH CM+ / CM Crack testing of complex workpieces with eddy current
클릭 하시면 이동합니다.
푀르스터 ・ FOERSTER

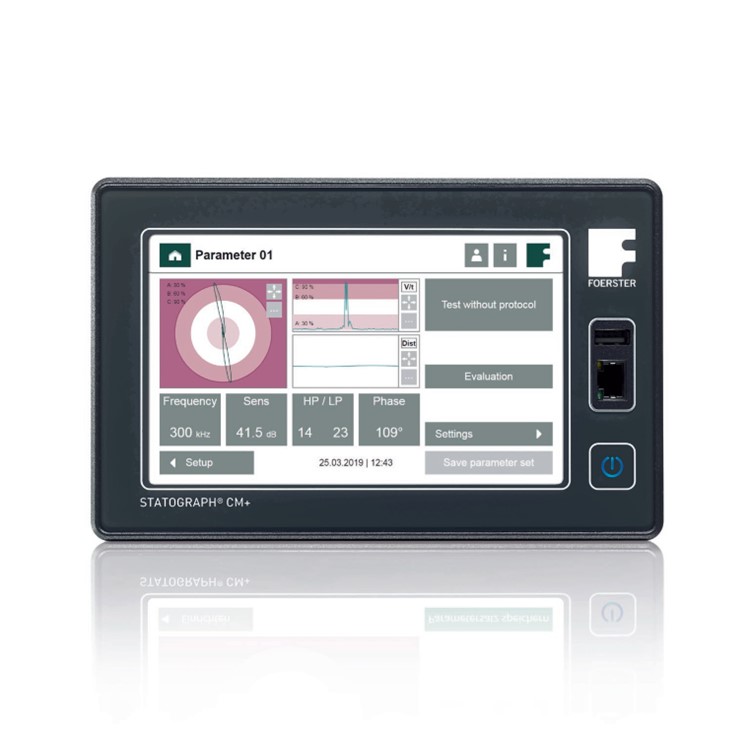

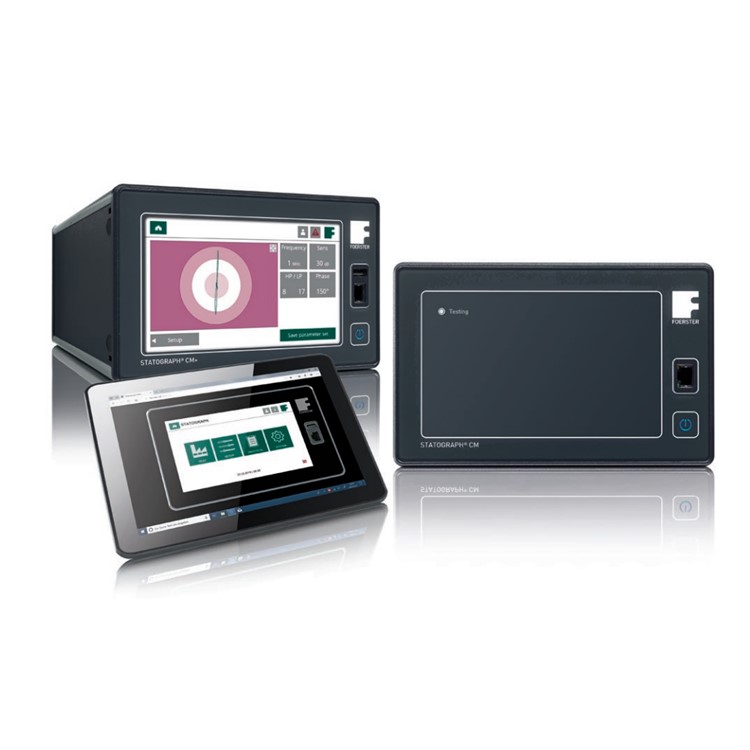

STATOGRAPH CM+ / CM
와류 균열 테스터
CM+ / CM Crack testing of complex workpieces with eddy current
Continuous process control via web connection – Ready for Industry 4.0
For more than 50 years, the STATOGRAPH test instrument has successfully detected and documented surface defects in components. However, digitized production environments today place new demands on quality inspection. To meet these requirements we have developed the STATOGRAPH CM+ / CM. This makes crack detection even easier and more intuitive - at any time and from anywhere via web connection. We are ready for the challenges of Industry 4.0.
Your advantages at a glance
- Decentralized operation: web-enabled access allows user inputs from mobile devices
- Innovative wizard sets parameters automatically
- Improved filters for even more precise testing
- Fieldbus connections for simple integration into control systems
- Intuitive and easy-to-understand user interface
Technical Data
Excitation frequency: 1 kHz, 3 kHz, 10 kHz, 30 kHz, 100 kHz, 300 kHz, 1 MHz, 3 MHz, 10 MHz
Sensor: Differential or absolute sensor
High-pass, low-pass filter: 1 Hz to 56 kHz (28 levels)
Interface: Profinet, Digital I/O
Mains connection: 85 - 265 V, 47 - 63 Hz
statograph cm+ statograph cm+ FOERSTER FOERSTER statograph cm+ statograph cm+푀르스터 푀르스터 statograph cm+ statograph cm statograph cm FOERSTER FOERSTER statograph cm statograph cm 푀르스터 푀르스터 statograph cm
