에이이피 트랜스듀서 ・ AEP TRANSDUCERS
LABDMM2
디지털 압력게이지

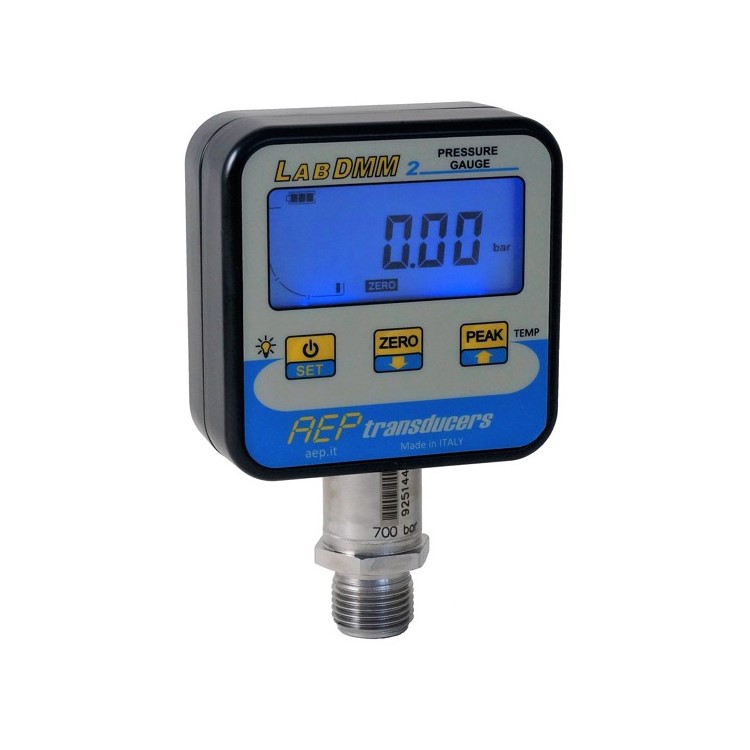

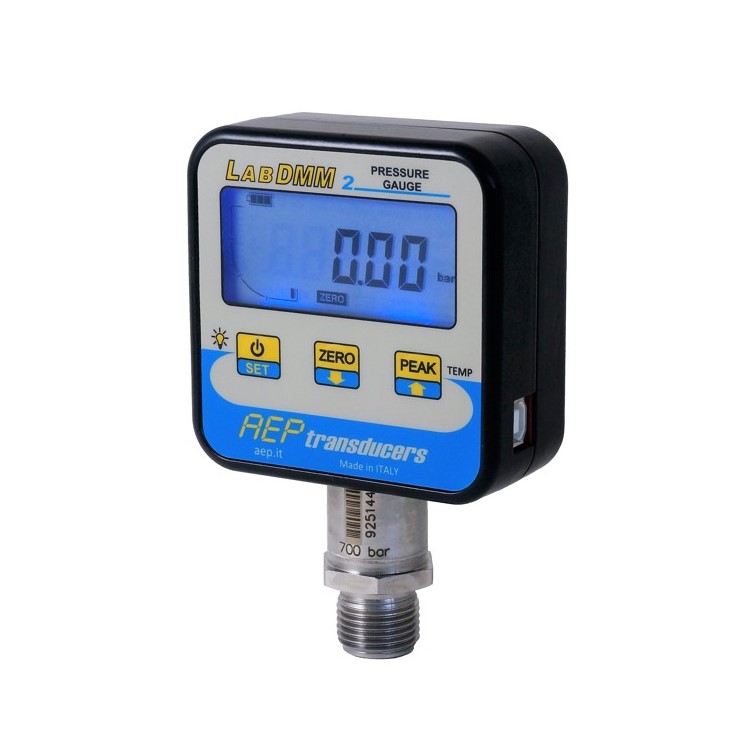

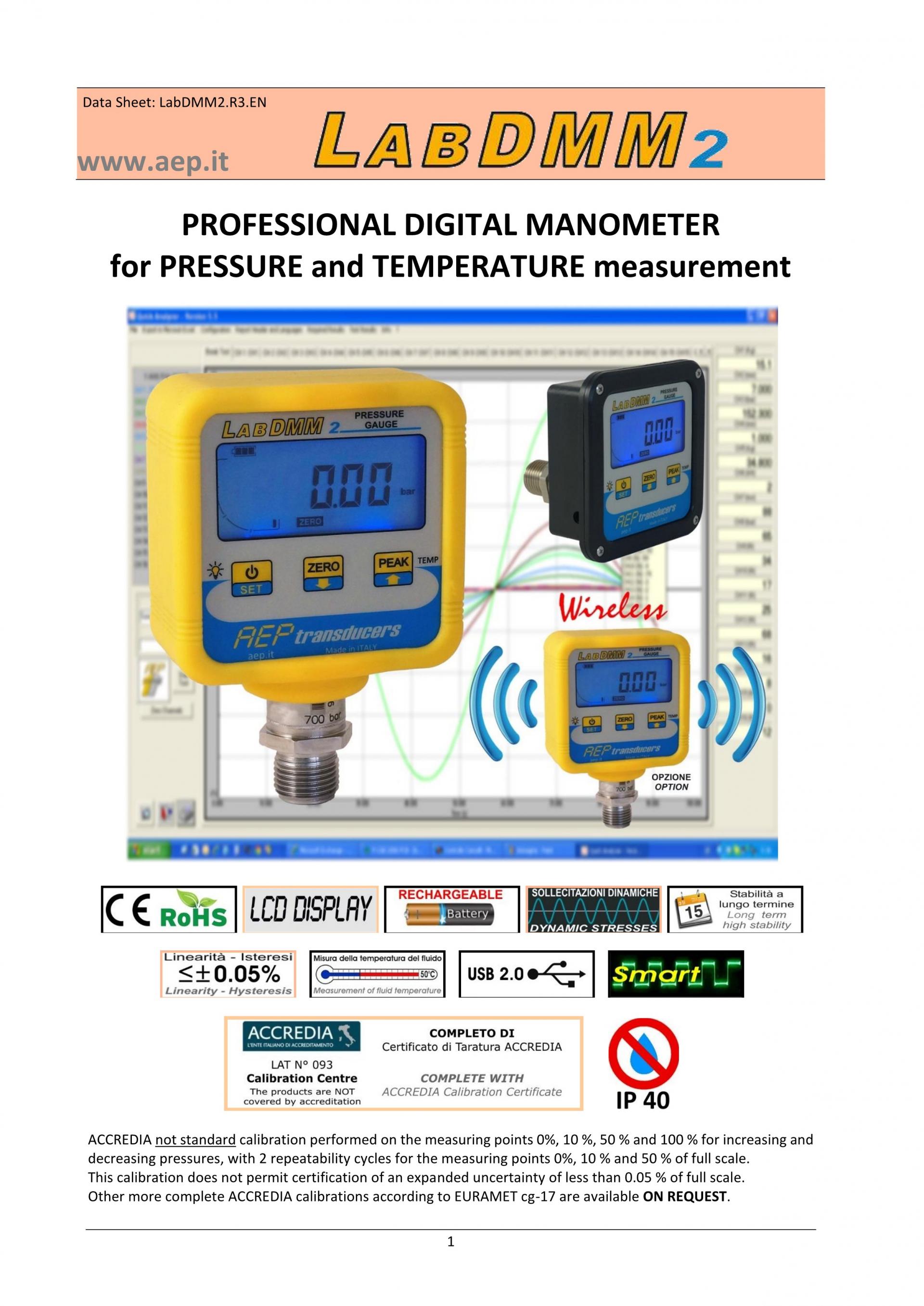

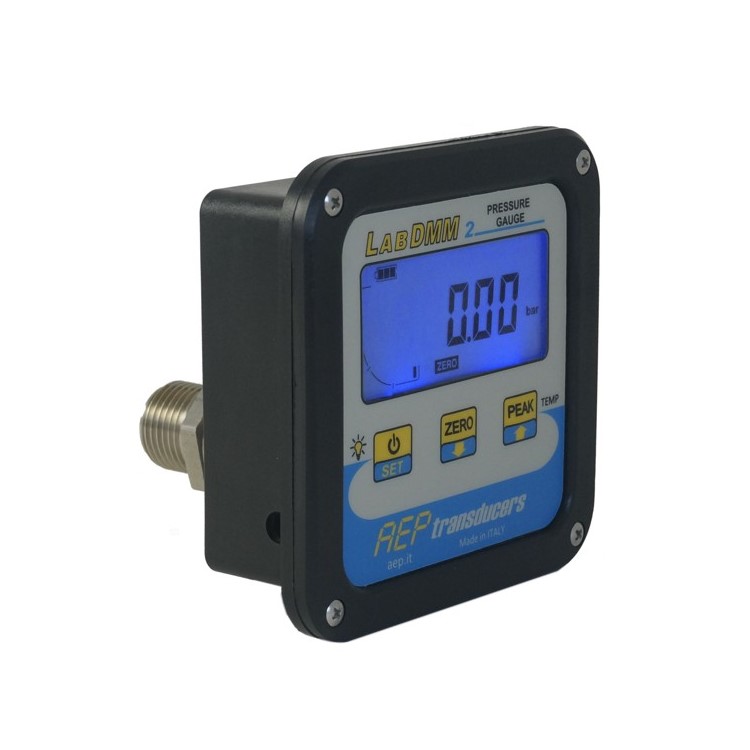

LABDMM2 professional digital pressure gauge
RELATIVE pressures from 100 mbar to 3000 bar
ABSOLUTE pressures from 1 bar to 10 bar
Relative VACUUM measure -1 bar

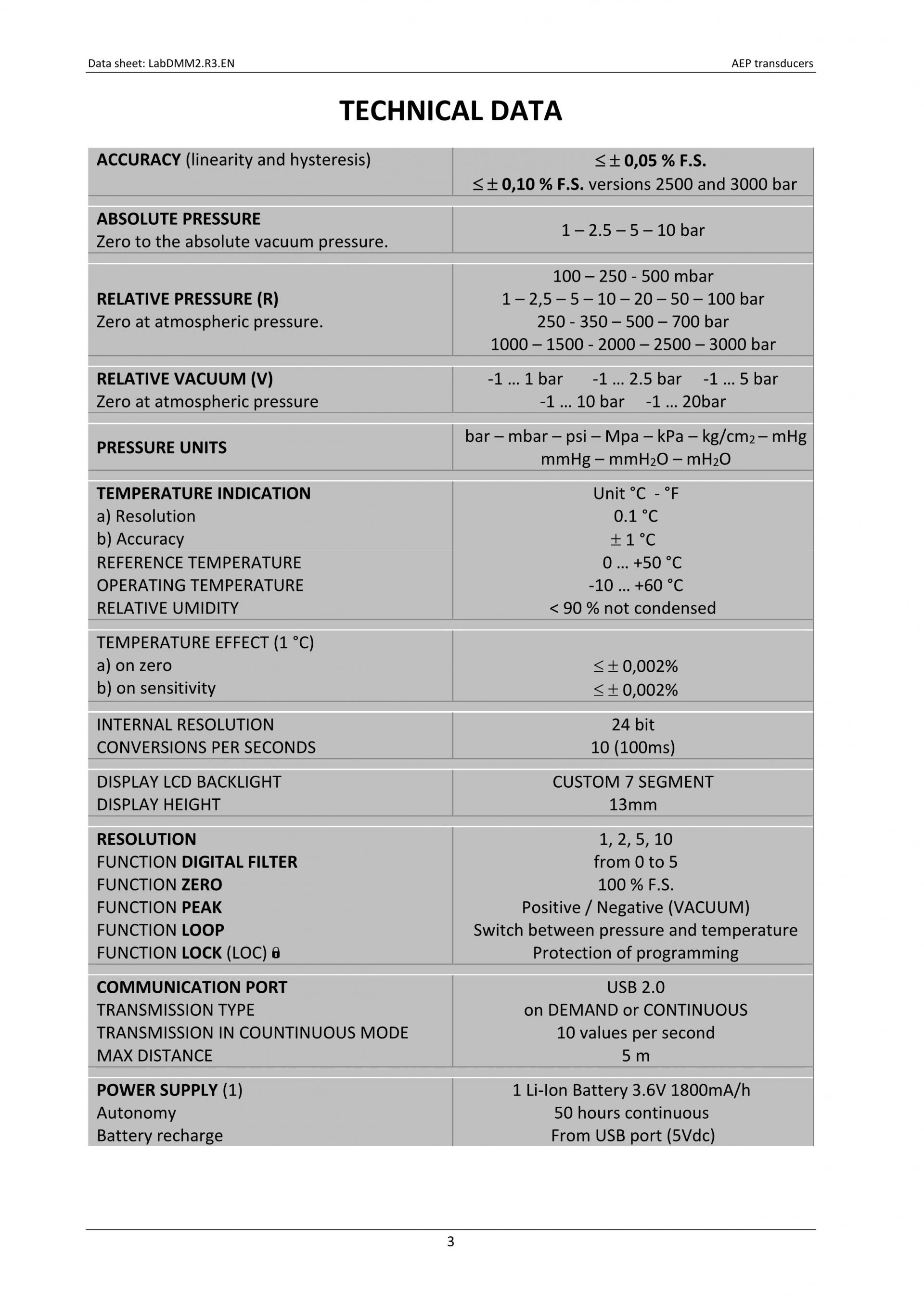

linearity and hysteresis 0.05 %
HIGH ACCURACY
High mechanical strength
Suitable for dynamic and static applications

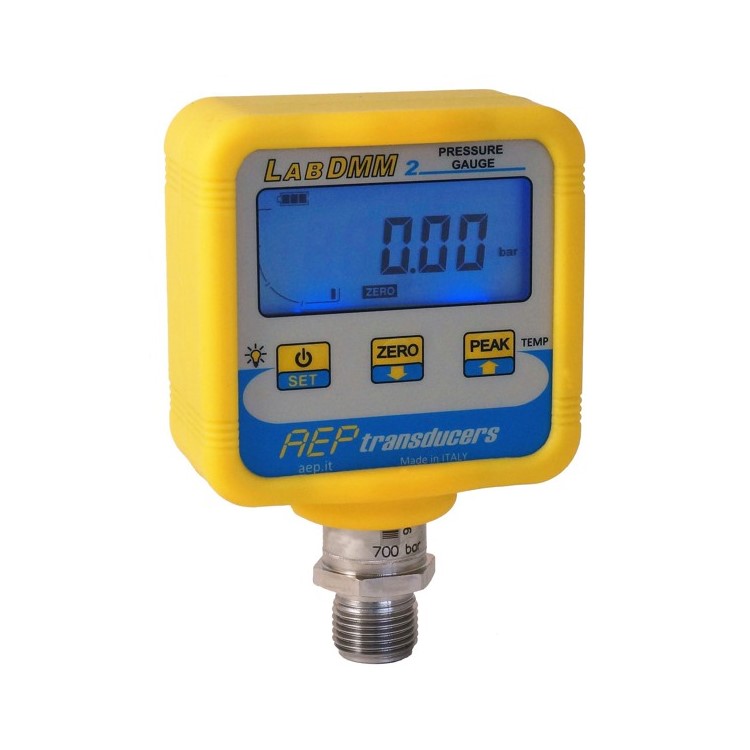

- Shock resistant silicone COVER
- Metal housing
- Stainless steel sensor
- Process connection 1/2 “Gas male
- IP40 protection
- Rechargeable internal batteries with 50 hours autonomy (continuous operation)
- Programmable resolution, digital filter and measuring units
- Zero and peak functions (positive and vacuum pressure)
- Analogue pressure display always on (bar graph)
- Complete with ACCREDIA certificate

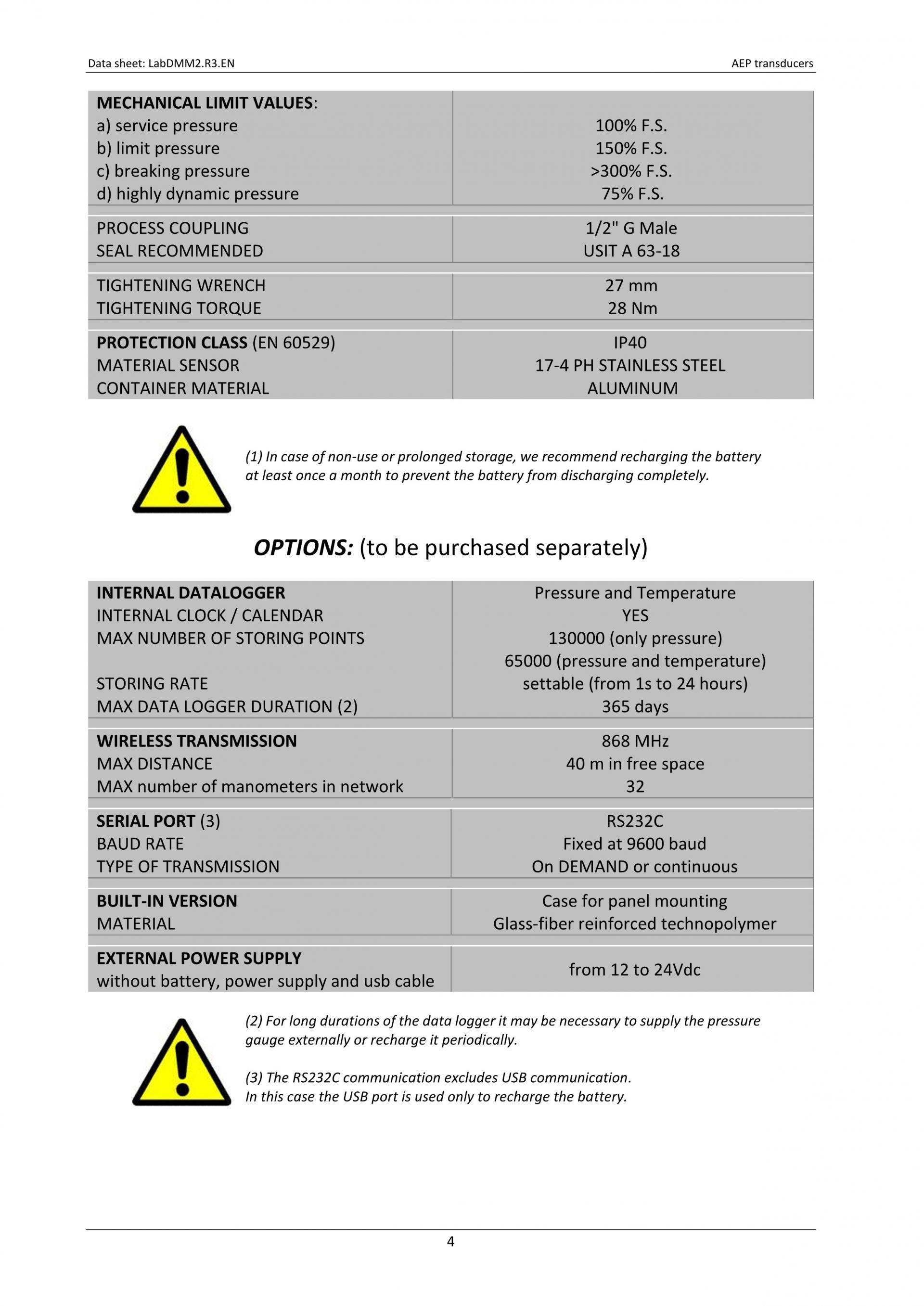

- External power supply (option)
- RS232C serial output (option)
- Built-in container (option)

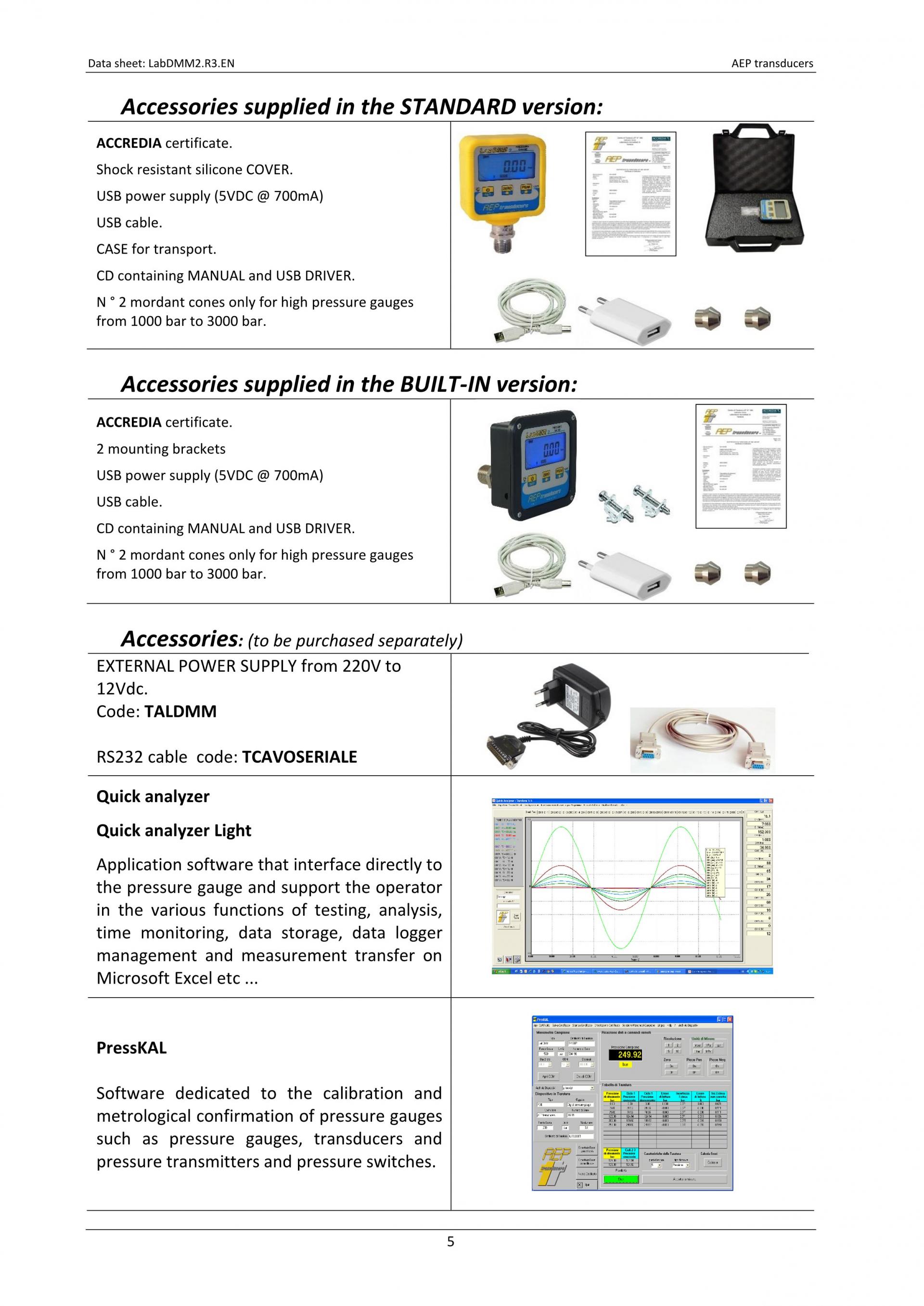

ACCESSORIES
- External power supply
- RS232C cable
- RS232C-USB adapter

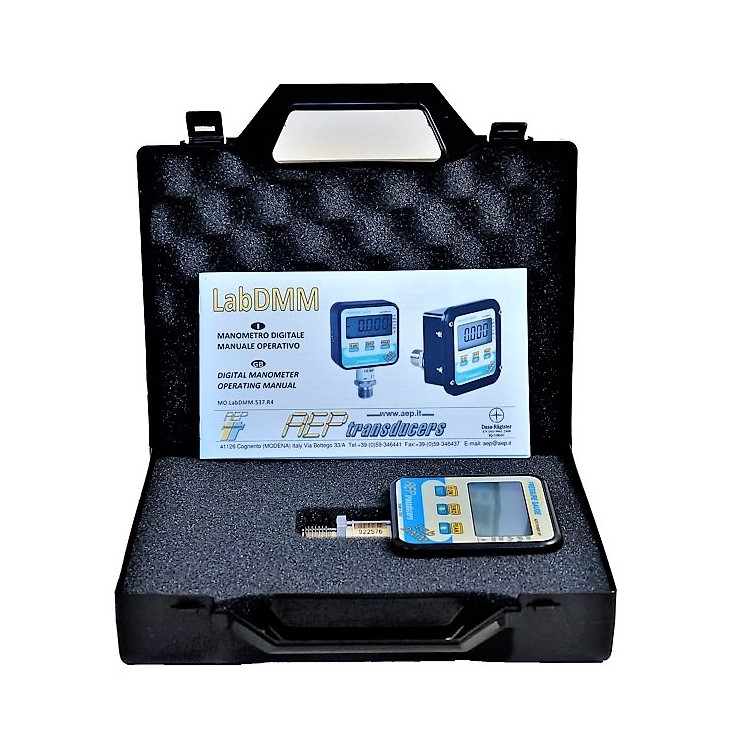

- TRANSPORT CASE
Software
- Quick analyzer
- Quick analyzer Light
- PresKAL
Application software that interfaces directly with the gauge and supports the operator in the various functions of testing, analysis, monitoring over time, data storage, DATA LOGGER management, transfer of measurements to Microsoft Excel, etc…
Software
PresKAL
Application software for calibrating pressure transducer gauges, vacuum and pressure switches using digital sample gauges.
The calibration procedure is carried out in accordance with EA Standard 10-17.
The evaluation of the calibration uncertainty is carried out according to the requirements of UNI CEI ENV 13005.

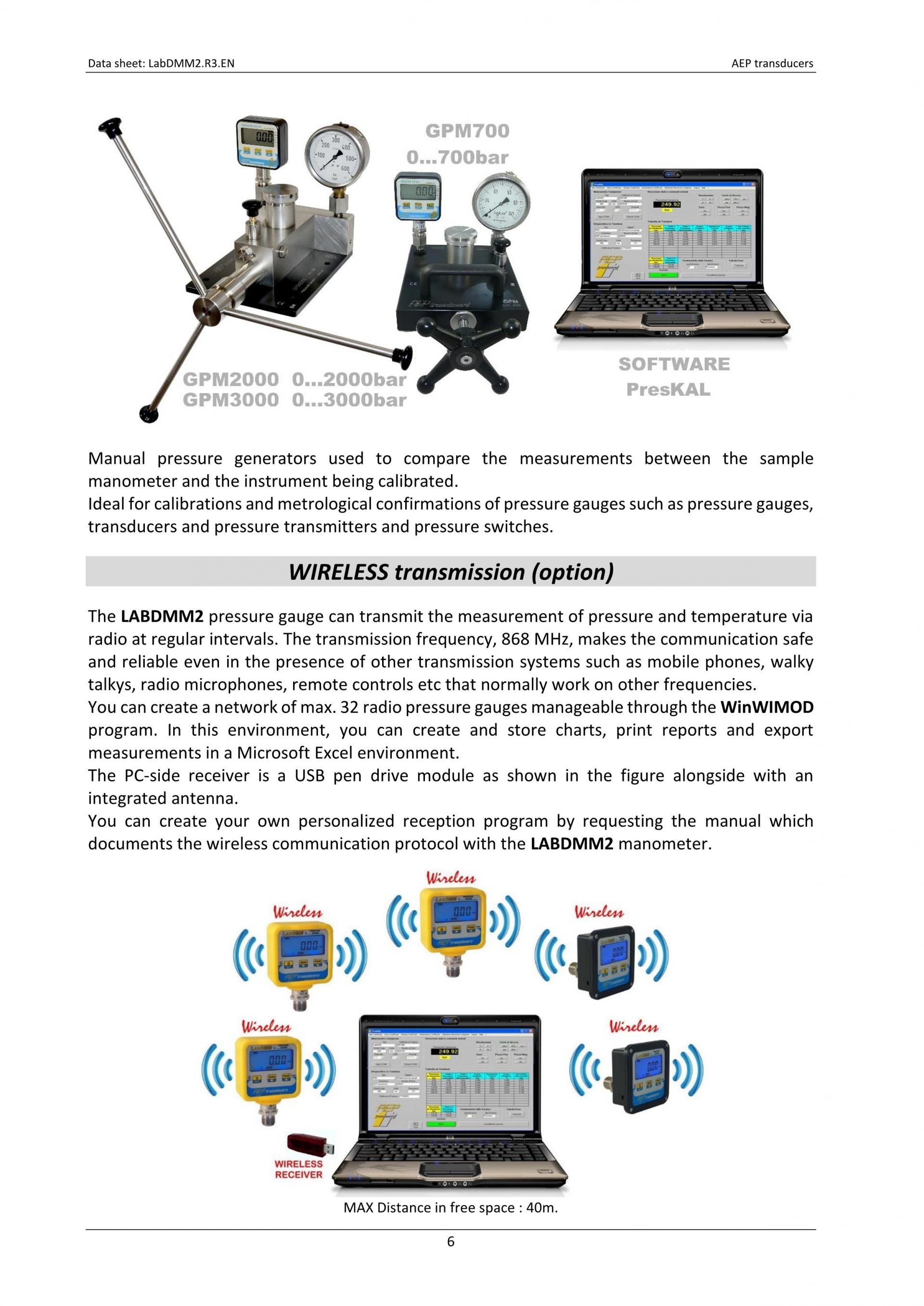

GPM
Manual pressure generators used to compare the measurements between the sample pressure gauge and the instrument calibration. Ideal for performing calibration and metrological confirmation of pressure gauges, pressure transducers, pressure transmitters and pressure switches.
