SIKA PM700E 핸드펌프 유압교정기 (700bar)
가격문의(상세정보 참조)

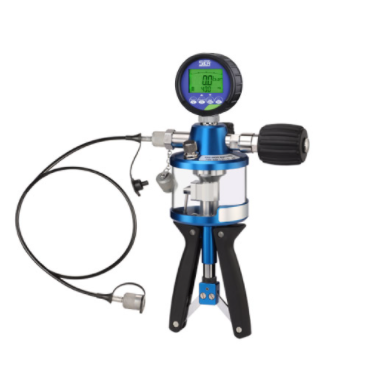

SIKA PM700E 핸드펌프 유압교정기 (700bar)
SIKA PM700E Pressure Calibrator
- 압력교정범위 0 ~ 700 bar
- 기준압력계 정확도에 따라 교정기의 정확도 결정됨 : 0.5%FS, 0.1% FS, 0.05%FS, 0.01 %FS
- 압력단위 : bar, mbar/hPa, PSI, kPa, MPa, kg/cm²
- 압력계 연결 : G¼’’ female with pressure hose
클릭 하시면 이동합니다.
시카 ・ SIKA
PM700E
핸드펌프 유압교정기 (700bar)
PM700E Pressure Calibrator
압력교정범위 0 ~ 700 bar
기준압력계 정확도에 따라 교정기의 정확도 결정됨 : 0.5%FS, 0.1% FS, 0.05%FS, 0.01 %FS
압력단위 : bar, mbar/hPa, PSI, kPa, MPa, kg/cm²
압력계 연결 : G¼’’ female with pressure hose
Pressure medium distilled water or hydraulic oil
Measuring range 0…700 bar
Pressure range of the hand pump 0…700 bar
Display multi-purpose LCD, 30 x 30 mm
Switchable pressure units bar, mbar/hPa, PSI, kPa, MPa, kg/cm²
Function keys ‘SELECT’ (reset, off, zero, cont) ‘ENTER’
Pressure connection over G¼’’ female with pressure hose (1.0 m)
Protection class IP65
Power supply
3 V battery, 1400 h service life continuous operation
LOW-BAT-display, AUTO-OFF
Measuring range 0…700 bar – Resolution 0.2 bar
Accuracy -0.1 % FS +/-1 digit
Add. case, flexible pressure hose and set of seals
Set of adapter
G⅛’’, G⅜’’, G½’’, G¼“ female
G⅛’’ and G¼“ male
Extra charge EEx ia IIC T5/T6 – 01ATEX6001X
