KEYSIGHT N1810UL 동축 스위치 DC up to 67 GHz, SPDT
가격문의(상세정보 참조)

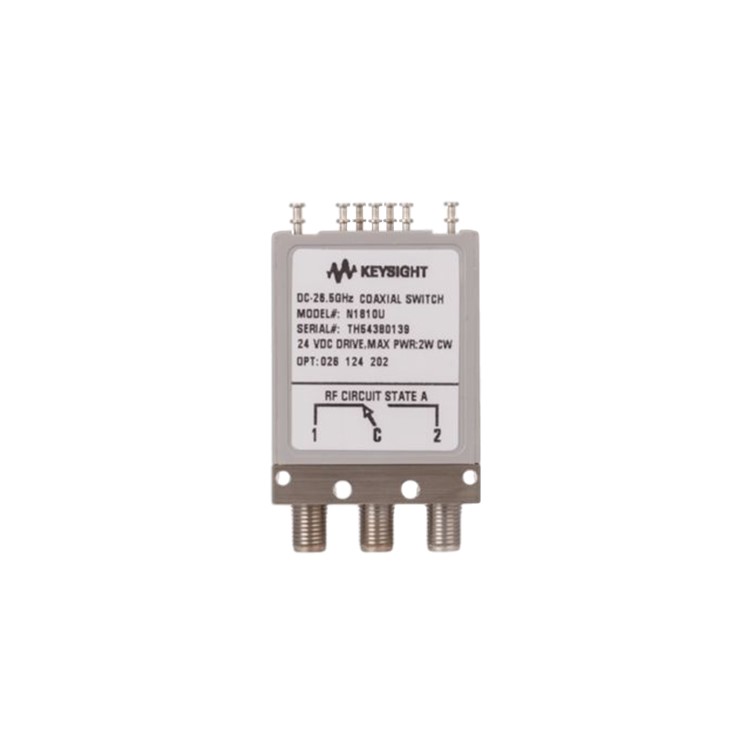

KEYSIGHT N1810UL 동축 스위치 DC up to 67 GHz, SPDT

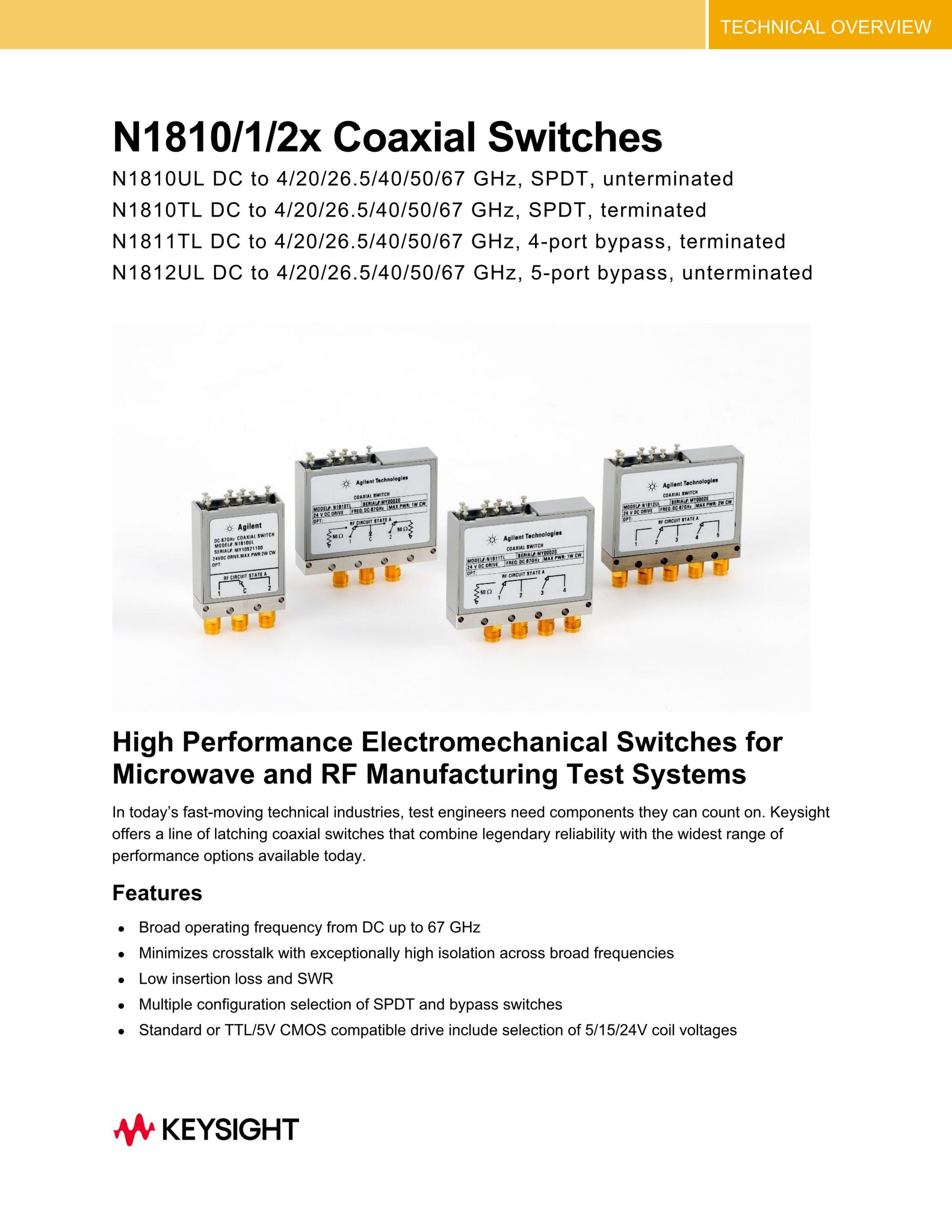

KEYSIGHT N1810UL Coaxial Switch, DC up to 67 GHz, SPDT
- Combines unmatched flexibility of configuration with excellent repeatability, long life, and reliability
클릭 하시면 이동합니다.
키사이트 ・ KEYSIGHT
N1810UL
동축 스위치 DC up to 67 GHz, SPDT
N1810UL Coaxial Switch, DC up to 67 GHz, SPDT
HIGHLIGHTS
Type
- Unterminated single pole double throw EM switch
- Operating frequency from DC to 4, 20, 26.5, 40, 50 or 67 GHz
- Female SMA connectors
- Built-in current interrupt

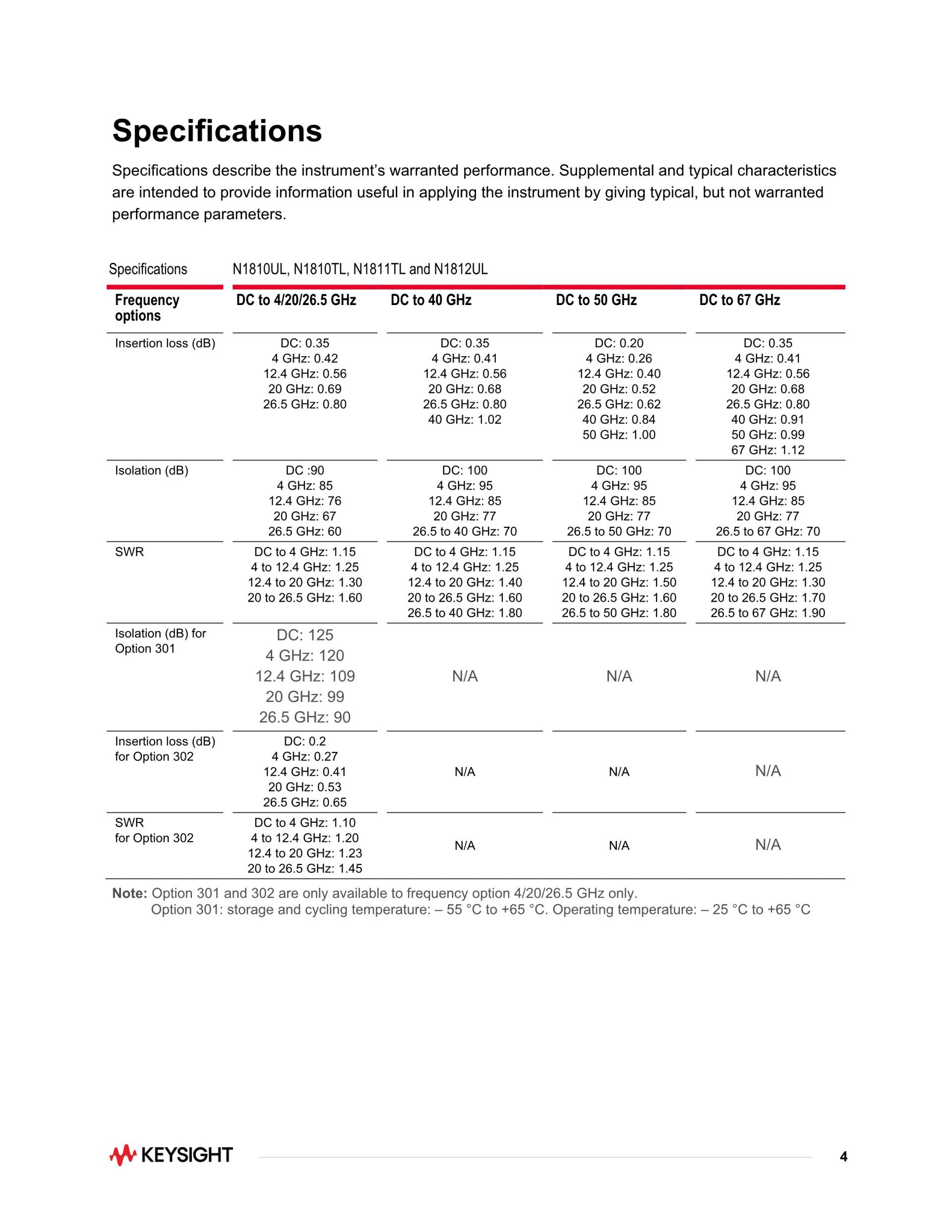

Superior RF Performance

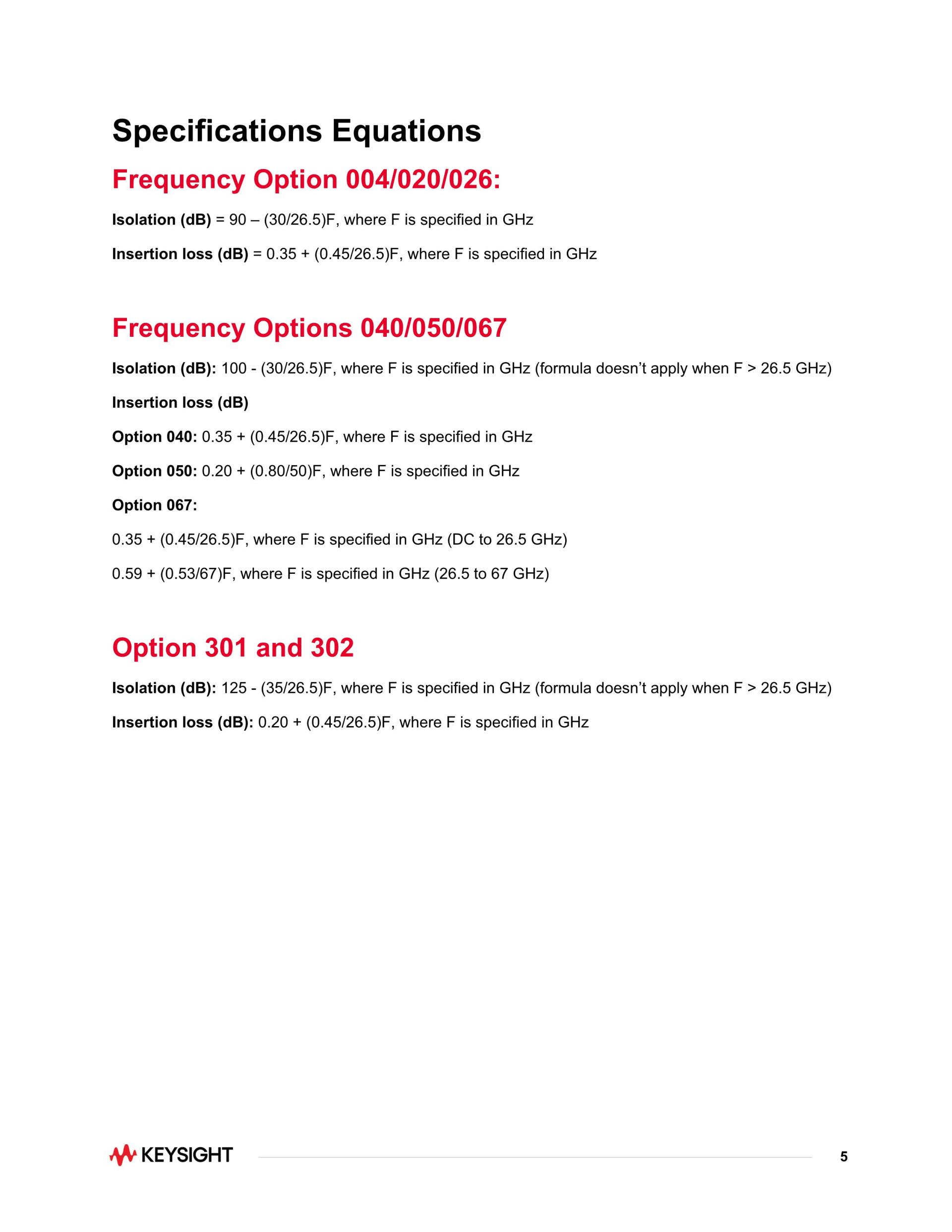

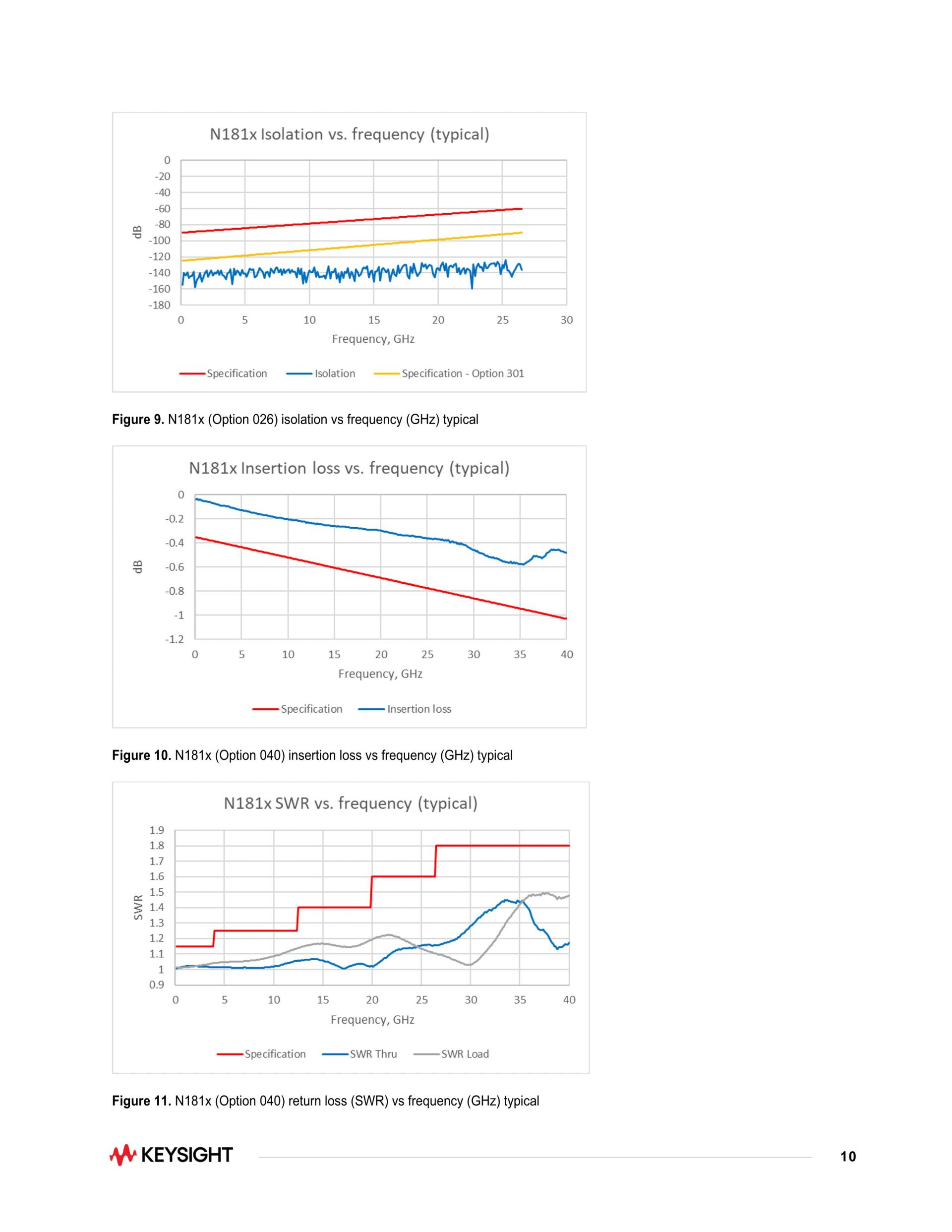

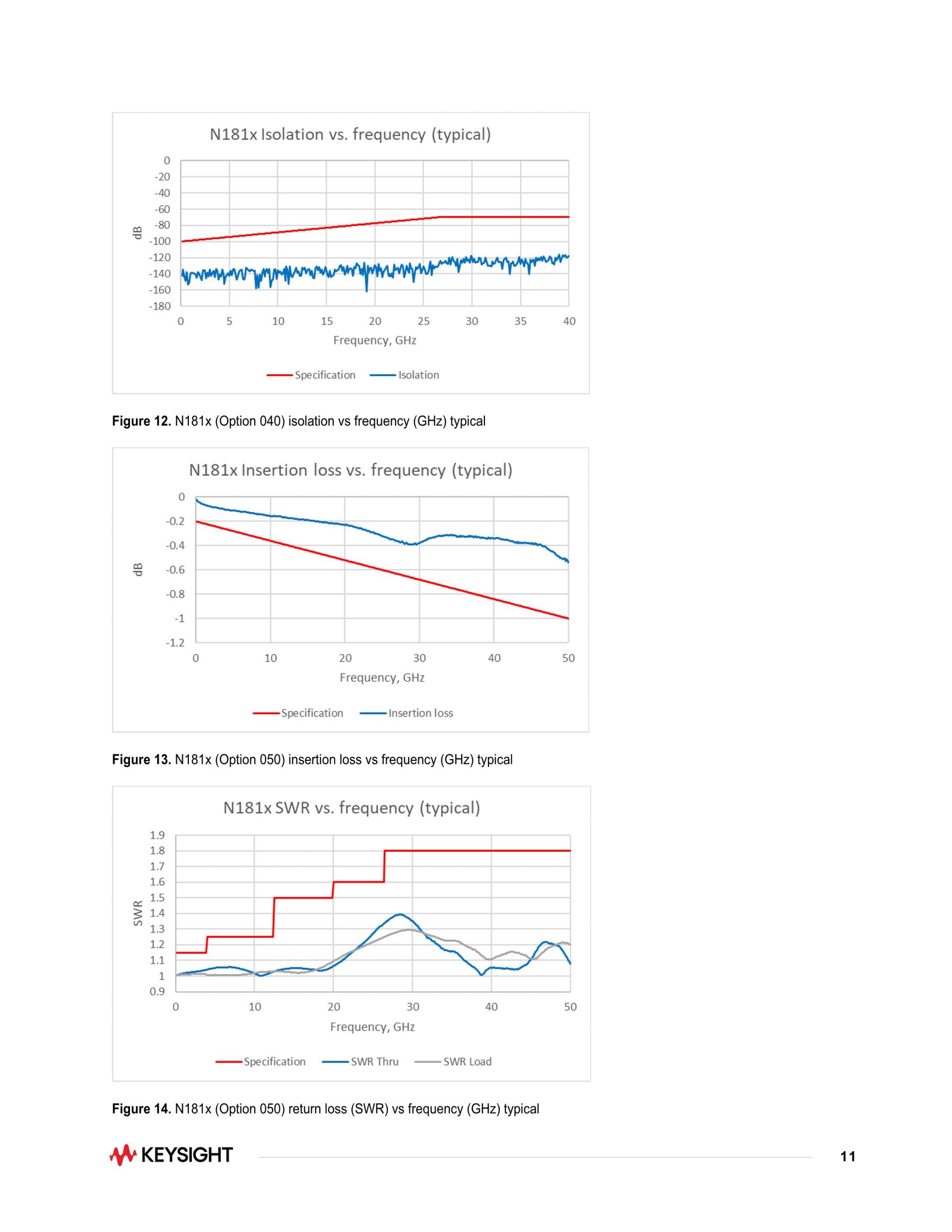

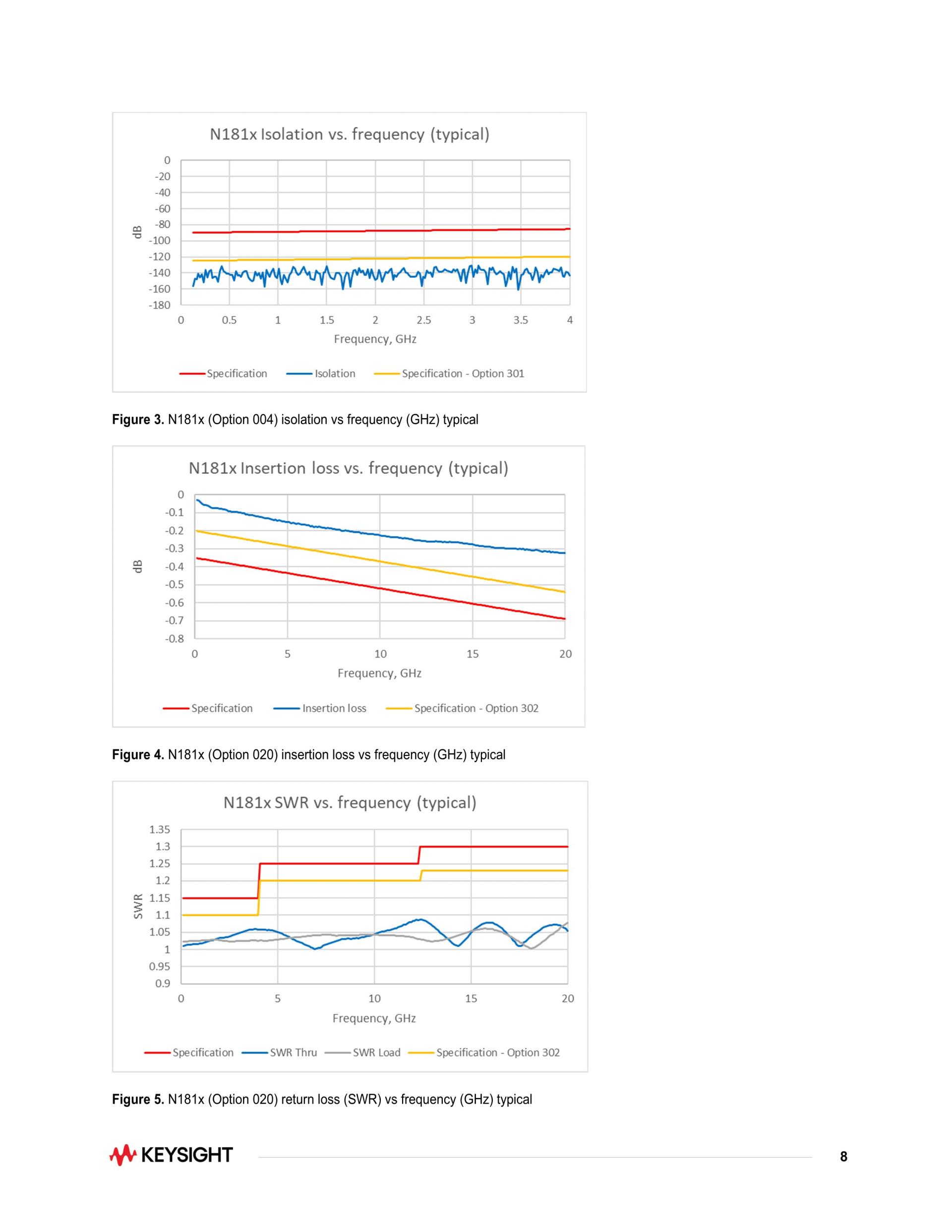

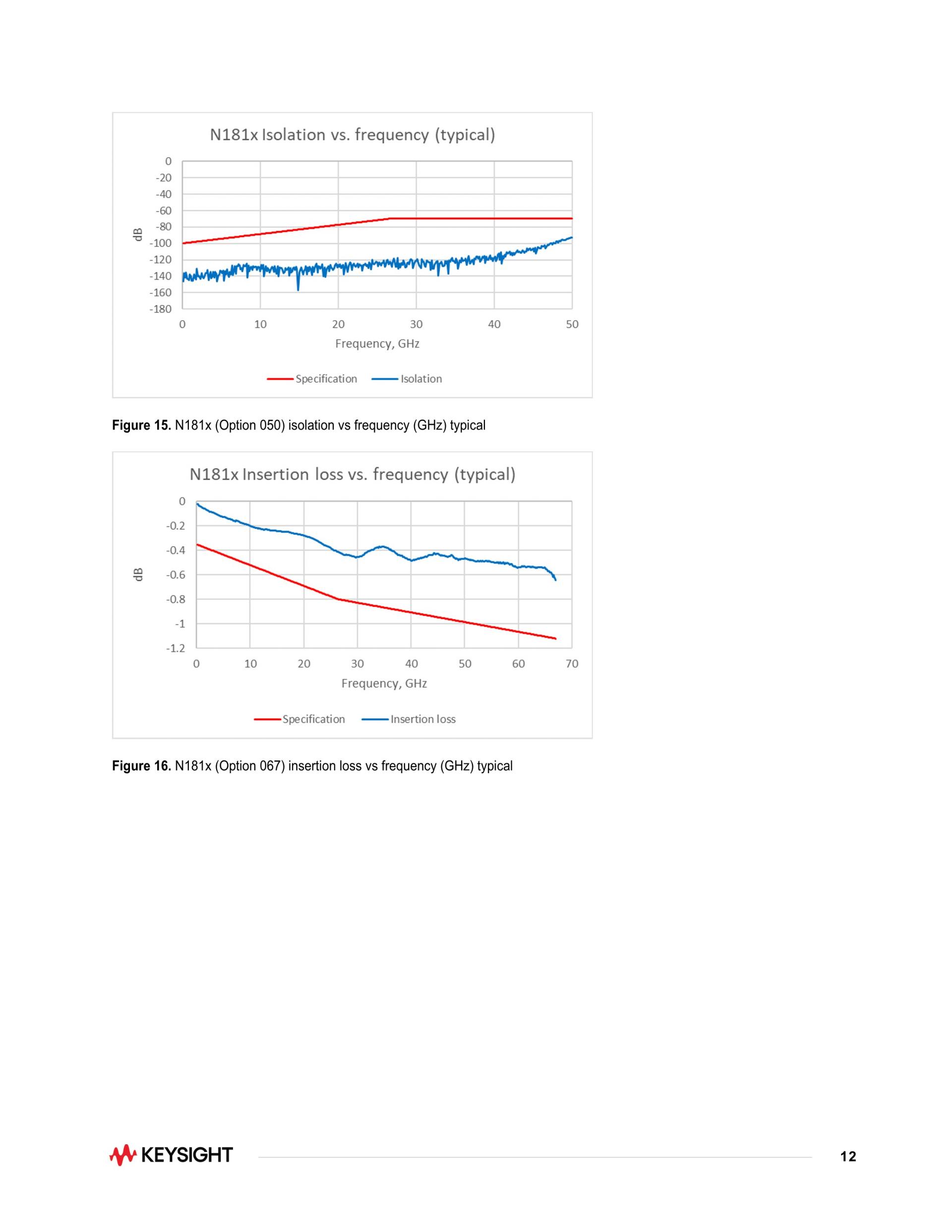

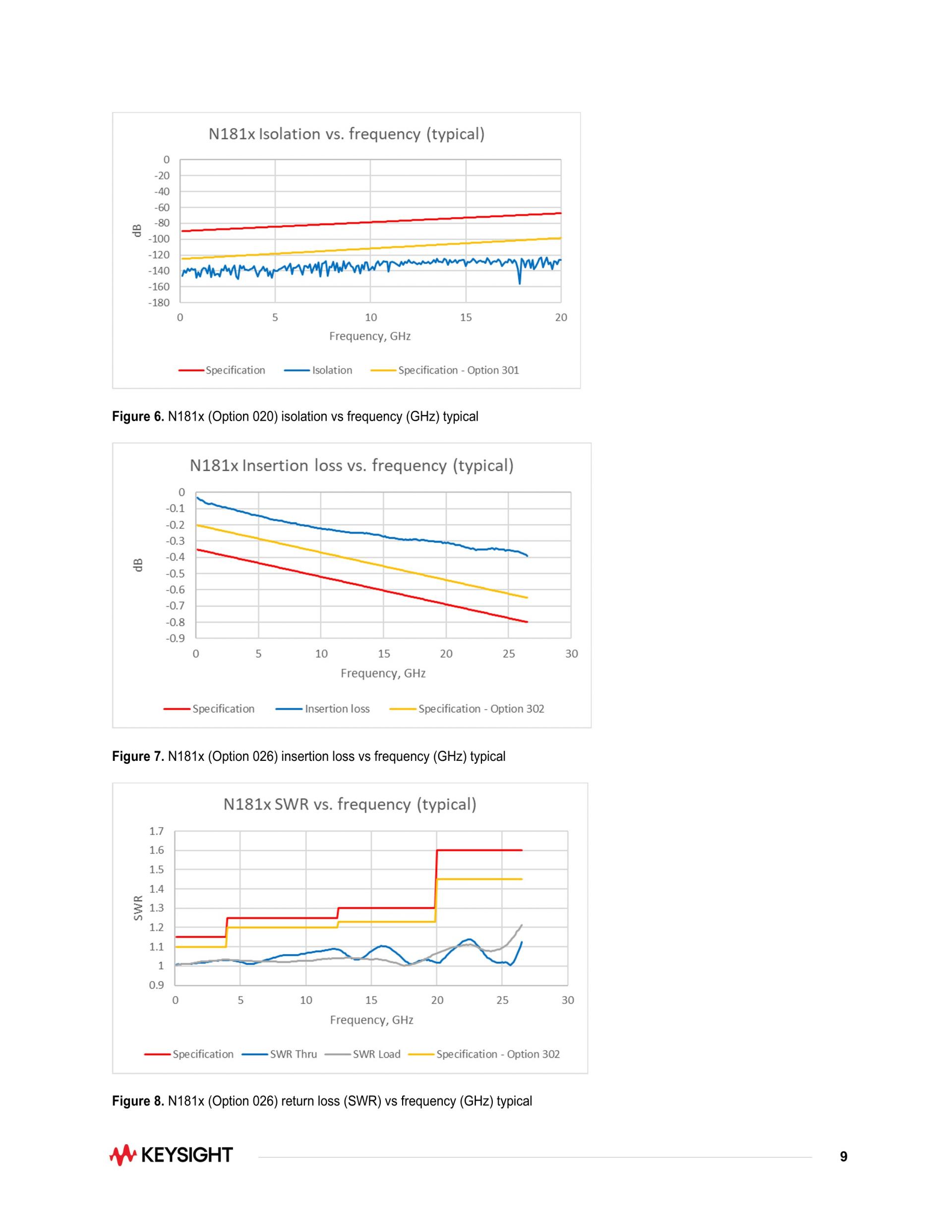

- Superior isolation: > 120 dB at 4 GHz and 70 dB at 26.5 GHz

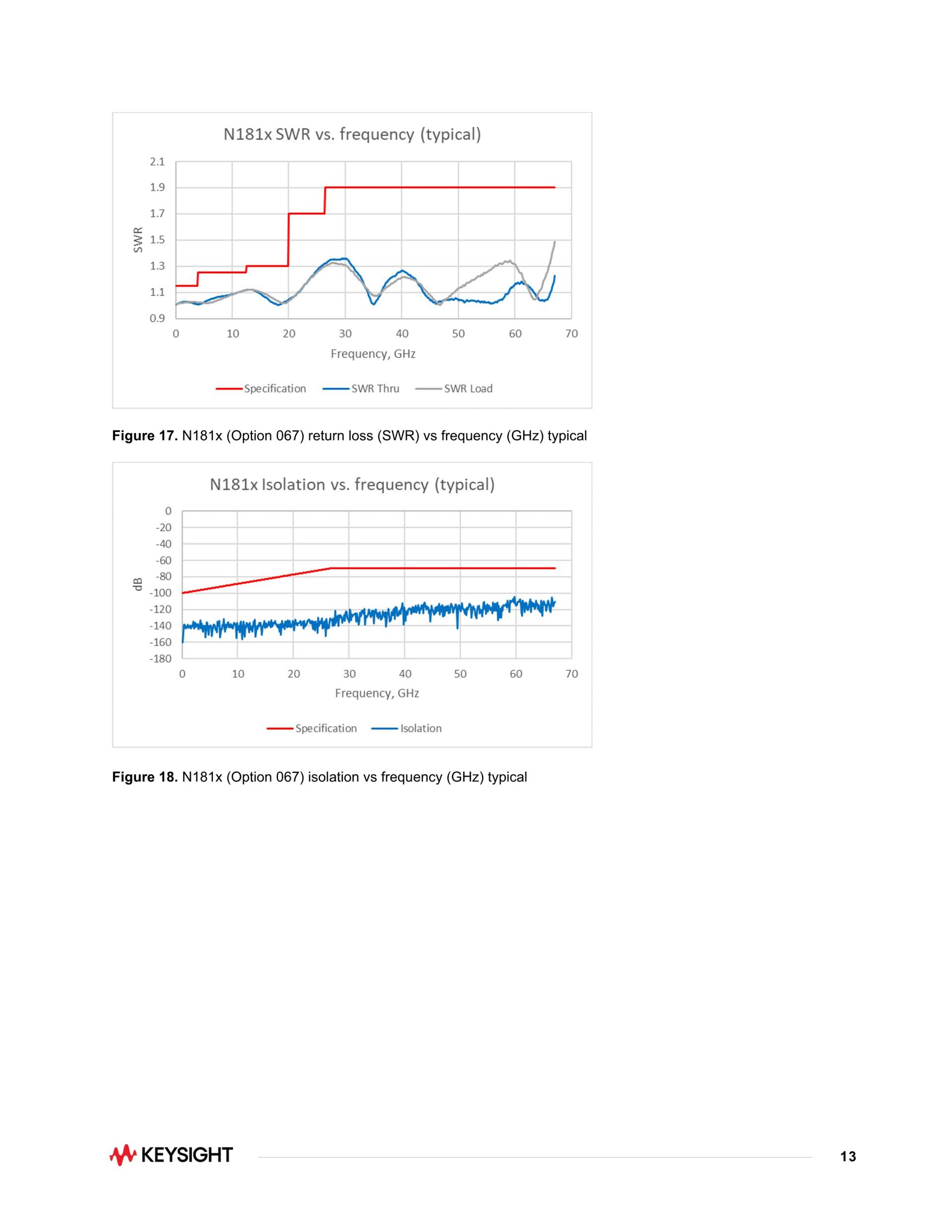

- Low SWR: < 1.10 at 4 GHz and 1.60 at 26.5 GHz
- Low insertion loss: < 0.27 dB at 4 GHz and 0.80 dB at 26.5 GHz
Excellent RF repeatability & long life span
- Excellent insertion loss repeatability: 0.03 dB to 1 million cycles and 0.1 dB to 2 million cycles
- Long operating life of 2 million cycles
Features

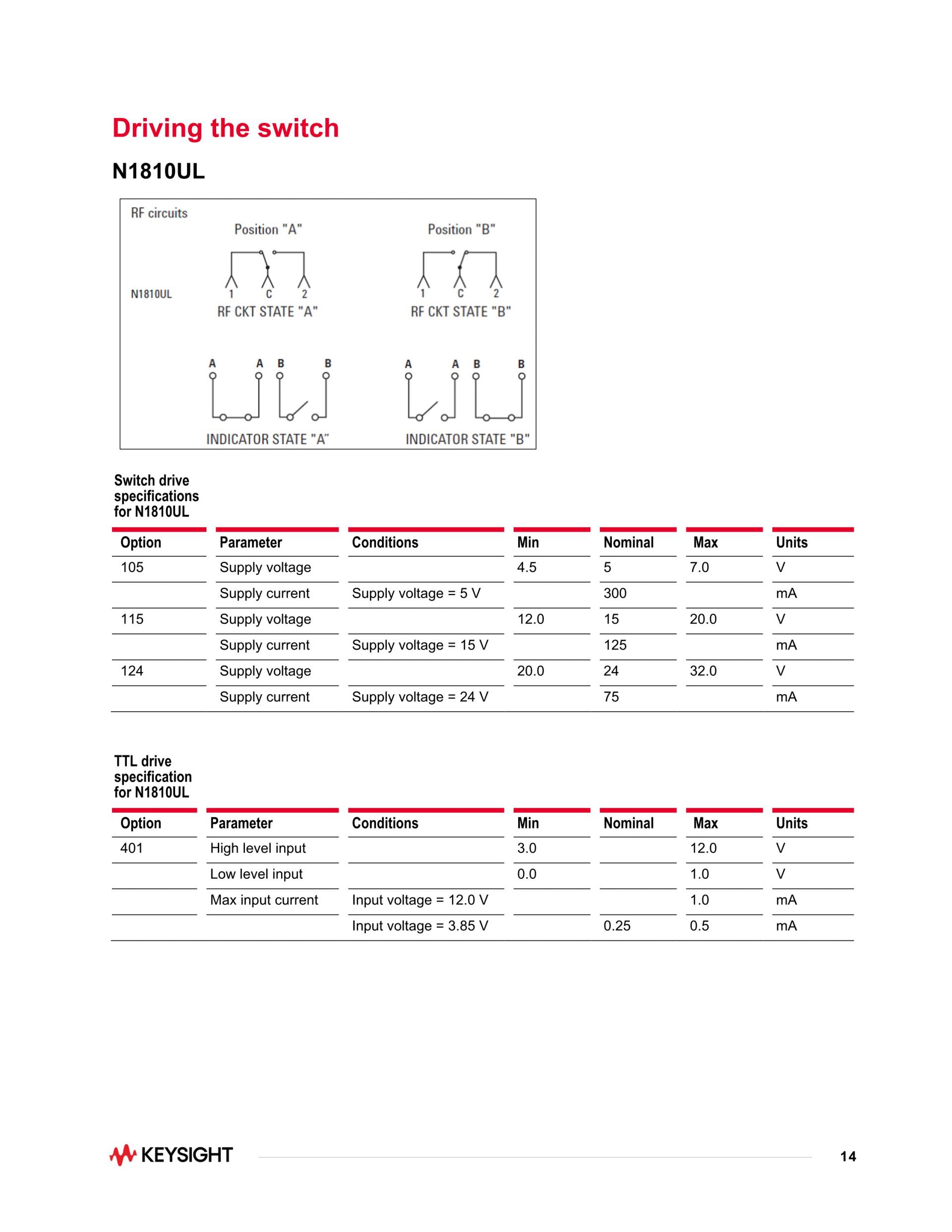

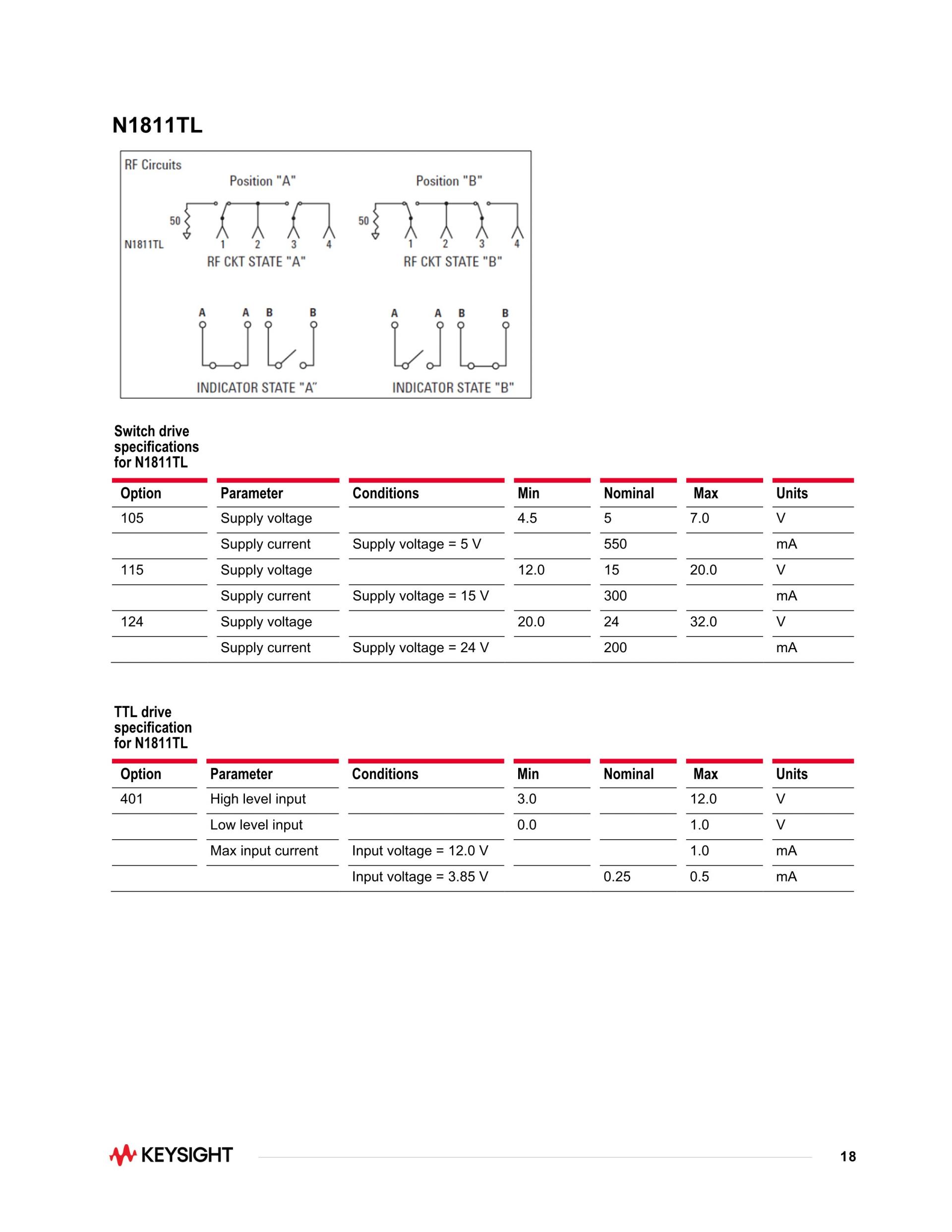

- Coil voltage levels 5 V, 15 V or 24 V
- D-subminiature 9-pin connectors or solder lug terminals

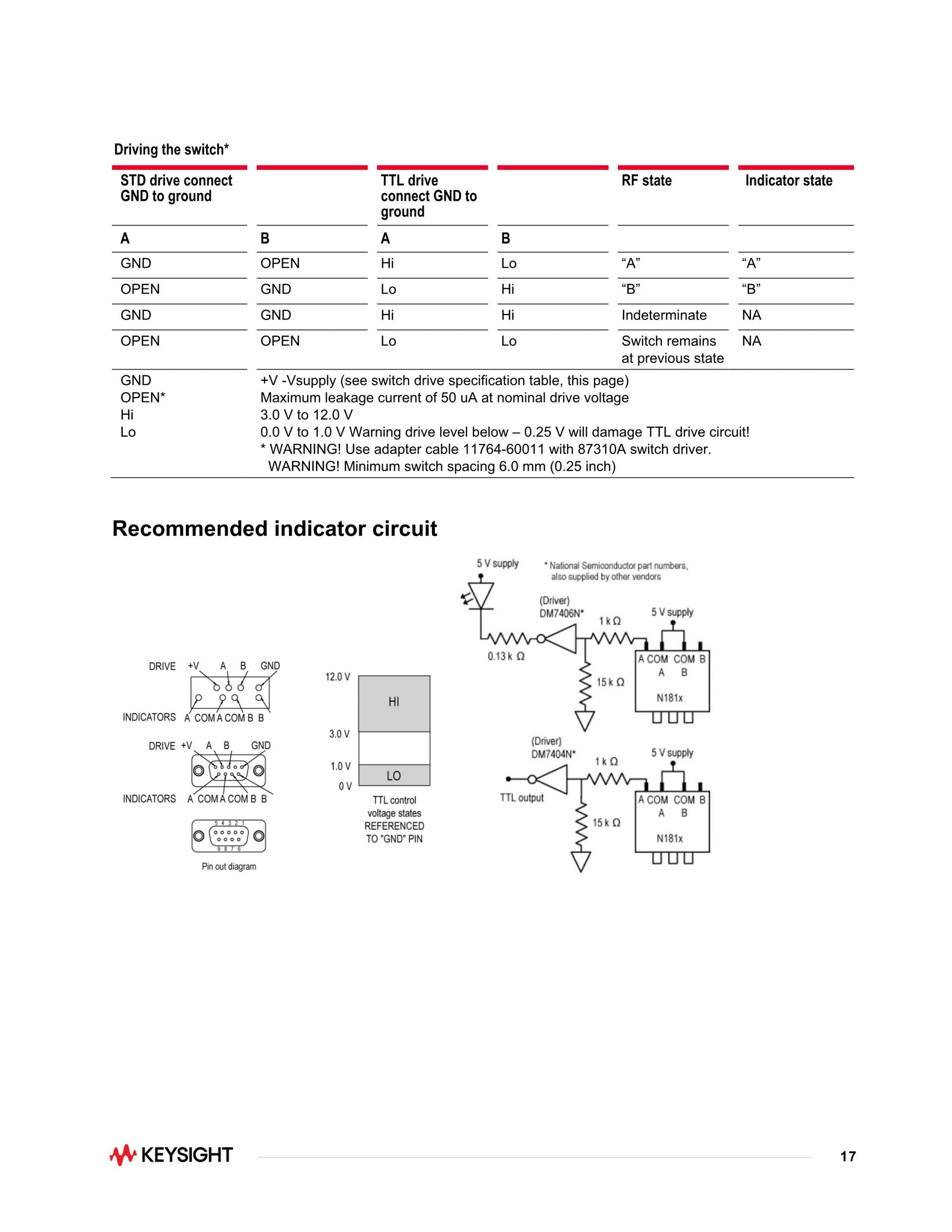

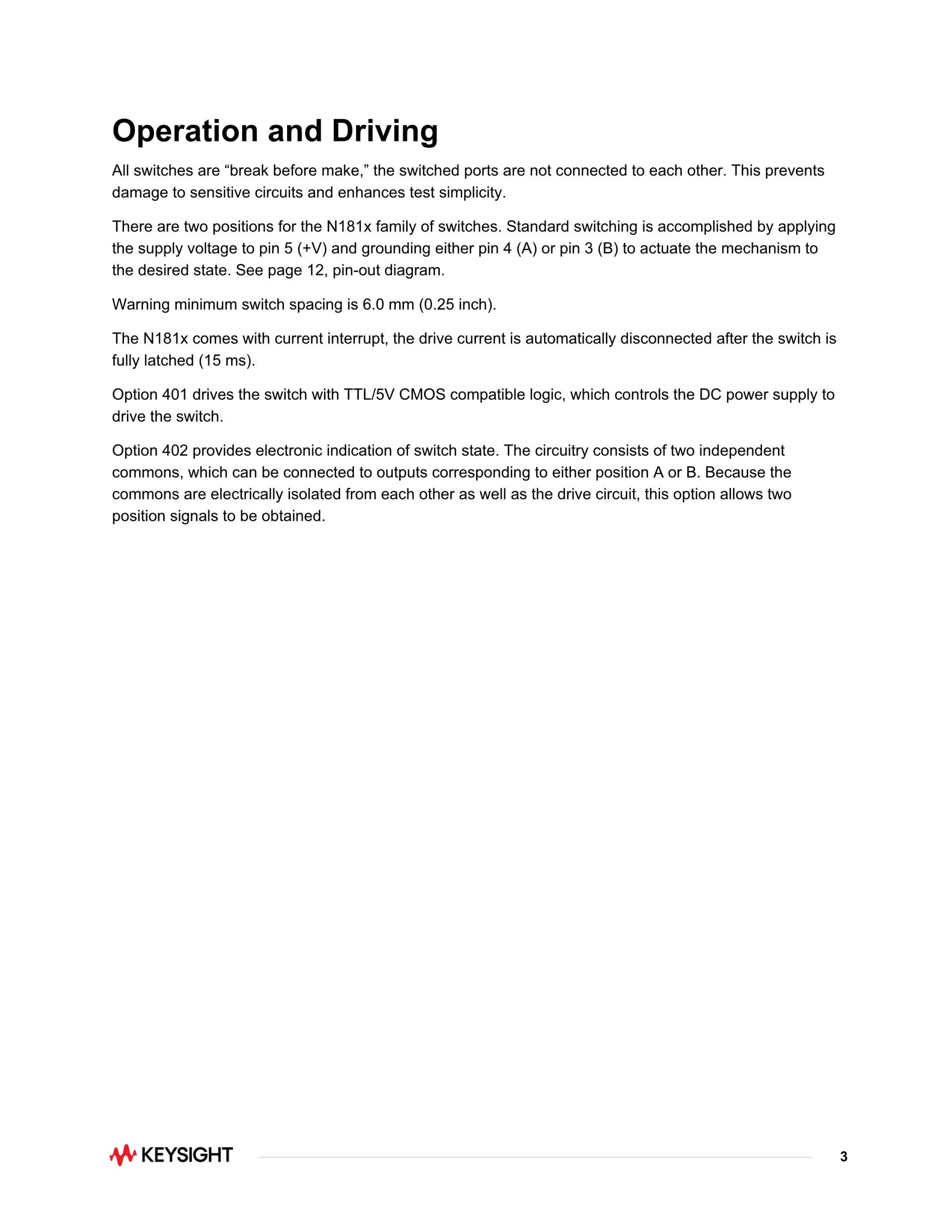

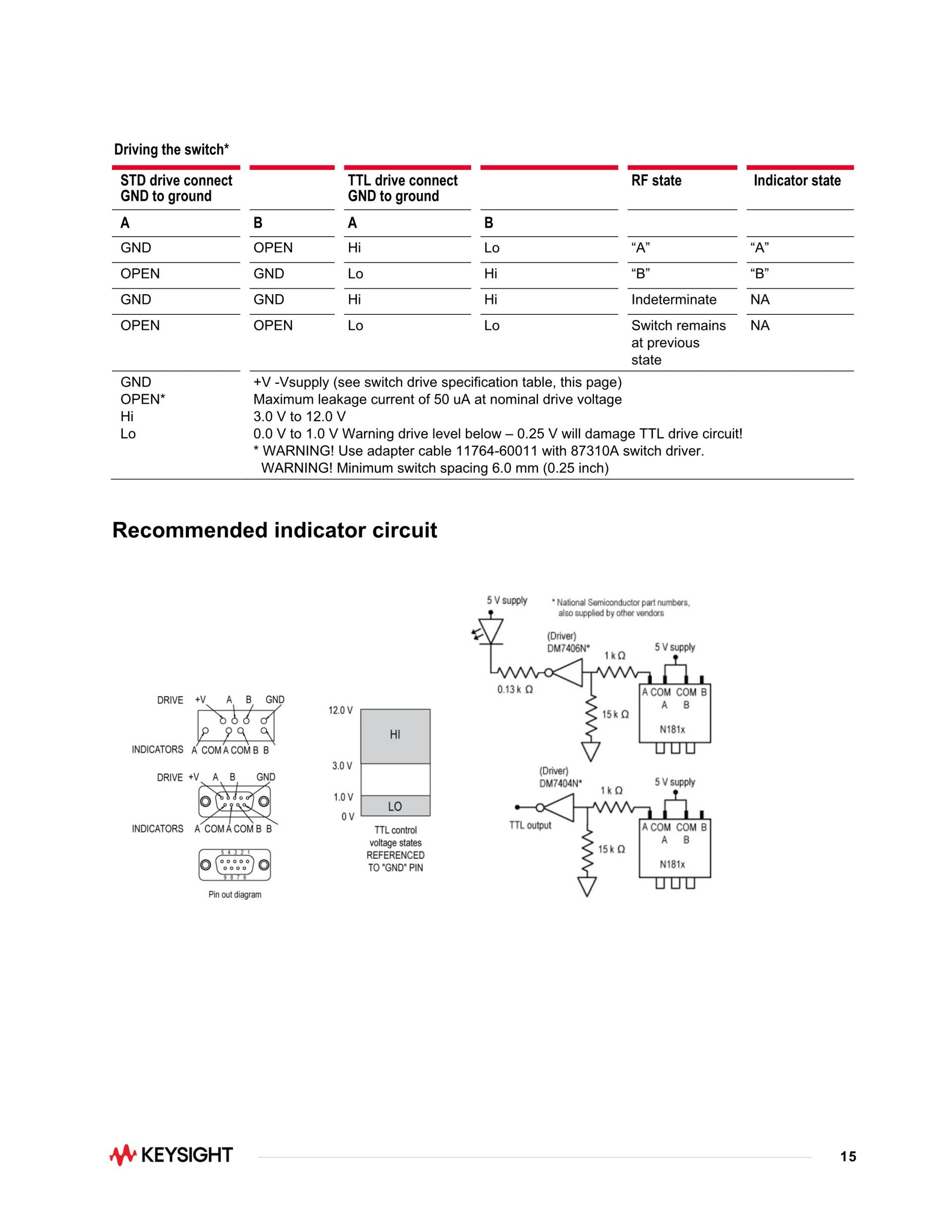

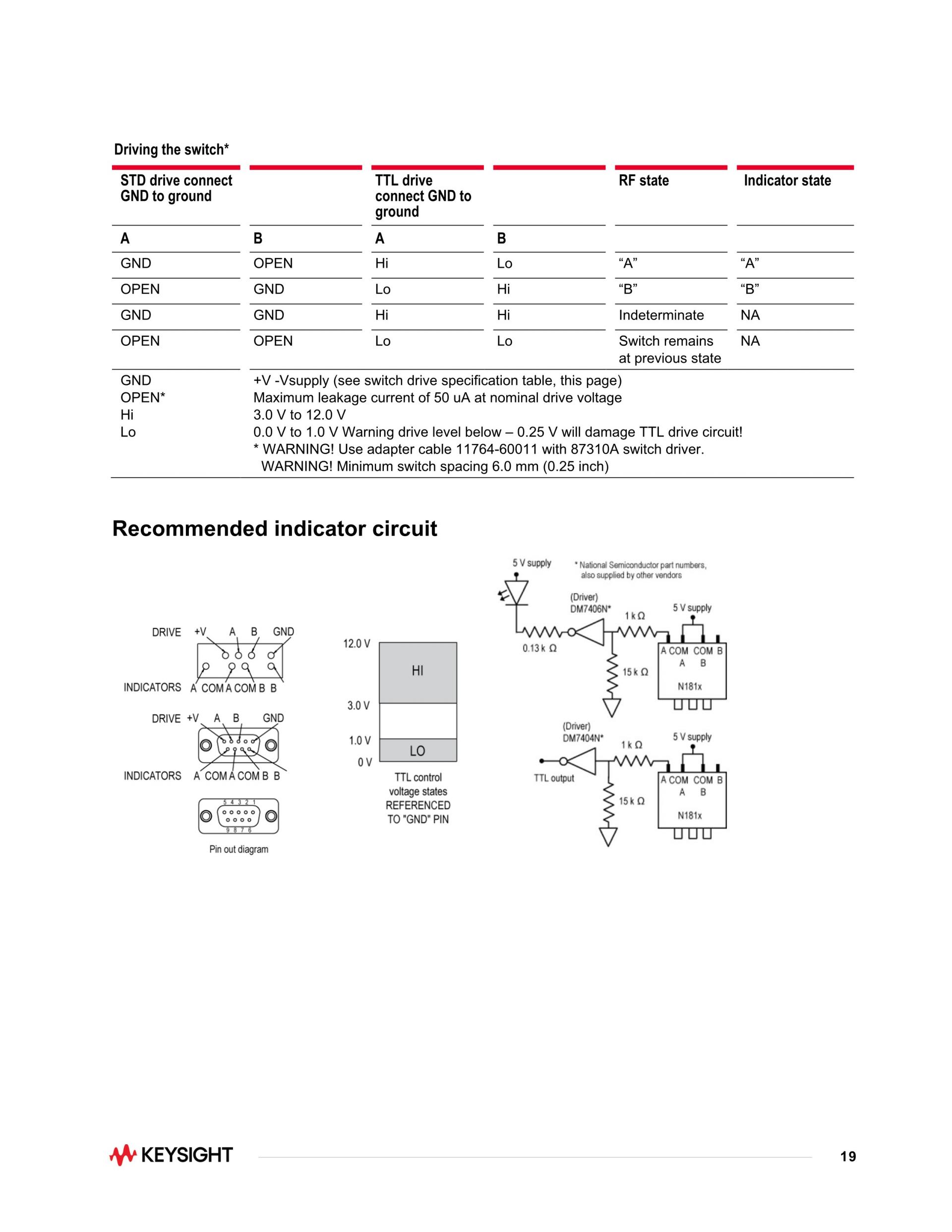

- Standard or TTL/5 V CMOS compatible drive
- Optional position indicators
The Keysight N1810UL latching coaxial switch combines unmatched flexibility of configuration with excellent repeatability, long life, and reliability.
