ODA TECHNOLOGIES OPX-55SE DC 파워 서플라이

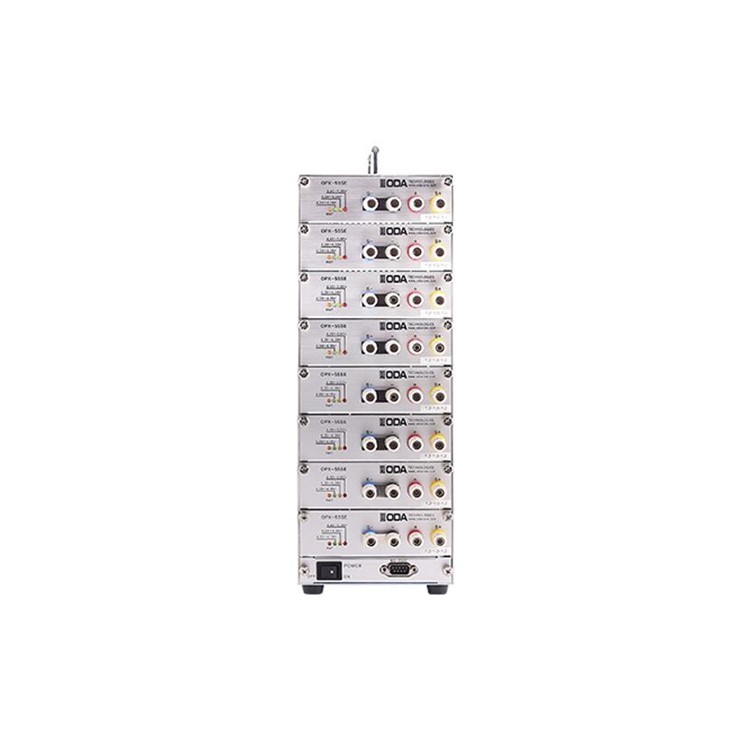

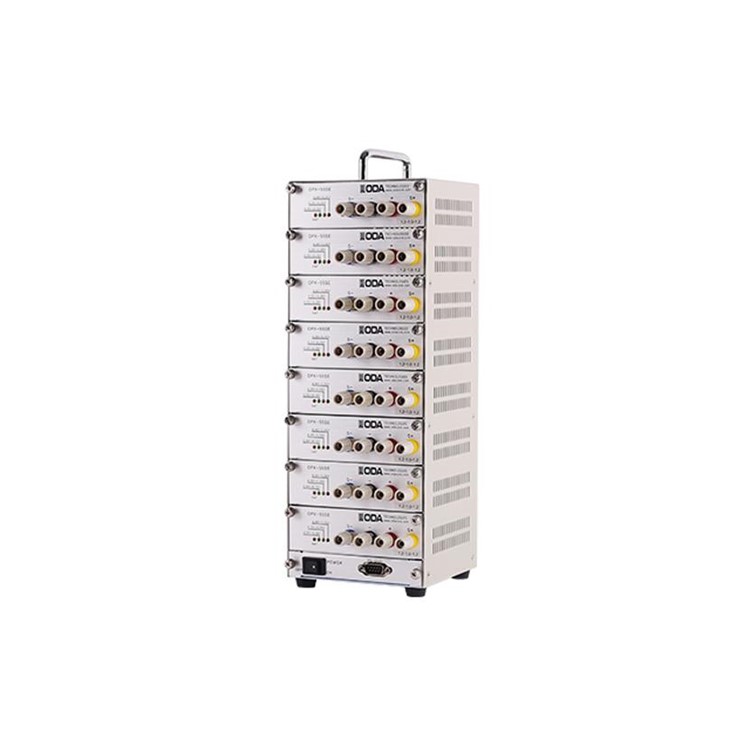

ODA TECHNOLOGIES OPX-55SE Module type Programmable DC Power Supply

• 8 channels, 1~5V /Fixed 5A each with 10mV/10mA Resolution
• Modular type provides individual replacement or repair for each channel
• Low Ripple & noise(10mVrms)
• Programming Accuracy(1%+30mV)
• Readback Accuracy(1%+30mV / 1%+20mA)
• Remote Voltage-Sensing(Voltage drop compensation)
• Protection(OVP,OCP), UVL
• RMT LED light for communication status checking
• Remote Interface (RS-232C)
• Save and Check up to 10 error messages
• Calibration 기능 제공(메뉴얼 및 PC기반)
• Dimensions : 130mm(W) x 345mm(H) x 130mm(D)
• Accessories : Operating Manual(QR code), Window Application Demo Program
• (QR code), AC input cord 1pc(1.5meter),Fuse 1pc(Built in AC input inlet),
• Output – sensing connection short bar
