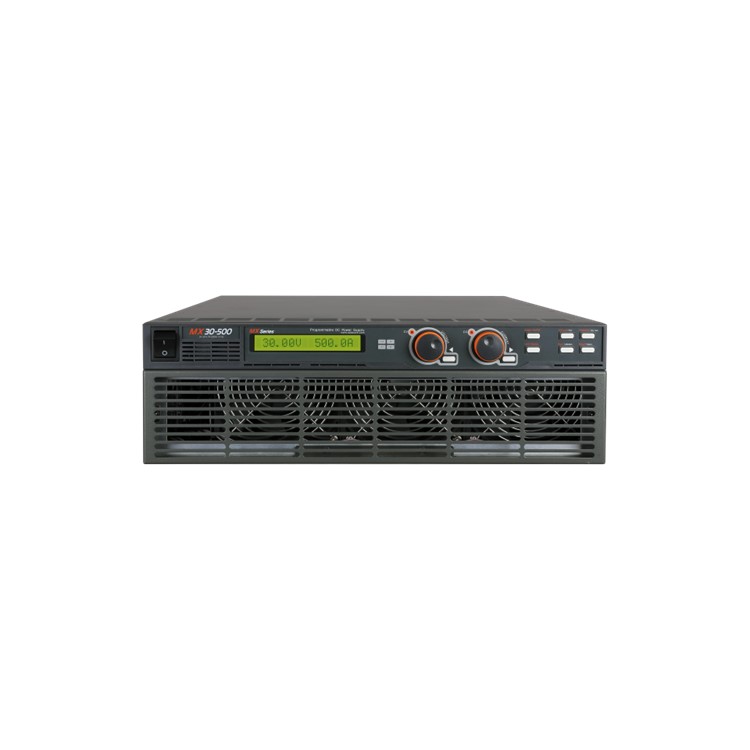

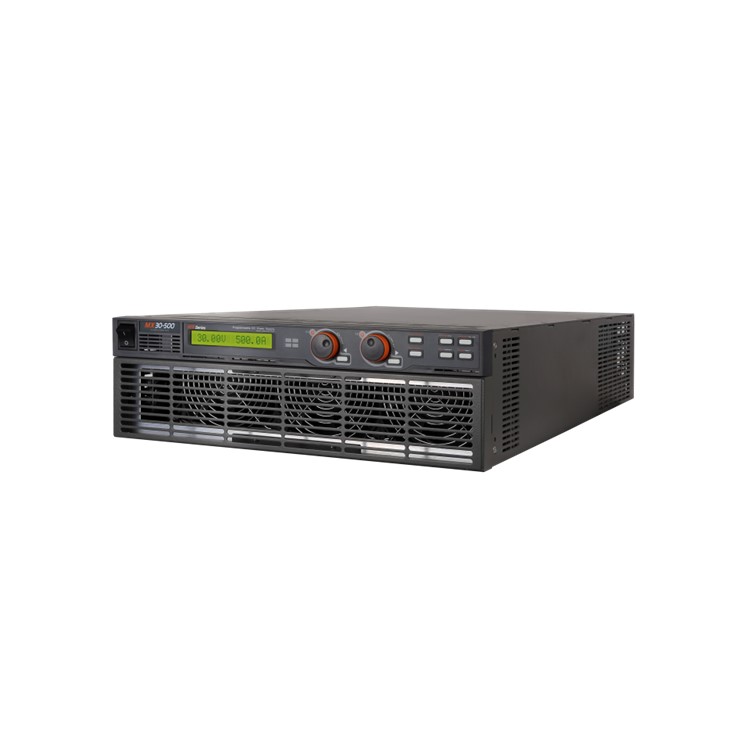

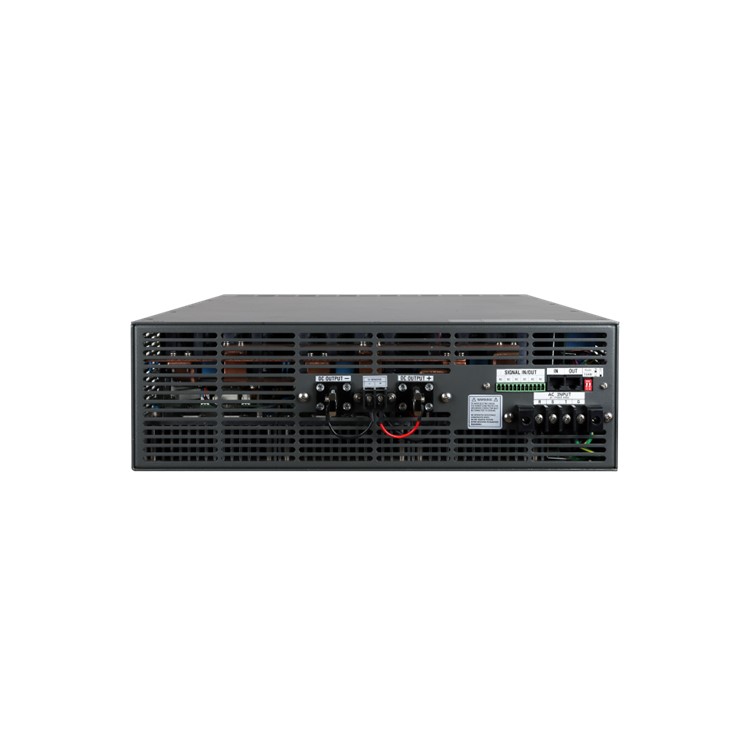

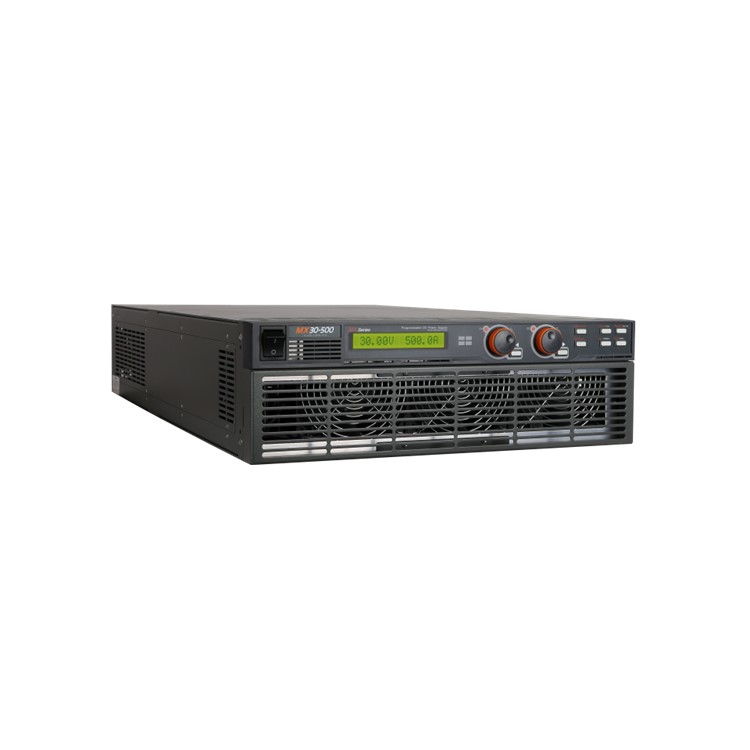

ODA TECHNOLOGIES MX 시리즈 30-500 DC 파워서플라이

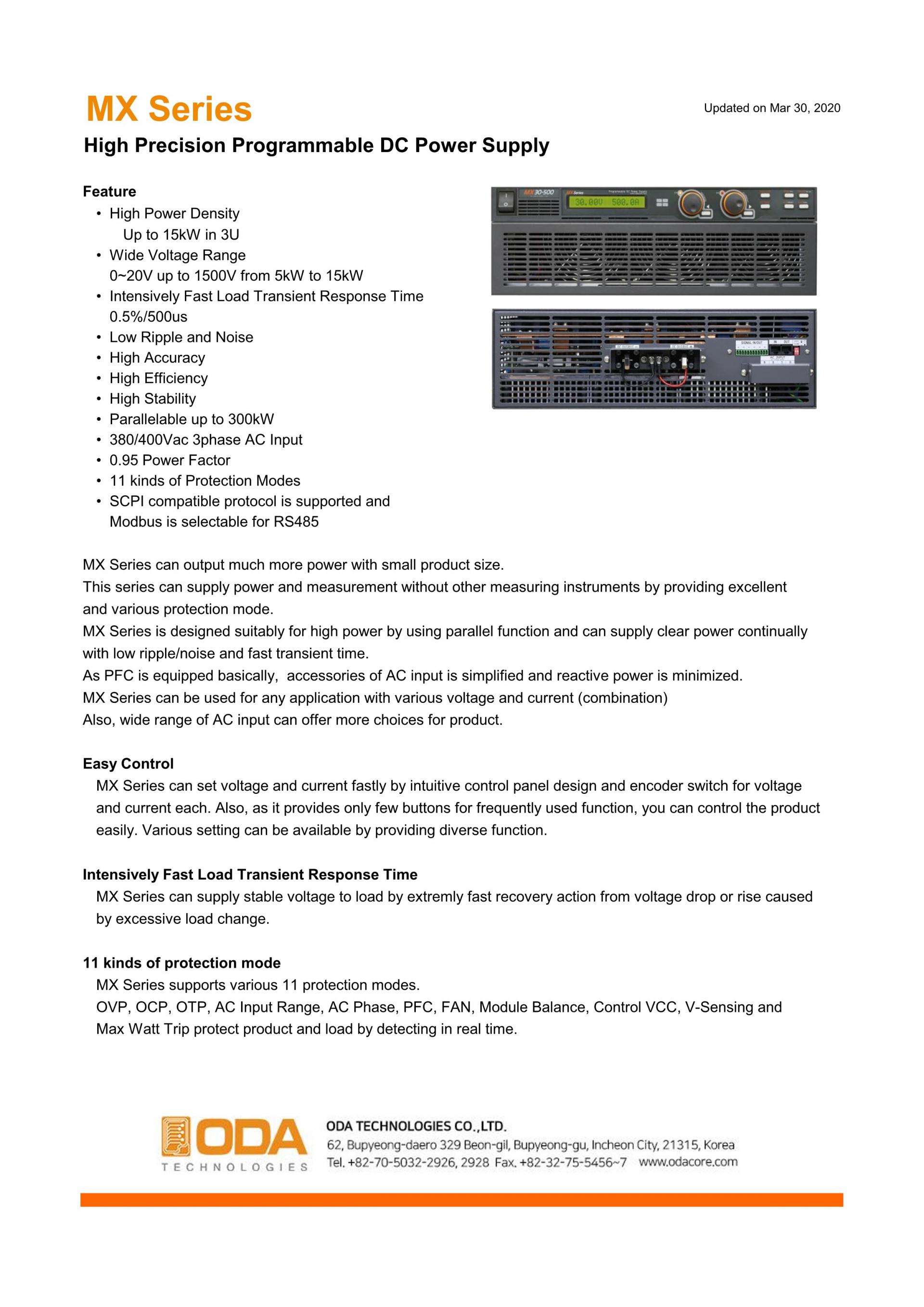

ODA TECHNOLOGIES MX Series 30-500 Switching Type Programmable DC Power Supply

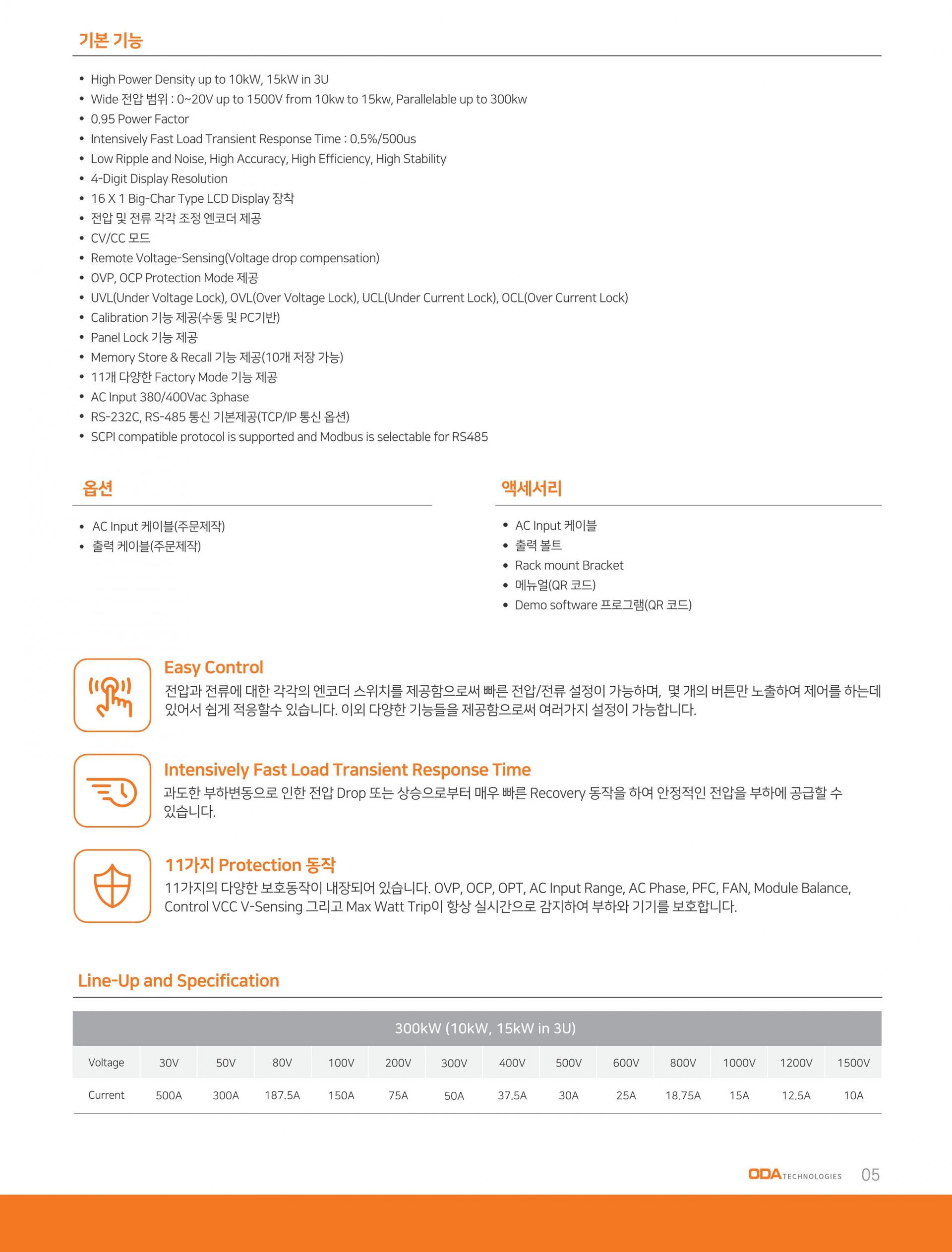

• High Power Density up to 10kW, 15kW in 3U
• Wide 전압 범위 : 0~20V up to 1500V from 10kw to 15kw, Parallelable up to 300kw
• 0.95 Power Factor
• Intensively Fast Load Transient Response Time: 0.5%/500us
• Low Ripple and Noise, High Accuracy, High Efficiency, High Stability
• 4-Digit Display Resolution
• 16 X 1 Big-Char Type LCD Display 장착
• 전압 및 전류 각각 조정 엔코더 제공
• CV/CC 모드
• Remote Voltage-Sensing(Voltage drop compensation)
• OVP, OCP Protection Mode 제공
• UVL(Under Voltage Lock), OVL(Over Voltage Lock), UCL(Under Current Lock), OCL(Over Current Lock)
• Calibration 기능 제공(수동 및 PC기반)
• Panel Lock 기능 제공
• Memory Store & Recall 기능 제공 (10개 저장 가능)
• 11개 다양한 Factory Mode 기능 제공
• AC Input 380/400Vac 3phase
• RS-232C, RS-485 통신 기본제공 (TCP/IP 통신 옵션)
• SCPI compatible protocol is supported and Modbus is selectable for RS485
