PRODIGIT 34000C SERIES 컴팩트 고전력 DC전자로드
PRODIGIT 34000C SERIES 컴팩트 고전력 DC전자로드
PRODIGIT 34000C SERIES Compact High Power DC Electronic Load

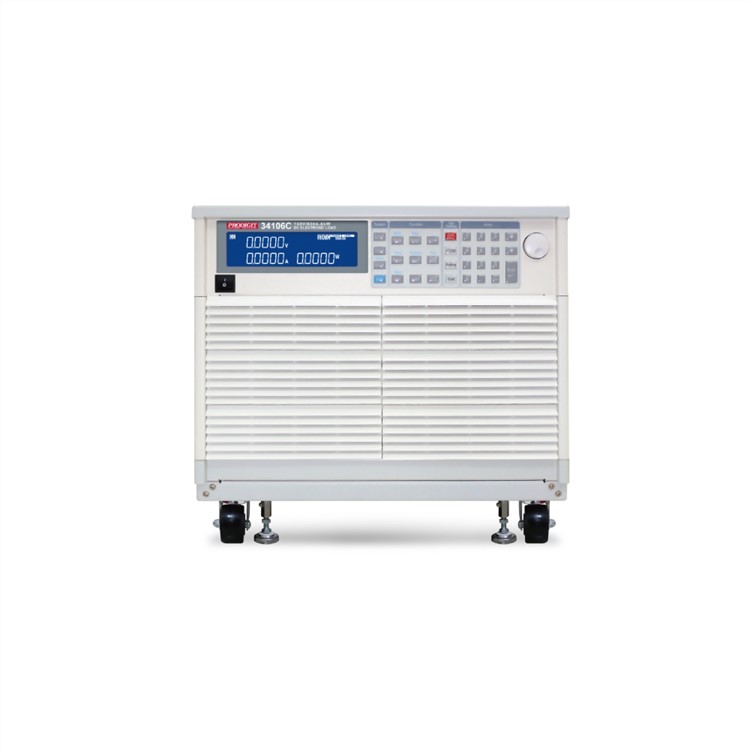

- 34106C Compact High Power DC Electronic Load 150V, 600A, 6KW

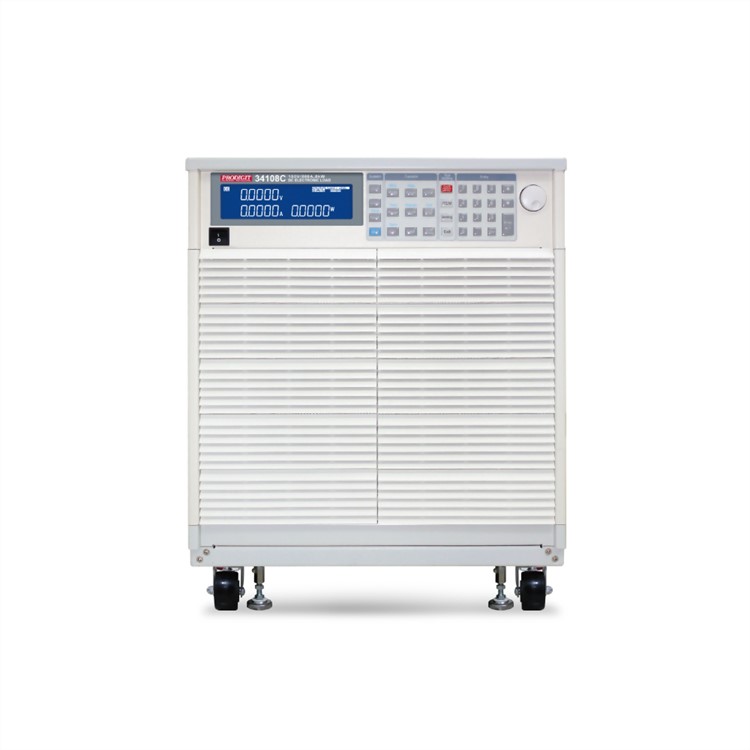

- 34108C Compact High Power DC Electronic Load 150V, 800A, 8KW
- 34110C Compact High Power DC Electronic Load 150V, 1000A, 10KW
- 34112C Compact High Power DC Electronic Load 150V, 1200A, 12KW

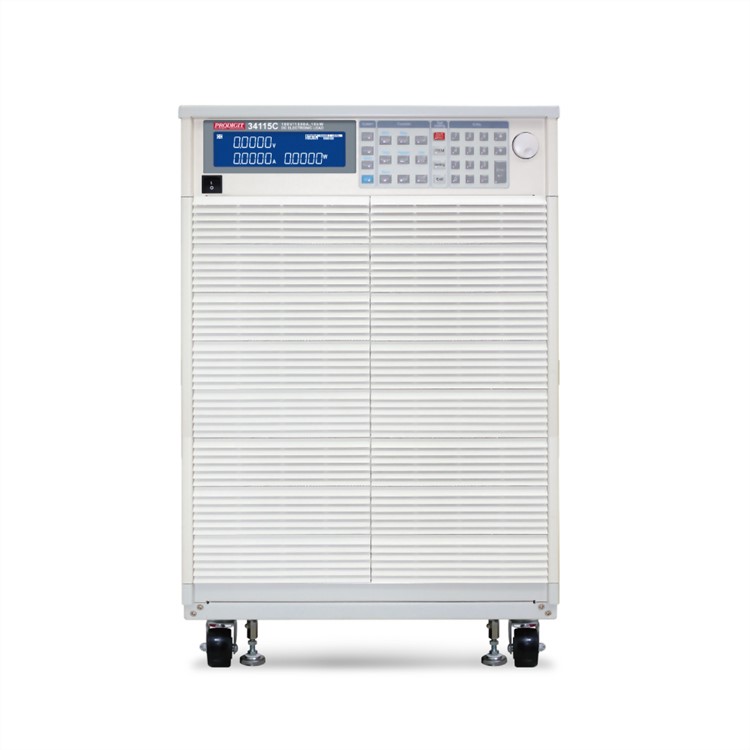

- 34115C Compact High Power DC Electronic Load 150V, 1500A, 15KW
- 34118C Compact High Power DC Electronic Load 150V, 1800A, 18KW
- 34120C Compact High Power DC Electronic Load 150V, 2000A, 20KW
- 34124C Compact High Power DC Electronic Load 150V, 2000A, 24KW
- 34206C Compact High Power DC Electronic Load 600V, 420A, 6KW
- 34208C Compact High Power DC Electronic Load 600V, 560A, 8KW
- 34210C Compact High Power DC Electronic Load 600V, 700A, 10KW
- 34212C Compact High Power DC Electronic Load 600V, 840A, 12KW
- 34215C Compact High Power DC Electronic Load 600V, 1050A, 15KW
- 34218C Compact High Power DC Electronic Load 600V, 1260A, 18KW
- 34220C Compact High Power DC Electronic Load 600V, 1400A, 20KW
- 34224C Compact High Power DC Electronic Load 600V, 1680A, 24KW
- 34306C Compact High Power DC Electronic Load 1200V, 240A, 6KW
- 34308C Compact High Power DC Electronic Load 1200V, 320A, 8KW
- 34310C Compact High Power DC Electronic Load 1200V, 400A, 10KW
- 34312C Compact High Power DC Electronic Load 1200V, 480A, 12KW
- 34315C Compact High Power DC Electronic Load 1200V, 600A, 15KW
- 34318C Compact High Power DC Electronic Load 1200V, 720A, 18KW
- 34320C Compact High Power DC Electronic Load 1200V, 800A, 20KW
- 34324C Compact High Power DC Electronic Load 1200V, 960A, 24KW
클릭 하시면 이동합니다.
프로디지트 ・ PRODIGIT
34000C SERIES
컴팩트 고전력 DC전자로드
34000C SERIES Compact High Power DC Electronic Load
DESCRIPTION
- 34000C Series has its own control and display panel, CC / CR / CV / CP / Dynamic modes, 150 sets Store / Recall memory which provides load set-up more efficiently, also can be remote controlled via GPIB、RS232、USB and LAN interface.
- SHORT time setting and SHORT_VH, SHORT_VL setting function, also can measure Short Voltage and Current.
- Dynamic can be simulated under CC, CP mode. The current Rise / Fall slew rate can be adjusted individually and there is an external signal input for a Arbitrary Waveform to simulate load current.
- Single key for OCP、OPP test function will be more efficiency and accuracy on OCP、OPP testing.
- Programmable Load ON/OFF voltage, GO/NG meter check, Voltage meter display ” + “ or “ – “ is selectable and 150 sets Store/Recall larger memory is much advance feature for each different application.
- 150 sets test parameter and status storage function, user can recall the storage memory real time in accordance with the auto sequence requirement.
- Maximum Voltage up to 1200V provide an idea testing solution for Power Factor Correction test.
- Master / Slave control units maximum up to 1 MASTER, 7 SLAVE.
FEATURES
- With parallel function maximum power up to 192KW.
- Maximum up to 8 units master / slave parallel control.
- 5 digit V/A/W Meter.
- High-speed measurement and communication transmission.
- Large LCD Display、setting values can be adjusted by rotary knob or push button.
- Voltage、Current and Watt value can be displayed simultaneously.
- Capable for Power Factor Correction (PFC) Test. ( for 600V, 1200V models)
- OCP、OPP test function automatically.
- Power ON status can be set.
- CC, CR, CV, CP , download.jpg CC+CV , CP+CV , Dynamic and Short operation mode.
- SHORT time setting.
- Protections against I,W,°C and over-voltage alert.
- Voltage meter display the polarity positive(”+”)or negative(”-”)is selectable.
- Optional Interface : GPIB、RS232、USB、LAN.
- Built-in soft-start circuit function allowing the U.U.T. power supply to be directly connected to the 342xC、343xC series load input terminal, no longer need a large relay switch with an external soft-start circuit.
- New waveform generator plug in model 9923 adds user programmable battery dischargecurrent waveform simulation to Prodigit DC Loads
APPLICATIONS
- Voltage / Current source
- SMPS transient response
- CV/Current limit testing and battery emulation
- Battery charger
- Battery discharge
- R&D Quality Control
- ATE system
- Production testing












34000C 34000C SERIES 34106C 34108C 34110C 34112C 34115C 34118C 34120C 34124C 34206C 34208C 34210C 34212C 34215C 34218C 34220C 34224C 34306C 34308C 34310C 34312C 34315C 34318C 34320C 34324C 34000C PRODIGIT PRODIGIT 34000C 34000C 프로디지트 프로디지트 34000C 34000CSERIES PRODIGIT PRODIGIT 34000CSERIES 34000CSERIES 프로디지트 프로디지트 34000CSERIES
