AMETEK XPF SERIES 이중 절연 출력 벤치탑 파워서플라이
AMETEK XPF SERIES Dual Isolated Outputs Benchtop Power Supply
- Model: XPF Series
- Voltage: 60V
- Current: 10A - 20A
- Power: Up to 420W per output (840W total)
- Overview: Benchtop power supply featuring dual isolated outputs.
클릭 하시면 이동합니다.
아메텍 ・ AMETEK
XPF SERIES
이중 절연 출력 벤치탑 파워서플라이
XPF SERIES Dual Isolated Outputs Benchtop Power Supply
The Sorensen XPF is a new type of bench power supply designed to meet the need for flexibility in the choice of voltage and current. Typically, the maximum voltage and maximum current are not required simultaneously. The PowerFlex™ design enables higher currents to be generated at lower voltages within an overall power limit envelope. This is achieved by using the latest switch-mode technology.

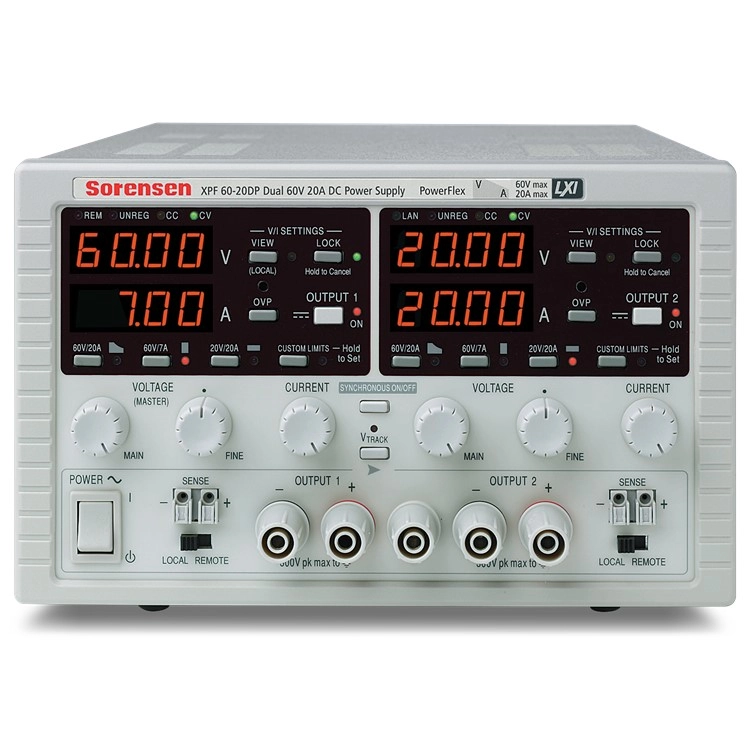

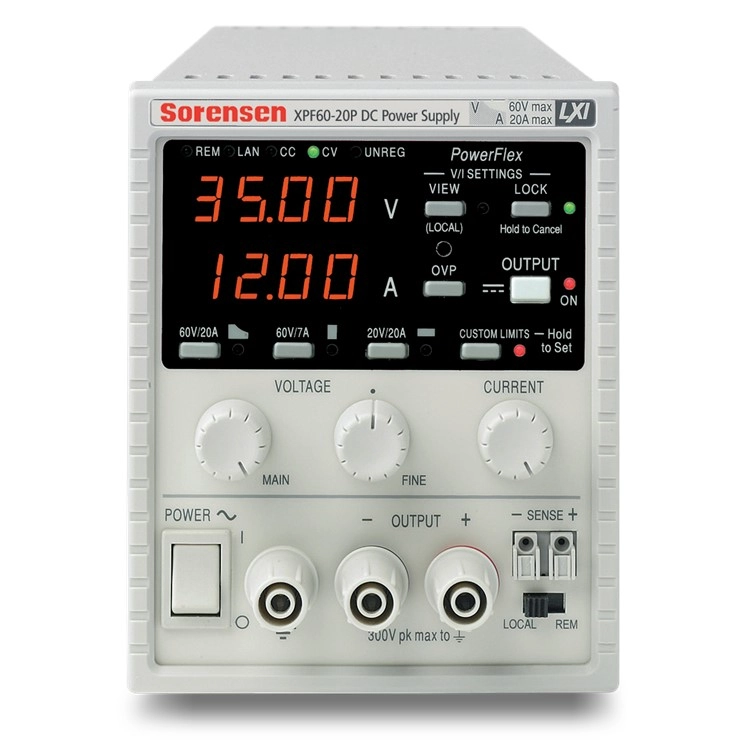

The XPF60-20D are dual-output DC bench power supplies with two completely independent and isolated outputs. If required, the outputs can be wired in series or parallel to achieve up to double the maximum voltage or double the maximum current. The new XPF60-20S is a single-output version of the XPF60-20D providing 60V and 20A within its 420W power envelope.
The XPF Series benchtop DC power supply has advanced digital features while keeping its simple-to-operate analog controls.
The series also has a remote programming option making the popular XPF perfect for some ATE applications. Communication interfaces include LXI Class C Ethernet, USB and RS-232, and optional GPIB. Please see the XPF brochure section for the XPF60-20DP brochure which fully describes the advanced features.
Key Features
- PowerFlex design provides higher currents at lower voltages enabling one model to meet many different voltage/current requirements.
- Compact design for bench use or rack mounting (1/2 or 1/4 rack width)
- True analog controls with digital settings locking (S-Lock)
- Mixed-mode regulation with linear final regulation for low noise
- Dual models have isolated voltage tracking and synchronous on/off.

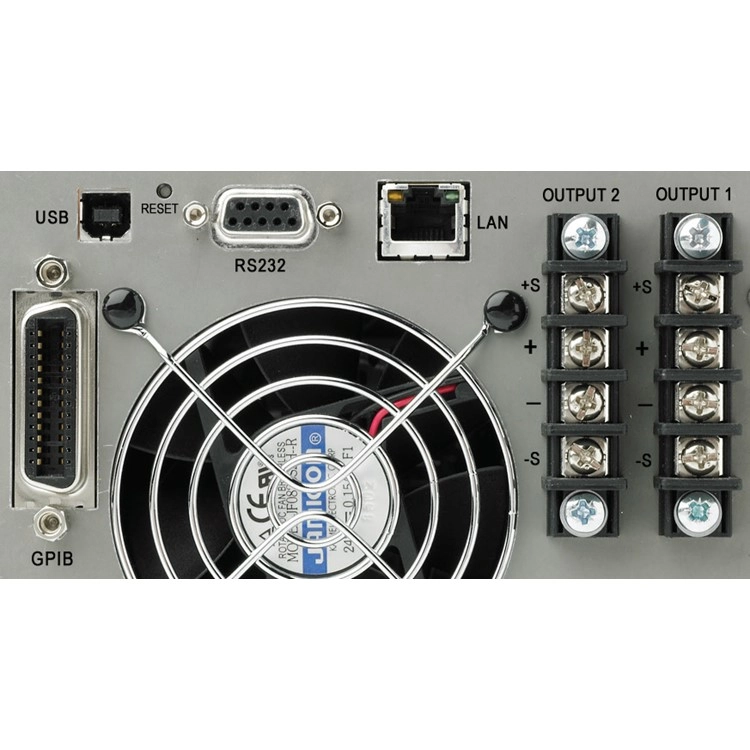

- P models have RS-232, USB, and LXI-compliant LAN interfaces plus duplicate rear terminals. GPIB Optional.
Protection
- Over-voltage protection per output
- Switchable remote or local sense
