AMETEK XFR SERIES 아날로그 DC 파워서플라이
가격문의(상세정보 참조)
AMETEK XFR SERIES 아날로그 DC 파워서플라이

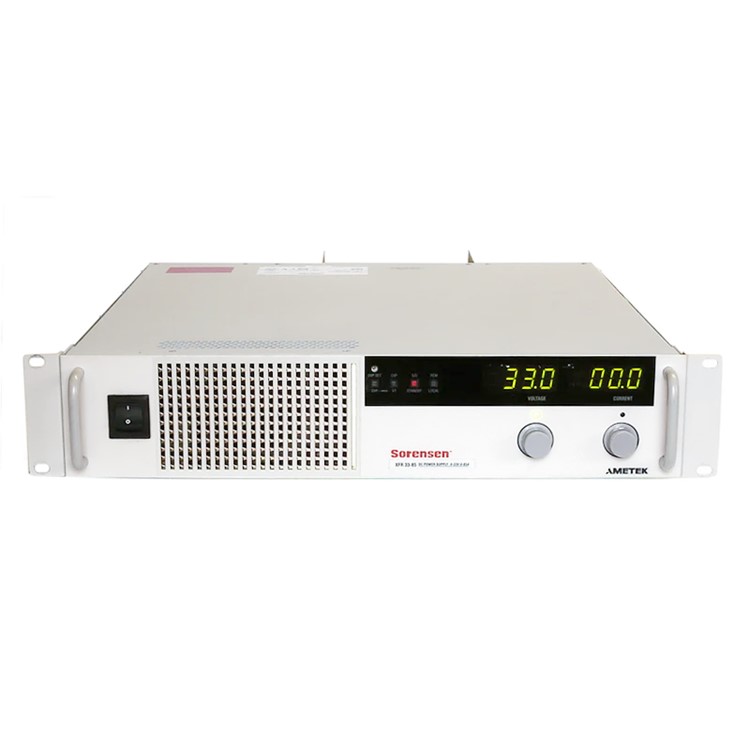

AMETEK XFR SERIES Sorensen Analog DC Power Supplies
- Model: XFR Series
- Voltage: 7.5V - 600V
- Current: 4A - 300A
- Power: 2.8kW
- Overview: Programmable Analog DC Power Supplies
클릭 하시면 이동합니다.
아메텍 ・ AMETEK
XFR SERIES
아날로그 DC 파워서플라이
XFR SERIES Sorensen Analog DC Power Supplies
XFR Analog DC Power Supplies is the smart choice for research, product development, and production test applications such as R&D, magnet control, product design, ATE, process control, electroplating, and burn-in.
The unique features of XFR DC power supplies make it the best choice for applications where high power and a wide adjustment of output voltage or current are required in a full 19-inch rack package. Choose from ten 2800-watt models.
Zero voltage, or "soft" switching, provides significant benefits. Switching transients are virtually eliminated and noise performance is closer to linear levels. Efficiency is increased, heat generation is decreased, and stress on the switching transistors is reduced - improving reliability (MTBF).
Unlike most competitive products, XFR programmable DC power supply generates full power at full rated current over its total operating range of 0 to 50° C without derating.
XFR variable DC power supply is also designed with excellent thermal management, so units can be stacked in rack mounts without leaving ventilation space between each unit.
Features And Benefits
- Analog Programming
- Constant Voltage or Constant Current Operation
- LabView® and LabWindows® Drivers
- Standby Mode
- Front Panel Button Preview of Voltage, Current, OVP
- CSA, UL Approvals
**Software Note: M9B GUI requires National Instruments' VISA, RTE, and IVI Engine. Please visit the National Instruments website for download.
XFR XFR SERIES XFR 아메텍 아메텍 XFR XFR AMETEK AMETEK XFR XFR SERIES 아메텍 아메텍 XFR SERIES XFR SERIES AMETEK AMETEK XFR SERIES
