AMETEK DLM 3-4kW 프로그래밍 가능 DC 파워서플라이
가격문의(상세정보 참조)
AMETEK DLM 3-4kW 프로그래밍 가능 DC 파워서플라이
AMETEK DLM 3-4kW DLM 3-4kW 2U Rack Programmable DC Power Supplies
- Model: DLM Series
- Voltage: 5V - 600V
- Current: 5A - 450A
- Power: 3kW - 4kW
- Overview: Programmable DC Power Supplies
클릭 하시면 이동합니다.
아메텍 ・ AMETEK
DLM 3-4kW
프로그래밍 가능 DC 파워서플라이
DLM 3-4kW DLM 3-4kW 2U Rack Programmable DC Power Supplies

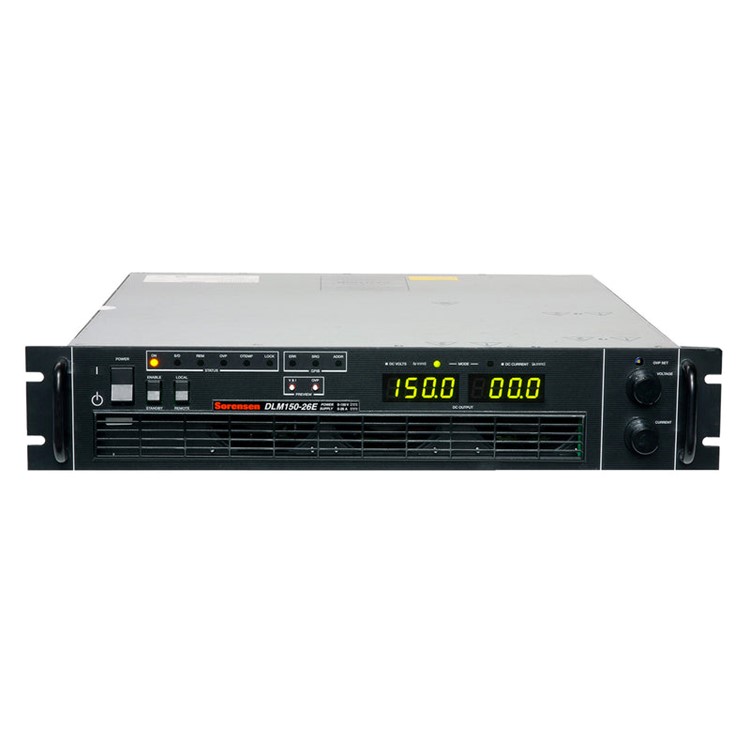

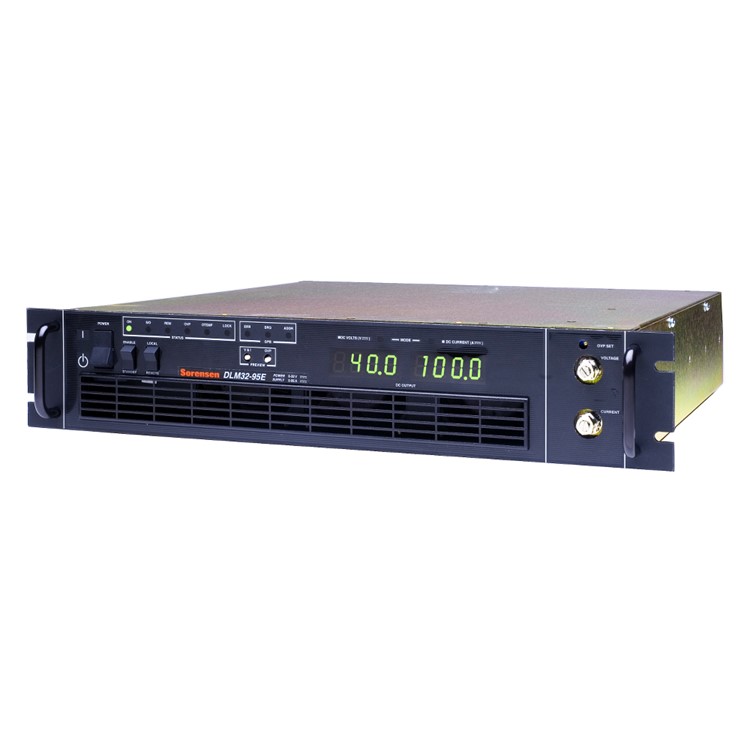

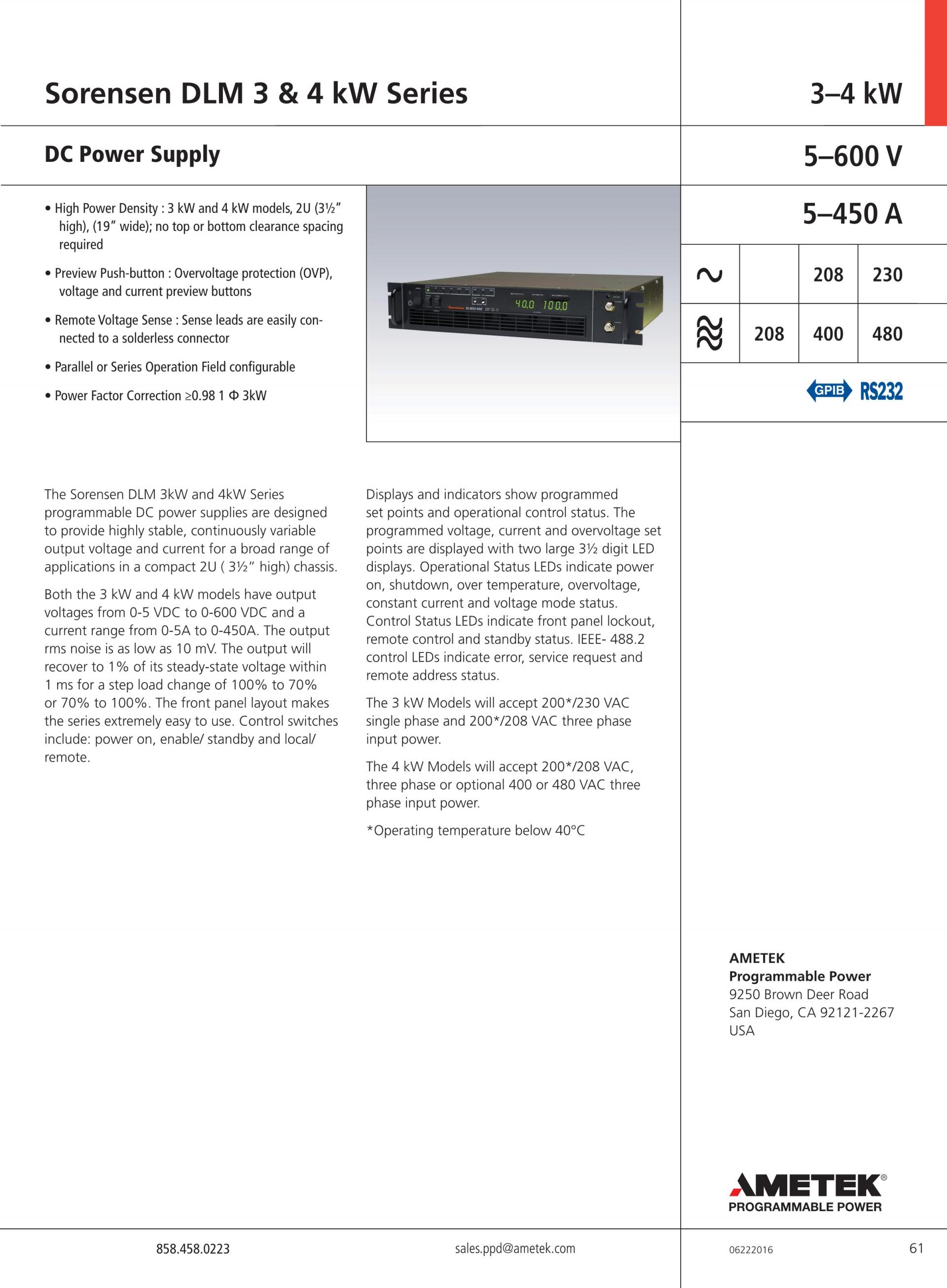

The Sorensen DLM 3kW and 4kW Series programmable DC power supplies are designed to provide highly stable, continuously variable DC output voltage and current for a broad range of applications in a compact 2U (3½” high) chassis.
The 3 kW and 4 kW 2U rackmount DC power supply models have output voltages from 0-5 VDC to 0-600 VDC and a current range from 0-5A to 0-450A. The output rms noise is as low as 10 mV. The output will recover to 1% of its steady-state voltage within 1ms for a step load change of 100% to 70% or 70% to 100%. The front panel layout makes the series extremely easy to use. Control switches include power on, enable/ standby, and local/ remote.
Displays and indicators show programmed set points and operational control status. The programmed voltage, current, and overvoltage set points are displayed with two large 3½ digit LED displays. Operational Status LEDs indicate power on, shutdown, over temperature, overvoltage, constant current, and voltage mode status. Control Status LEDs indicate front panel lockout, remote control, and standby status. IEEE- 488.2 control LEDs indicate the error, service request, and remote address status.
The 3 kW DC Power Supply Models will accept 200*/230 VAC single phase and 200*/208 VAC three phase input power.
The 4 kW DC Supply Models will accept 200*/208 VAC, three-phase, or optional 400 or 480 VAC three-phase input power.
*Operating temperature below 40°C
Features and Benefits
- High Power Density DC Power Supply

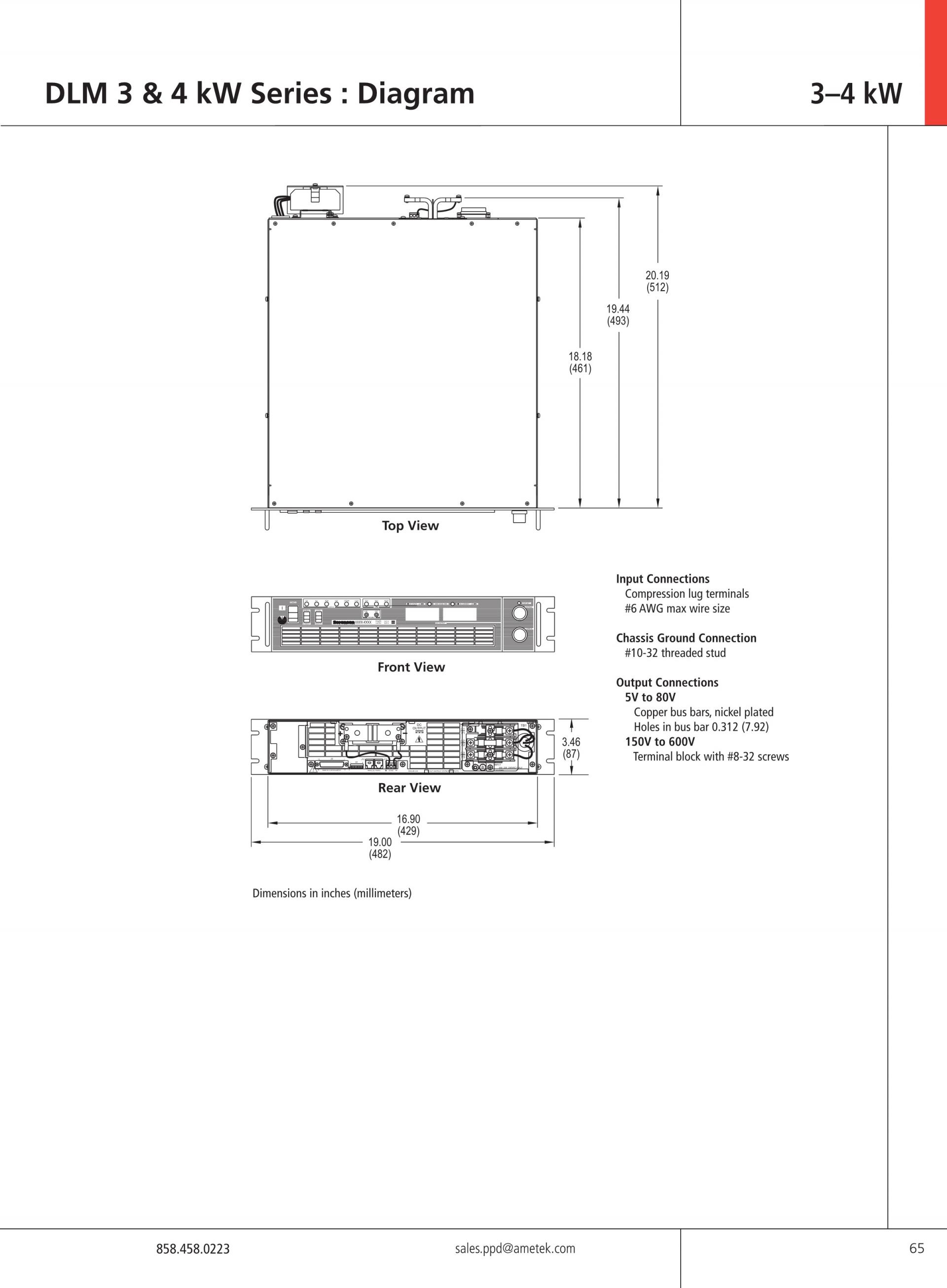

3 kW and 4 kW models, 2U (3½ inches) high, 19 inches wide; no top or bottom clearance spacing required.
- Wide Range of DC Output Voltages

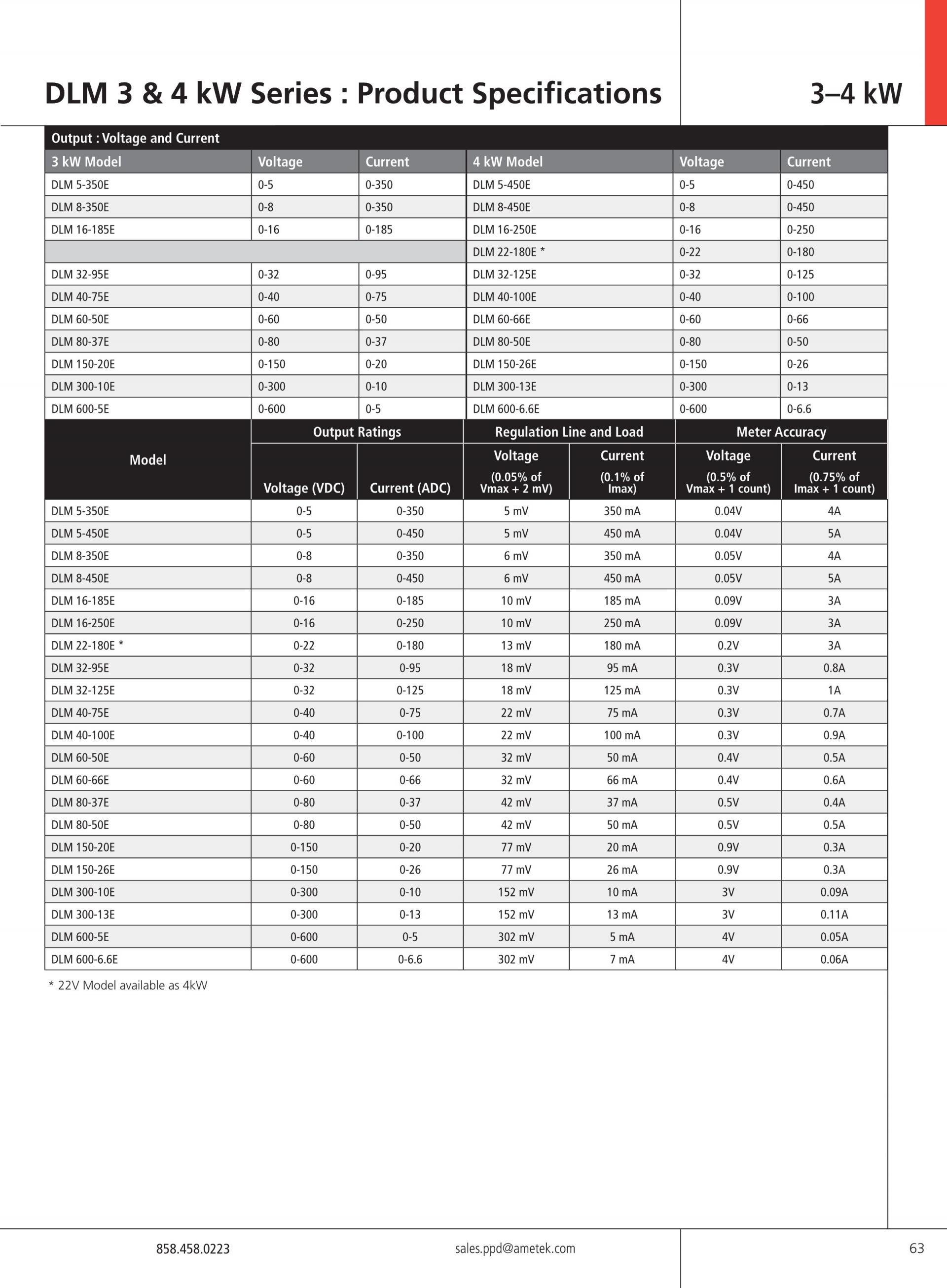

3 kW and 4 kW outputs 0-5V, 8V, 16V, 32V, 40V, 60V, 80V, 150V, 300V and 600V
- Preview Pushbutton
Overvoltage protection (OVP), voltage and current preview buttons allow viewing these set points at any time with or without the output enabled.
- Remote Voltage Sense
Sense leads are easily connected to a solderless connector.
- Remote Operation
- Standard analog programming
- Output enable/disable remotely.
- Optional IEEE-488.2 and RS 232
- Optional optically isolated analog programming
- Calibration
All models can be calibrated without removing the covers.
- Operating Modes
Constant voltage and constant current, with LED indicators
- Parallel or Series Operation
Field configurable
- Input Power Factor
0.95 typical (three phase for all models) 0.98 typical (single phase)
- CE Mark
- 5 Year Warranty
