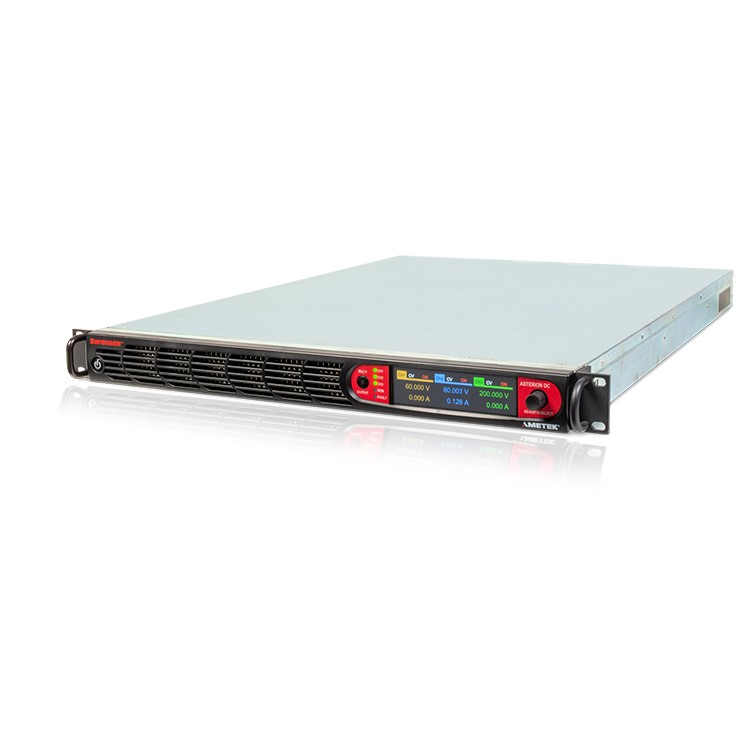

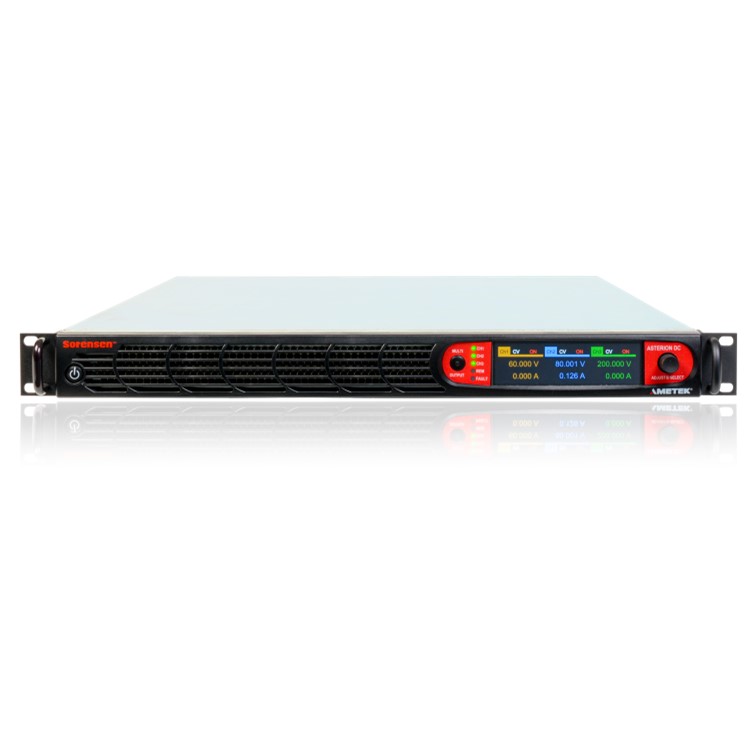

AMETEK ASTERION DC ASA SERIES 3채널 프로그래밍 가능 DC 전력공급장치
가격문의(상세정보 참조)
AMETEK ASTERION DC ASA SERIES 프로그래밍 가능 3채널 DC 전력공급장치
AMETEK ASTERION DC ASA SERIES 3-Channel Programmable DC Power Supplies
- Model: Asterion DC ASA Series
- Voltage: 60V to 600V
- Power: 3-Channels x 600W (1800W Total Power)
- Overview: High Performance 3-Channel Programmable DC Power Supplies
클릭 하시면 이동합니다.
아메텍 ・ AMETEK
ASTERION DC ASA SERIES
프로그래밍 가능 3채널 DC 전력공급장치
ASTERION DC ASA SERIES 3-Channel Programmable DC Power Supplies

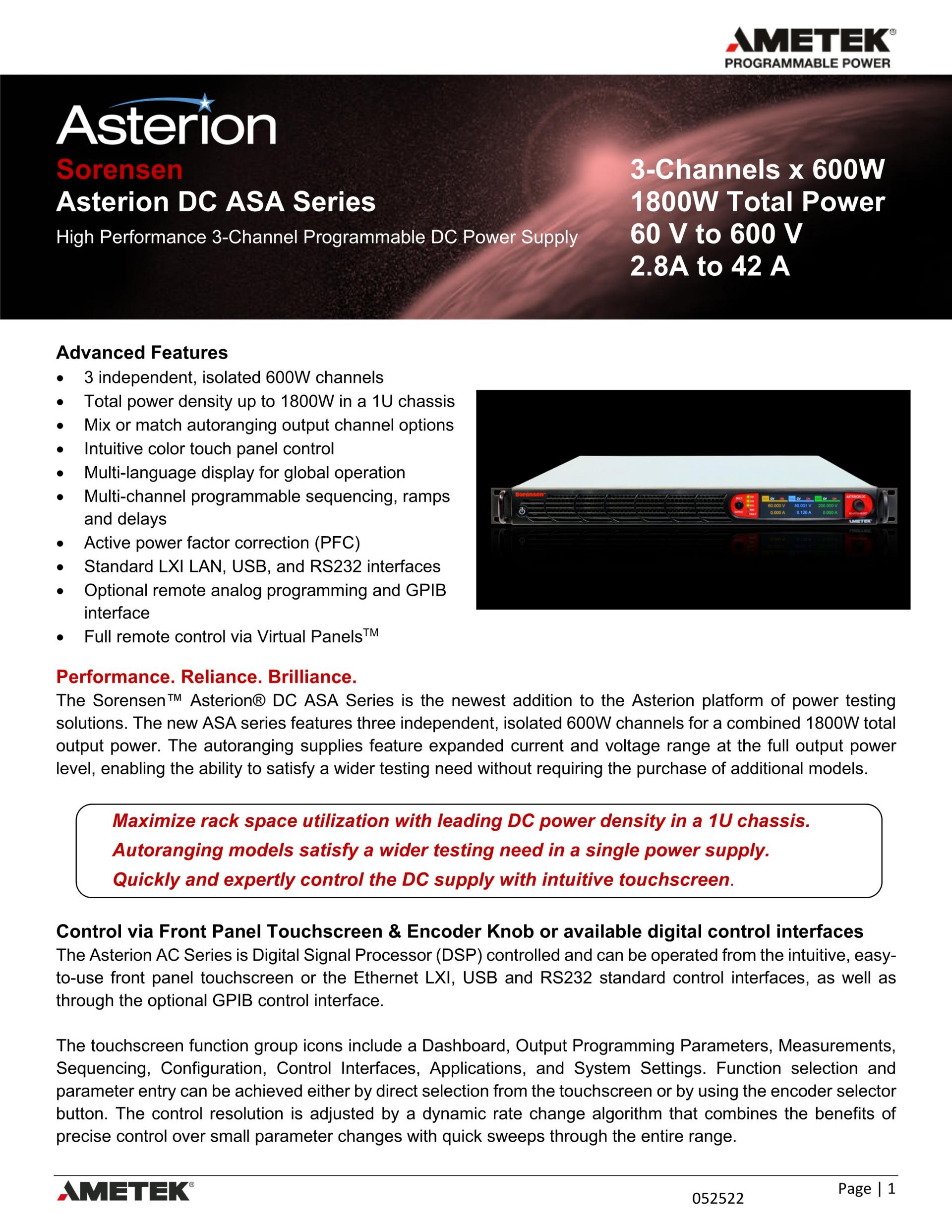

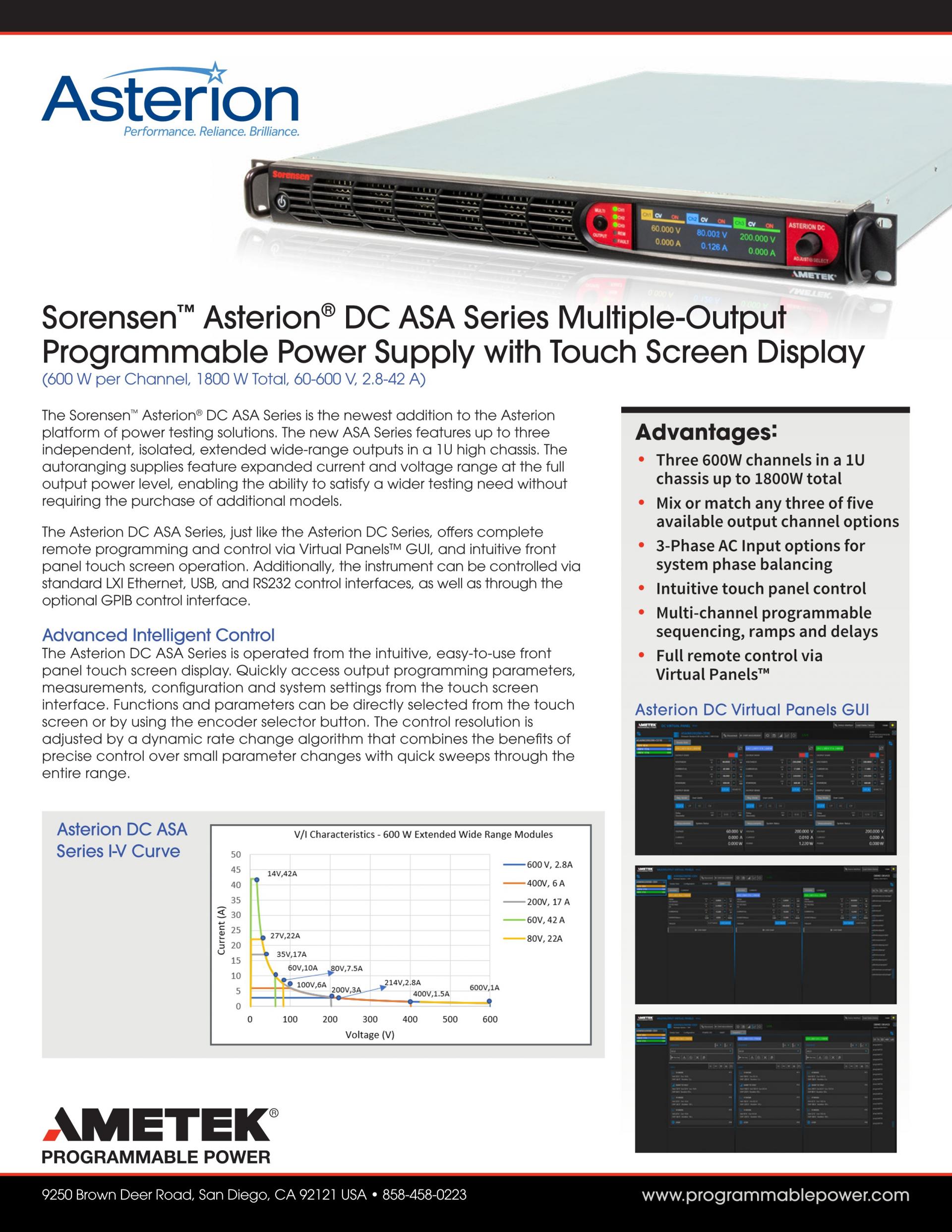

The Sorensen™ Asterion® DC ASA Series is the newest addition to the Asterion platform of DC power testing solutions.
The new ASA Series features 3 independently controlled, and isolated DC output 600W channels for a combined 1800W total output power.

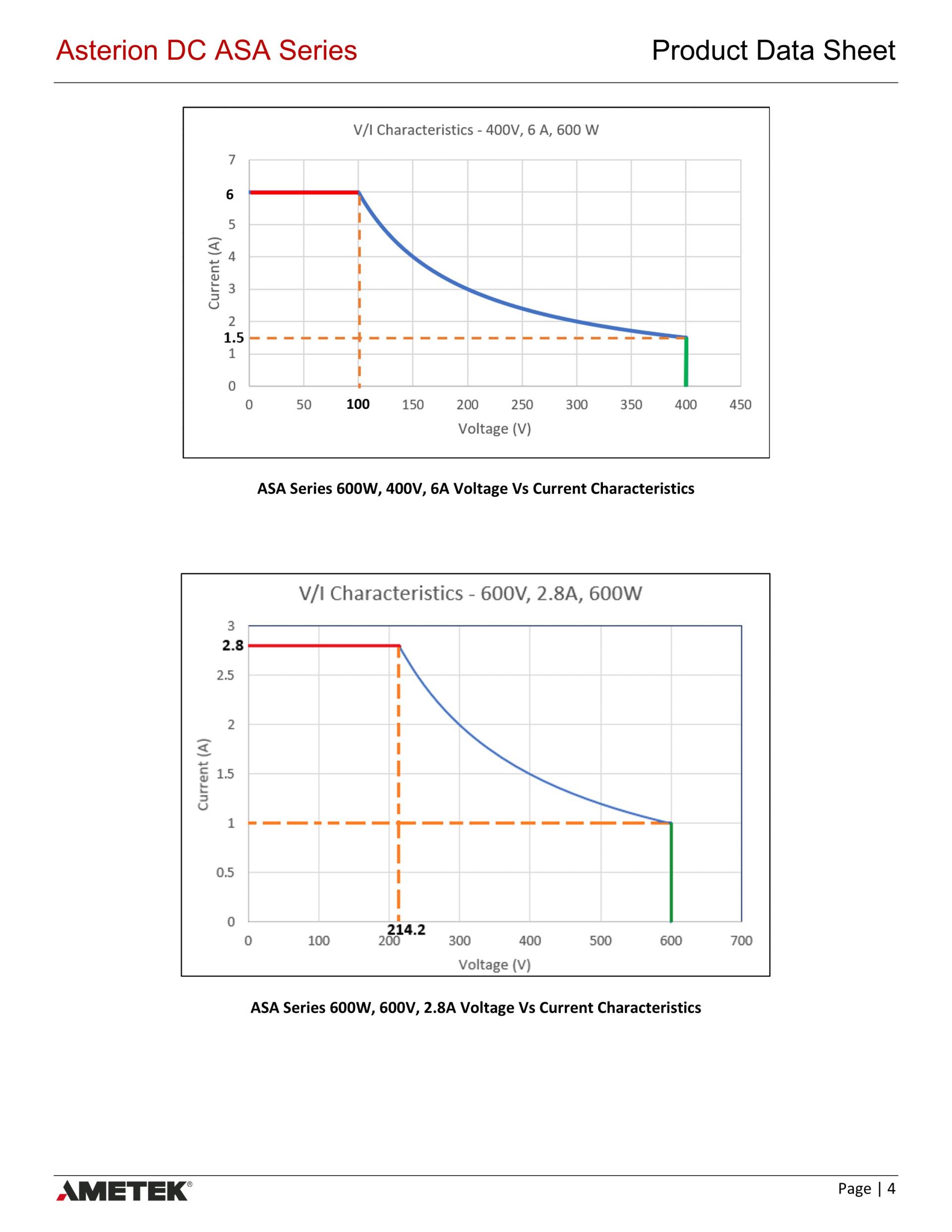

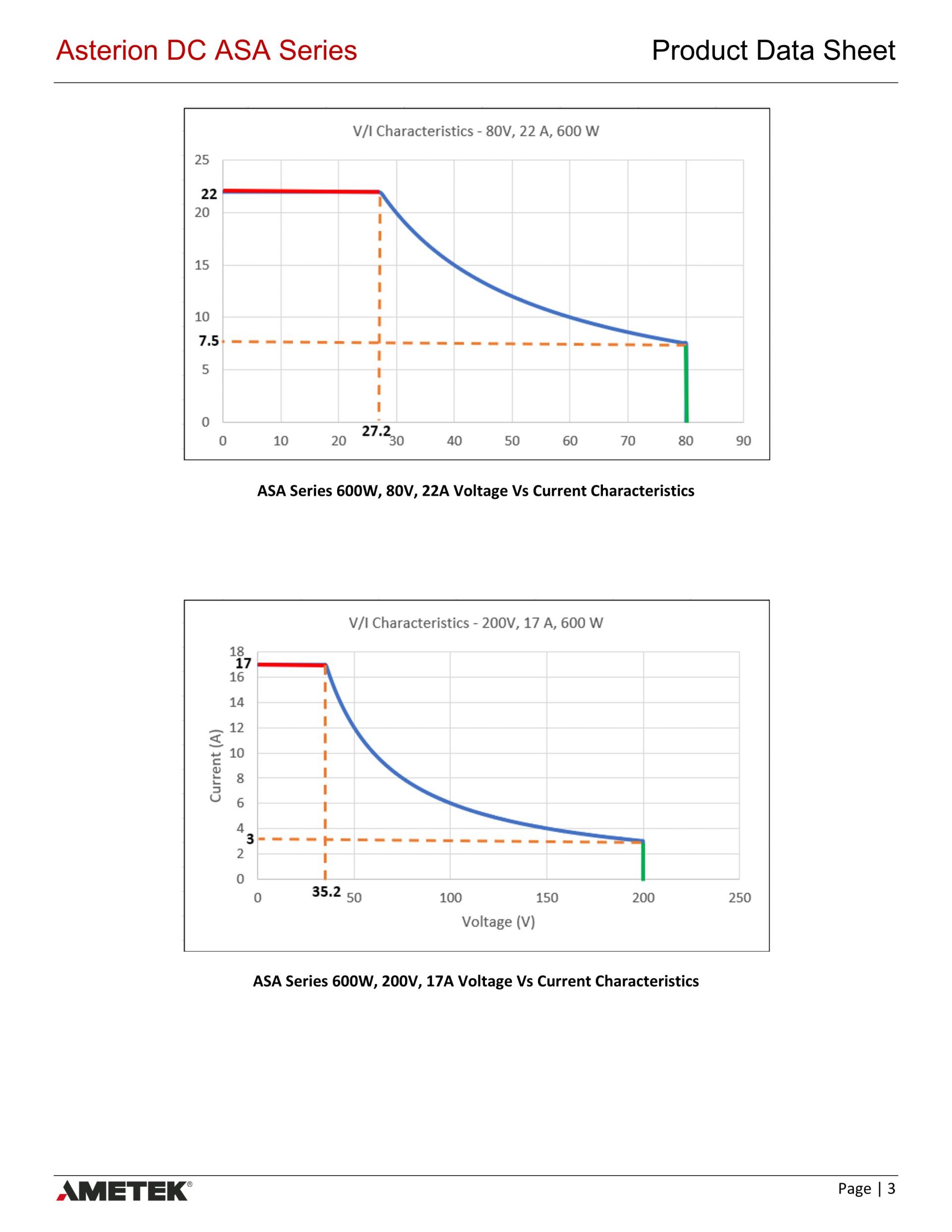

The autoranging triple output dc power supplies feature expanded current and voltage range at the full output power level, enabling the ability to satisfy a wider testing need without requiring the purchase of additional models.
- Advanced Features
- Three independent, isolated DC output power supply 600W channels
- Total DC power density up to 1800W in a 1U chassis
- 5 autoranging output channel options

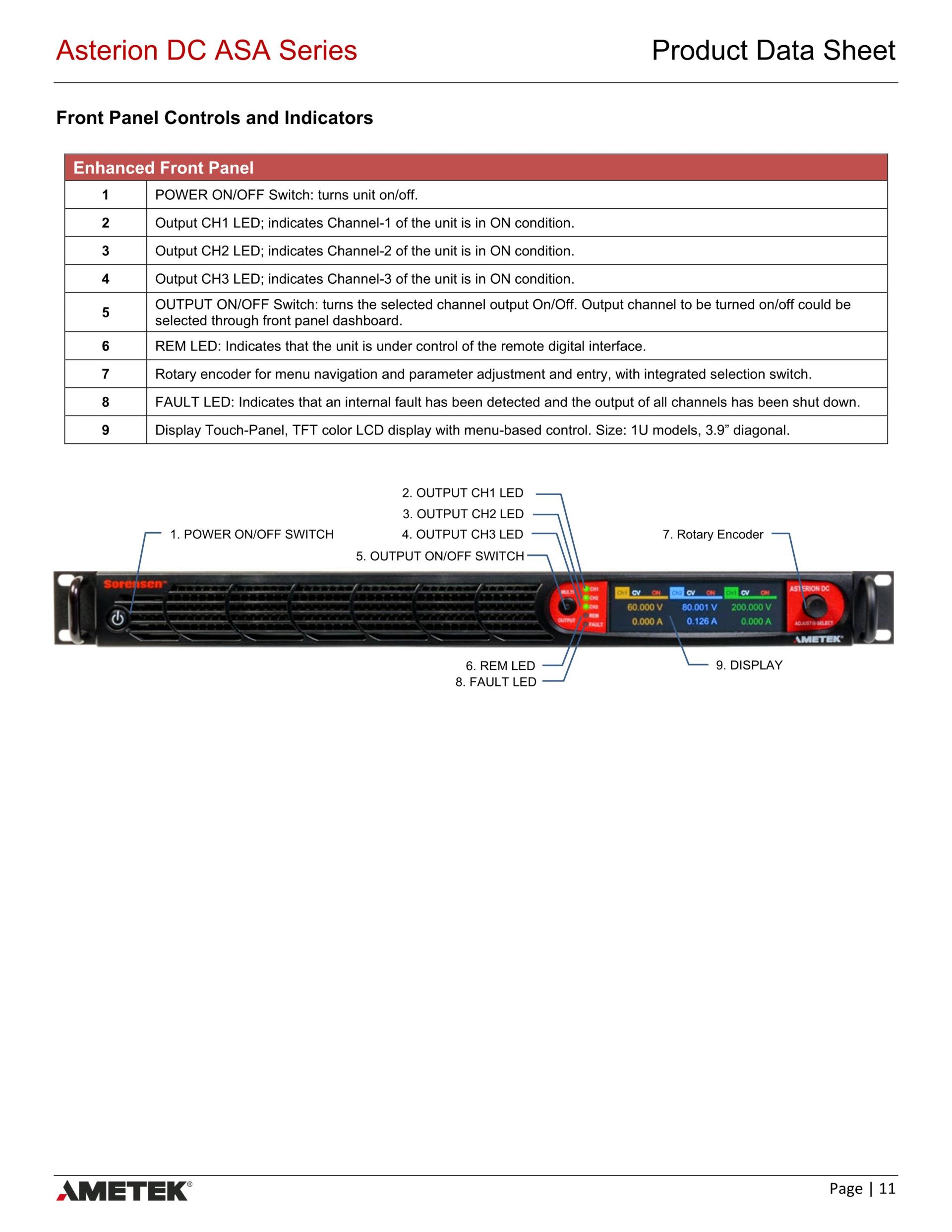

- Intuitive color touch panel control
- Multi-language display for global operation
- Multi-channel programmable sequencing, ramps, and delays

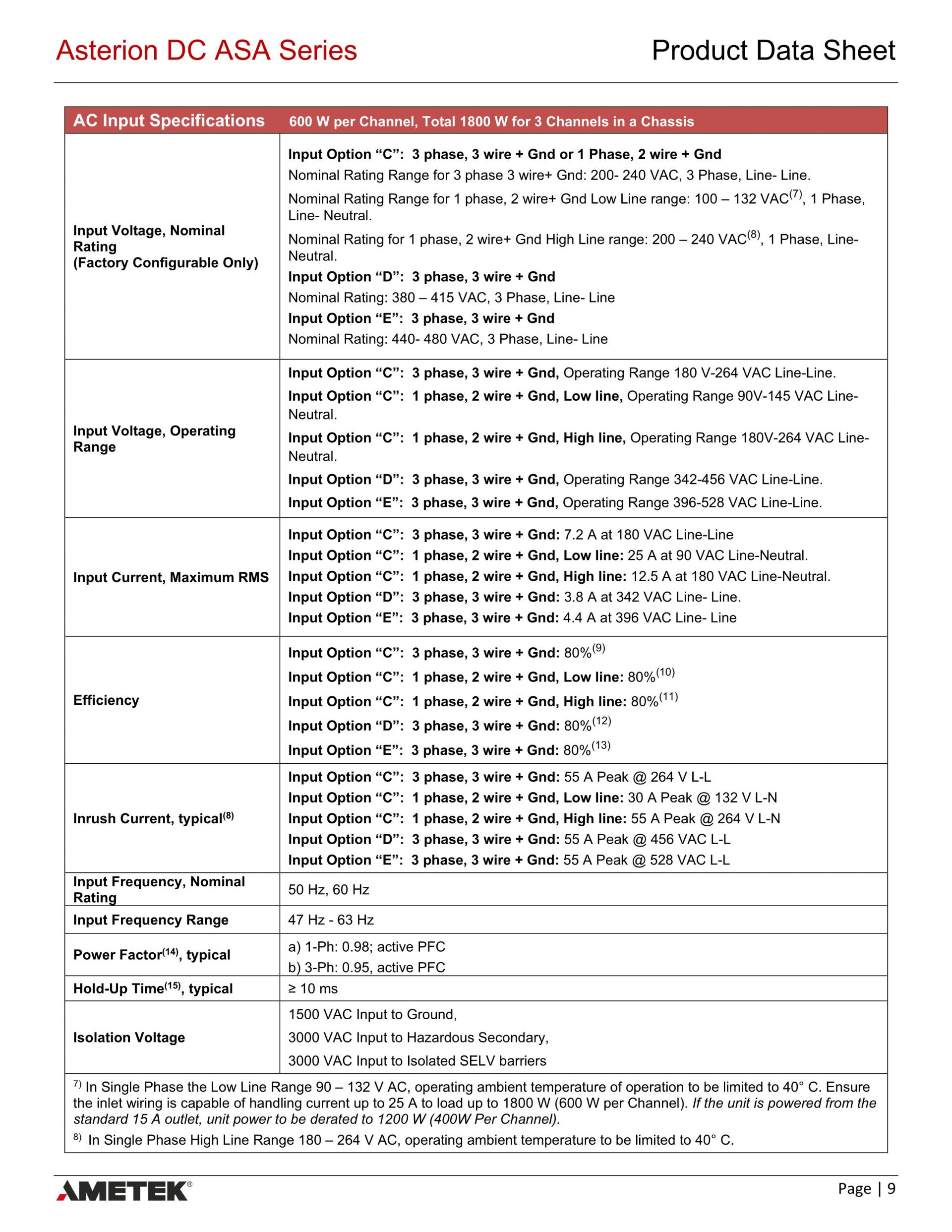

- Active power factor correction (PFC)

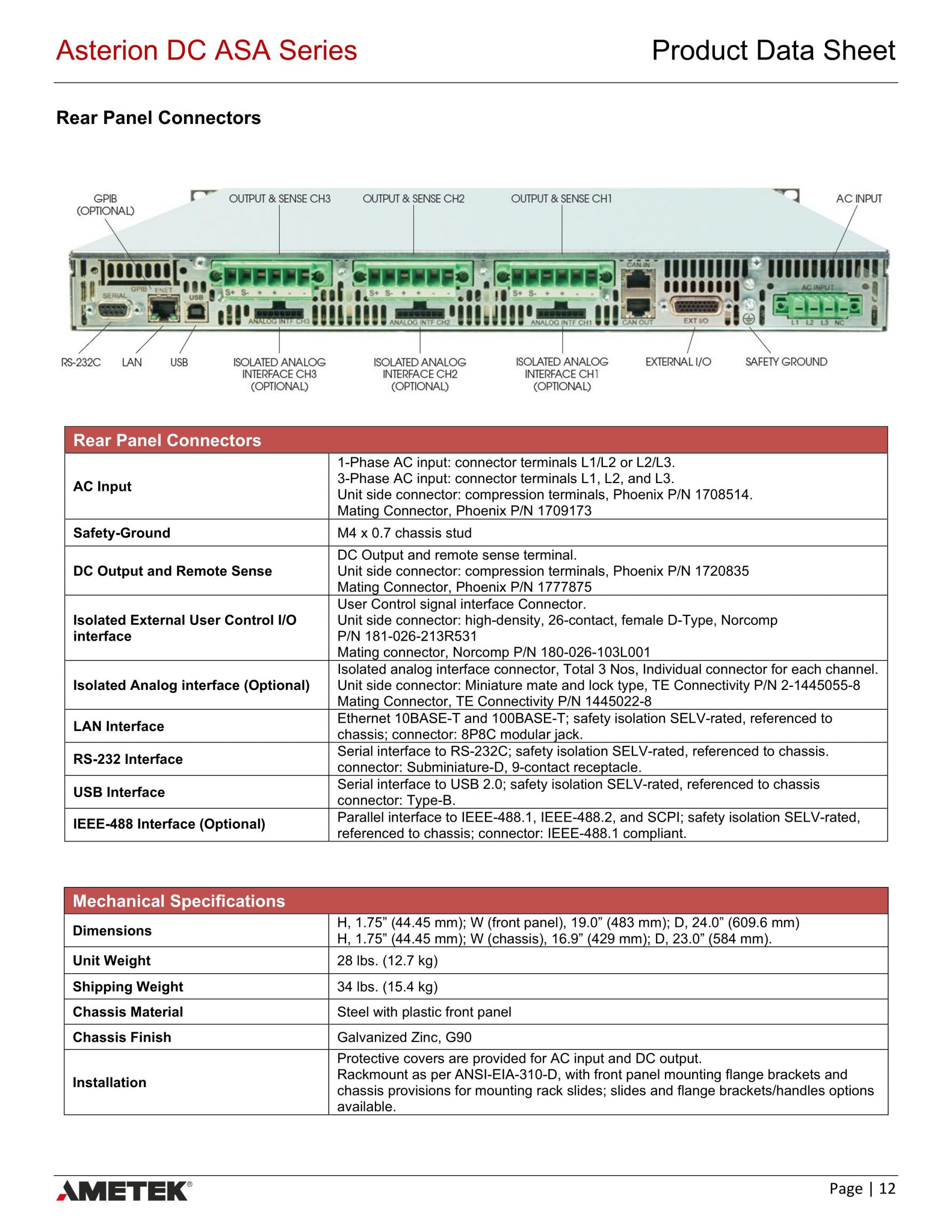

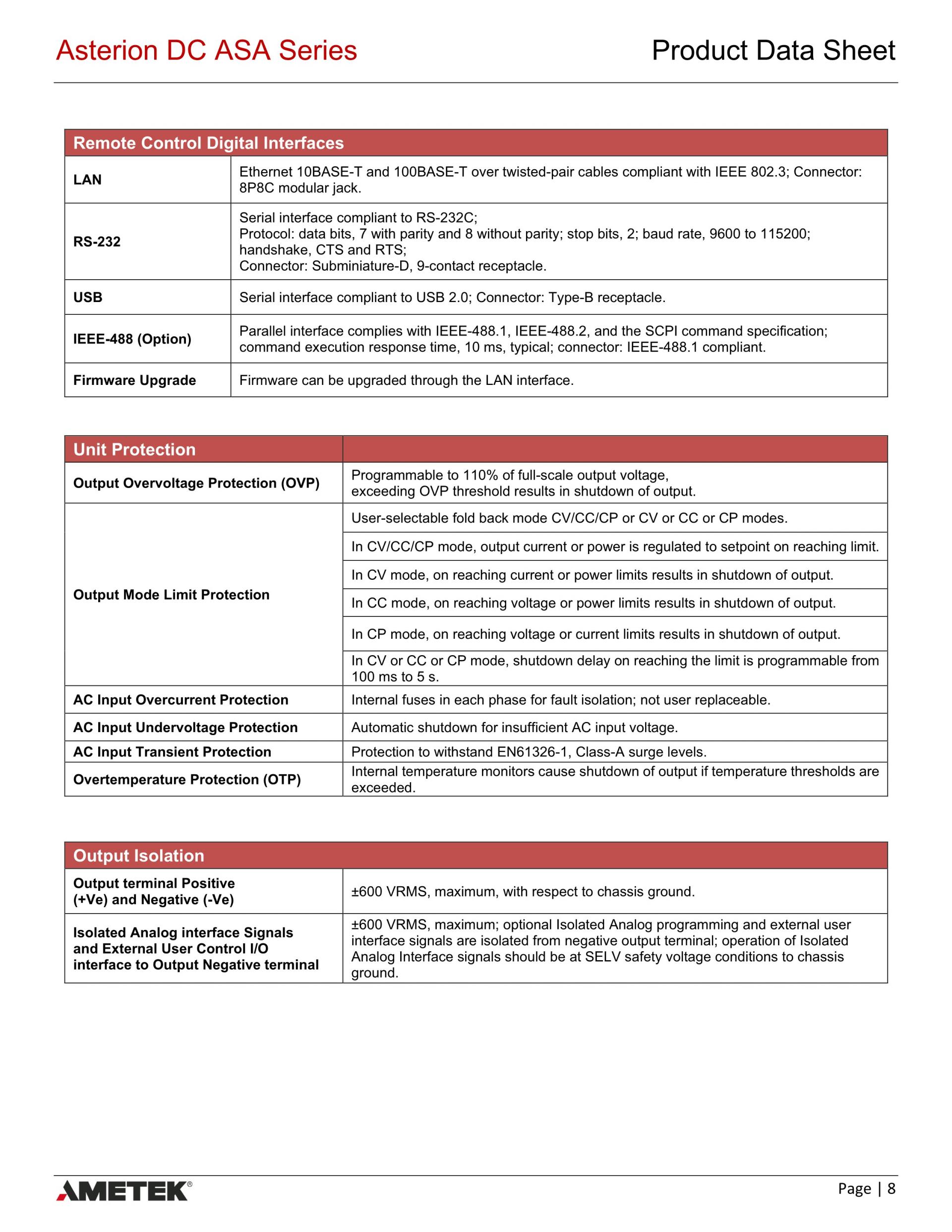

- Standard LXI LAN, USB, and RS232 interfaces
- Optional GPIB interface

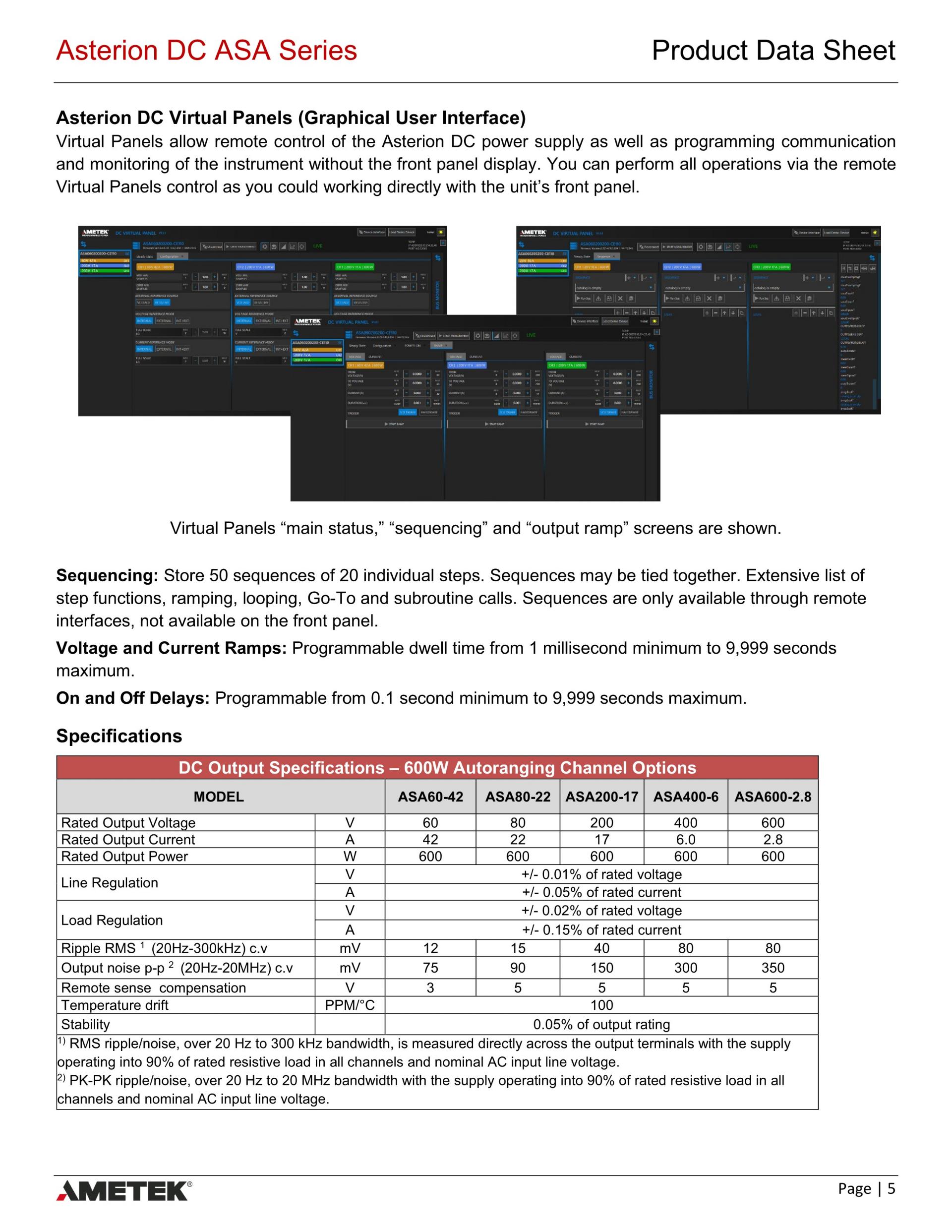

- Full remote control via Virtual Panels™
- Control via Front Panel Touchscreen & Encoder Knob or available digital control interfaces
The Asterion DC ASA Series DC Power Supply is Digital Signal Processor (DSP) controlled and can be operated from the intuitive, easy-to-use front panel touchscreen or the Ethernet LXI, USB, and RS232 standard control interfaces, as well as through the optional GPIB control interface.
The touchscreen function group icons include a Dashboard, Output Programming Parameters, Measurements, Sequencing, Configuration, Control Interfaces, Applications, and System Settings. Function selection and parameter entry can be achieved either by direct selection from the touchscreen or by using the encoder selector button.
The control resolution is adjusted by a dynamic rate change algorithm that combines the benefits of precise control over small parameter changes with quick sweeps through the entire range.

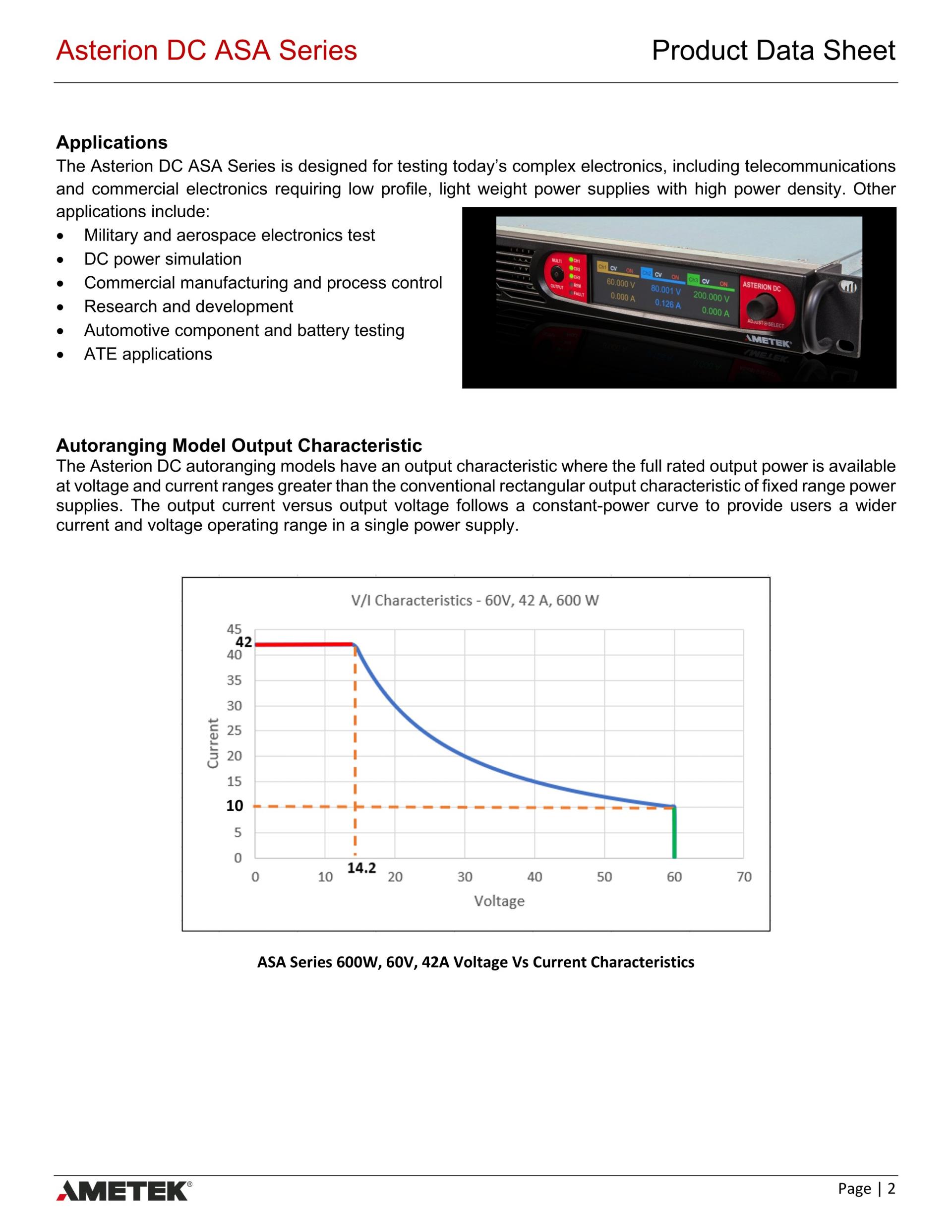

- Applications
The Asterion DC ASA Series is designed for testing today’s complex electronics, including telecommunications and commercial electronics requiring low-profile, lightweight DC Power supplies with high power density. Other applications include:
- Military and aerospace electronics test
- DC power simulation
- Commercial manufacturing and process control
- Research and development
- Automotive component and battery testing
- ATE applications
