AMETEK ASD SERIES 프로그래밍 가능 정밀 고전력 DC 공급장치
가격문의(상세정보 참조)
AMETEK ASD SERIES 프로그래밍 가능 정밀 고전력 DC 공급장치
AMETEK ASD SERIES Programmable Precision High Power DC Supply
- 용량 10kW–320kW
- 전압 40V–60V
- 전류 167A–8000A
클릭 하시면 이동합니다.
아메텍 ・ AMETEK
ASD SERIES
프로그래밍 가능 정밀 고전력 DC 공급장치

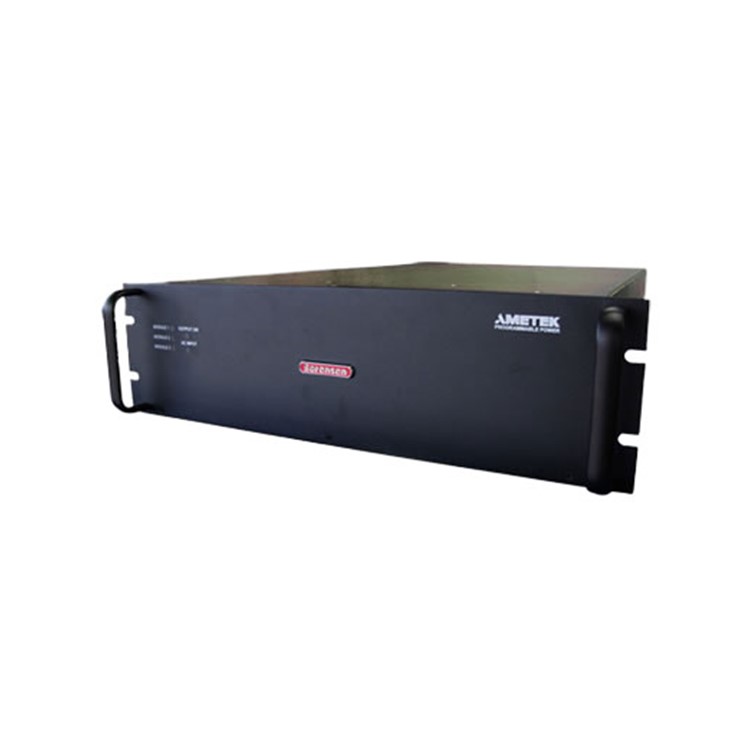

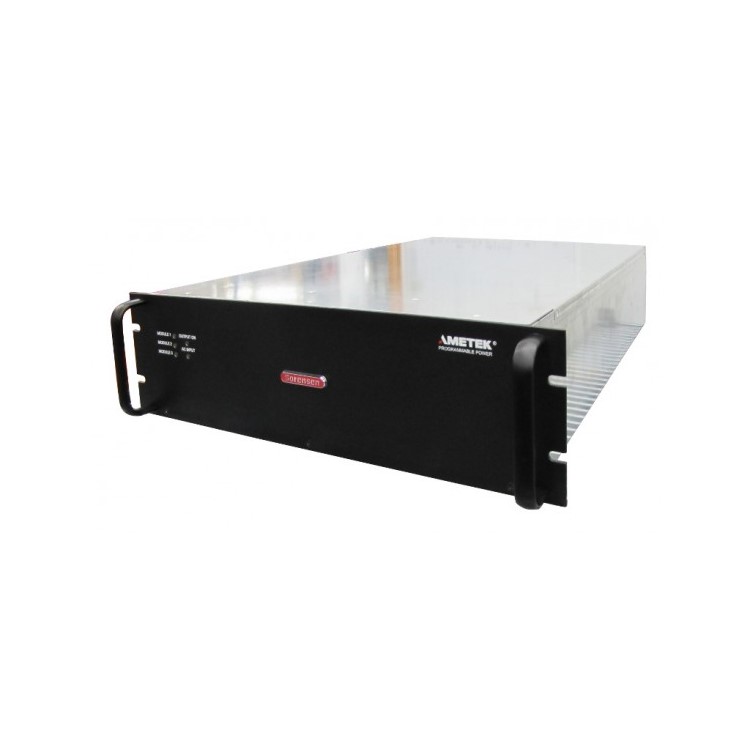

ASD SERIES Programmable Precision High Power DC Supply
DaVinci Power ™ technology 가 적용된 ASD 시리즈는 precision programmable AC-DC power conversion의 차세대기를 대표하는 장비입니다. 3U, 30kw 수냉 패키지의 ASD는 최고의 전력 밀도를 갖추고 있습니다. ASD는 업계 선도의 탁월한 output ripple과 노이즈의 load transient response을 위해 설계되었습니다. 수냉 패키지는 공냉식 전원공급기의 사용이 어려운 환경에서도 사용이 가능합니다.
- Precise programming of voltage and current slew rate for sensitive loads.
- Modules within one chassis can be connected to different loads and controlled independently.
- Industrial field bus interface (Modbus-TCP, Modbus-RTU, Ethernet/IP (Industrial Protocol)) enable real-time digital control.
- Built-in energy meter calculates the delivered energy throughout a process or period of time.
- Optional real time clock enables accurate timestamping of events.
- Built in power quality monitoring detects and saves input voltage anomalies which can be saved for later diagnostic analysis.
- Programmable analog interface scaling facilitates incorporating the ASD to existing systems with minimal effort.
- Load impedance measurement, including rate-of-change calculations, enable load "state of health" monitoring and implementation of system preventive maintenance algorithms
- Programmable filter bandwidth of the output voltage, current and power monitors let the user accommodate their response speed to particular needs.
- Full featured GUI (Graphical User Interface) helps to test and debug the system by communicating with the power supply in real time.
