AMETEK ASD FLX SERIES 수냉식 모듈러 DC 전원공급장치
가격문의(상세정보 참조)
AMETEK ASD FLX SERIES 수냉식 모듈러 DC 전원공급장치
AMETEK ASD FLX Series - Modular Water-cooled DC Power Supplies
- Model: ASD FLX Series
- Voltage: 40V–160V
- Current: 167A–8000A
- Power: 10kW–320kW
- Overview: Programmable Modular Water-cooled DC Supplies
클릭 하시면 이동합니다.
아메텍 ・ AMETEK
ASD FLX SERIES
수냉식 모듈러 DC 전원공급장치
ASD FLX Series Modular Water-cooled DC Power Supplies

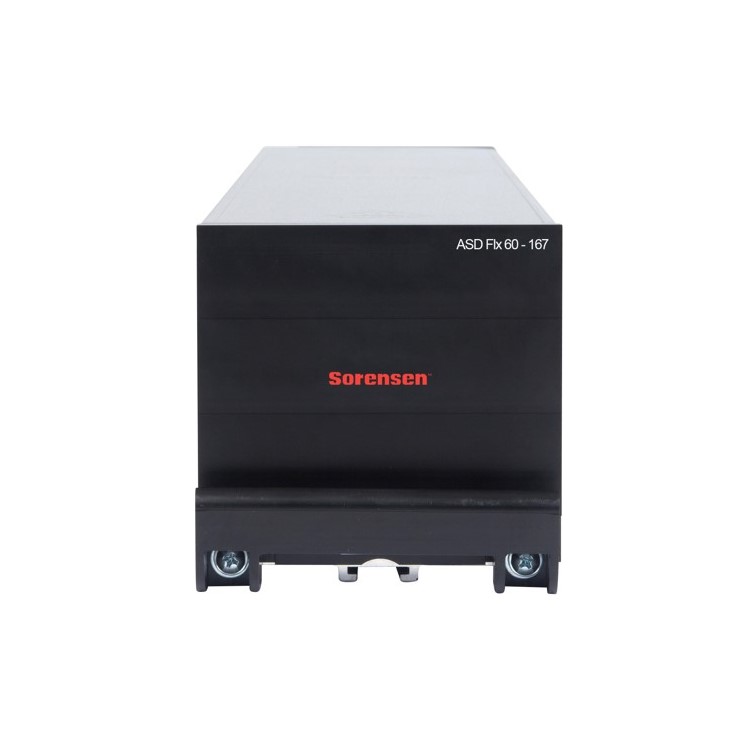

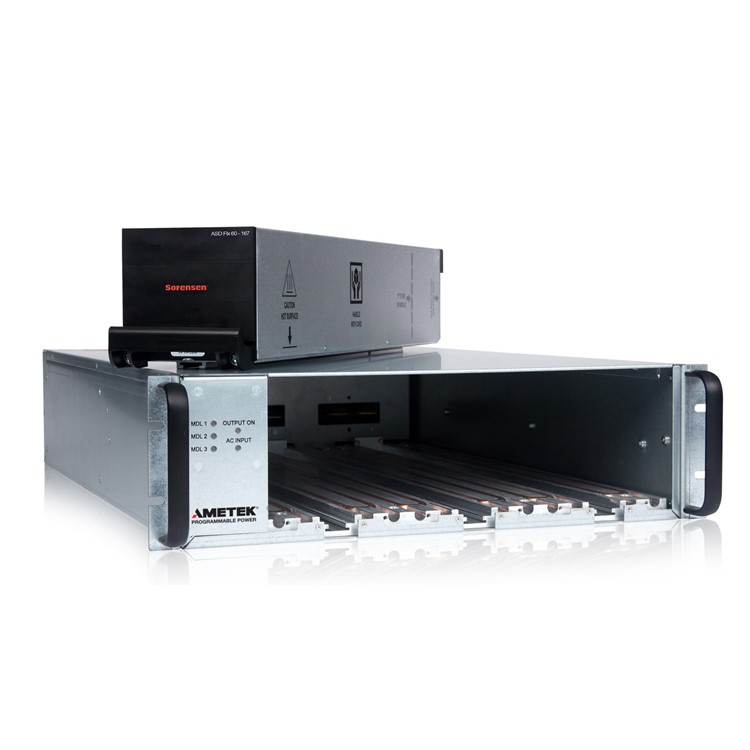

The ASD FLX modular dc power supply gets its name from its modular design with front-loading modules for easy access and flexible voltage options. The chassis with removable, lightweight modules allows for easy one-person installation.
Furthermore, this DC power supply has a wide range of voltage inputs, from 324 VAC to 528 VAC, giving it the flexibility to be utilized globally in a single configuration.

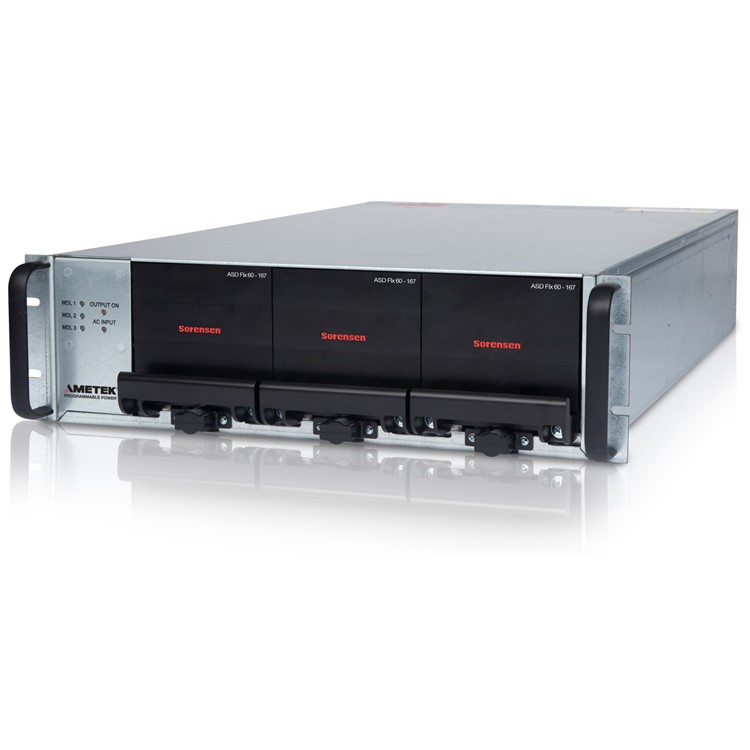

The ASD FLX with its 3U, 30kW water-cooled packaging provides one of the highest DC power densities available with outstanding output ripple and noise. The water-cooling allows for use in environments that normally exclude air-cooled DC power supplies.
Advanced digital controls included in the ASD FLX modular power system can allow you to program slew rates, such as current and voltage, as well as program transient response times to emulate specific recovery times.
The ASD FLX optional advanced features also allow you to program different “fault levels”, enabling the detection of output cabling, connections, or load problems before they cause critical system problems. The factory flight data recorder feature can record parameters such as voltage, current, power, load impedance, faults, and input voltages, allowing the factory to easily determine “why” you had an unexpected outcome.
- Advanced features include:
- Precise programming of voltage and current slew rate for sensitive loads.
- Industrial field bus interfaces (Modbus-TCP, Modbus-RTU, Ethernet) enable real-time digital control.
- Built-in power quality monitoring detects and saves input voltage anomalies which can be saved for later diagnostic analysis.
- Programmable analog interface scaling facilitates integrating the ASD FLX with existing systems easily.
- Built-in energy meter calculates the delivered energy throughout a process or period.
- Optional real-time clock enables accurate timestamping of events.
