ADDITEL ADT783 압력 컨트롤러
가격문의(상세정보 참조)
ADDITEL ADT783 압력 컨트롤러
ADDITEL ADT783 Pressure Controller
초고속 모듈식 압력 컨트롤러 (차압, 게이지압)
공압 시스템, 3종 모델 구성
- 99% 진공~250bar
- 정확도 0.01%FS, 0.02%FS, 0.01%RD
- 안정도 0.003%FS
- 초기 20% 압력 제어 도달시간 10초 이내
- 외부 가스 공급원 연결방식
- 사용자 맞춤형 2개의 분리식 제어모듈(기본), 1개의 기준 기압모듈(옵션) 장착
- Volt-free 비접촉 릴레이 출력
- 7인치 컬러 터치스크린
클릭 하시면 이동합니다.
에디텔 ・ ADDITEL
ADT783
압력 컨트롤러
ADT783 Pressure Controller

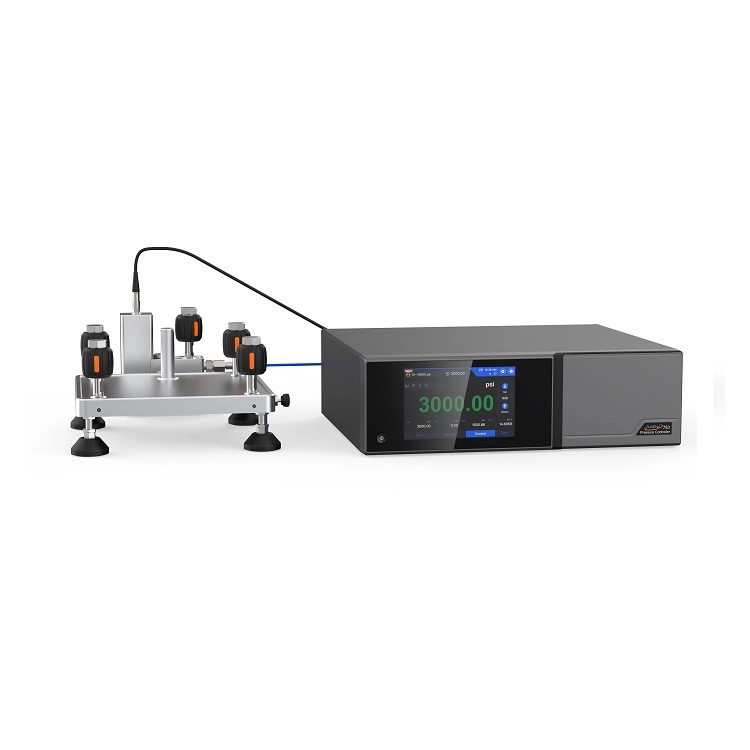

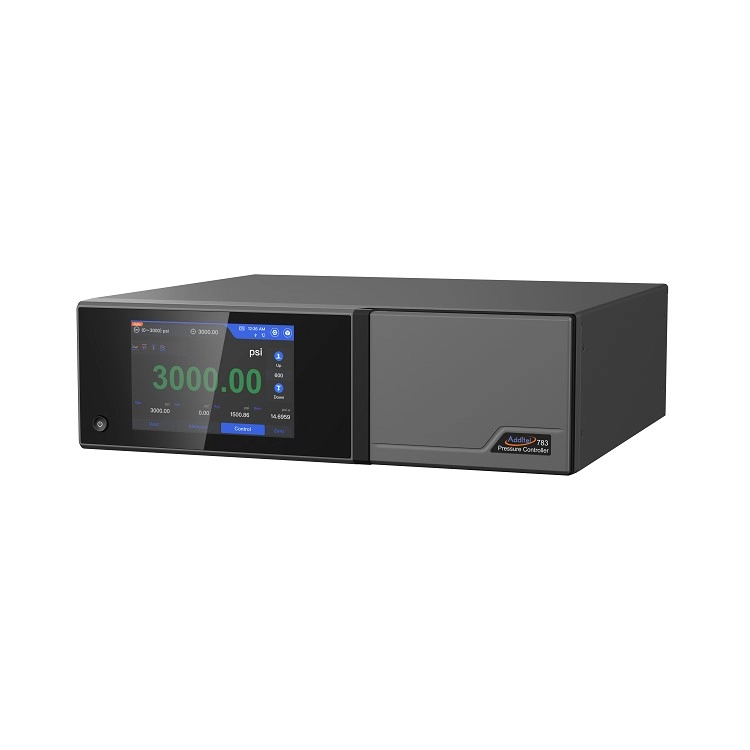

These modular pressure controllers combine cutting-edge control/measurement technology, modular design, and user-friendly features. The Additel 783 controller series is optimized for high speed to pressure without compromising accuracy and stability. For users who require automated production, test, and calibration, Additel has the workload covered with these pressure controllers. The ADT783 can be quickly outfitted with two controlling modules and one reference barometric module to cover a wide pressure range. The Additel 783 series offers three base units to choose from, which range from 3500 psi (250 bar) down to low pressure differential.
- ADT783-D
The ADT783-D is designed for differential and gauge pressure calibration to as low as ±2 inH2O (±5 mbar) up to 36 psi (2.5 bar). Select between one or two pressure control modules. Each module comes with a dual-range calibration, expanding measurement accuracy within each module. This unit has a control stability of 0.003%FS. In addition to the two control modules and optional barometric module can be added which allows for gauge and absolute measurements.
- ADT783-1K
The ADT783-1K is designed for gauge pressure calibration from -14.35 (-0.99 bar) up to 1000 psi (70 bar). Select between one or two pressure control modules. Each module comes with a dual-range calibration, expanding measurement accuracy within each module. This unit has a control stability of 0.003%FS. In addition to the two control modules and optional barometric module can be added which allows for gauge and absolute measurements.
- ADT783-3.5K
The ADT783-3.5K is designed for gauge pressure calibration from -14.35 (-0.99 bar) up to 3500 psi (250 bar). Select between one or two pressure control modules. Each module comes with a dual-range calibration, expanding measurement accuracy within each module. This unit has a control stability of 0.003%FS. In addition to the two control modules and optional barometric module can be added which allows for gauge and absolute measurements.
Application | Picture of Aditel 783's Functionality |

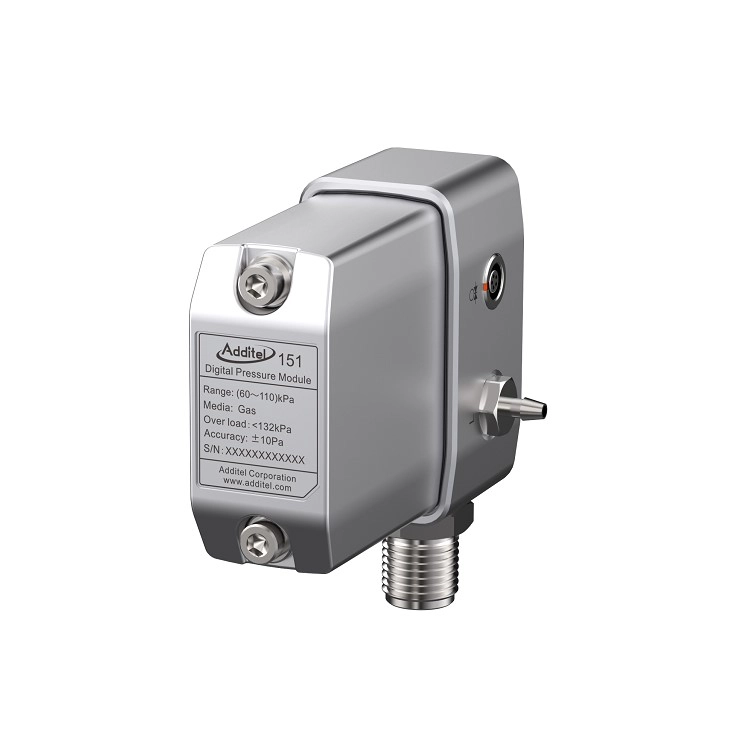

Quick Change Pressure Modules (30 seconds) Additel's 151 pressure control modules can be installed or replaced within 30 seconds or less. Simply open the upper edge of the cabin to open. As the door opens, the controller will automatically release pressure, providing the safe removal and installation of the ADT151 modules. |  |
Convenient Automatic Calibration of Internal Pressure Control Module For production line users, higher frequency calibration and comparison of the pressure control module is an important guarantee means to improve the uncertainty of test calibration. The ADT783 can be connected with a external high-precision pressure module, which can be used to achieve regular comparison of the internal pressure control module, and can also realize the automatic calibration of the internal pressure control module. |  |

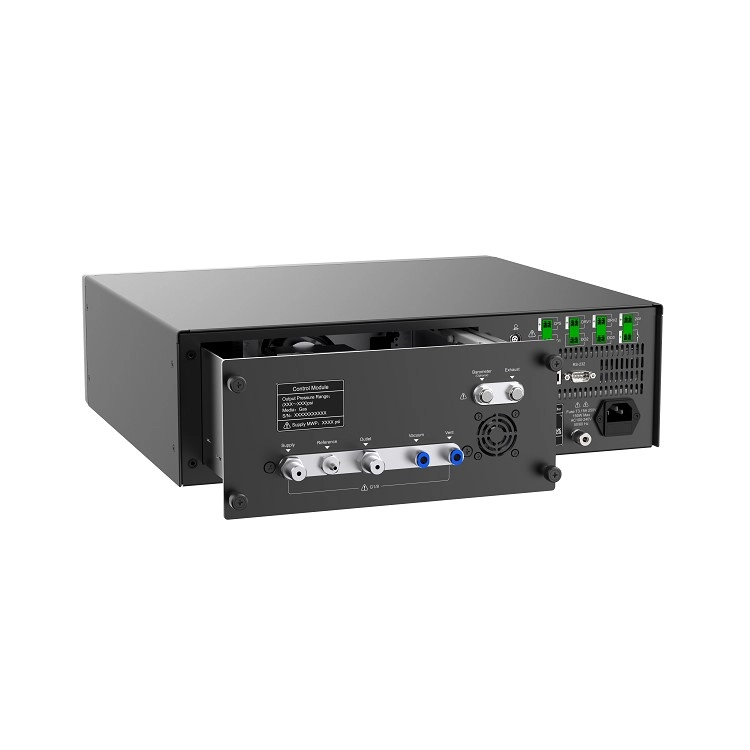

Modular Design, Easy Maintenance The ADT783 adopts a variety of easy maintenance design methods, which can quickly change the pressure control module, quickly change the pressure control component, quickly clean the solenoid valve, and fine filtration of pollution particles. |  |
20% Pressure Step Within 10 Seconds In the process of efficient and fast-paced production line testing, verification and calibration, users have strict requirements on the speed of pressure controllers. ADT783 adopts professional control technology to effectively improve control rate and stability: control response time (typical) ≤10 Seconds, control stability (typical) ≤±(0.001~0.003)%FS, See specifications for more details. |  |
Vacuum Pump Automatic Start-Stop, Greatly Extending the Life of the Vacuum Pump The ADT783 incorporates a built-in positive pressure/vacuum gas source with switching components. When controlling a small pressure above the atmospheric pressure point, it can be controllable and stable without connecting the vacuum pump. When controlling negative pressure or vacuum pressure, there is no need to utilize an external vacuum pump or protection components. A solid-state relay can be connected to the power supply line of the vacuum pump to realize fully automatic vacuum pump start-stop control, greatly extending the life of the vacuum pump. |  |

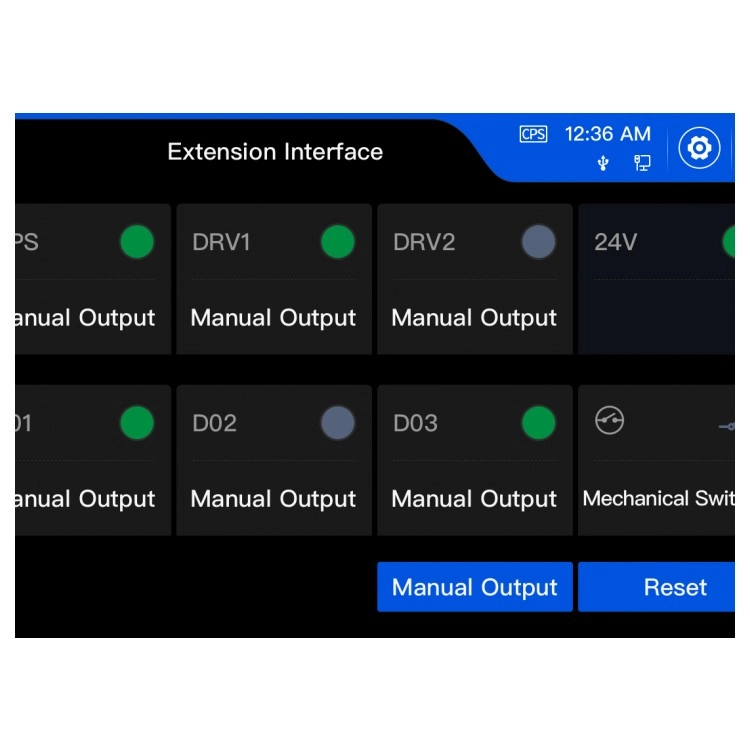

Volt Free Contacts Volt Free Contacts enable control of peripheral devices such as vacuum pumps, ovens, etc. Each VFC option has three independent volt-free NO/NC relay contacts. A number of conditions can be set within a Additel instrument to trigger a relay toggling its contacts. |  |
