ADDITEL ADT773 압력 컨트롤러
가격문의(상세정보 참조)

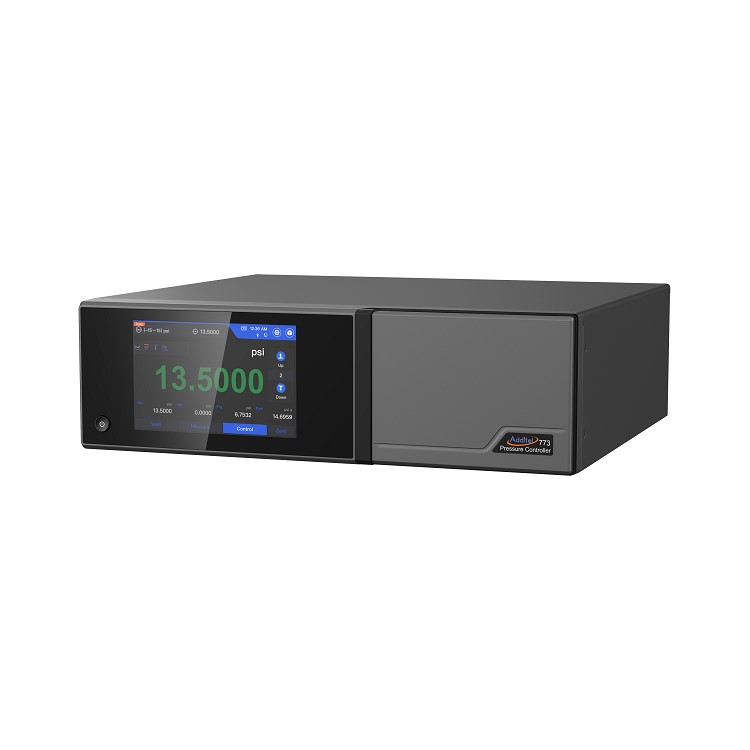

ADDITEL ADT773 압력 컨트롤러
ADDITEL ADT773 Pressure Controller / Generator
초고속 모듈식 압력 컨트롤러 (차압)
공압 시스템
- 95% 진공~1bar
- 정확도 0.02%FS
- 안정도 0.003%FS
- 초기 20% 압력 제어 도달시간 10초 이내
- 공압식 차압펌프 내장
- 사용자 맞춤형 2개의 분리식 제어모듈(기본), 1개의 기준 기압모듈(옵션) 장착

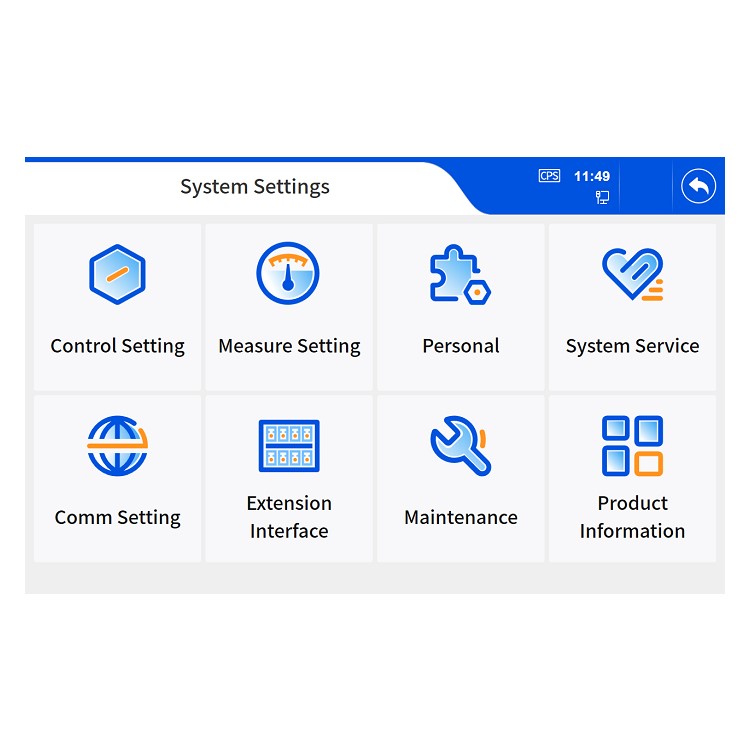

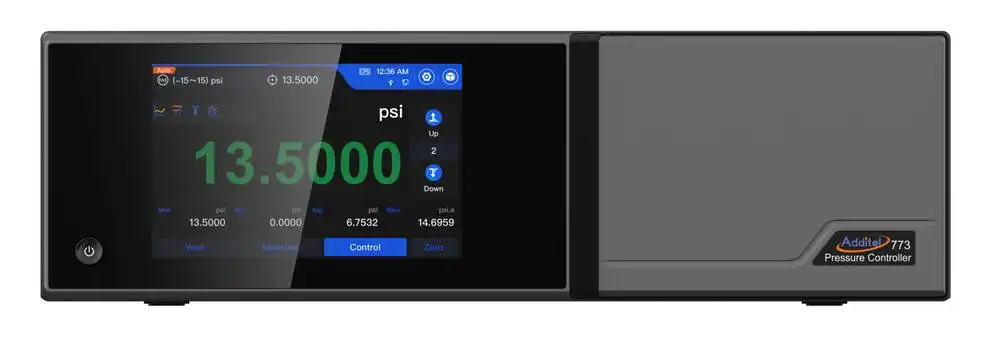

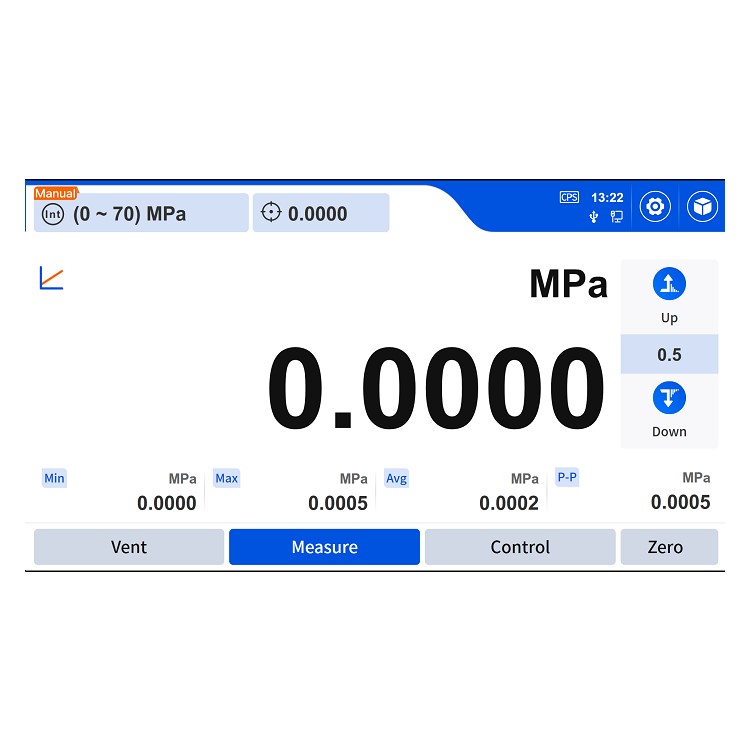

- 7인치 컬러 터치스크린
클릭 하시면 이동합니다.
에디텔 ・ ADDITEL
ADT773
압력 컨트롤러
ADT773 Pressure Controller / Generator

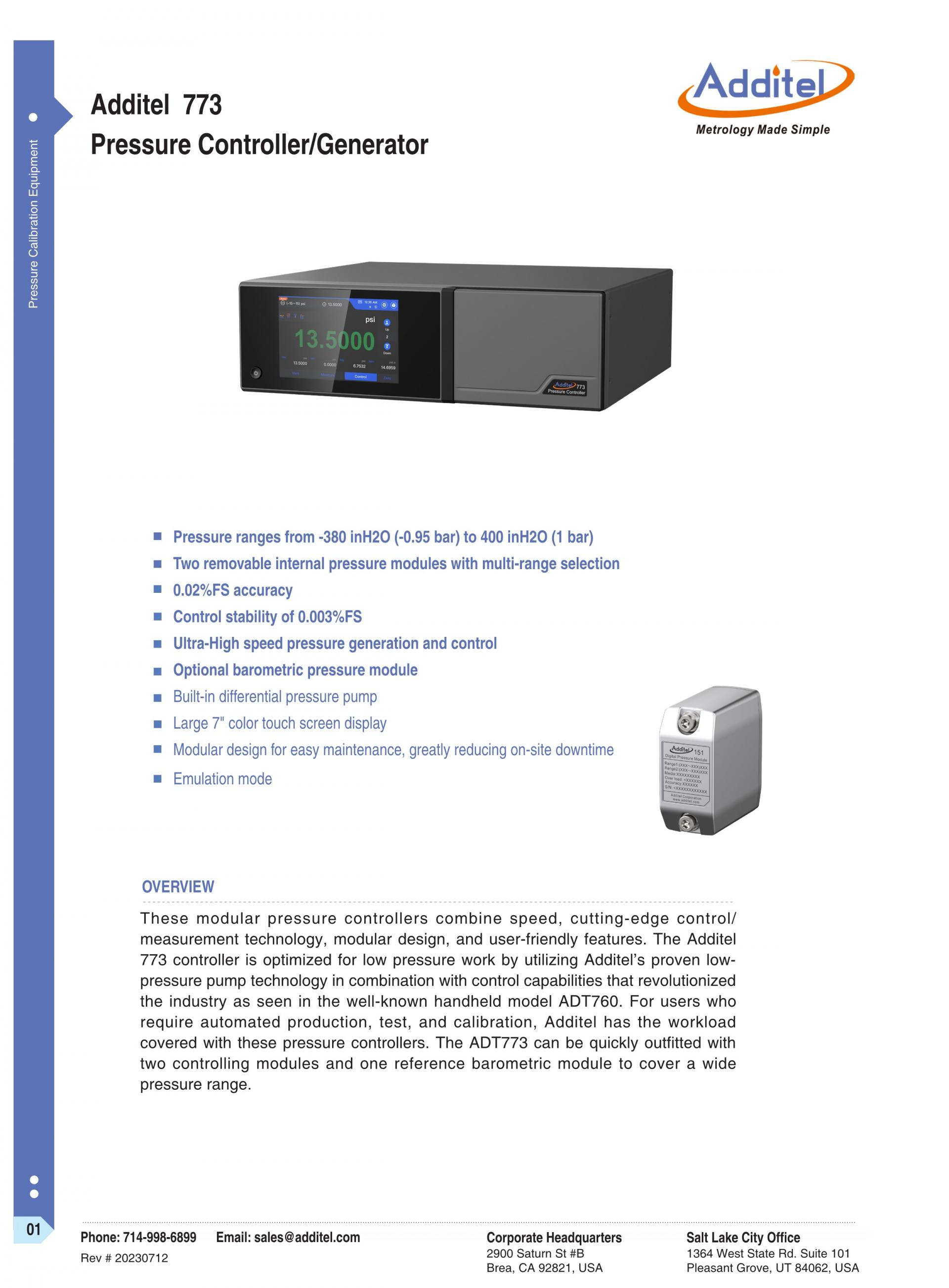

These modular pressure controllers combine cutting-edge control/measurement technology, modular design, and user-friendly features. The Additel 773 controller series is optimized for low pressure work by utilizing Additel’s proven low-pressure pump technology in combination with control capabilities that revolutionized the industry as seen in the well-known handheld model ADT760. For users who require automated production, test, and calibration, Additel has the workload covered with these pressure controllers. The ADT773 can be quickly outfitted with two controlling modules and one reference barometric module to cover a wide pressure range.
Application | Picture of Aditel 773's functionality |

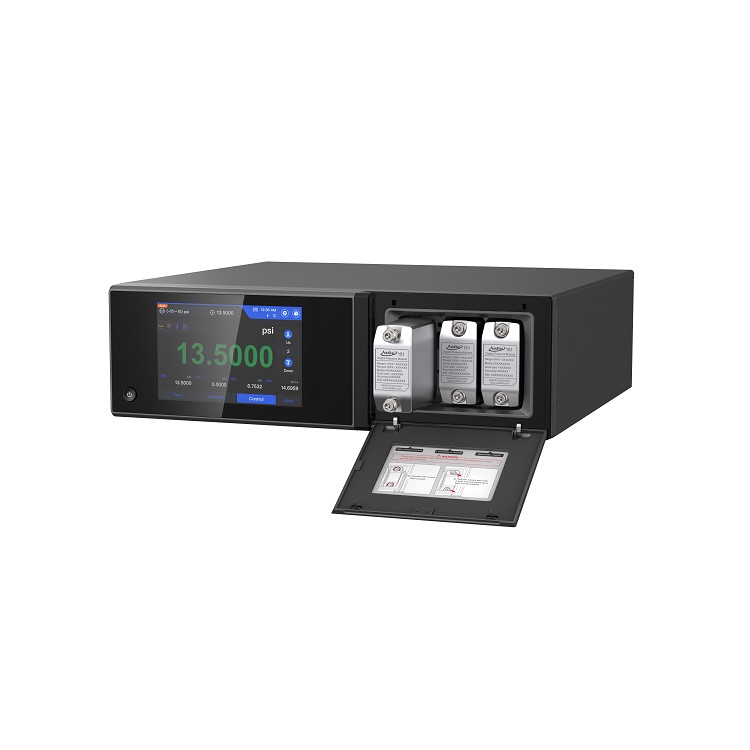

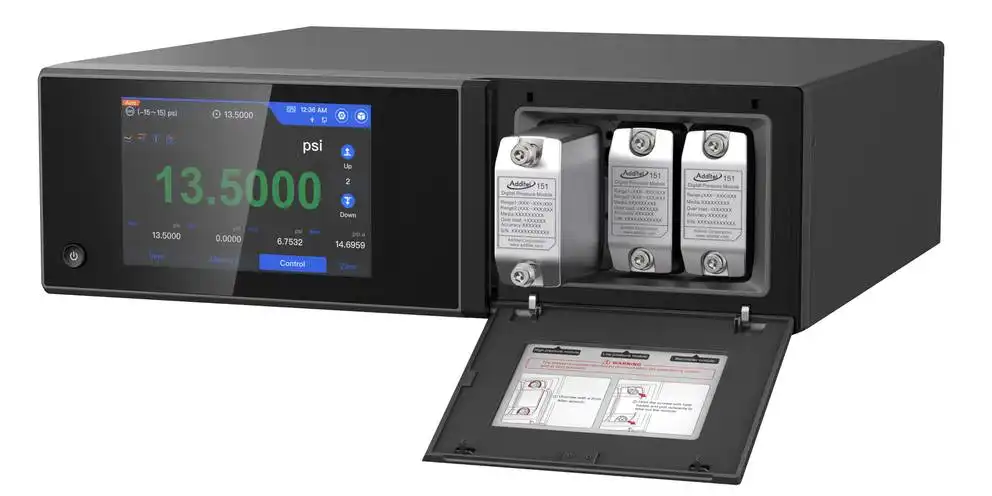

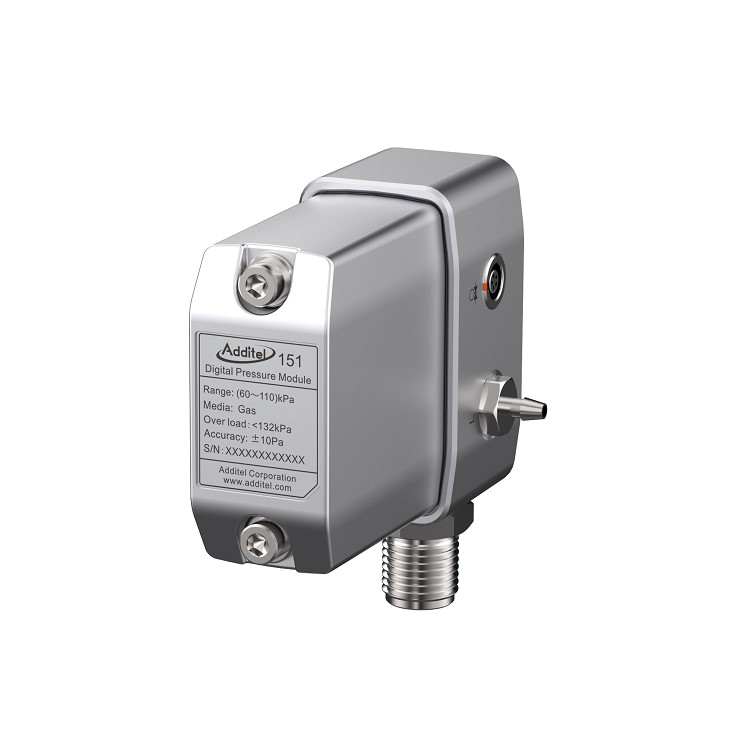

Quick Change Pressure Modules (30 seconds) Additel's 151 pressure control modules can be installed or replaced within 30 seconds or less. Simply open the upper edge of the cabin to open. As the door opens, the controller will automatically release pressure, providing the safe removal and installation of the ADT151 modules. Additel offers various different pressure ranges for the ADT773 controller utilizing these easy to swap pressure modules. |  |
20% Pressure Step within 10 seconds In the process of efficient and fast-paced end-of-line testing and verification and calibration, companies have strict requirements on the speed of pressure controllers. ADT773 adopts professional control technology to effectively improve control speed and control stability. Air pressure controller: control response time (typical) ≤10S, control stability (typical) ≤±(0.001~0.003) |  |
Built-in pump The Additel 773 comes with an integrated internal low-pressure pump which provides users with a turnkey solution for pressure calibration work. Additel pump designs are well known and dependable. Not only are the fast, but they also offer the best control and stability in their class. In fact, the automated pumps in other Additel models have revolutionized the industry. | |

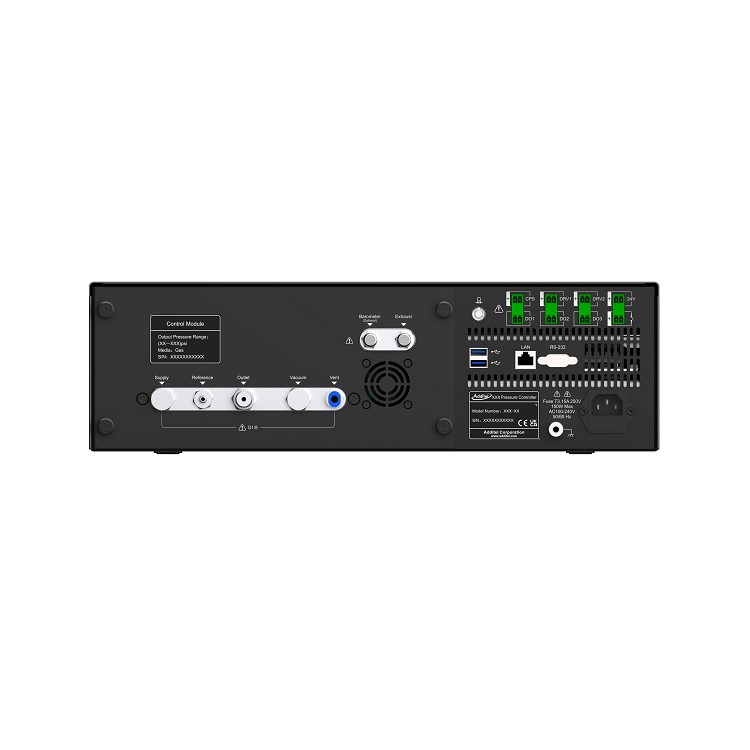

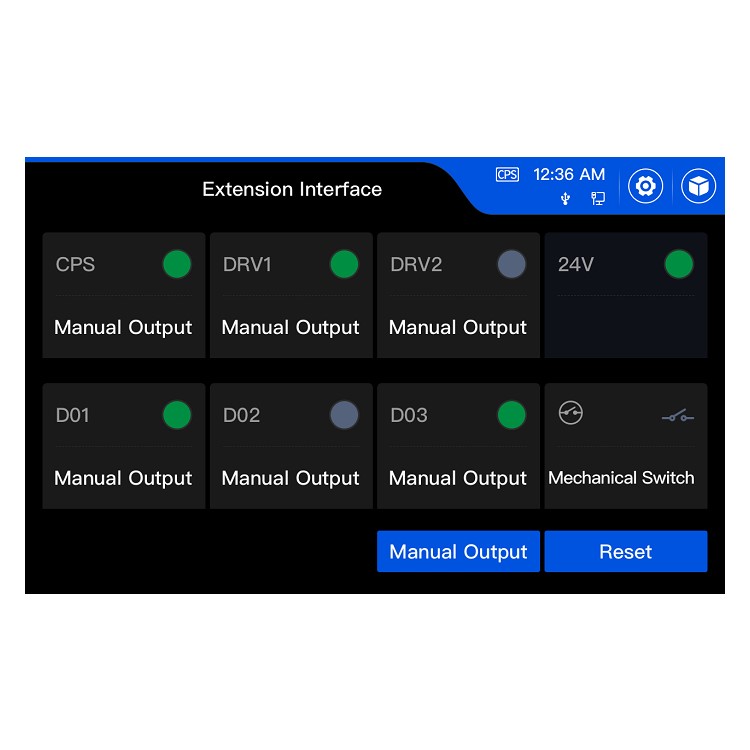

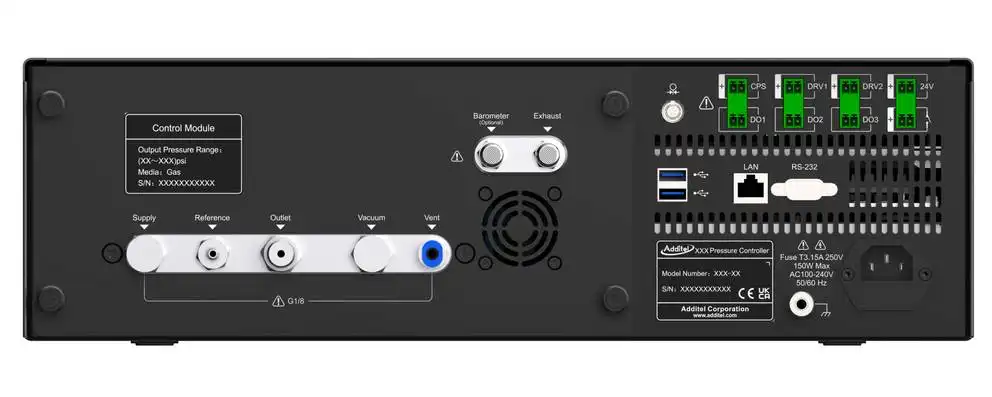

External Drive Valve Control The ADT773 Controller provides valve control for up to 3 external valves. One of the channels is designated for us to control contamination prevention system (CPS), which helps to prevent media contamination. The remaining two channels can be used to control external vacuum pumps or external isolation valves for greater flexibility and compatibility for individual situations. |  |

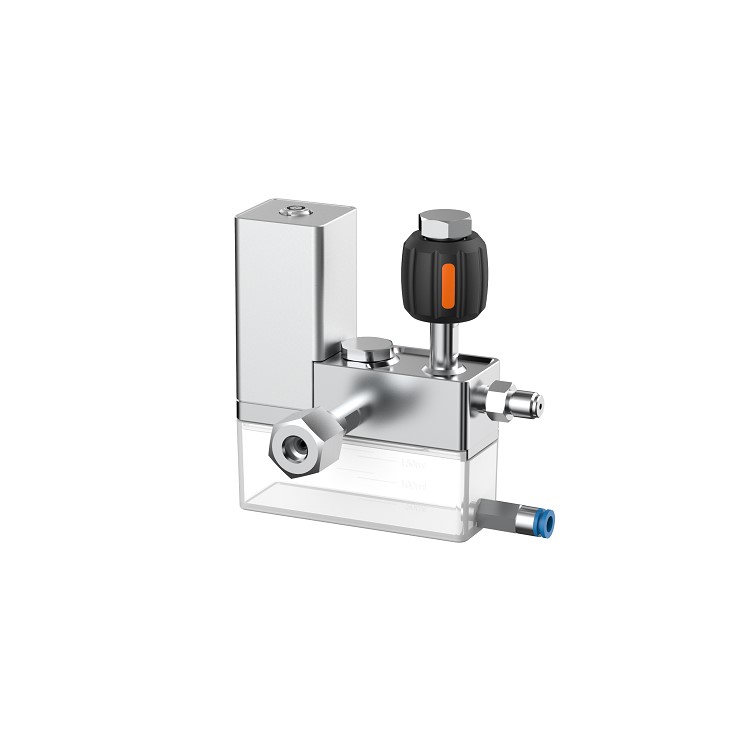

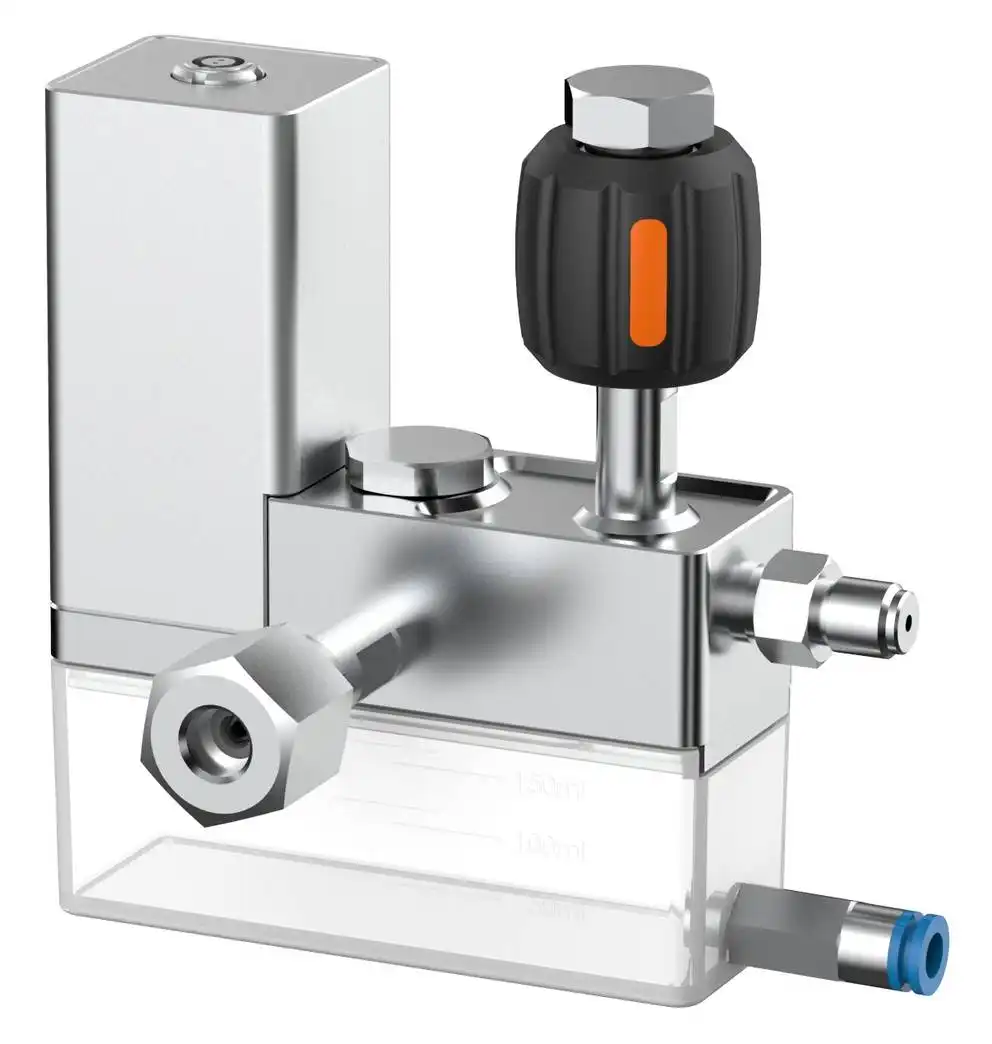

Contamination Prevention System (CPS) Prolongs the Maintenance of the Controller Calibration of DUT’s (devices under test) often introduces contaminates to a calibration system. Contaminates can cause restrictions in valves, lines and filters. Additel has included a turn-key solution with the ADT773 to help reduce these concerns and improve durability and dependability when calibrating customers devices. The use of an automatic fluid exhaust system and integration firmware to allow for purges between pressure cycles to further reduce the possibility of introducing contaminates into the system. |  |
