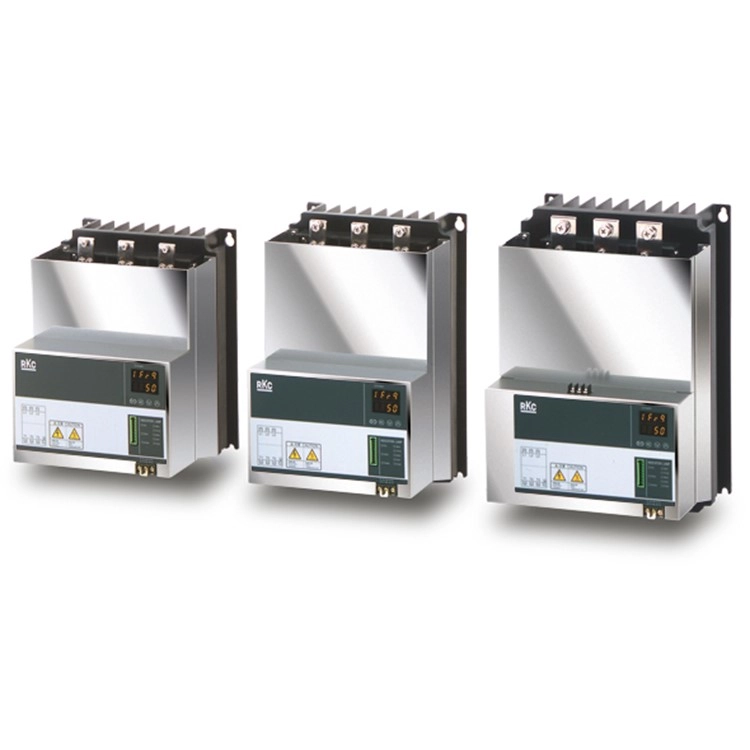

RKC THW-A 3상 전력 컨트롤러
가격문의(상세정보 참조)

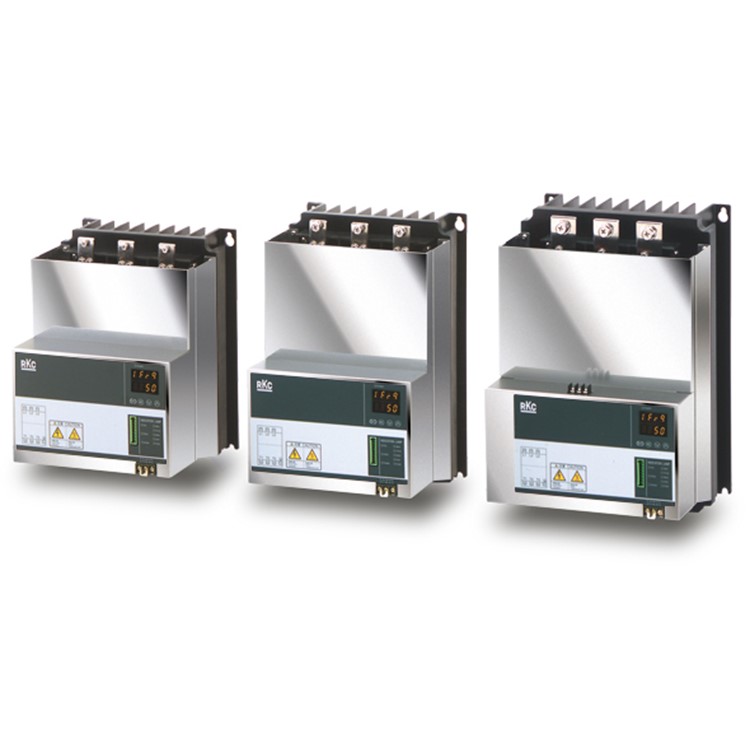

RKC THW-A 3상 전력 컨트롤러
RKC THW-A Three phase power controller

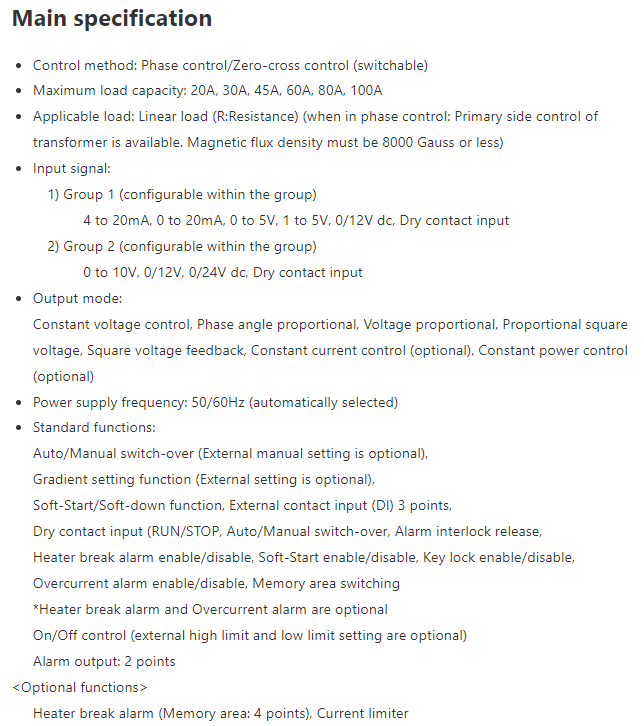

- Maximum load capacity: 20A, 30A, 45A, 60A, 80A, 100A

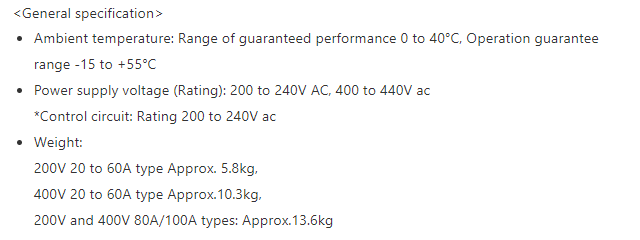

- Supply voltage: 100 to 240V ac, 400 to 440V ac
- Control method: Phase control, Zero-cross control
- Constant current control, Constant voltage control, constant power control
- Easy setup using keypad and front display
클릭 하시면 이동합니다.
알케이씨 ・ RKC
THW-A
3상 전력 컨트롤러
THW-A Three phase power controller
Main features
- Digital control provides excellent response and reproducibility

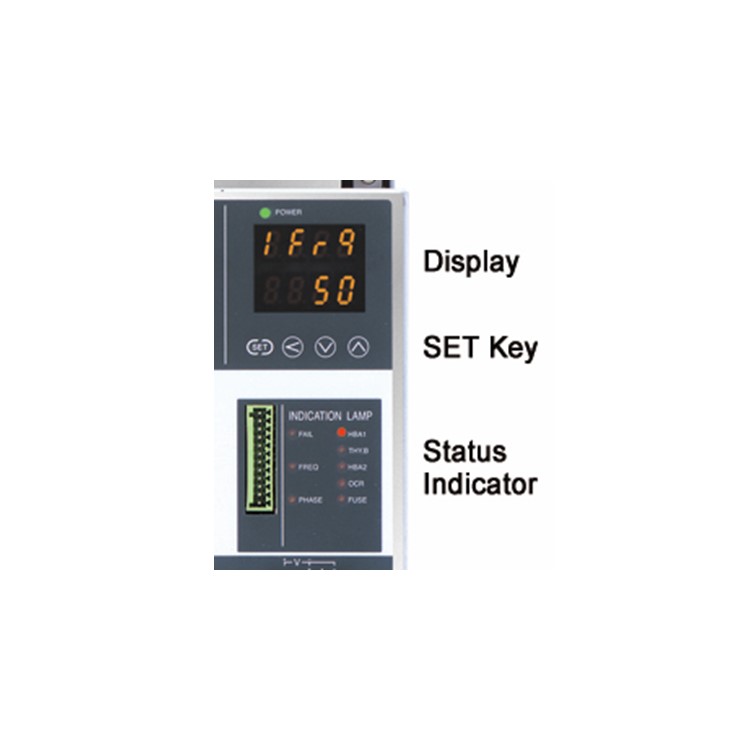

 | Digital control power controller with a front display and a keypad. Setting zero for Soft-Start/Soft-Down provides quick response suitable for rapid thermal processes. |
- Capable of controlling heaters with special characteristics

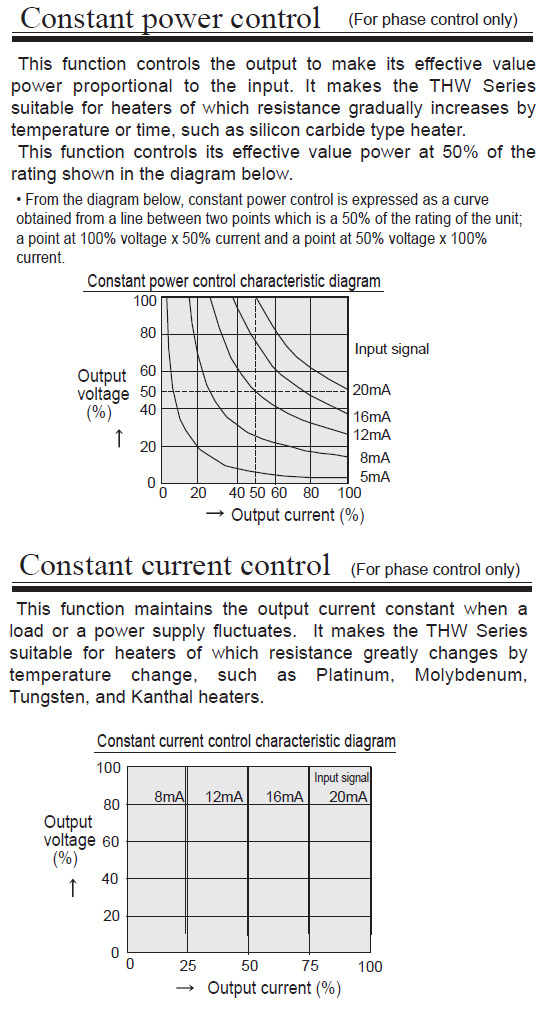

 | Since the following control modes (Constant voltage control, Constant current control, Constant power control) are available, this power controller can control heaters in which resistance value greatly changes according to temperature change. Such heaters include Superkanthal and SiC heaters. |

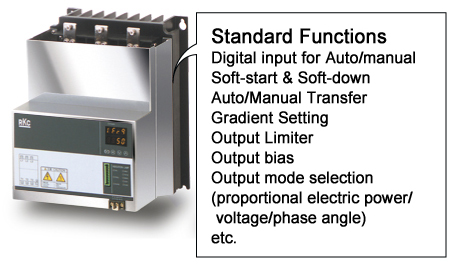

- Abundant functions are available as standard
 | Standard functions include External contact input, Soft-Start/Soft-Down, Manual/Auto switch-over, Gradient setting, Output limiter, Output bias, Input-Phase angle proportional/Input-Voltage proportional/Input-Power phase angle switch-over. |

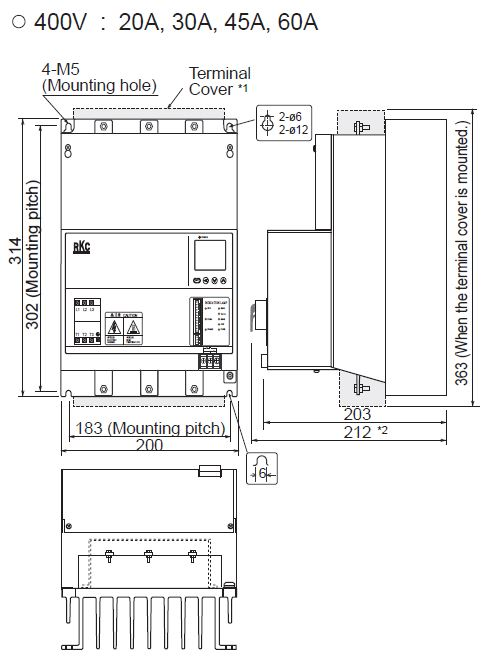

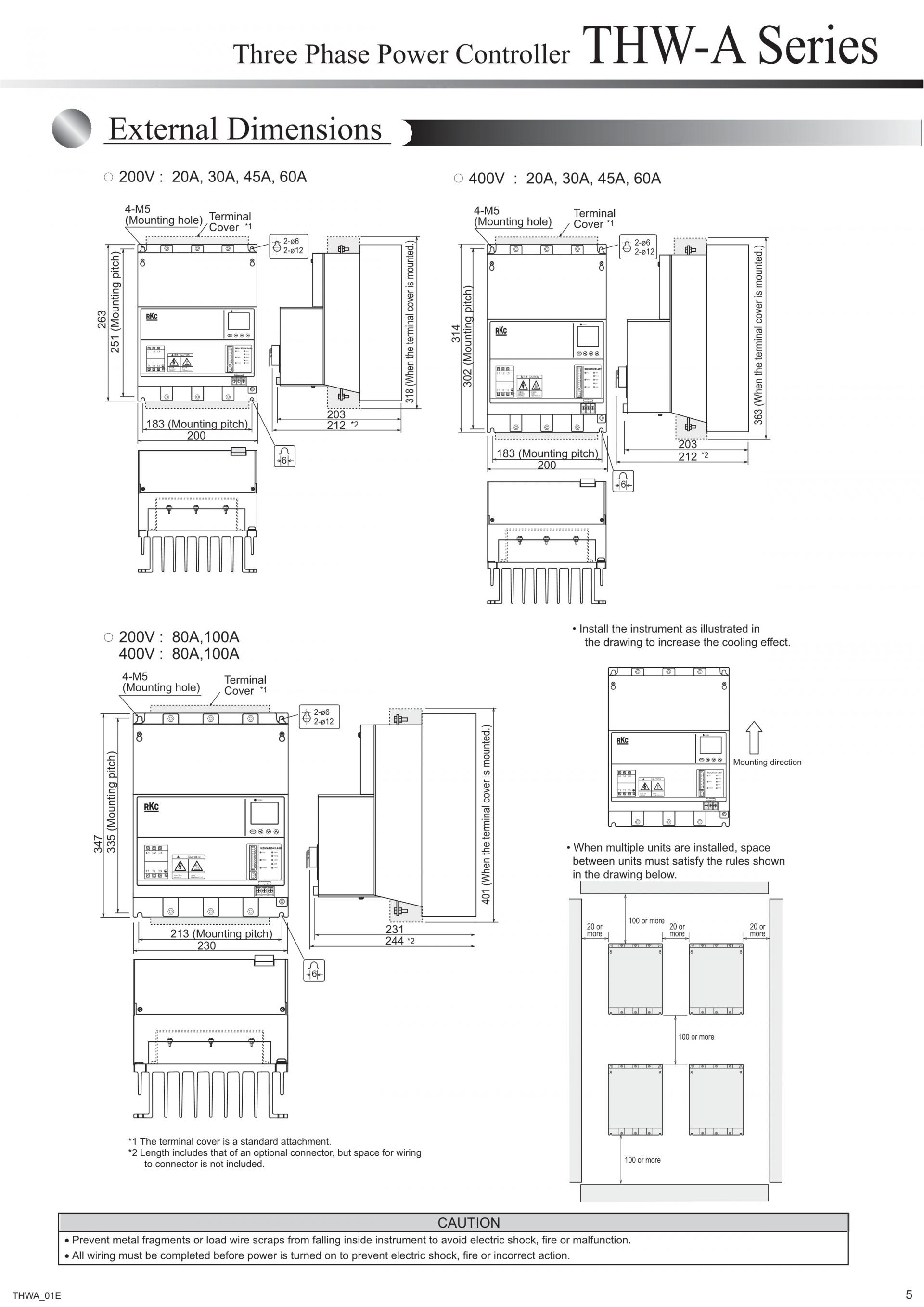

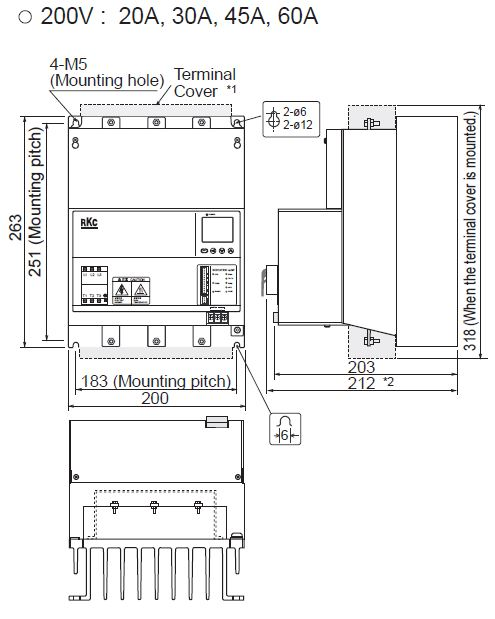

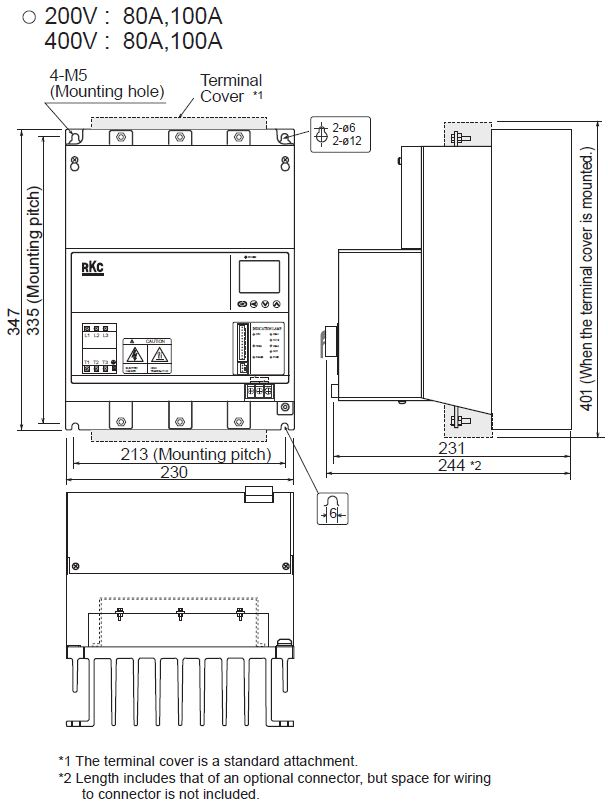

External dimensions
THW-A THW A THW-A RKC RKC THW-A THW-A 알케이씨 알케이씨 THW-A THW A RKC RKC THW A THW A 알케이씨 알케이씨 THW A
가격이 궁금하신가요?
더 많은 자료는?
클릭 하시면 이동합니다.
알케이씨 ・ RKC
THW-A
3상 전력 컨트롤러
THW-A Three phase power controller
Main features
- Digital control provides excellent response and reproducibility
| Digital control power controller with a front display and a keypad. Setting zero for Soft-Start/Soft-Down provides quick response suitable for rapid thermal processes. |
- Capable of controlling heaters with special characteristics
| Since the following control modes (Constant voltage control, Constant current control, Constant power control) are available, this power controller can control heaters in which resistance value greatly changes according to temperature change. Such heaters include Superkanthal and SiC heaters. |
- Abundant functions are available as standard
| Standard functions include External contact input, Soft-Start/Soft-Down, Manual/Auto switch-over, Gradient setting, Output limiter, Output bias, Input-Phase angle proportional/Input-Voltage proportional/Input-Power phase angle switch-over. |
External dimensions
