RKC THV-40 고전압 부하용 단상 전력 컨트롤러
가격문의(상세정보 참조)
RKC THV-40 고전압 부하용 단상 전력 컨트롤러

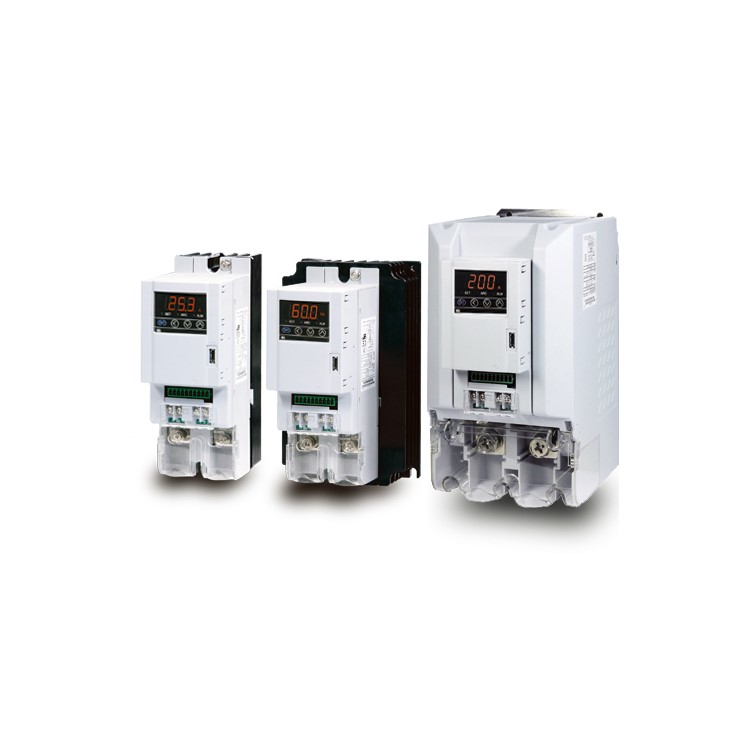

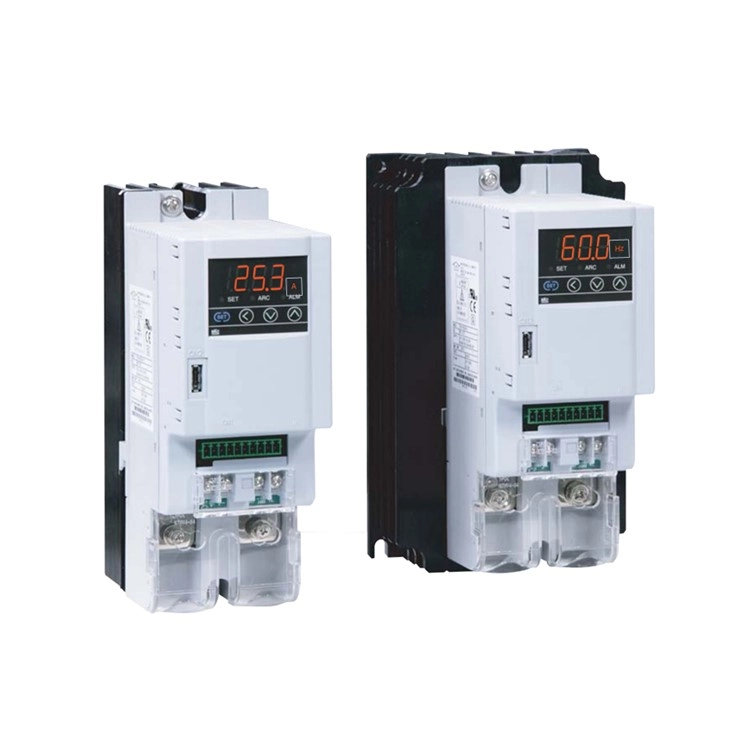

RKC THV-40 Single Phase Power Controller (for high voltage load)
- Maximum load capacity: 20A, 30A, 45A, 60A, 80A, 100A, 150A, 200A (AC)
- Supply voltage: 380 to 480V ac
- Control method: Phase control, Zero-cross control
- Loader communication
- Easy setup using keypad and front display
- Conforming to UL and CE Marking
클릭 하시면 이동합니다.
알케이씨 ・ RKC
THV-40
고전압 부하용 단상 전력 컨트롤러
THV-40 Single Phase Power Controller (for high voltage load)
Main features
Digital control provides excellent response and reproducibility
 | Digital control power controller with a front display and a keypad. Setting zero for Soft-Start/Soft-Down provides quick response suitable for rapid thermal processes. |
Loader communication for data management
 | Front loader communication port for improved maintainability Configuration data management software (PROTEM2) is available |
Abundant functions are available as standard
 | Standard functions include External contact input, Soft-Start/Soft-Down, Manual/Auto switch-over, Gradient setting, Output limiter, Output bias, Input-Phase angle proportional/Input-Voltage proportional/Input-Power phase angle switch-over. |
Eliminates the restriction of the magnetic flux density of transformer and realizes miniaturization (Optional)
 | Primary side control function of the transformer can suppress excessive current that may arise due to momentary power failure of the load (transformer). To control the primary side of the transformer, use this Primary side control function of the transformer. It will eliminate the restriction of the magnetic flux density. |
Capable to detect a heater break of non-linear load
 | A maximum of three inflexion points are settable according to the heater characteristics. This enables the controller to be used with a lamp heater which has large resistance fluctuation by temperature. Automatic setting of Inflexion points is available. |
External dimensions
20A, 30A, 45A type
60A, 80A, 100A type
150A, 200A type
