RKC SSNP / SSNZ 단상 전력 컨트롤러
가격문의(상세정보 참조)

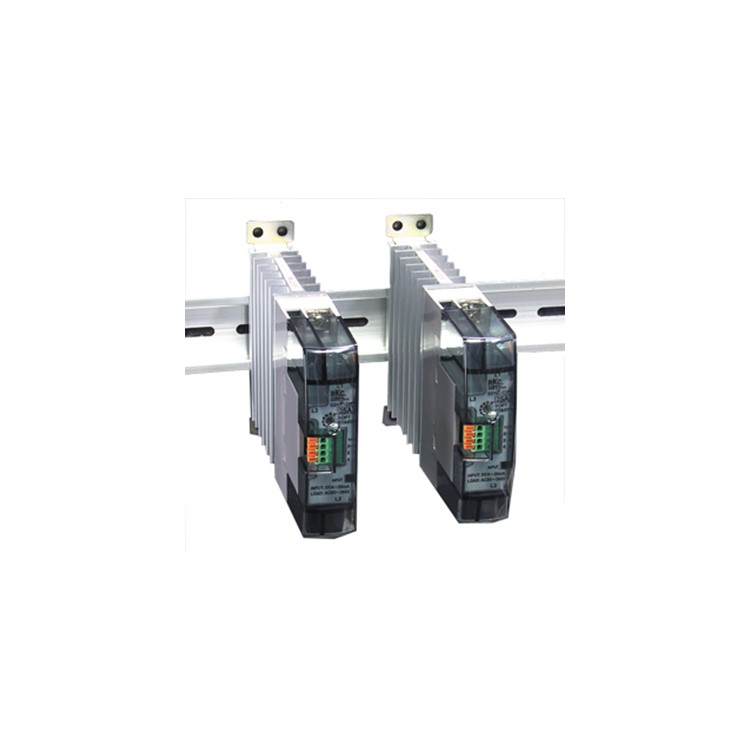

RKC SSNP / SSNZ 단상 전력 컨트롤러
RKC SSNP / SSNZ Single Phase Power Controllers

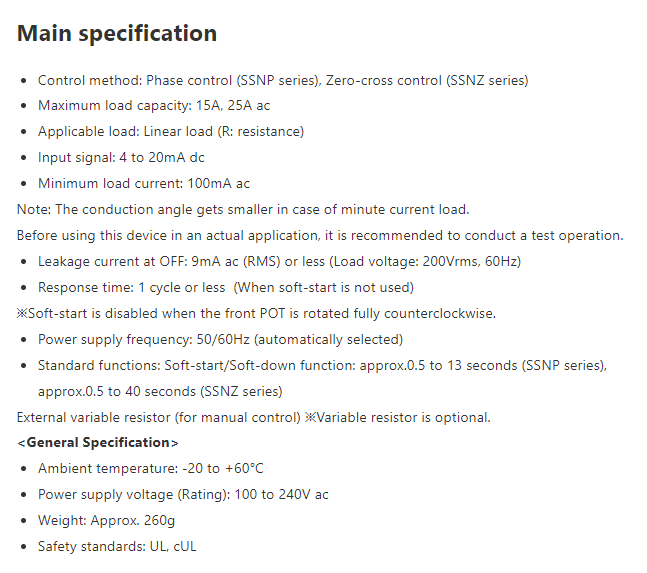

- DIN-rail mounting type thin profile power controllers
- A maximum of 8 units can be closely and horizontally mounted.
- Maximum load capacity: 15A, 25A ac
- Supply voltage: 100 to 240V ac

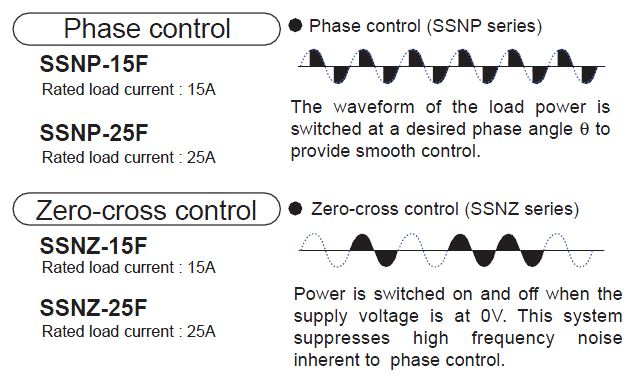

- Control method: Phase angle control (SSNP), Zero-cross control (SSNZ)
- UL certified
클릭 하시면 이동합니다.
알케이씨 ・ RKC
SSNP / SSNZ
단상 전력 컨트롤러
SSNP / SSNZ Single Phase Power Controllers
Main features
- Thin profile design
 | Thin profile (21.5mm wide) for both 15A and 25A. |

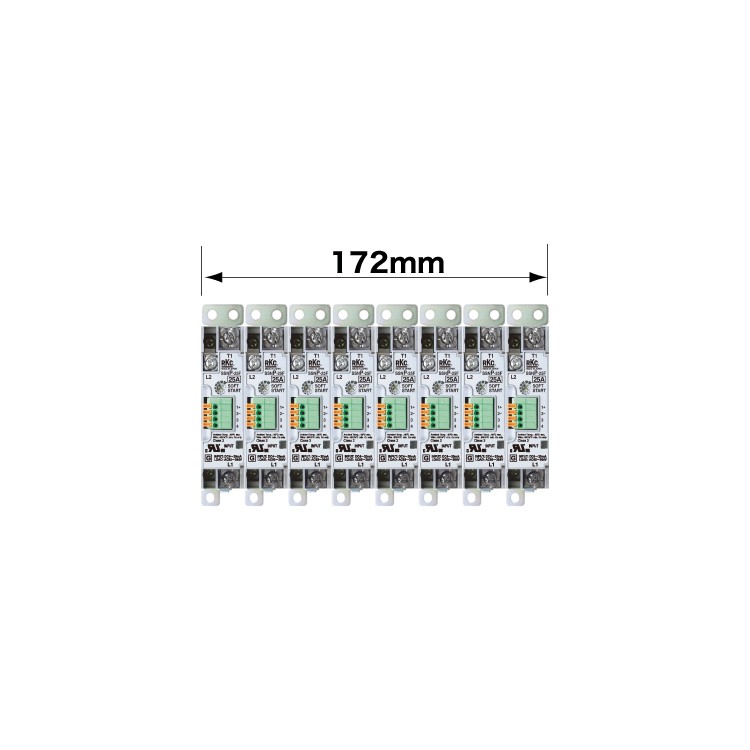

- Capable of close mounting

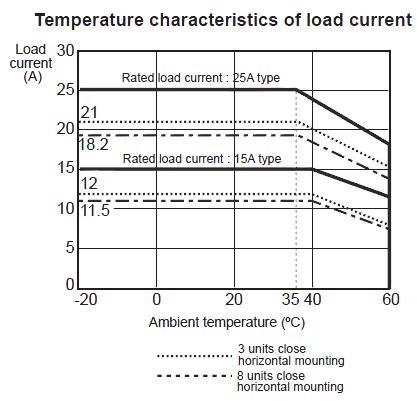

 | A maximum 8 units can be closely mounted and the width is 172mm. ※When the units are mounted closely, the ambient temperature characteristics change. |

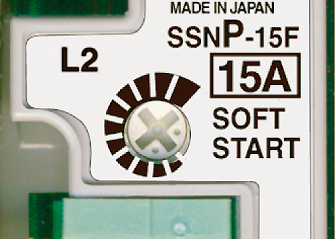

- Soft-start and soft-down functions are supplied as standard
 | Output slowly changes against a sudden change of input signal, suppressing the inrush current. |
- Available for manual control
 | Manual control is available by using an external variable resistor. |

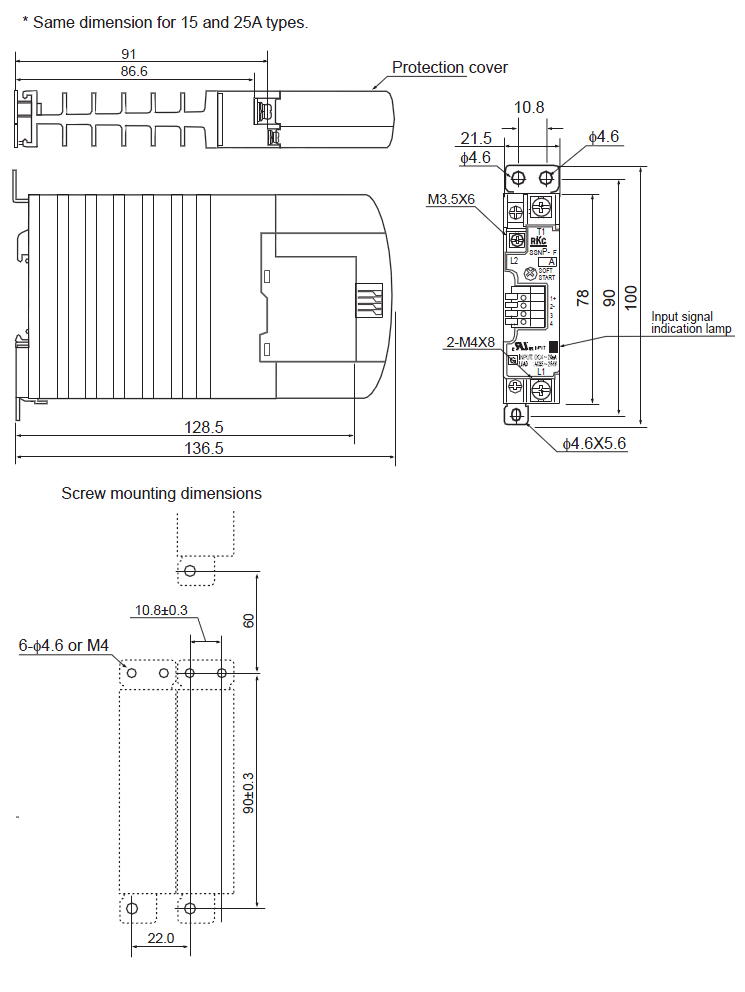

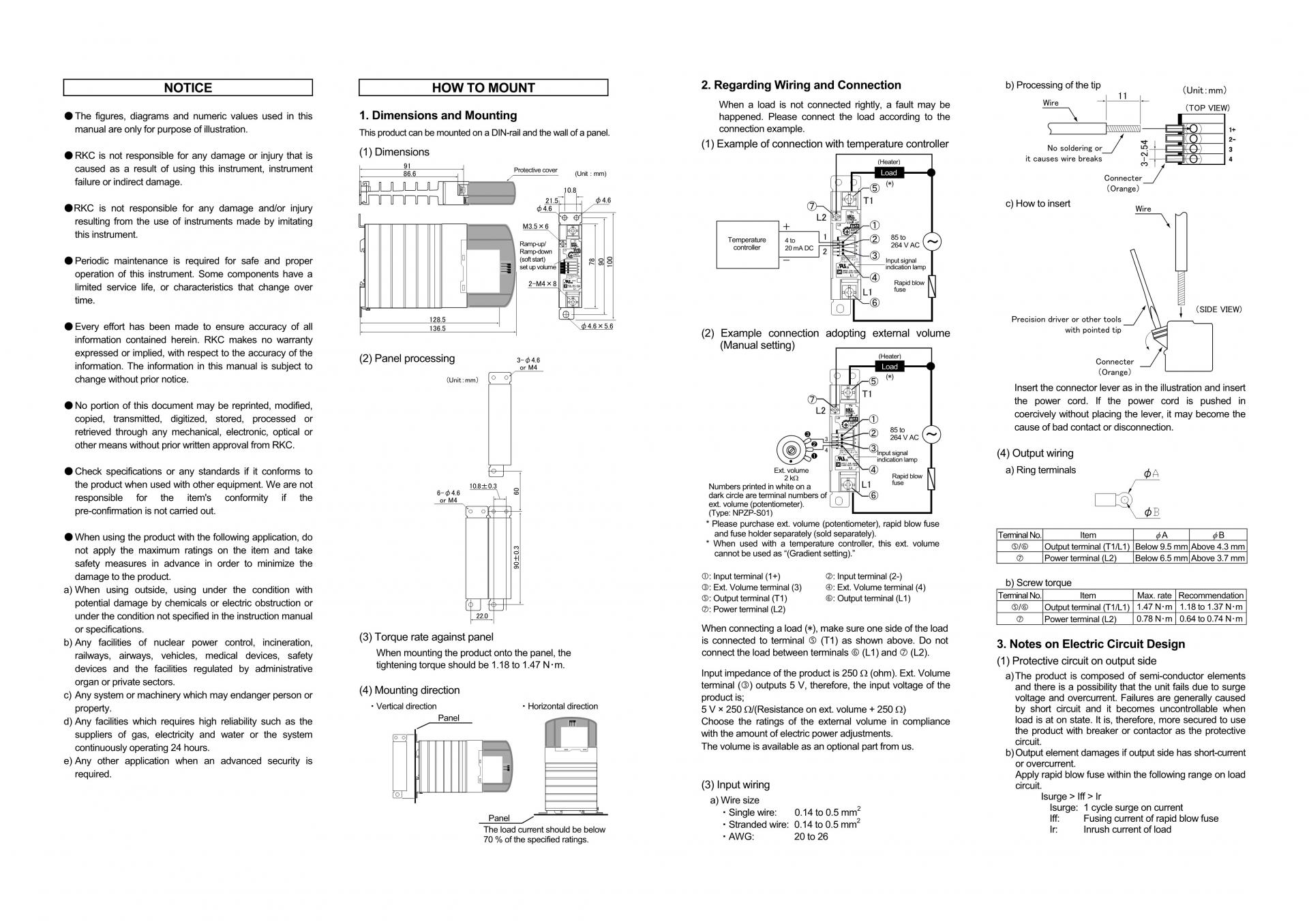

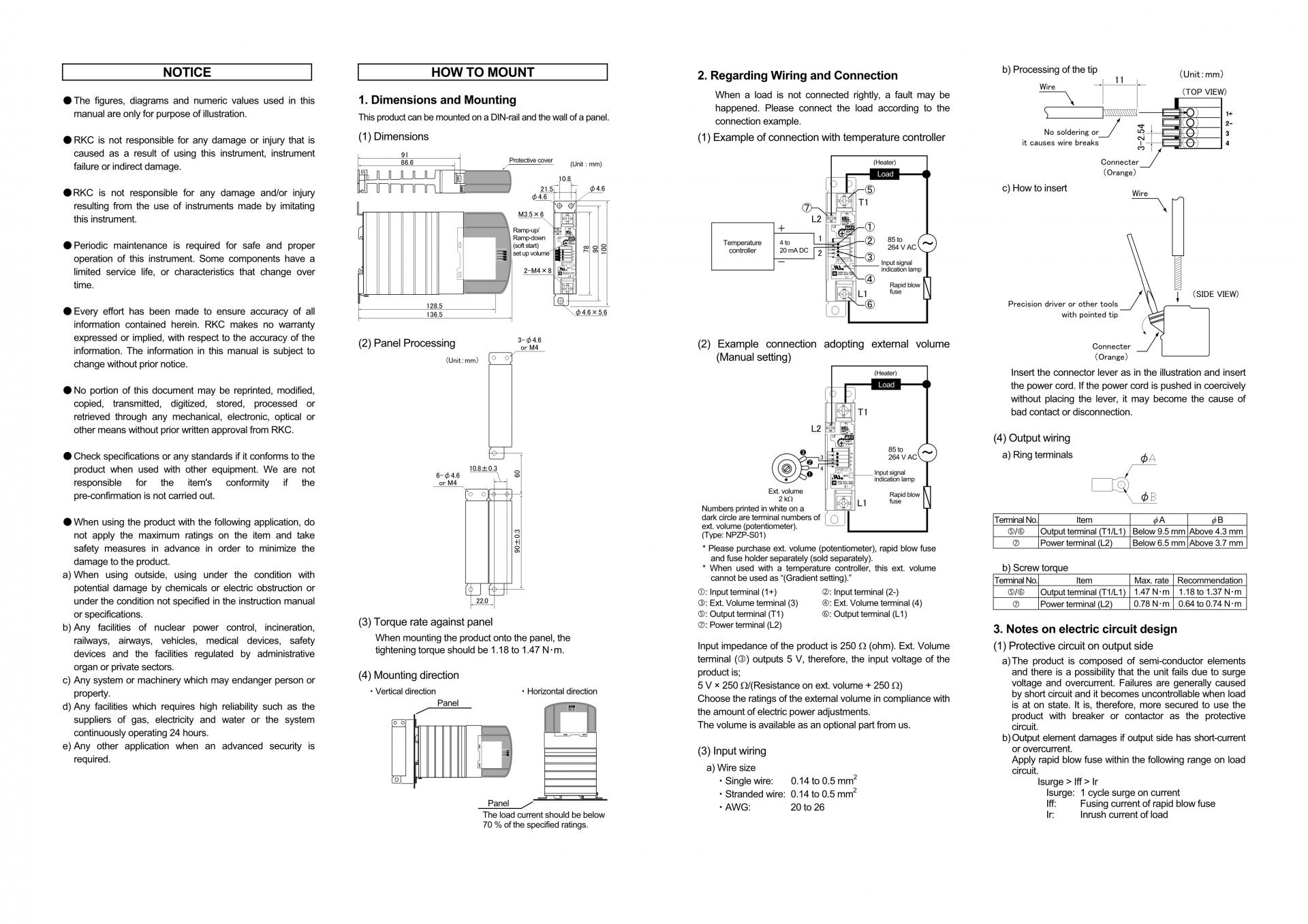

External dimensions
Models
SSNP SSNZ SSNP RKC RKC SSNP SSNP 알케이씨 알케이씨 SSNP SSNZ RKC RKC SSNZ SSNZ 알케이씨 알케이씨 SSNZ SSNP-15F SSNP-25F SSNZ-15F SSNZ-25F SSNP 15F SSNP 25F SSNZ 15F SSNZ 25F
가격이 궁금하신가요?
더 많은 자료는?
클릭 하시면 이동합니다.
알케이씨 ・ RKC
SSNP / SSNZ
단상 전력 컨트롤러
SSNP / SSNZ Single Phase Power Controllers
Main features
- Thin profile design
| Thin profile (21.5mm wide) for both 15A and 25A. |

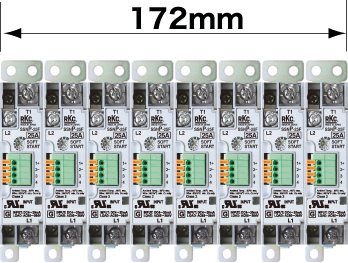

- Capable of close mounting
| A maximum 8 units can be closely mounted and the width is 172mm. ※When the units are mounted closely, the ambient temperature characteristics change. |
- Soft-start and soft-down functions are supplied as standard
| Output slowly changes against a sudden change of input signal, suppressing the inrush current. |
- Available for manual control
| Manual control is available by using an external variable resistor. |

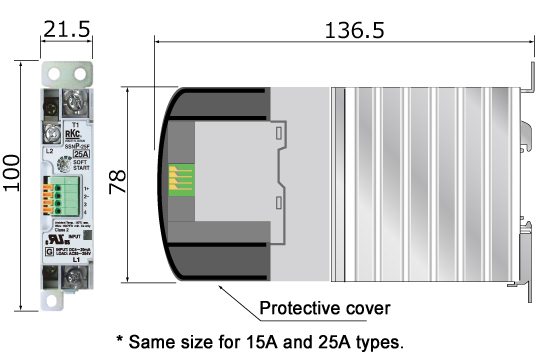

External dimensions
Models
SSNP SSNZ SSNP RKC RKC SSNP SSNP 알케이씨 알케이씨 SSNP SSNZ RKC RKC SSNZ SSNZ 알케이씨 알케이씨 SSNZ SSNP-15F SSNP-25F SSNZ-15F SSNZ-25F SSNP 15F SSNP 25F SSNZ 15F SSNZ 25F
