RKC THV-10 (150A, 200A) 단상 전력 컨트롤러
가격문의(상세정보 참조)

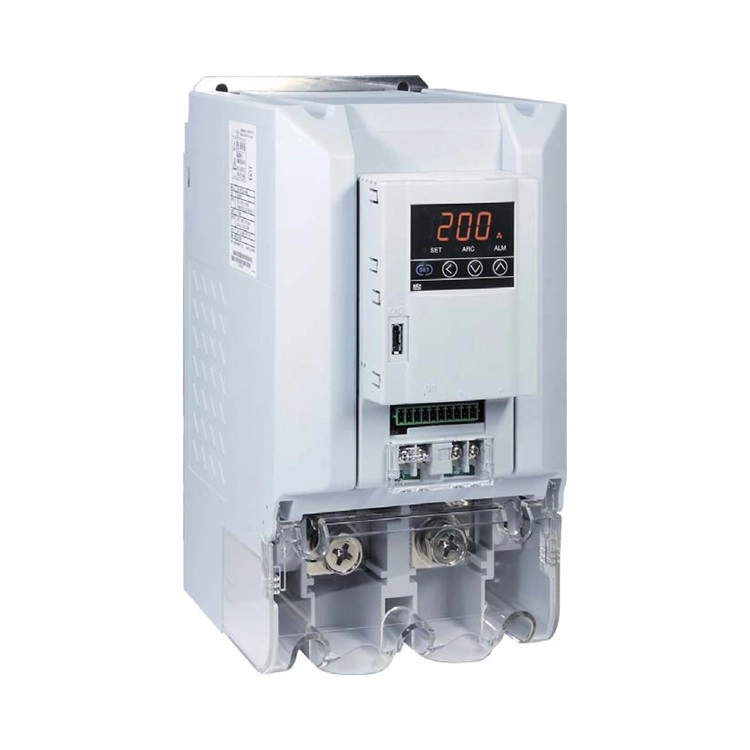

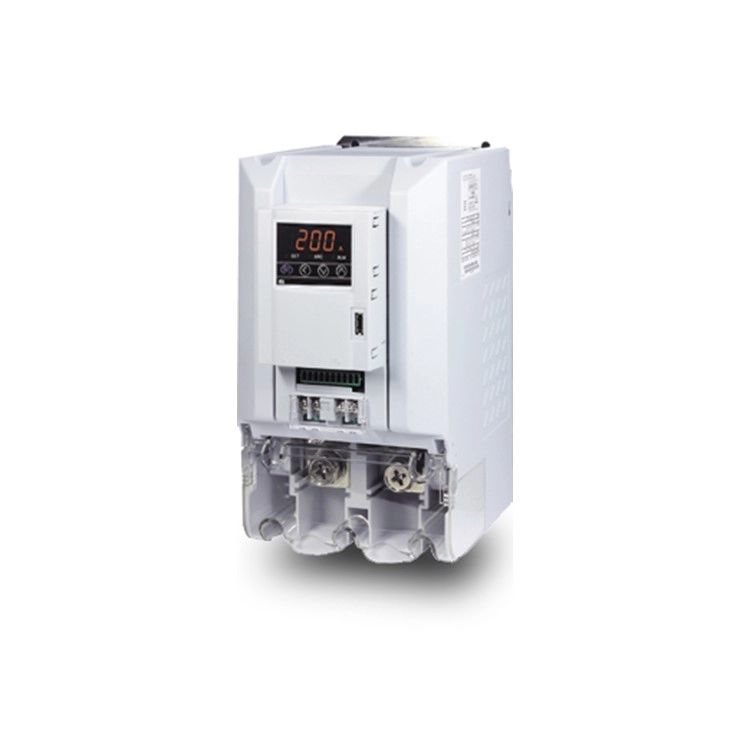

RKC THV-10 (150A, 200A) 단상 전력 컨트롤러
RKC THV-10 (150A, 200A) Single Phase Power Controller
- Maximum load capacity: 150A, 200A ac
- Supply voltage: 100 to 240V ac
- Control method: Phase control, Zero-cross control
- Loader communication is available
- Easy setup using keypad and front display
- Conforming to UL and CE Marking
클릭 하시면 이동합니다.
알케이씨 ・ RKC
THV-10 (150A, 200A)
단상 전력 컨트롤러
THV-10 (150A, 200A) Single Phase Power Controller
Main features
- Digital control provides excellent response and reproducibility

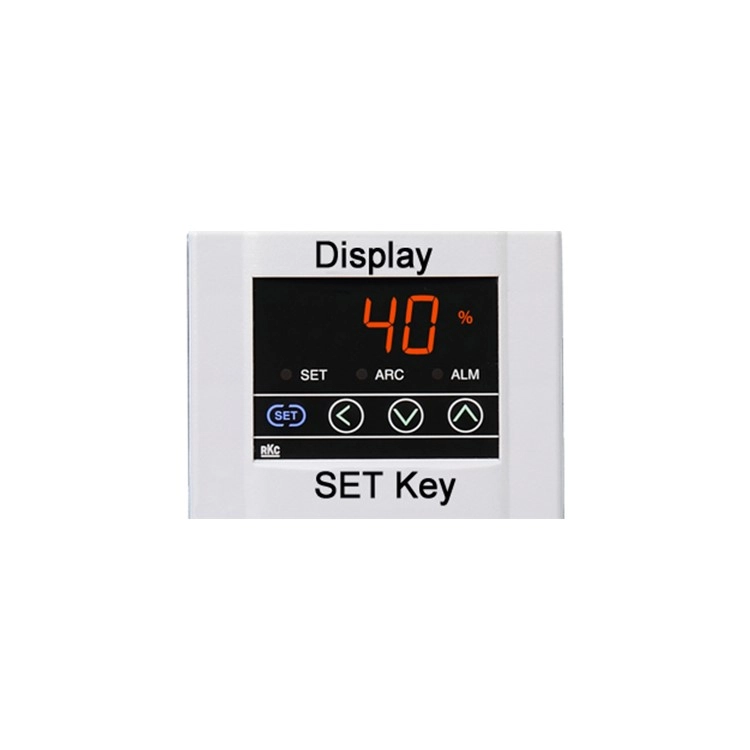

 | Digital control power controller with a front display and a keypad. Setting zero for Soft-Start/Soft-Down provides quick response suitable for rapid thermal processes. |
- Loader communication for data management
 | Front loader communication port for improved maintainability Configuration data management software (PROTEM2) is available |
- Abundant functions are available as standard
 | Standard functions include External contact input, Soft-Start/Soft-Down, Manual/Auto switch-over, Ramp setting, Output limiter, Output bias, Input-Phase angle proportional/Input-Voltage proportional/Input-Power phase angle switch-over. |
- Eliminates the restriction of the magnetic flux density of transformer and realizes miniaturization (Optional)
 | Primary side control function of the transformer can suppress excessive current that may arise due to momentary power failure of the load (transformer). To control the primary side of the transformer, use this Primary side control function of the transformer. It will eliminate the restriction of the magnetic flux density. |
- Capable to detect a heater break of non-linear load
 | A maximum of three inflexion points are settable according to the heater characteristics. This enables the controller to be used with a lamp heater which has large resistance fluctuation by temperature. Automatic setting of Inflexion points is available. |
External dimensions
THV-10 THV 10 THV-10 150A THV 10 150A THV-10 200A THV 10 200A THV-10 RKC RKC THV-10 THV-10 알케이씨 알케이씨 THV-10 THV 10 RKC RKC THV 10 THV 10 알케이씨 알케이씨 THV 10 THV-10 150A RKC RKC THV-10 150A THV-10 150A 알케이씨 알케이씨 THV-10 150A THV 10 150A RKC RKC THV 10 150A THV 10 150A 알케이씨 알케이씨 THV 10 150A THV-10 200A RKC RKC THV-10 200A THV-10 200A 알케이씨 알케이씨 THV-10 200A THV 10 200A RKC RKC THV 10 200A THV 10 200A 알케이씨 알케이씨 THV 10 200A
가격이 궁금하신가요?
더 많은 자료는?
클릭 하시면 이동합니다.
알케이씨 ・ RKC
THV-10 (150A, 200A)
단상 전력 컨트롤러
THV-10 (150A, 200A) Single Phase Power Controller
Main features
- Digital control provides excellent response and reproducibility
| Digital control power controller with a front display and a keypad. Setting zero for Soft-Start/Soft-Down provides quick response suitable for rapid thermal processes. |
- Loader communication for data management
| Front loader communication port for improved maintainability Configuration data management software (PROTEM2) is available |
- Abundant functions are available as standard
| Standard functions include External contact input, Soft-Start/Soft-Down, Manual/Auto switch-over, Ramp setting, Output limiter, Output bias, Input-Phase angle proportional/Input-Voltage proportional/Input-Power phase angle switch-over. |
- Eliminates the restriction of the magnetic flux density of transformer and realizes miniaturization (Optional)
| Primary side control function of the transformer can suppress excessive current that may arise due to momentary power failure of the load (transformer). To control the primary side of the transformer, use this Primary side control function of the transformer. It will eliminate the restriction of the magnetic flux density. |
- Capable to detect a heater break of non-linear load
| A maximum of three inflexion points are settable according to the heater characteristics. This enables the controller to be used with a lamp heater which has large resistance fluctuation by temperature. Automatic setting of Inflexion points is available. |
External dimensions
