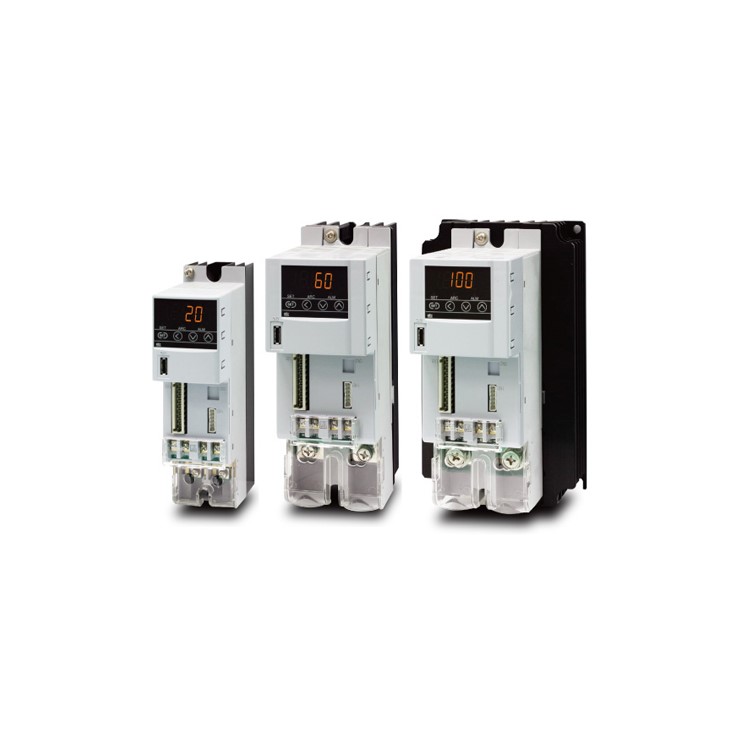

RKC THV-10 (20A, 30A, 45A, 60A, 80A, 100A) 단상 전력 컨트롤러
가격문의(상세정보 참조)
RKC THV-10 (20A, 30A, 45A, 60A, 80A, 100A) 단상 전력 컨트롤러

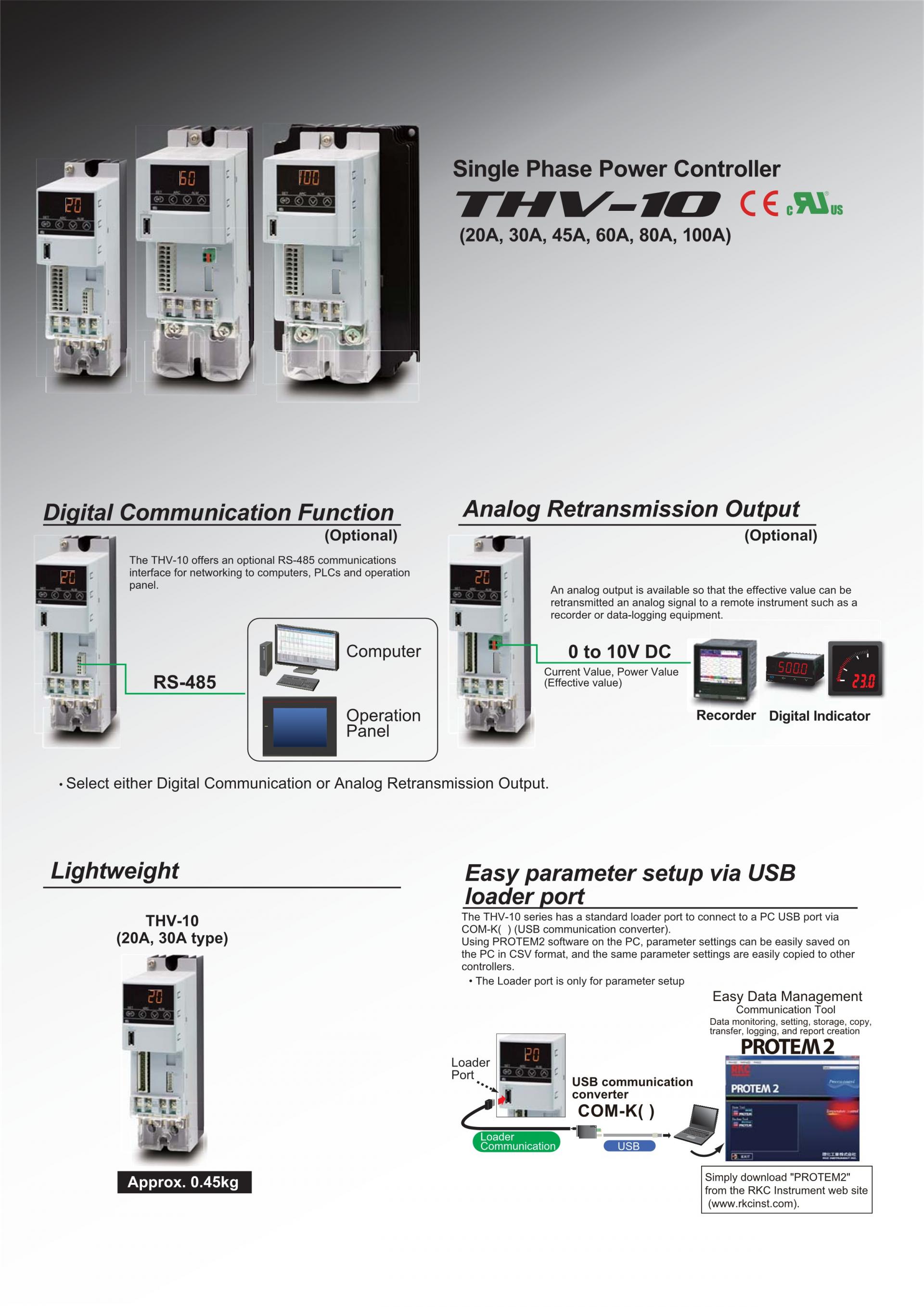

RKC THV-10 (20A, 30A, 45A, 60A, 80A, 100A) Single Phase Power Controller

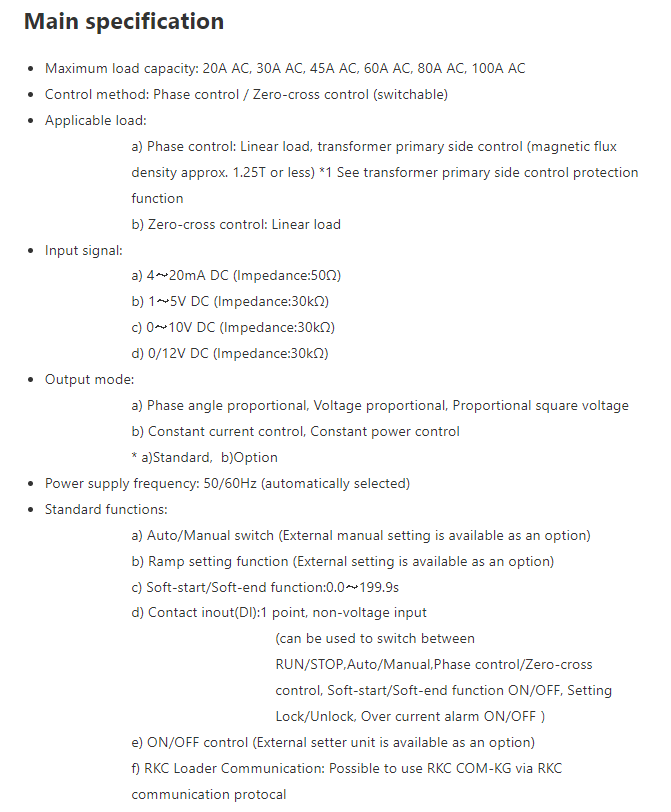

- Maximum load capacity: 20A AC, 30A AC, 45A AC, 60A AC, 80A AC, 100A AC
- Supply voltage: 100 to 240V ac
- Control method: Phase control, Zero-cross control
- RKC Loader communication is available

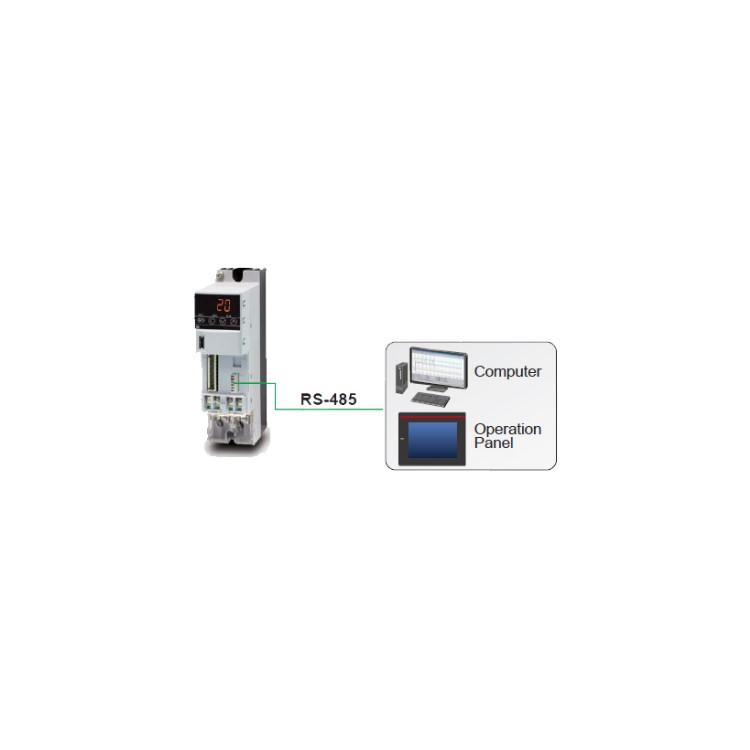

- Serial communication is available
- Analog retransmission output is available
- Easy setup using keypad and front display
- Conforming to UL and CE Marking
클릭 하시면 이동합니다.
알케이씨 ・ RKC
THV-10
단상 전력 컨트롤러
THV-10 (20A, 30A, 45A, 60A, 80A, 100A) Single Phase Power Controller
Main features

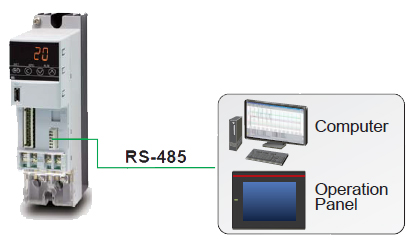

- Configuration and data logging can be done via host communication.
 |
|

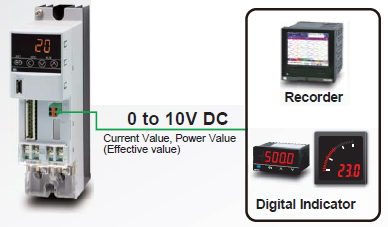

- Possible to be connected to other instruments via analog retransmission output
 |
|

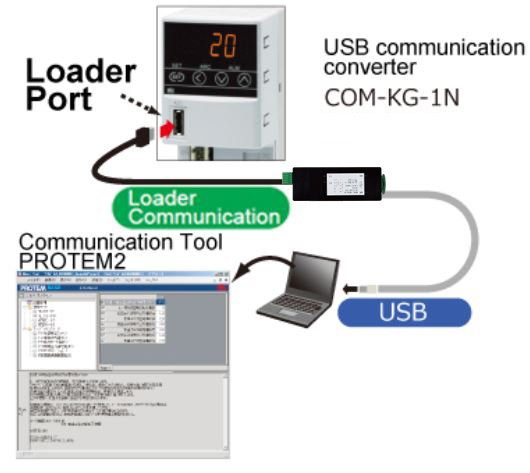

- Easy data management via RKC Loader Communication.
 |
*RKC Loader Communication function is for THV-10 configuration only. Do not use for control or process purpose. |

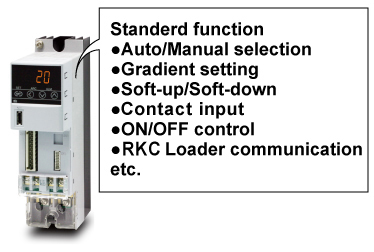

- Various useful functions are equipped as standard
 |
|

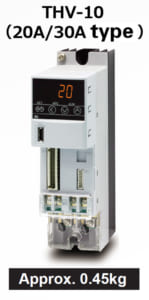

- 50% Lighter in weight(*)
 |
(*)Comparison with RKC THV-1 (20A, 30A) |
- Eliminates the restriction of the magnetic flux density of transformer and realizes miniaturization (Optional)
 |
|

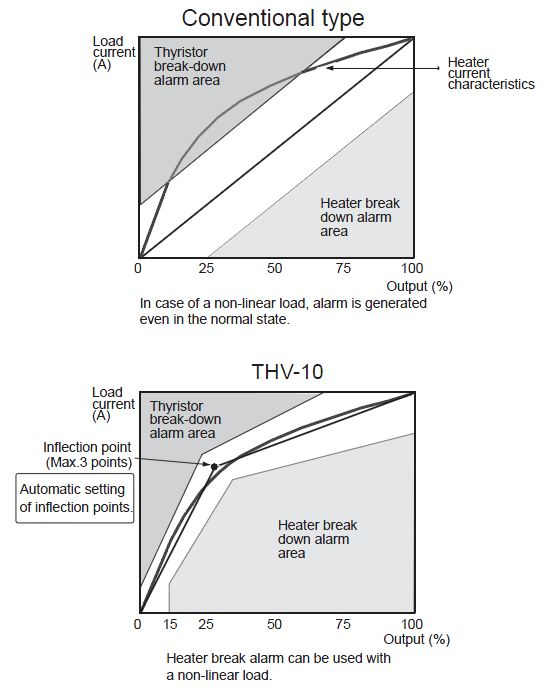

- Capable to detect a heater break of non-linear load
 |
|

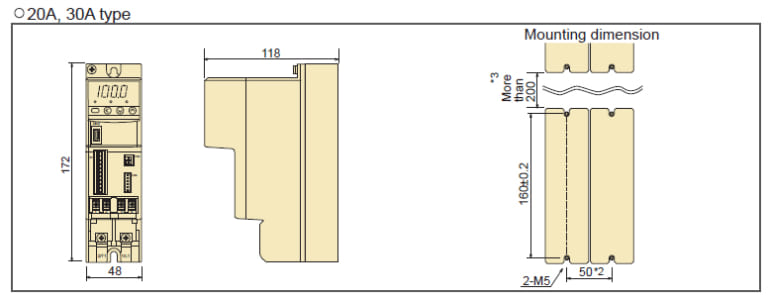

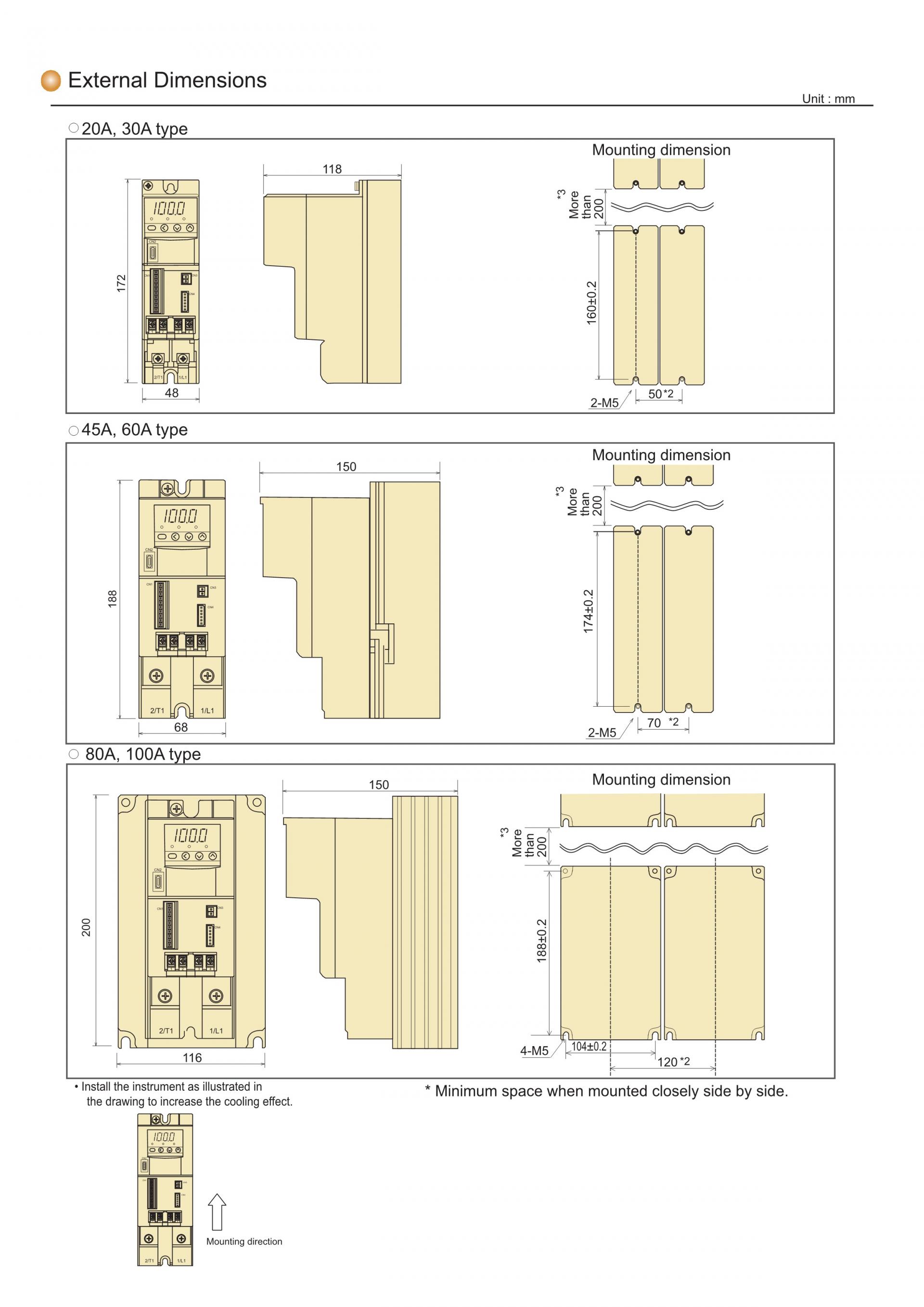

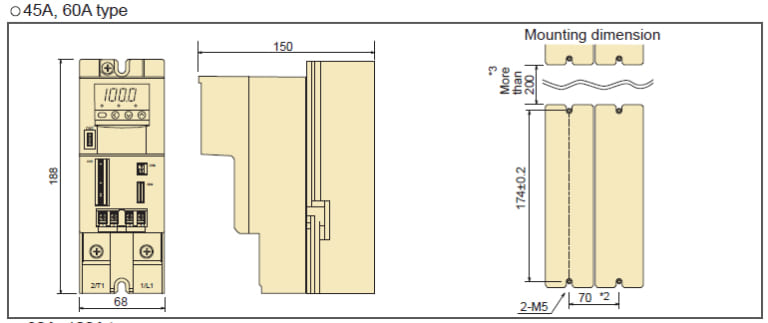

External dimensions
(Unit : mm)
