RKC LE100 / LE110 백프레셔 레벨미터
가격문의(상세정보 참조)

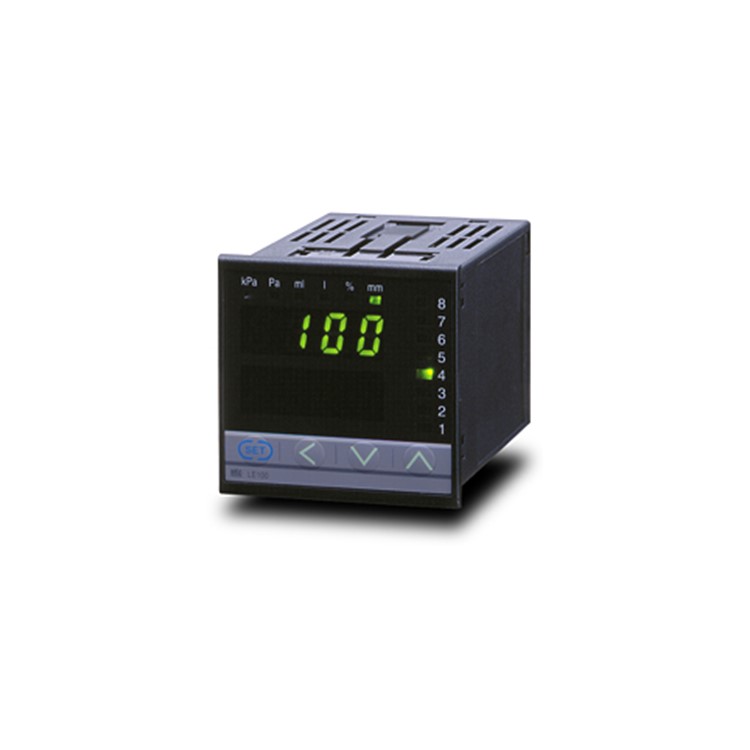

RKC LE100 / LE110 백프레셔 레벨미터
RKC LE100 / LE110 Back-pressure type level meter
- Level measurement and 8 level outputs are possible using one tube.
- Not influenced by adhering materials.
- Available with gravity correction function which eliminates correction by actual fluid and EMPTY/SPAN adjustment function which is implemented through one-touch operation.
- This instrument can be also used as a fluid volume meter and a pressure meter.
클릭 하시면 이동합니다.
알케이씨 ・ RKC
LE100 / LE110
백프레셔 레벨미터
LE100 / LE110 Back-pressure type level meter
Main features

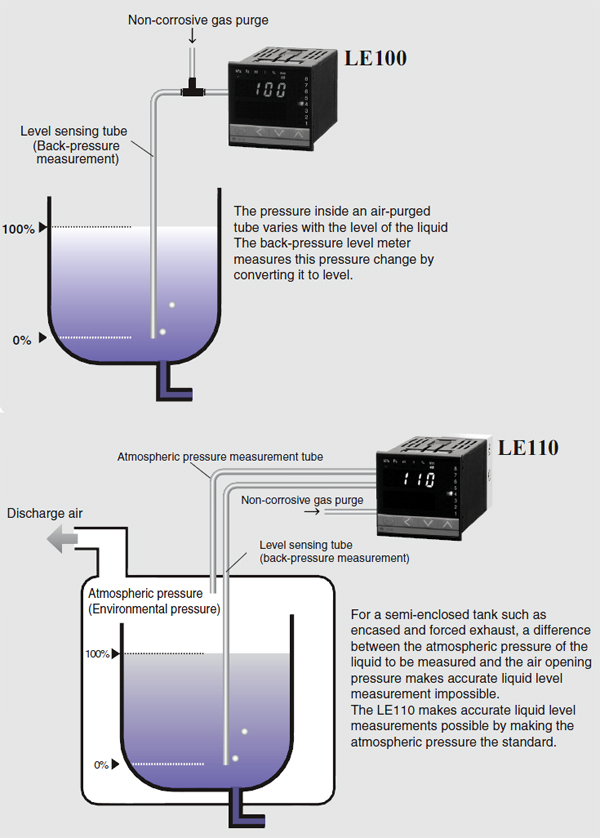

- Level measurement using one tube
 | Inactive gas is supplied to the tube installed in the tank and level is measured using the back-pressure inside the tube that is generated according to the fluid level. LE110 is a back-pressure type level meter based on LE100 with additional differential pressure (gauge pressure and atmospheric pressure) function. This instrument can be used in a tank where the pressure inside the tank changes. The use of PFA tube enables measurement of corrosive chemicals. |

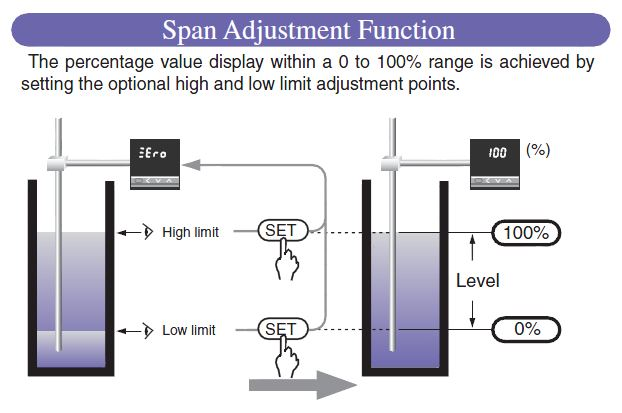

- Easy initial setting (Empty/Span adjustment)
 | The range set by the high and the low limits is displayed as 0-100%. |

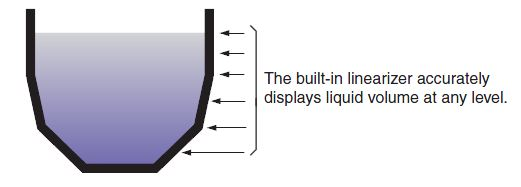

- Can be used as a liquid volume and a pressure meter
 | The linearizer function enables level measurement of a vessel with a complicated shape. This instrument can be also used as a pressure sensor with high repeatability (±0.3% of span). |

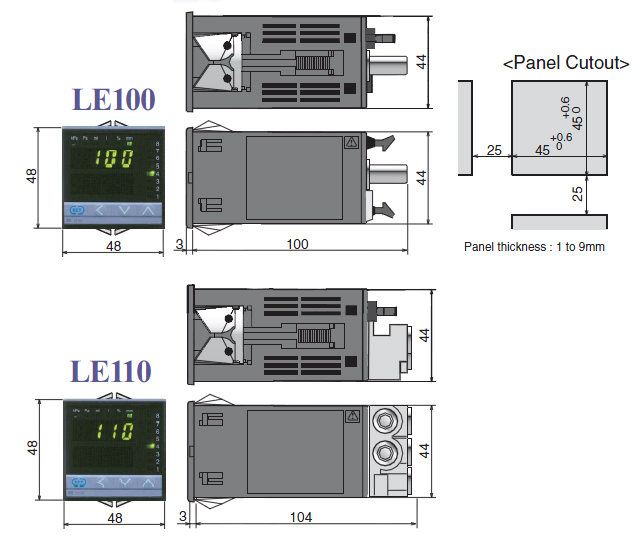

External dimensions

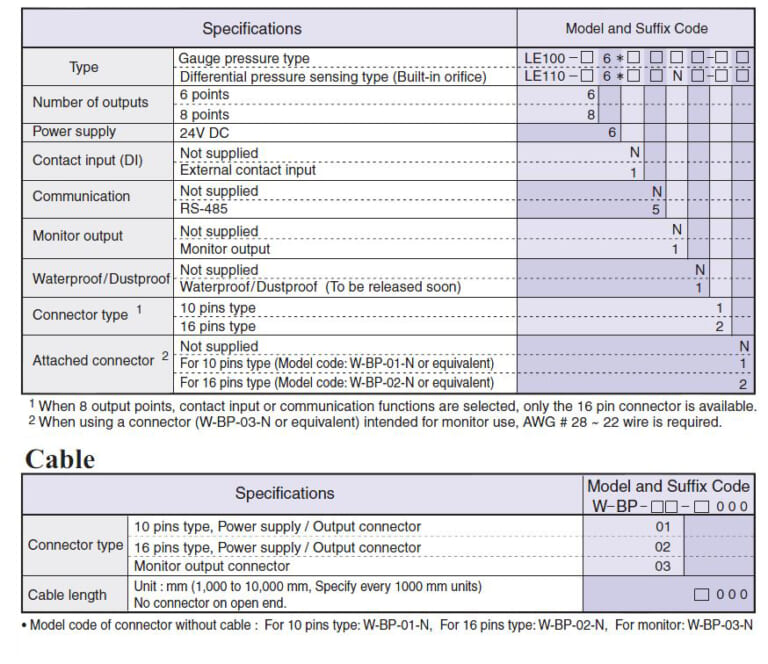

Models
LE100
LE110
LE100 LE110 LE100 RKC RKC LE100 LE100 알케이씨 알케이씨 LE100 LE110 RKC RKC LE110 LE110 알케이씨 알케이씨 LE110
