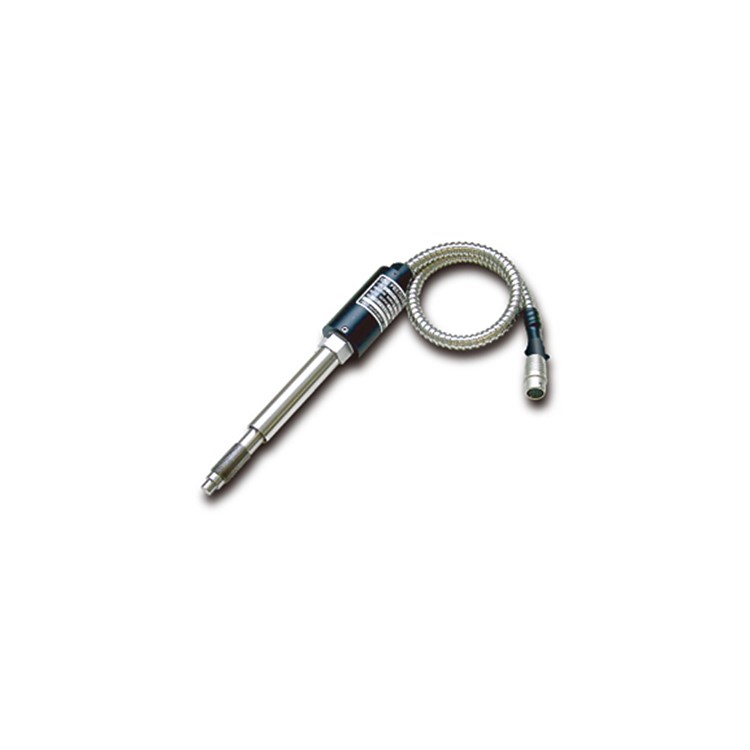

RKC CZ-200P 레진 압력센서
가격문의(상세정보 참조)

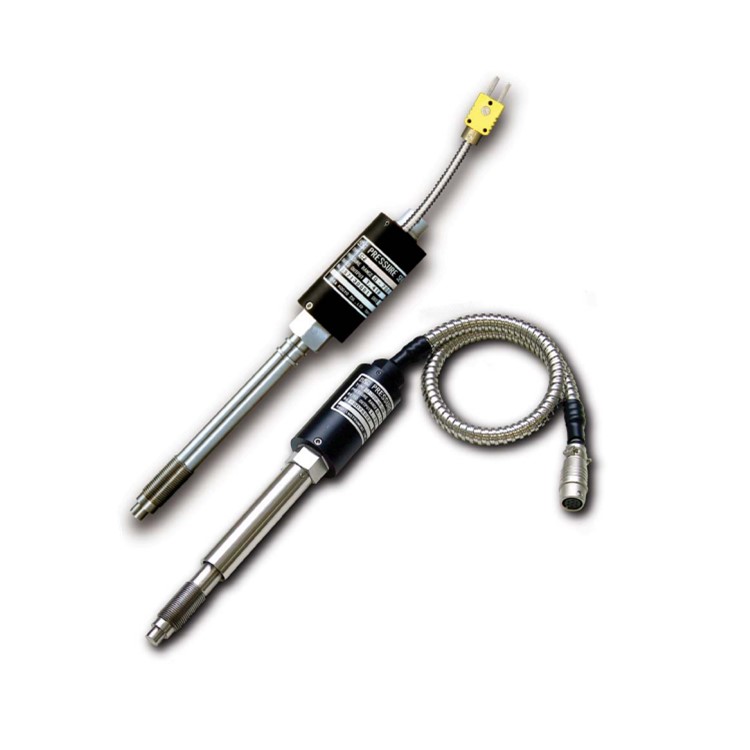

RKC CZ-200P 레진 압력센서
RKC CZ-200P Resin Pressure Sensor
- Pushrod system which provides no risk of resin contamination when the sensor is damaged.
- The optional built-in thermocouple type can measure resin pressure and temperature simultaneously.
- Various types are available, including highly accurate type which enables overall accuracy of 0.5% FS.
- Optional Inconel, SPRON diaphragm which enables measurement up to 550°C.
클릭 하시면 이동합니다.
알케이씨 ・ RKC
CZ-200P
레진 압력센서
CZ-200P Resin Pressure Sensor
Main features
- Environment friendly

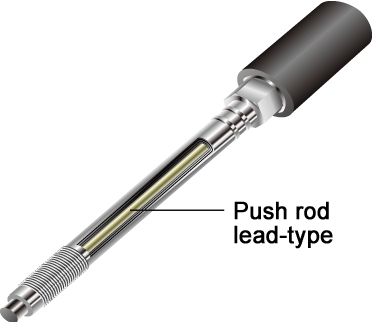

 | The use of a pushrod design eliminates the risk of resin contamination by the filling such as mercury. |
- Highly reliable and highly accurate

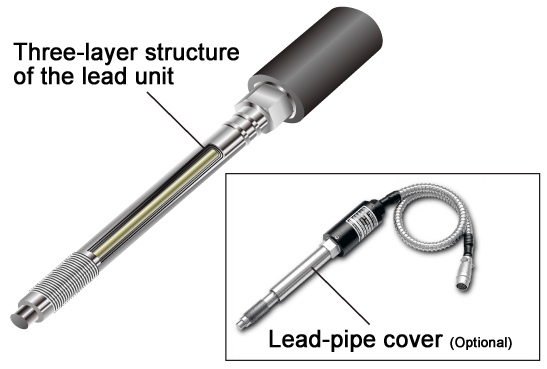

 | Triple construction of the stem and the optional stem cover reduces influence by external heat and indication errors when the sensor is tightened. When used with an indicator or a converter with a built-in linearizer, the sensor enables highly accurate pressure measurement of 0.5% FS. (Linearizer is optional) |

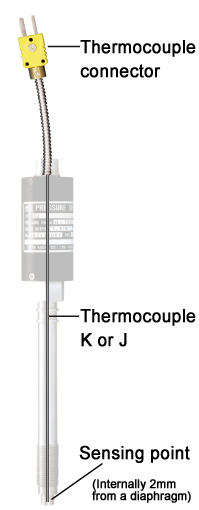

- Available with an optional built-in thermocouple
 | Available with an optional built-in thermocouple Temperature and resin pressure can be measured in a single mounting hole. (Thermocouple: type K, J class 2) |
- Can be used at Max. 550°C

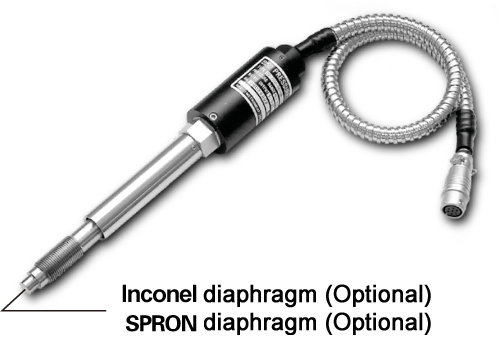

 | The Inconel, SPRON diaphragm type enables operation at high temperature (max. 550°C*) . This enables pressure measurement of high performance plastic materials (high-melt plastics). The SPRON diaphragm type is Attains the same corrosion resistance as Hastelloy C. *When the temperature sensor is type J, the maximum temperature is 450°C. |

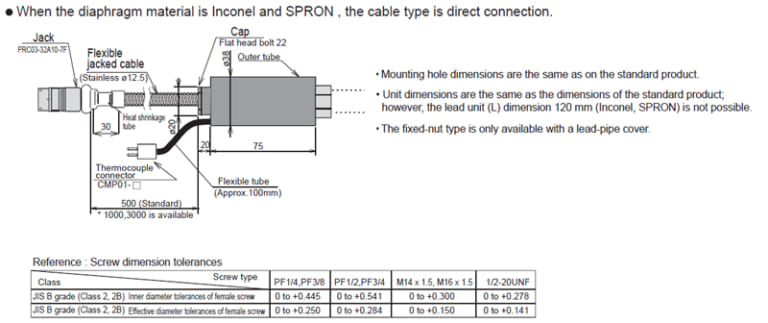

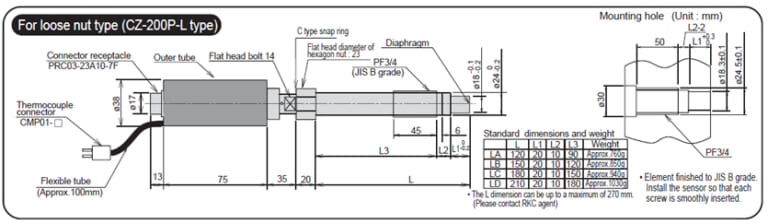

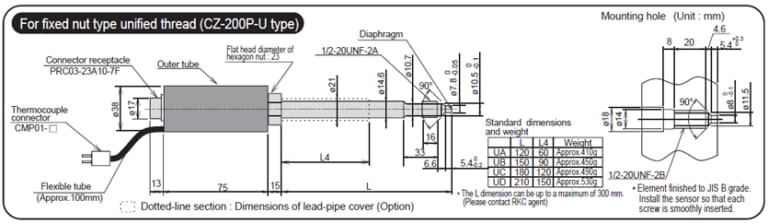

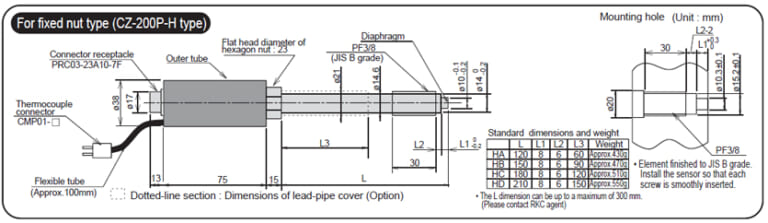

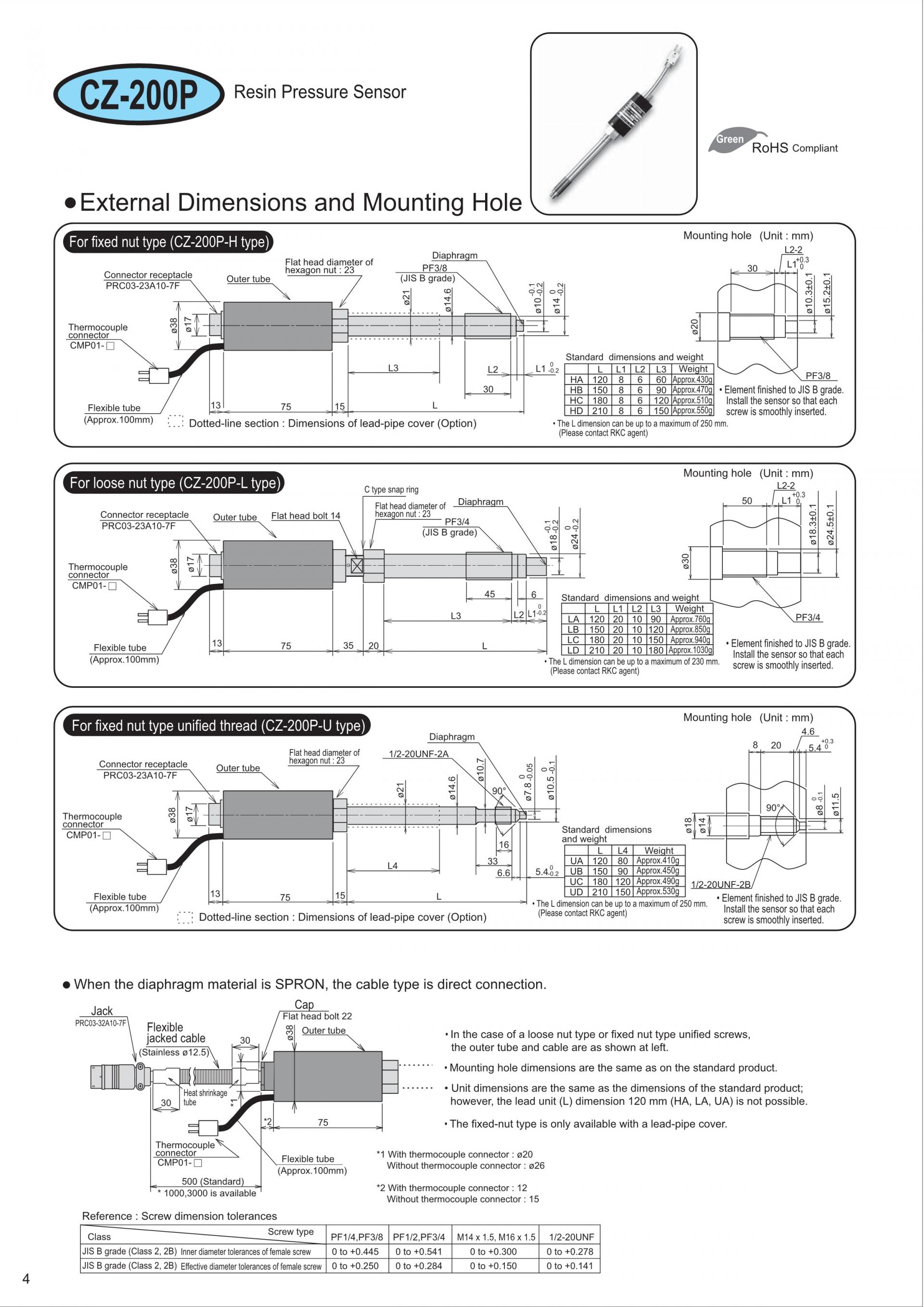

External dimensions

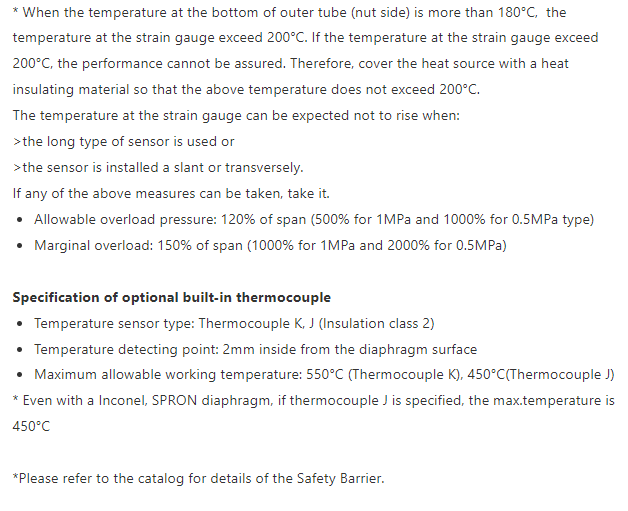

*Please refer to the catalog for details of the Safety Barrier.
