RKC ST-55 & ST-56 작은 물체 표면용 온도센서

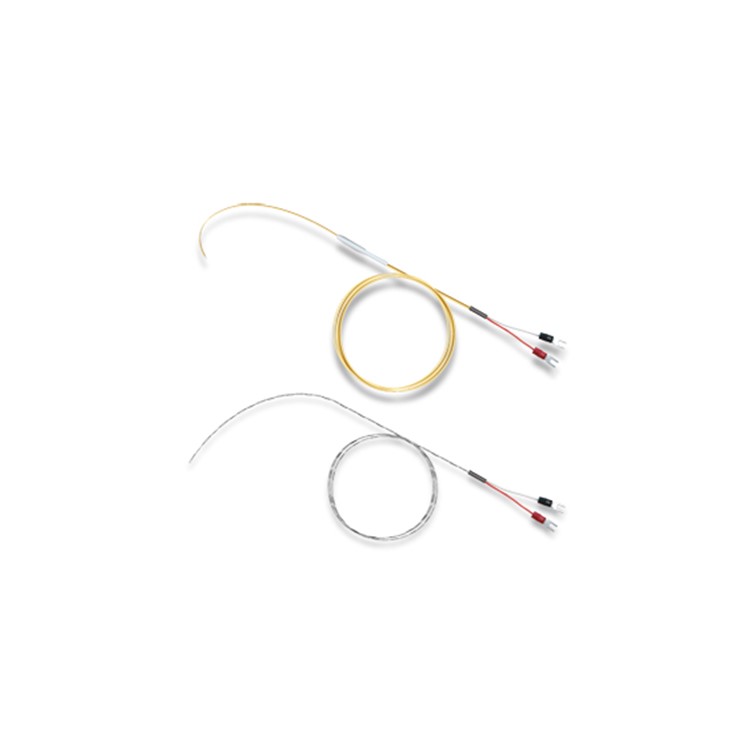

RKC ST-55 & ST-56 Temperature Sensors for small object surface
- Capable of measuring surface temperature of small objects

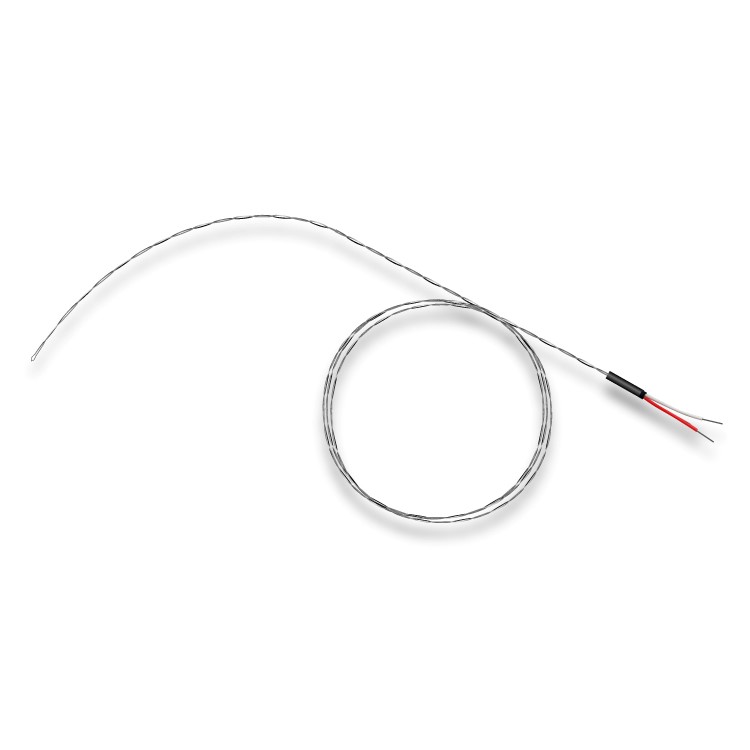

- Ceramic coating type is capable of measurement up to 500°C

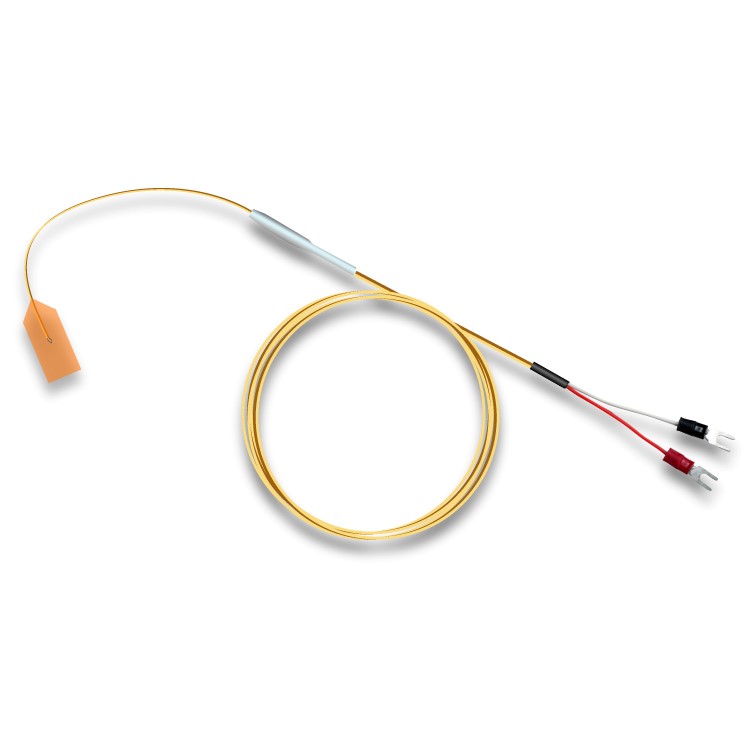

- Polyimide resin type or nonwoven glass fabric type with adhesive tape enables easy sticking on the measured object.(Fluorocarbon resin coat type only)
- Various sensor length can be made to suit the applications.
클릭 하시면 이동합니다.
알케이씨 ・ RKC
ST-55 & ST-56
작은 물체 표면용 온도센서
ST-55 & ST-56 Temperature Sensors for small object surface

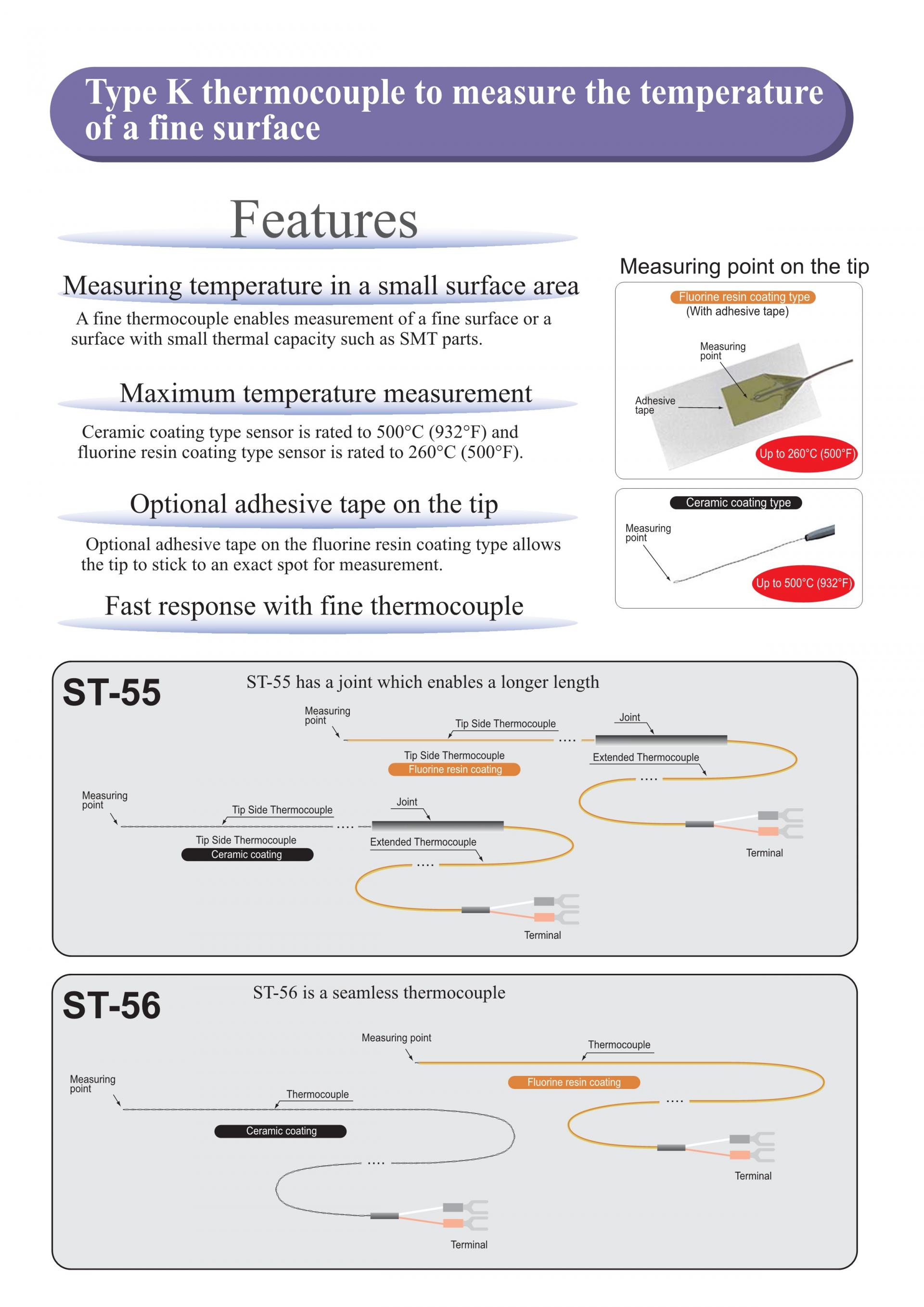

Main features
- Capable of measuring temperature of small objects
 | Use of thermocouple with a small diameter enables temperature measurement of small objects with small thermal capacity and surface temperature of a small object.
※Please use ceramic / epoxy bond or heat-resistant adhesive tape to stick the sensor tip on the measuring part. |
- This is a type K thermocouple
 | The sensor can be connected to the instrument configured for thermocouple input type K.

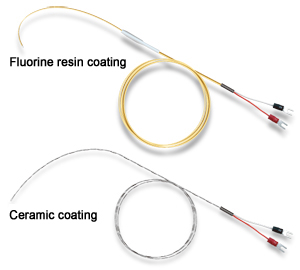

The ceramic coat type is capable of measuring up to 500°C. (Up to 260°C for the fluorocarbon resin type) |
- Enables manufacturing a longer sensor.

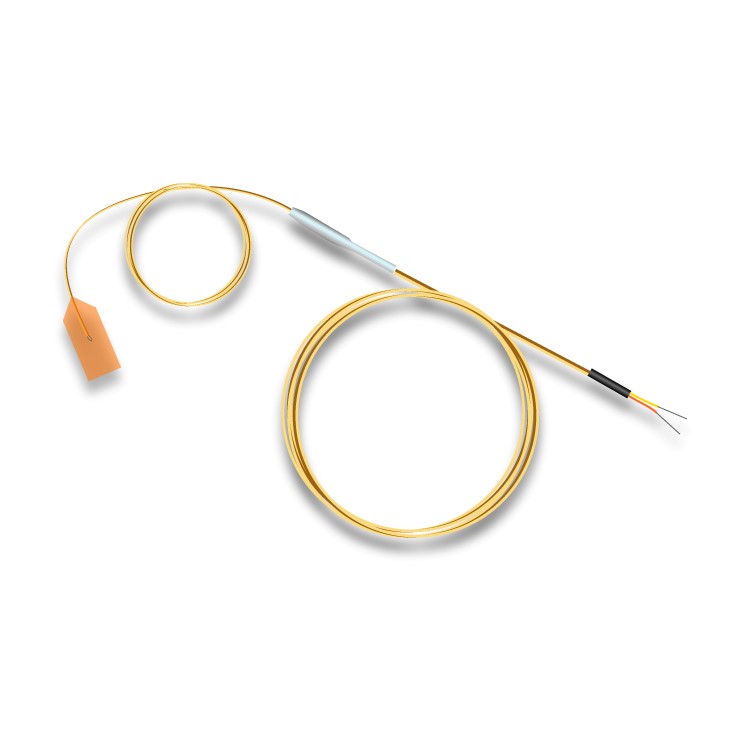

 | ST-56： The length between the thermocouple and the terminal can be specified from 200mm in increments of 100mm. ST-55： Cable joint is added to the ST-56. Use of a larger element size in the cable joint enables manufacturing a longer sensor. The thermocouple can be specified from 50mm in increments of 50mm and the cable joint section can be specified from 200mm in increments of 50mm. ※The length between the thermocouple and the cable joint section can be made to the desired length, but please specify the size so that the element resistance value is lower than 100Ω. |

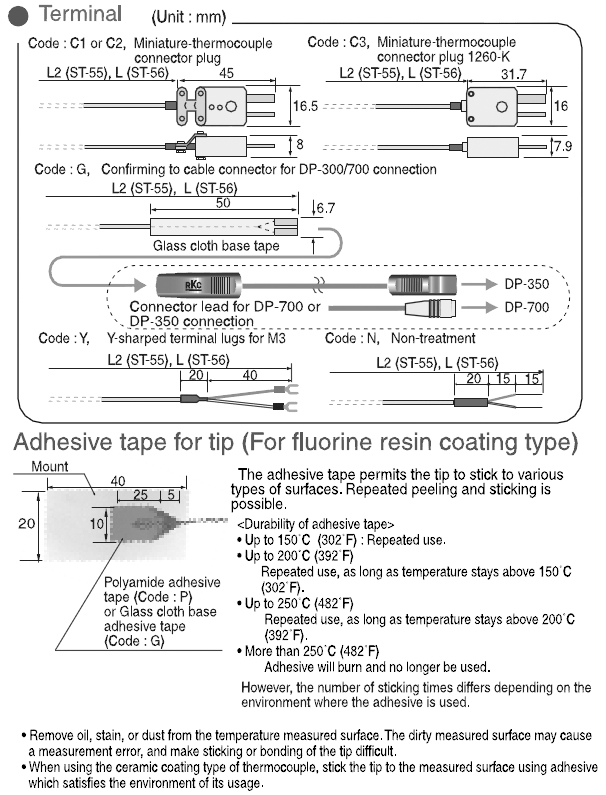

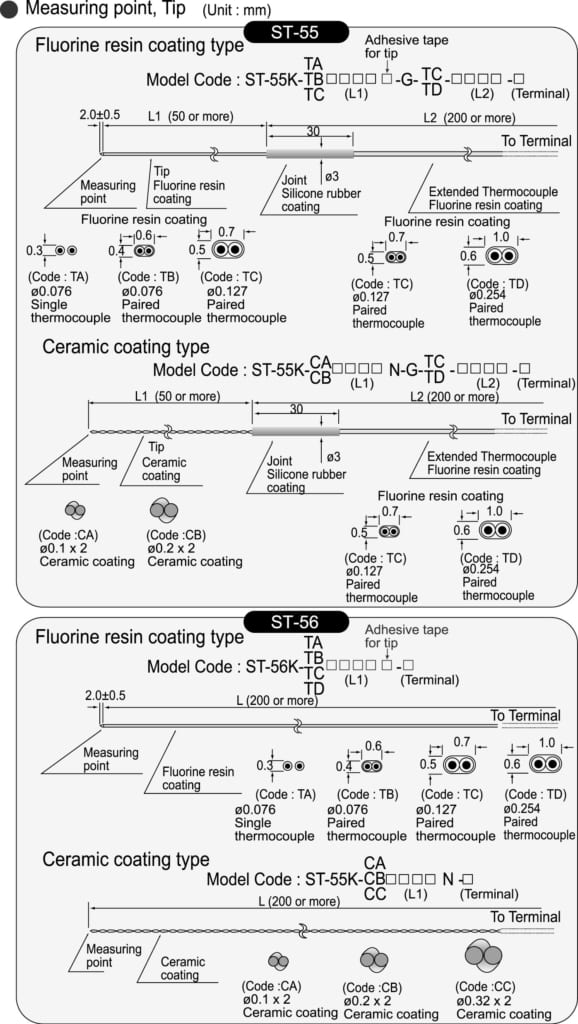

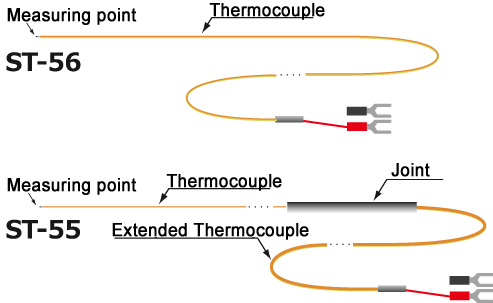

External dimensions
ST-55 ST-56 ST 55 ST 56 ST-55 RKC RKC ST-55 ST-55 알케이씨 알케이씨 ST-55 ST-56 RKC RKC ST-56 ST-56 알케이씨 알케이씨 ST-56 ST 55 RKC RKC ST 55 ST 55 알케이씨 알케이씨 ST 55 ST 56 RKC RKC ST 56 ST 56 알케이씨 알케이씨 ST 56
