RKC JB-150 / JB-16 / JB-160 / JB-703(704) 휴대용 온도센서 (유체 및 반고체 내부용)
가격문의(상세정보 참조)
RKC JB-150 / JB-16 / JB-160 / JB-703(704) 휴대용 온도센서 (유체 및 반고체 내부용)

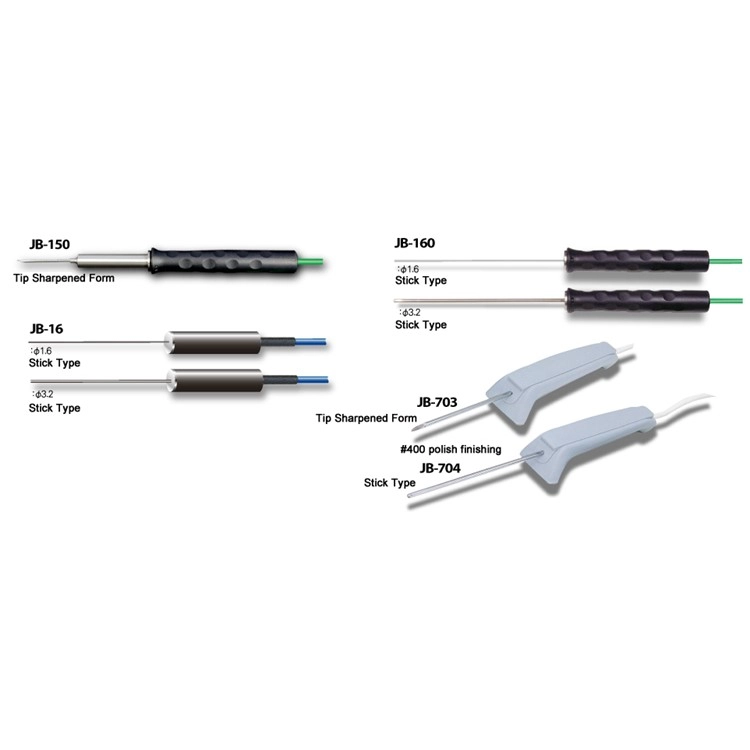

RKC JB-150 / JB-16 / JB-160 / JB-703(704) Handheld Temperature Sensors (For fluids and inside of semi-solid objects)
JB-150
- Max.measuring temperature: 400°C
- Stab type sensor (tip of the sensor)
JB-16
- Max.measuring temperature: 650°C (Protection tube diameter: 1.6mm), 750°C(Protection tube diameter: 3.2mm)
- Needle type sensor (tip of the sensor)
JB-160
- Max.measuring temperature: 650°C (Protection tube diameter: 1.6mm), 750°C(Protection tube diameter: 3.2mm)
- Needle type sensor (tip of the sensor)
- Hand fitting dimpled grip
JB-703 / JB-704
- Max.measuring temperature: 400°C
- Protection tube with buff finish
- IP67 water-proof construction. Can be washed clean with water in combination with the DP-700.
클릭 하시면 이동합니다.
알케이씨 ・ RKC
JB-150 / JB-16 / JB-160 / JB-703(704)
휴대용 온도센서 (유체 및 반고체 내부용)
JB-150 / JB-16 / JB-160 / JB-703(704) Handheld Temperature Sensors (For fluids and inside of semi-solid objects)

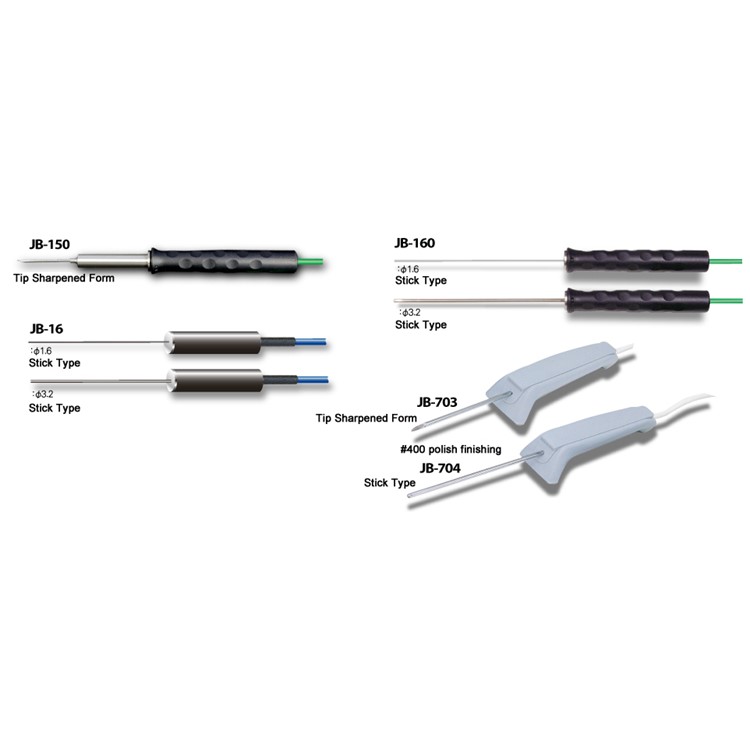

Main features

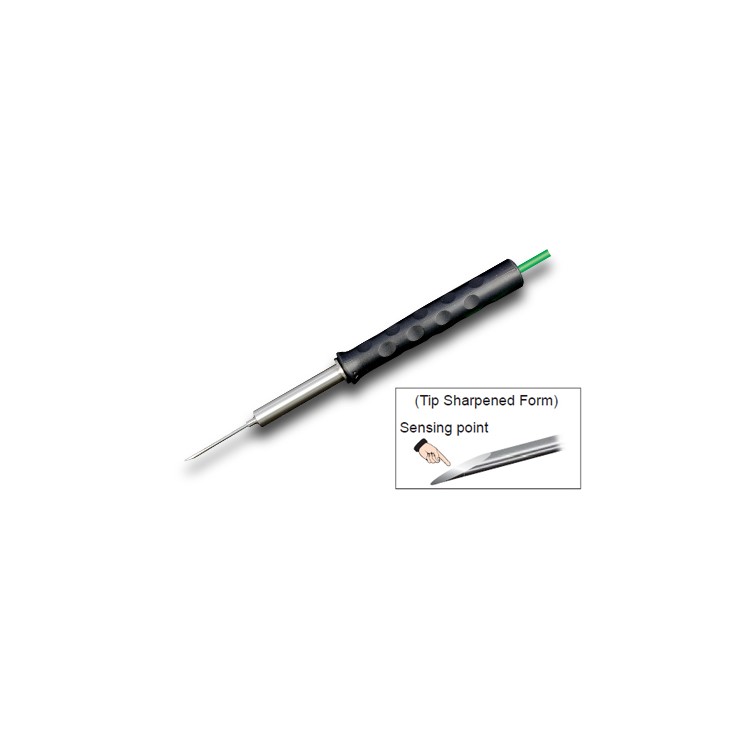

- JB-150
Sheathed needle type for fluids and semi-solid objects
  | The tip of the protection tube (sensing part) is shaped like a sharp needle so that the sensor can be easily stabbed into the measured object. Sensors with reinforced welded protection tube are also available. This may be suitable for measuring temperature of asphalt. |

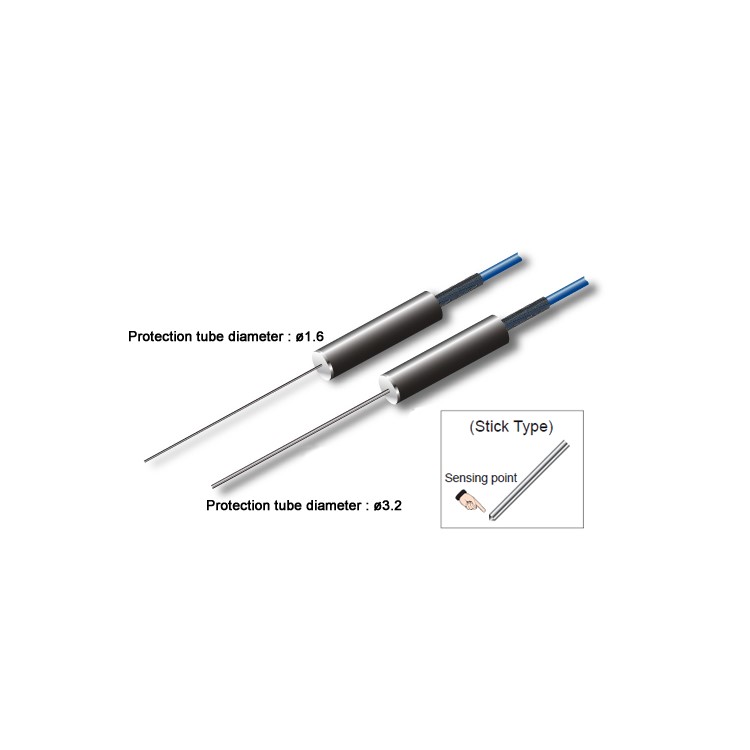

- JB-16
Sheathed needle type for fluids and semi-solid objects

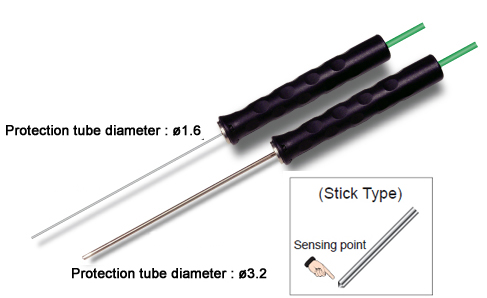

   | Two types of protection tube diameter (1.6 and 3.2mm) are available depending on applications, required durability, and response time. |

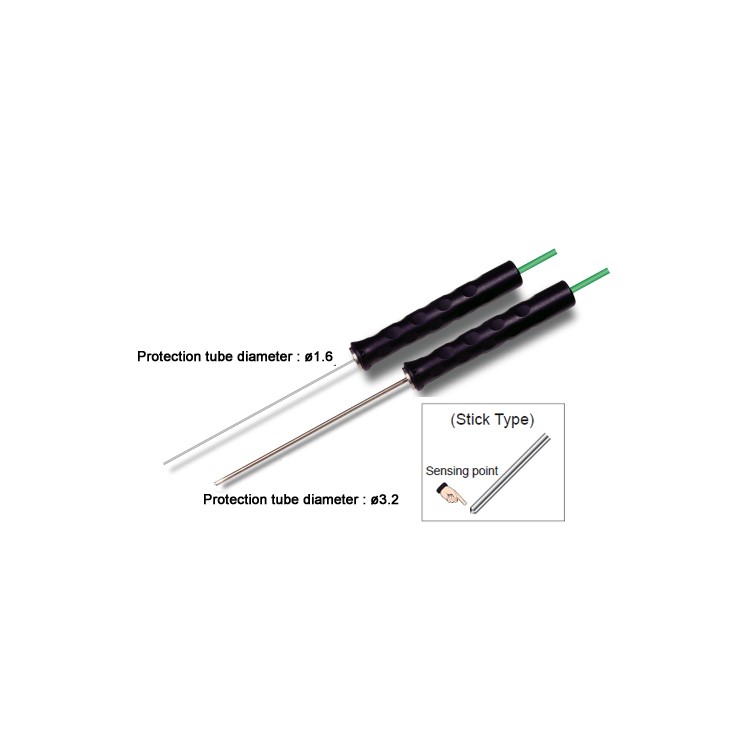

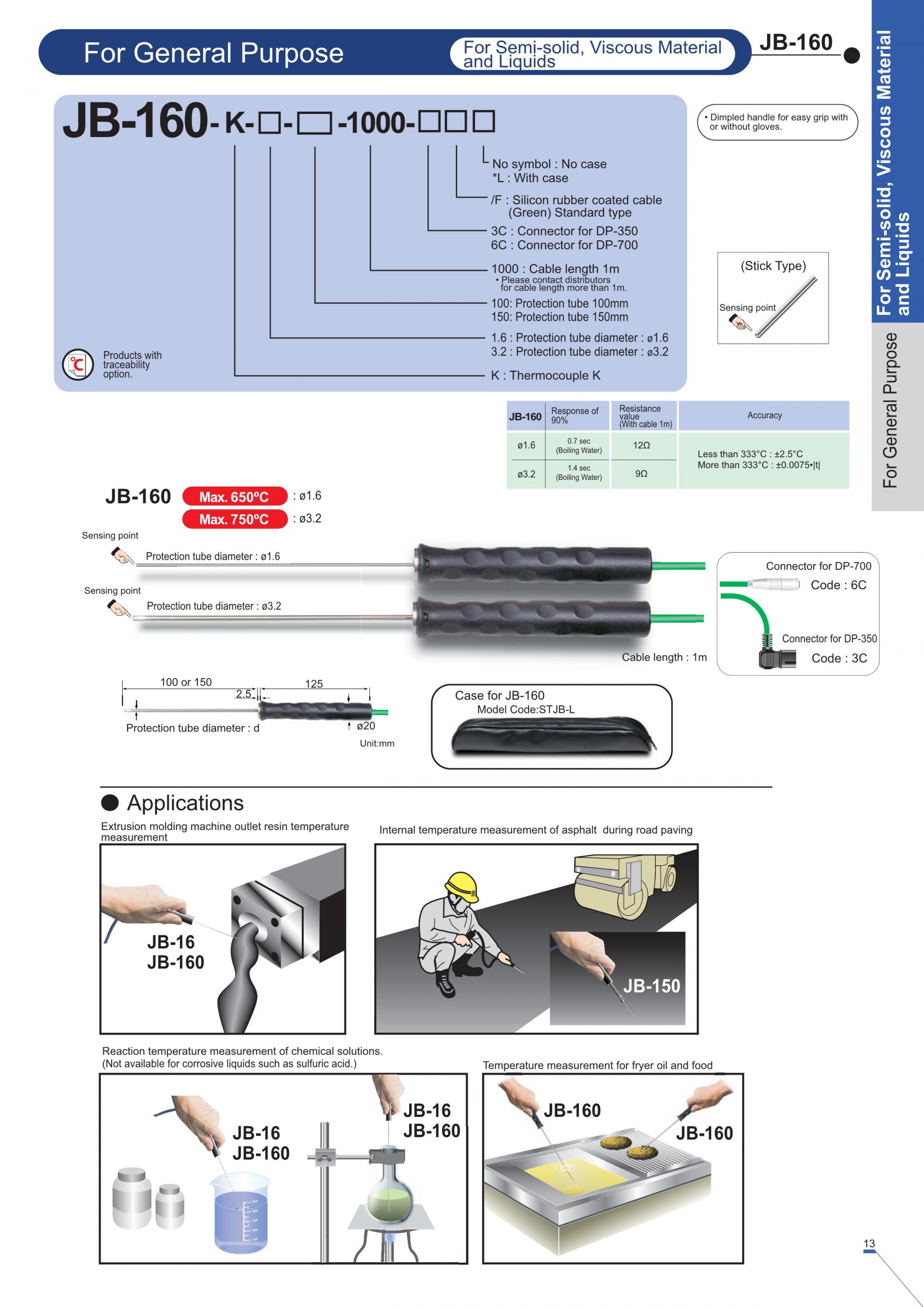

- JB-160
Sheathed needle type with a hand fitting grip
   | The dimpled grip fits into your hand (even with a glove) for stable measurement. Two types of protection tube diameter (1.6 and 3.2mm) are available depending on applications, required durability, and response time. Two types of protection tube length (100mm and 150mm) are available depending on applications. |

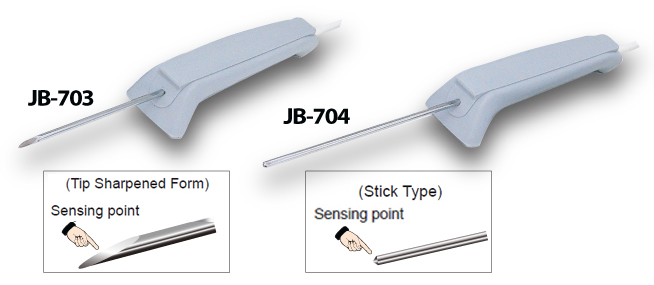

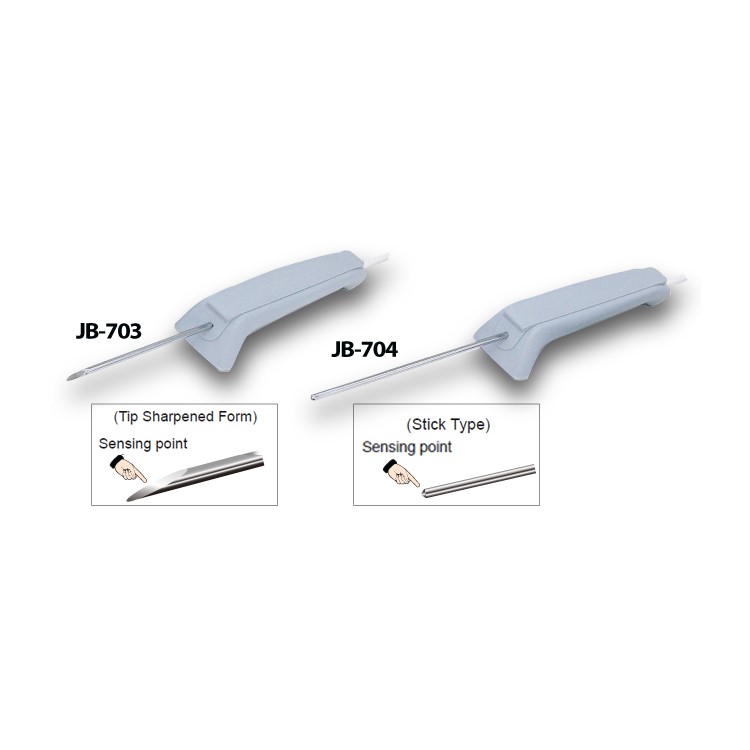

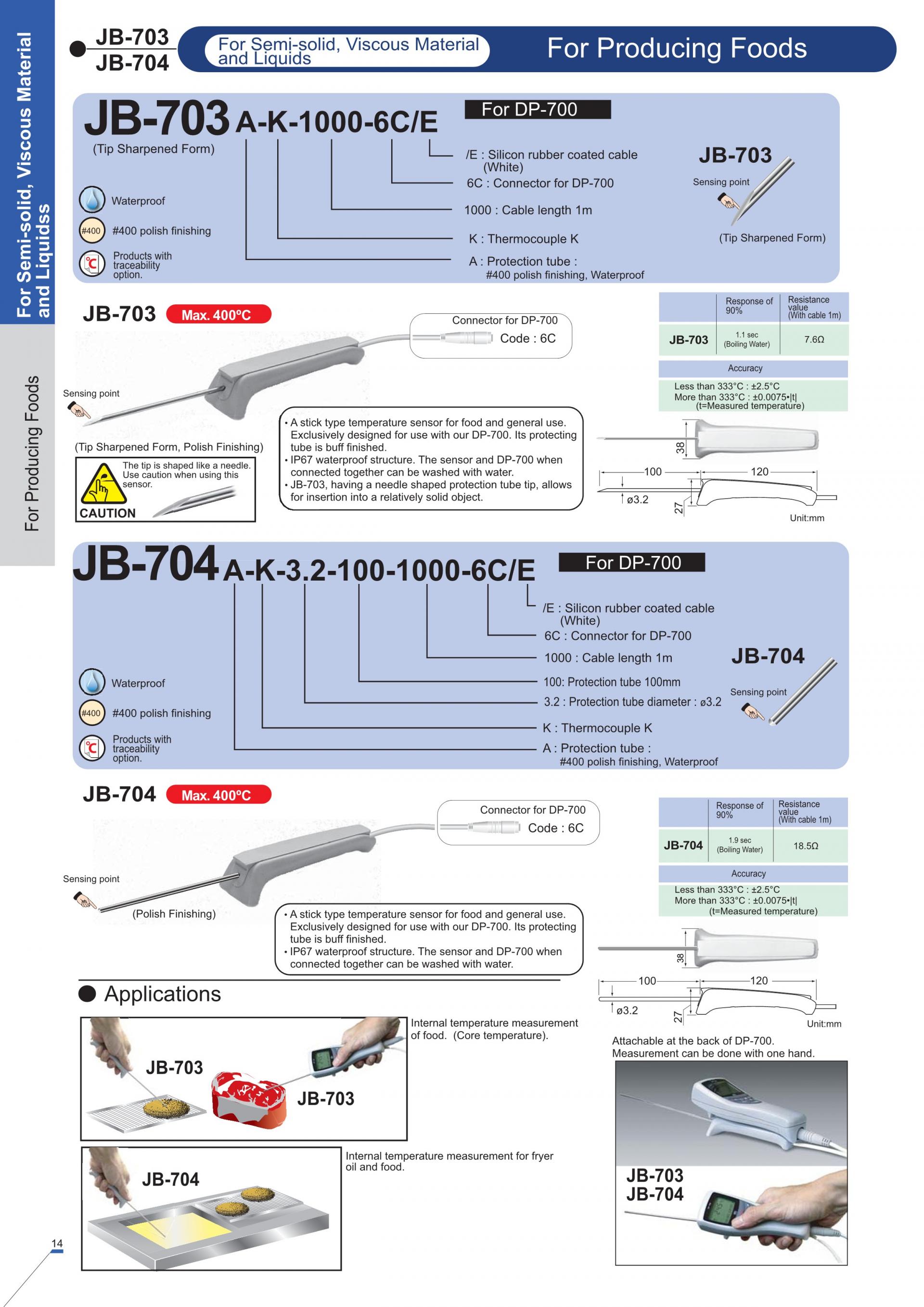

- JB-703 / JB-704 ＊Exclusively for DP-700
Exclusively designed for food applications (water-proof and anti-bacterial finish)
  | Grip and cable are anti-bacterial finished and the sensor is washable with water (IP67 water-proof). Using this sensor in combination with DP-700 is ideal for food processing industries because of its protection tube with #400 buff finish. JB-703 is a stabbing type sensor which is used by stabbing into a measured object. |

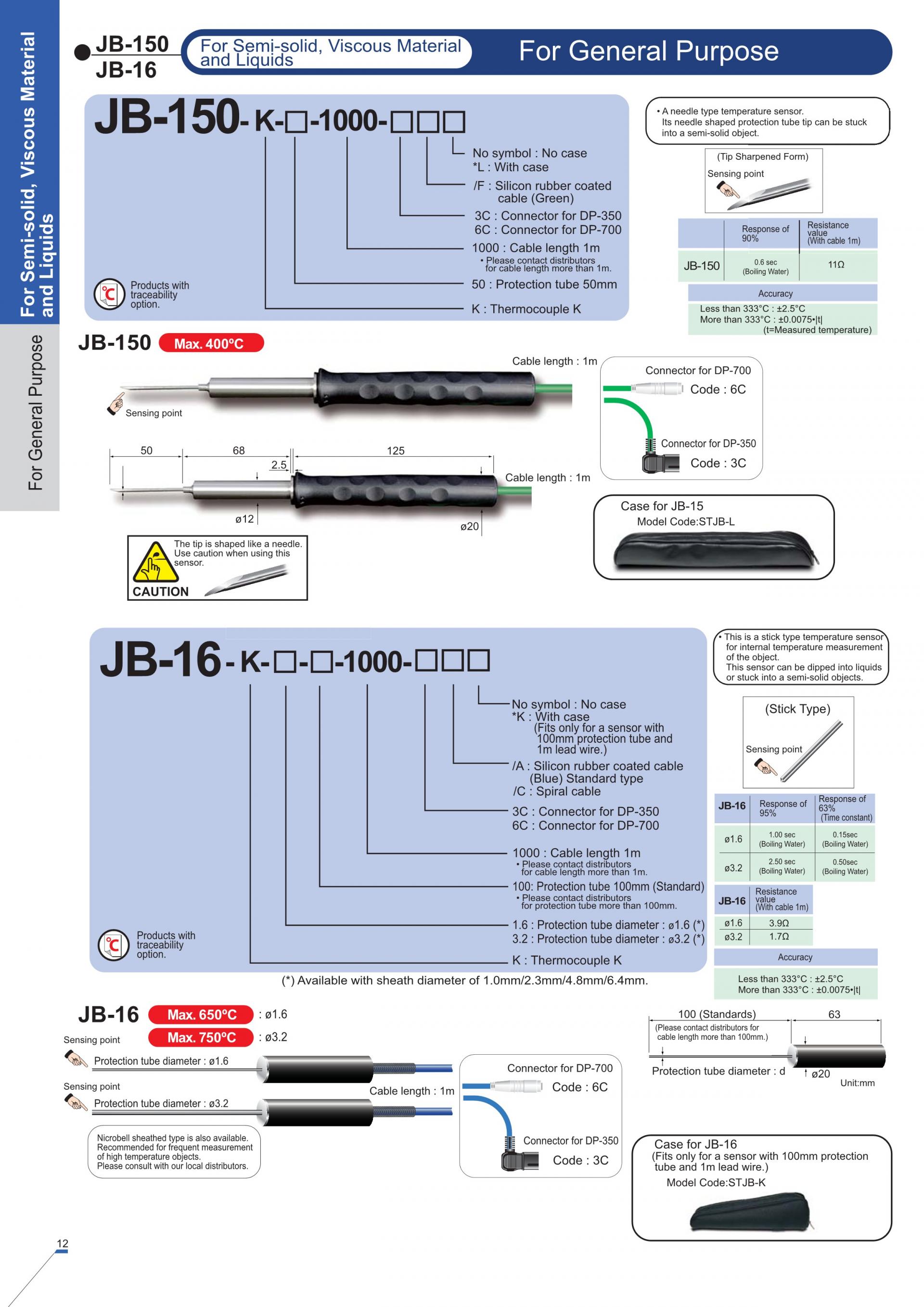

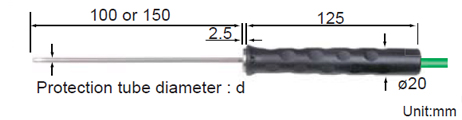

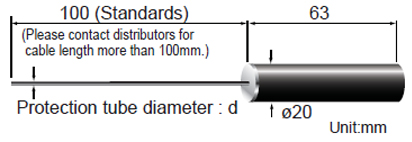

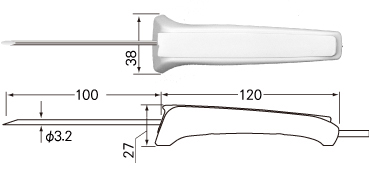

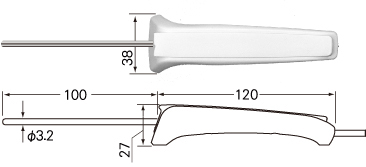

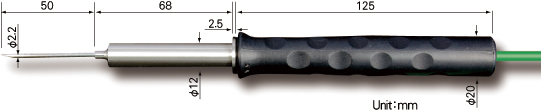

External dimensions
- JB-150
- JB-16
- JB-16
- JB-703
- JB-704
