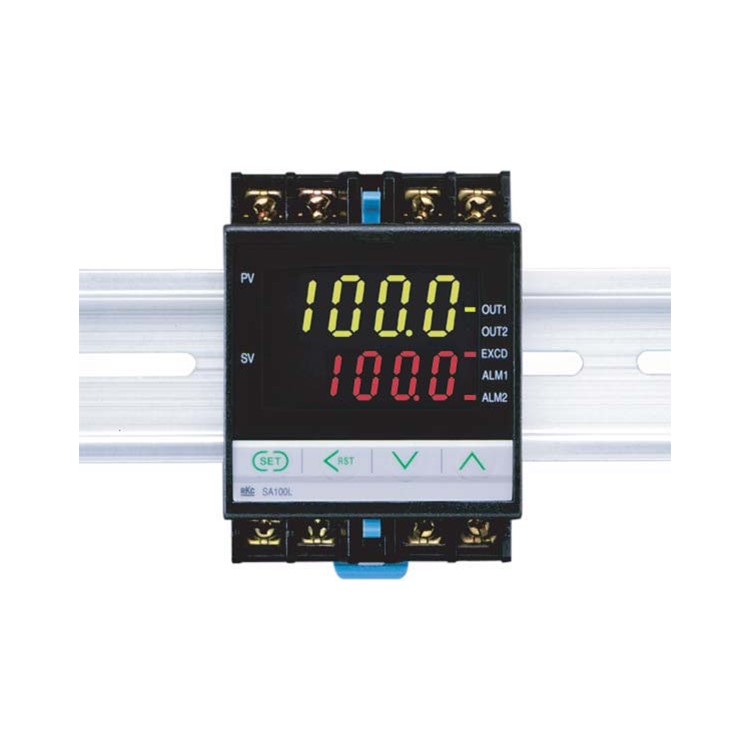

RKC SA100L 온도 리미트 컨트롤러
가격문의(상세정보 참조)
RKC SA100L 온도 리미트 컨트롤러
RKC SA100L Temperature limit controller
- Over/Under temperature protection
- Over temperature timer

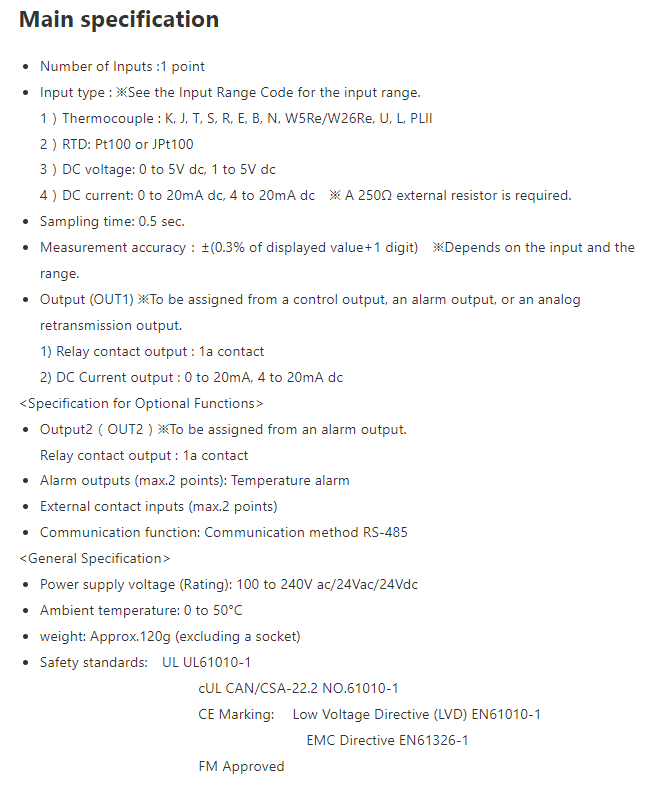

- Measurement accuracy: ±0.3% of displayed value
- Sampling time: 0.5 sec.
- DIN rail mounting type (Also installable on a panel)
- Plug-in construction
클릭 하시면 이동합니다.
알케이씨 ・ RKC
SA100L
온도 리미트 컨트롤러
SA100L Temperature limit controller
Main features

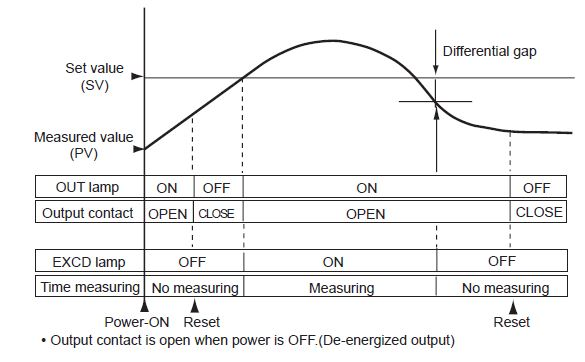

- Over/Under Temperature Protection
 | When the temperature goes above or below the set value (high limit or low limit), the SA100L will interrupt or remove the power from the process. This output can be used for alarm or interrupting power to the heater circuit. For safety reason, the output will be retained until reset operation is executed even when the measured value goes back to the normal range. Reset operation can be executed by front key operation, communication, or digital input. |

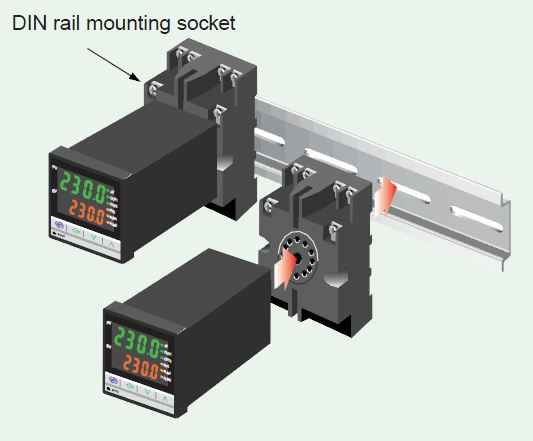

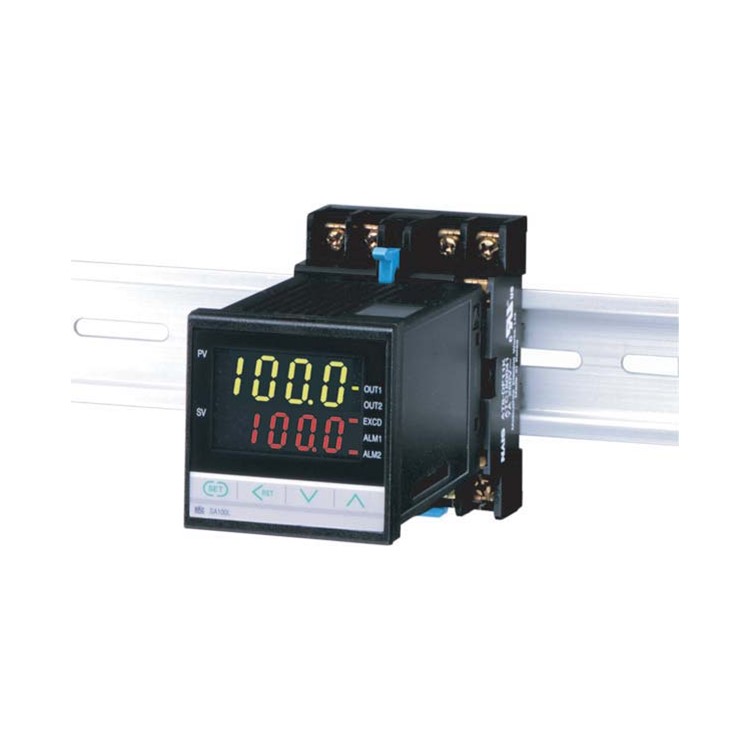

- DIN rail mounting type temperature controller
 | Installable on the DIN rail inside the control cabinet. Removable terminal socket for easy maintenance. |

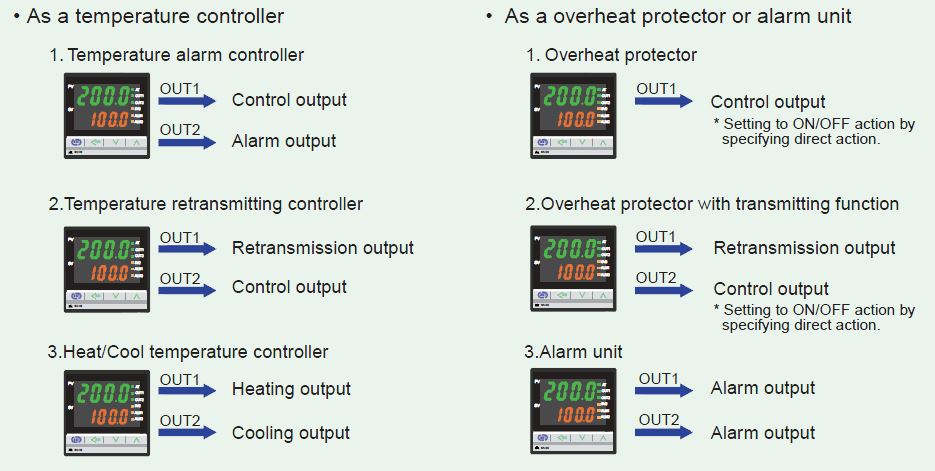

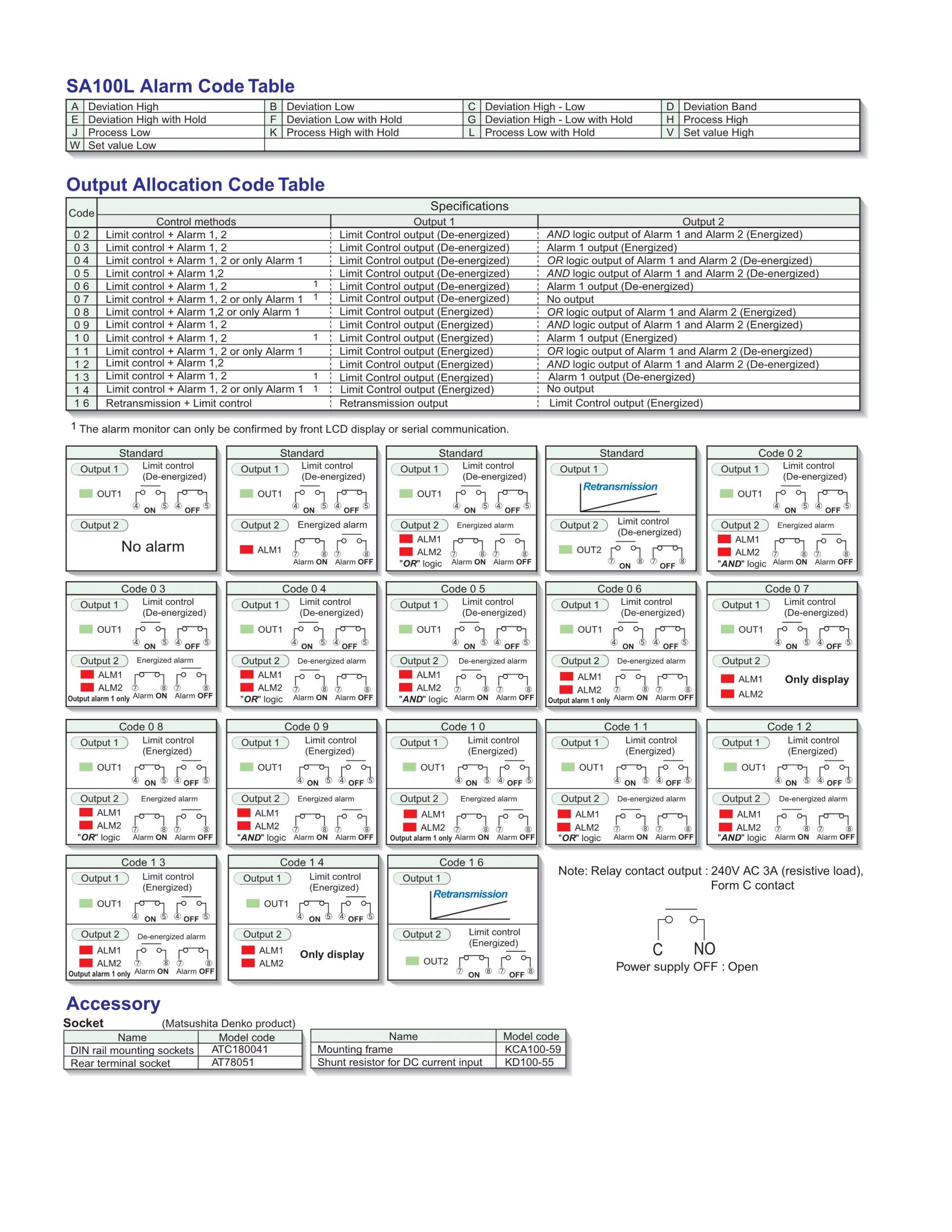

- Two outputs can be assigned to control output, alarm output, or analog retransmission output
 | This instrument can be used as a temperature controller, an alarm, or an overtemperature protection device depending on the output assignment. |

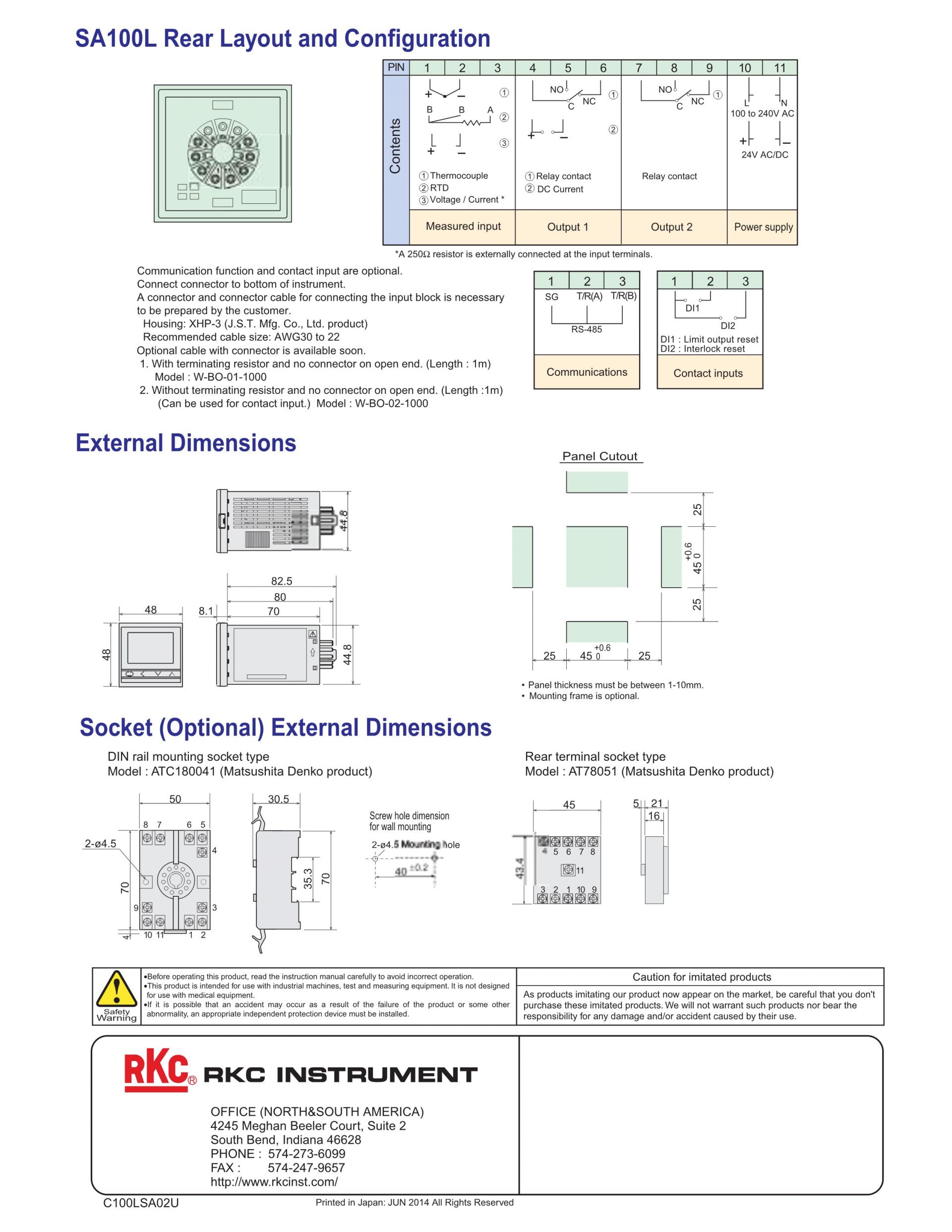

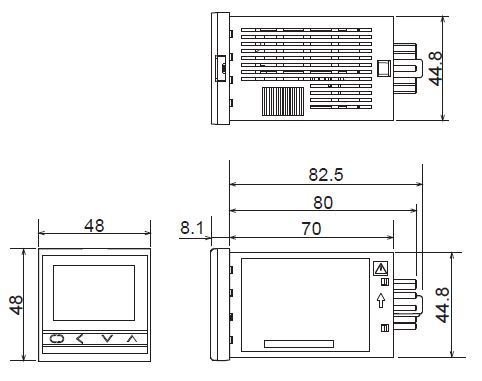

External dimensions
SA100L SA100L RKC RKC SA100L SA100L 알케이씨 알케이씨 SA100L
