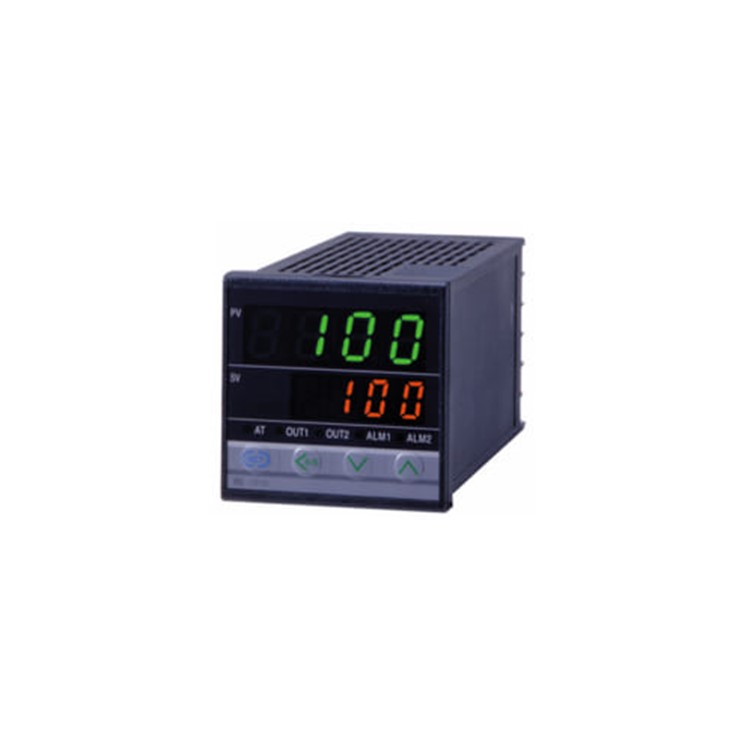

RKC CB100L 온도 리미트 컨트롤러
가격문의(상세정보 참조)

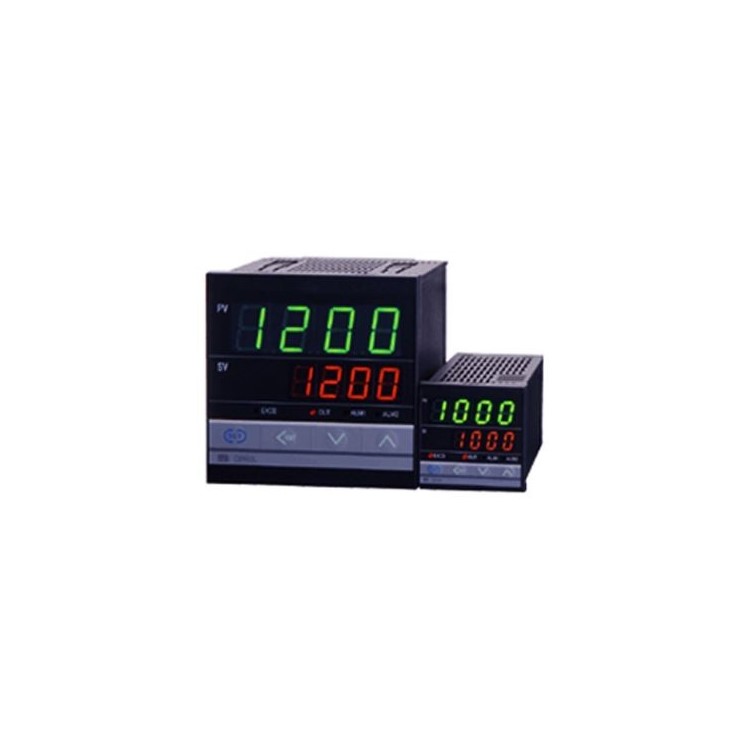

RKC CB100L 온도 리미트 컨트롤러
RKC CB100L Temperature Limit Controller
- Over/Under temperature protection
- Over temperature timer
- Measurement accuracy: ±0.3% of displayed value
- Sampling time: 0.5 sec.
- Longtime seller of Temperature Controllers
- Plug-in construction
클릭 하시면 이동합니다.
알케이씨 ・ RKC
CB100L
온도 리미트 컨트롤러
CB100L Temperature Limit Controller
Main features

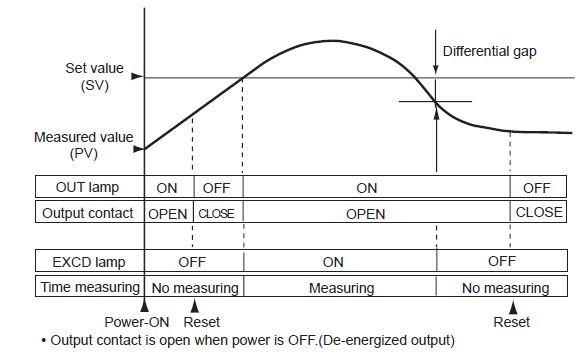

- Over/Under Temperature Protection
 | When the temperature goes above or below the set value (high limit or low limit), the CB100L will interrupt or remove the power from the process. This output can be used for alarm or interrupting power to the heater circuit. For safety reason, the output will be retained until reset operation is executed even when the measured value goes back to the normal range. Reset operation can be executed by front key operation, communication, or digital input. |

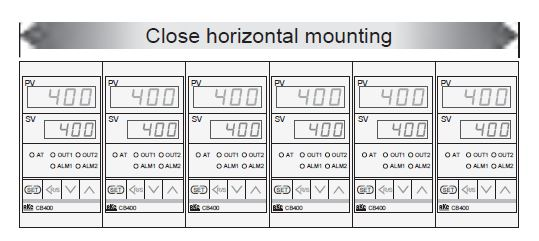

- Closely contacted mounting is available
 | Closely contacted mounting has been realized to efficiently utilize the panel space. |

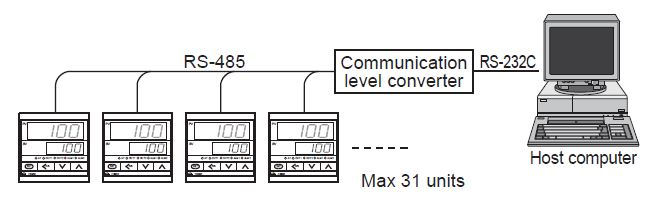

- Communication function (RS-485) is available (Optional)
 | Up to 31 controllers can be multidrop connected over the RS-485 communication line. Communication protocol can be selected from RKC standard or MODBUS protocol. |

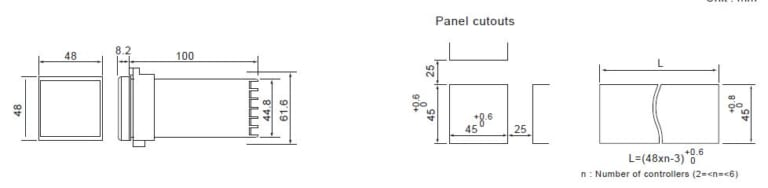

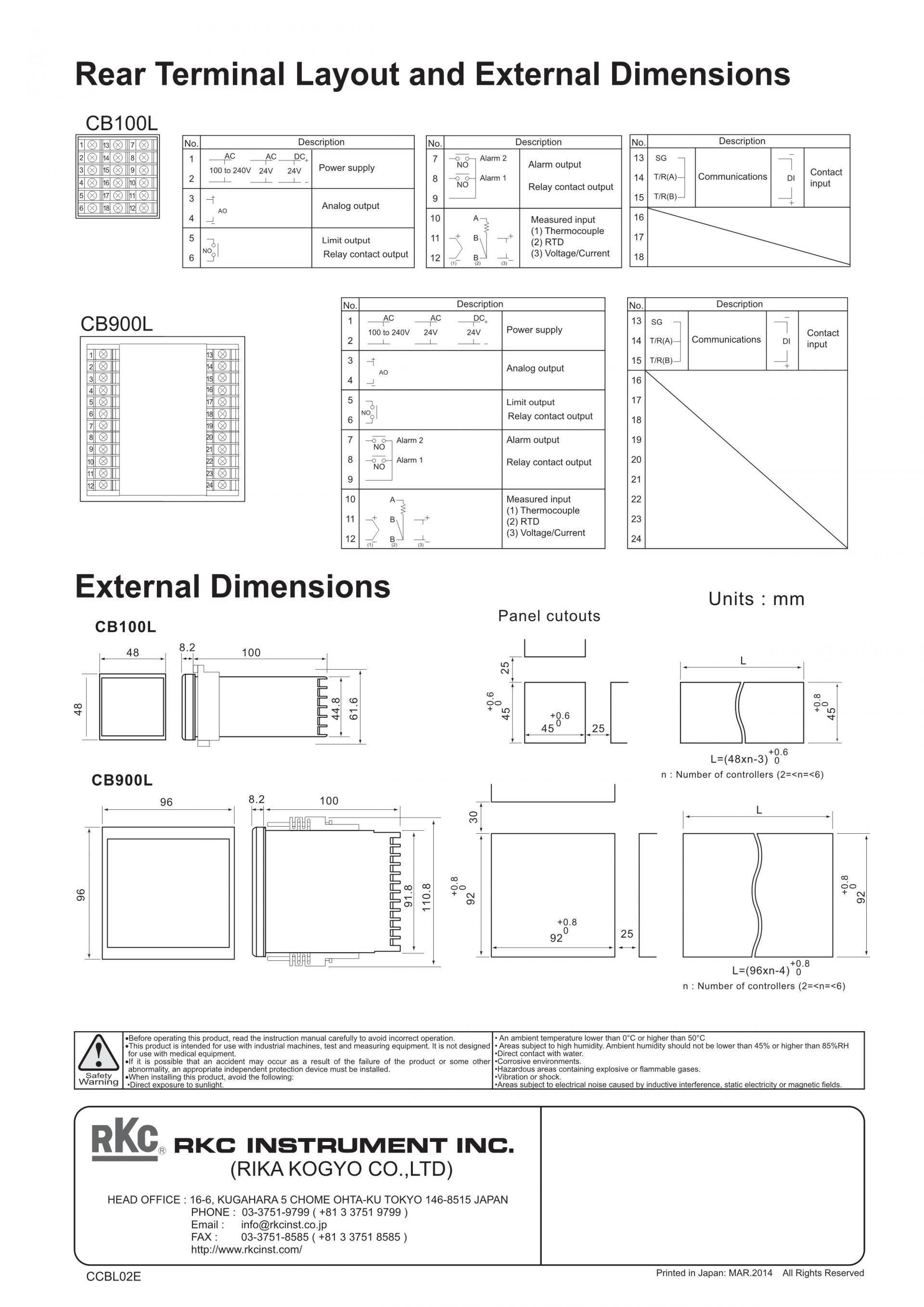

External dimensions
CB100L CB100L RKC RKC CB100L CB100L 알케이씨 알케이씨 CB100L
