RKC SA200L 온도 리미트 컨트롤러
가격문의(상세정보 참조)

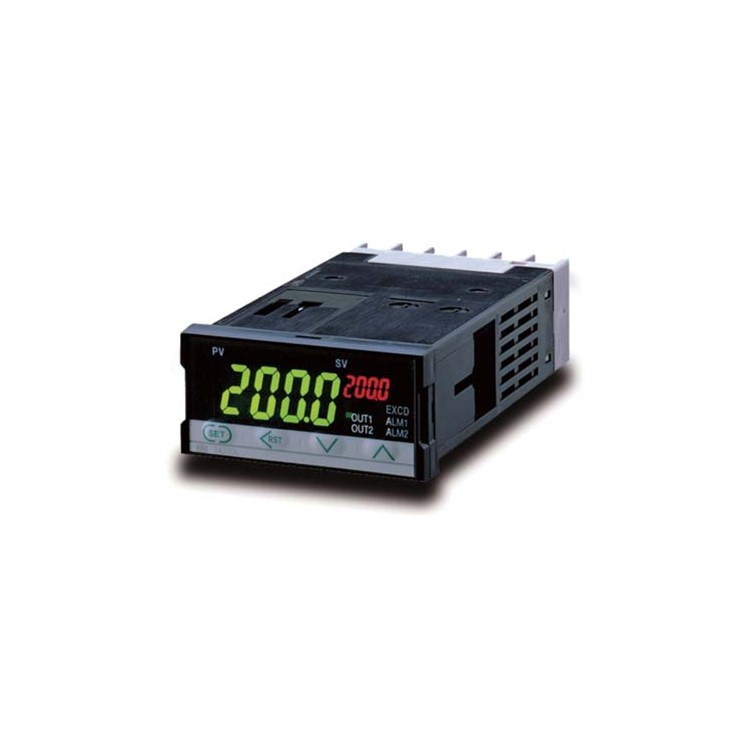

RKC SA200L 온도 리미트 컨트롤러
RKC SA200L Temperature Limit Controller
- Over/Under temperature protection
- Over temperature timer

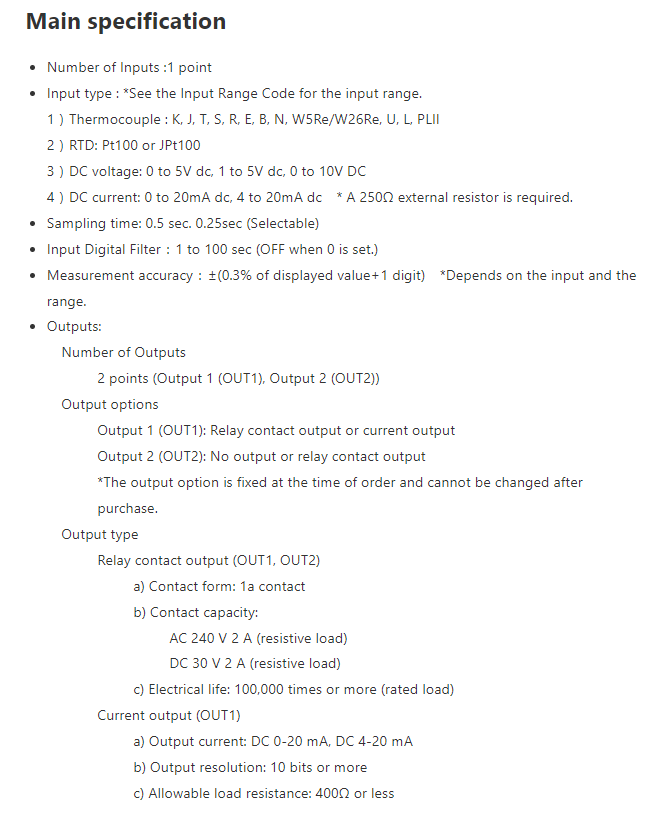

- Measurement accuracy: ±0.3% of displayed value
- Sampling time: 0.5sec./0.25sec.
- LCD display
- 48×24mm size (horizontal by vertical)
- Plug-in construction
클릭 하시면 이동합니다.
알케이씨 ・ RKC
SA200L
온도 리미트 컨트롤러
SA200L Temperature Limit Controller
Main features

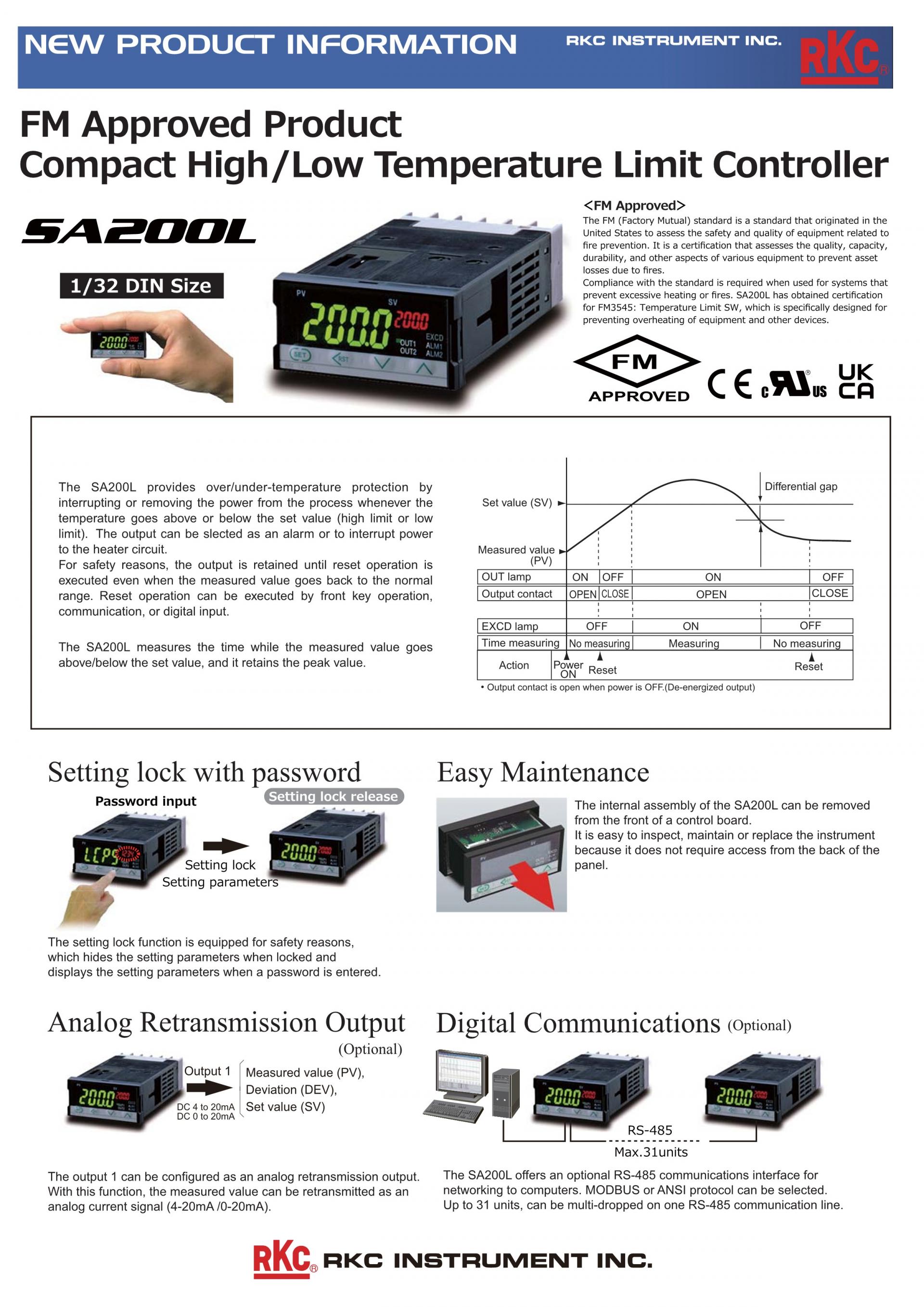

- FM Approved Product Compact High/Low Temperature Limit Controller

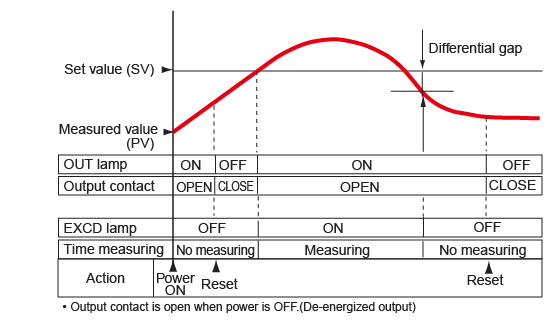

The SA200L provides over/under-temperature protection by interrupting or removing the power from the process whenever the temperature goes above or below the set value (high limit or low limit). The output can be slected as an alarm or to interrupt power to the heater circuit. |  |
＜FM Approved＞
The FM (Factory Mutual) standard is a standard that originated in the United States to assess the safety and quality of equipment related to fire prevention. It is a certification that assesses the quality, capacity, durability, and other aspects of various equipment to prevent asset losses due to fires.
Compliance with the standard is required when used for systems that prevent excessive heating or fires. SA200L has obtained certification for FM3545: Temperature Limit SW, which is specifically designed for preventing overheating of equipment and other devices.

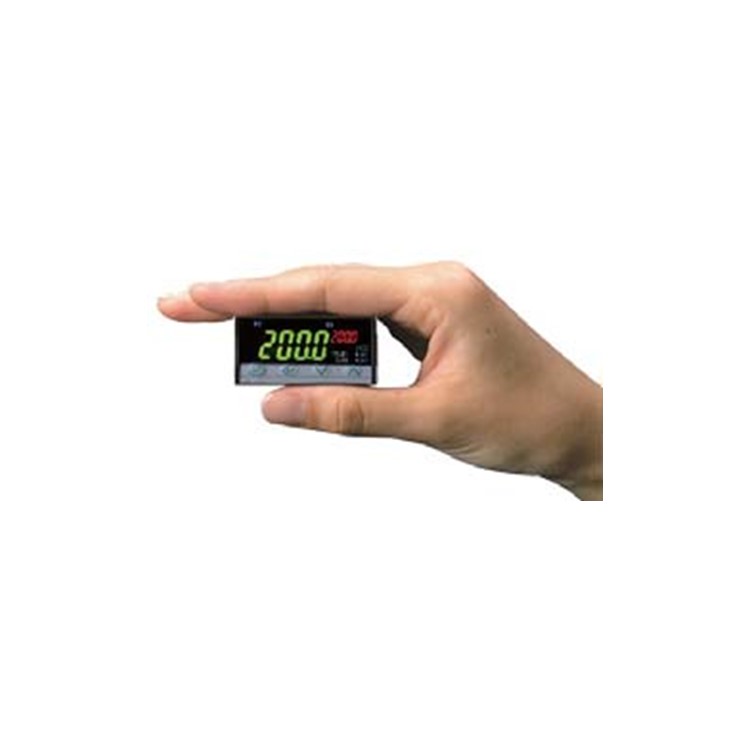

- 1/32 DIN Sized Compact Limit Controller
 | Compact design of 1/32 DIN size (48 x 24 mm) that does not take up installation space. |

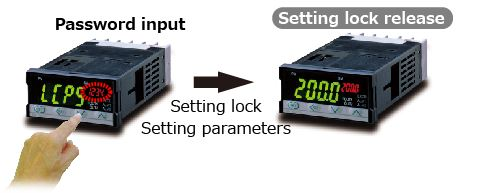

- Setting lock with password
 | The setting lock function is equipped for safety reasons, which hides the setting parameters when locked and displays the setting parameters when a password is entered. |
- Easy Maintenance
 | The internal assembly of the SA200L can be removed from the front of a control board. It is easy to inspect, maintain or replace the instrument because it does not require access from the back of the panel. |

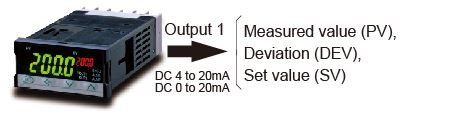

- Analog Retransmission Output (Optional)
 | The output 1 can be configured as an analog retransmission output. With this function, the measured value can be retransmitted as an analog current signal (4-20mA /0-20mA). |

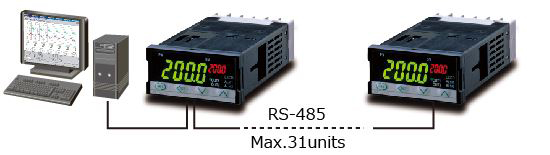

- Digital Communications (Optional)
 | The SA200L offers an optional RS-485 communications interface for networking to computers. MODBUS or ANSI protocol can be selected. Up to 31 units, can be multi-dropped on one RS-485 communication line. |

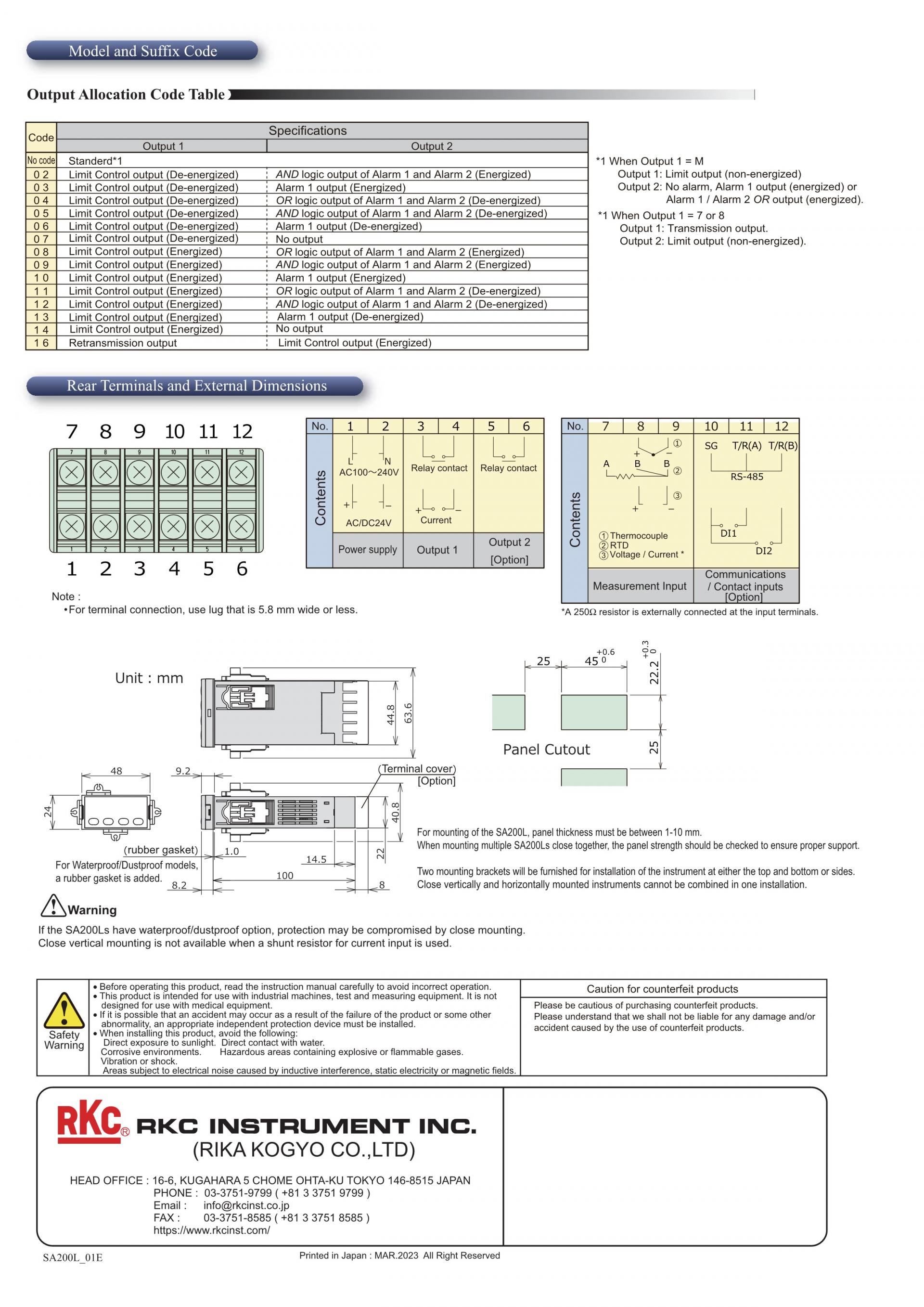

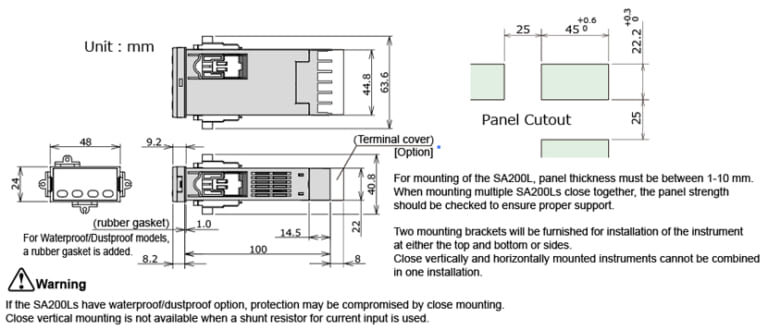

External dimensions
SA200L SA200L RKC RKC SA200L SA200L 알케이씨 알케이씨 SA200L
