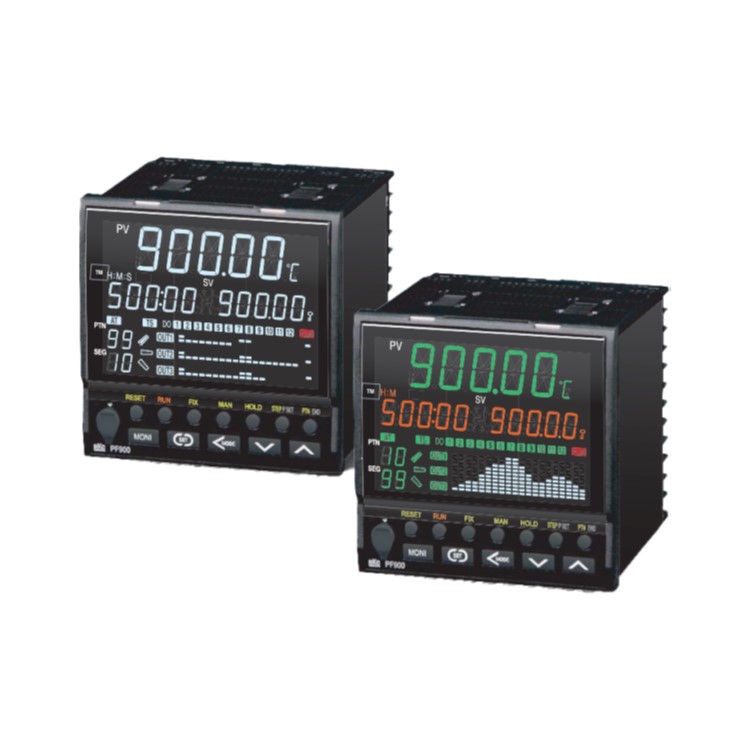

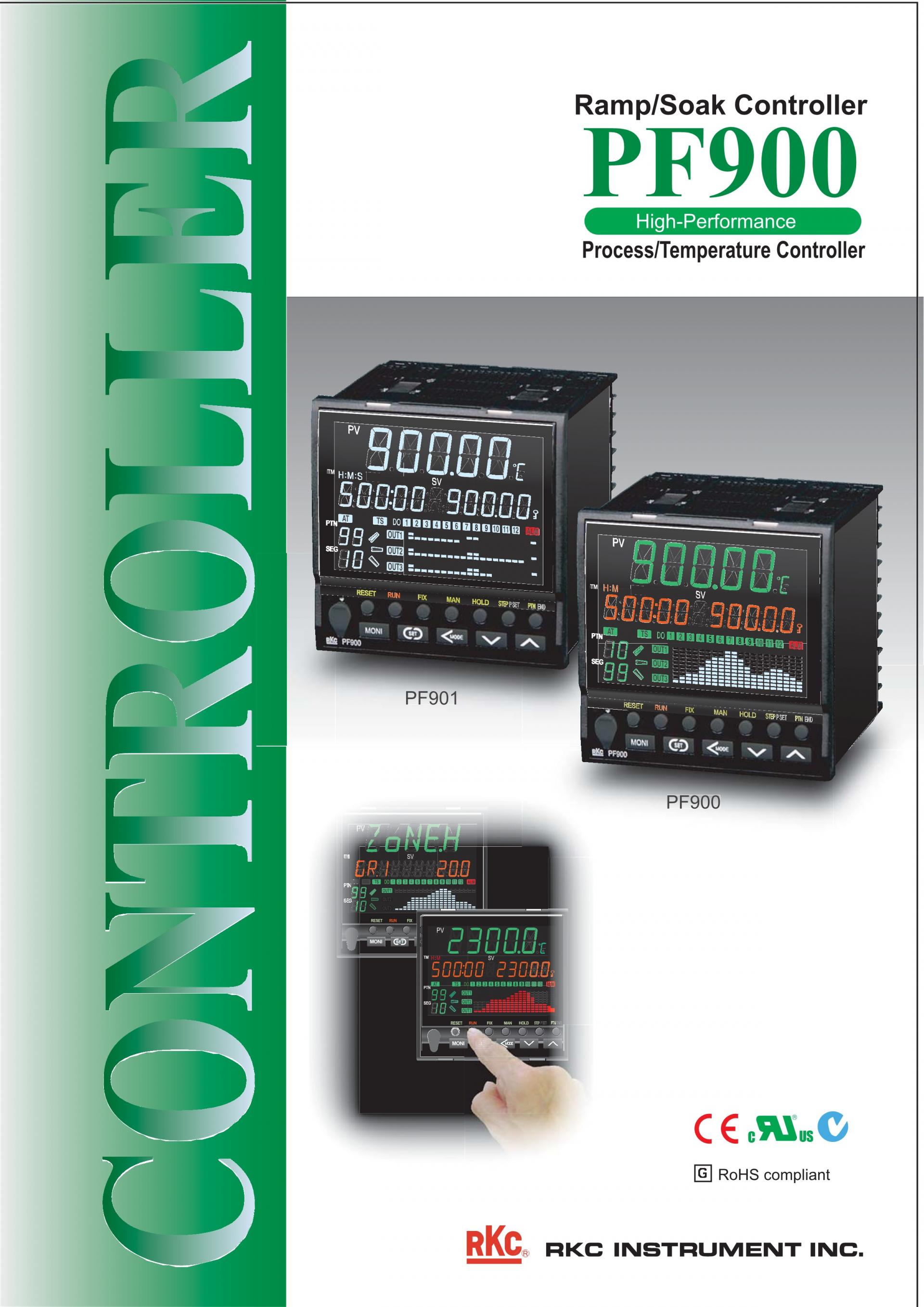

RKC PF900 프로그램 컨트롤러 (온도 컨트롤러)
가격문의(상세정보 참조)
RKC PF900 프로그램 컨트롤러 (온도 컨트롤러)
RKC PF900 Program Controller (Temperature Controller)

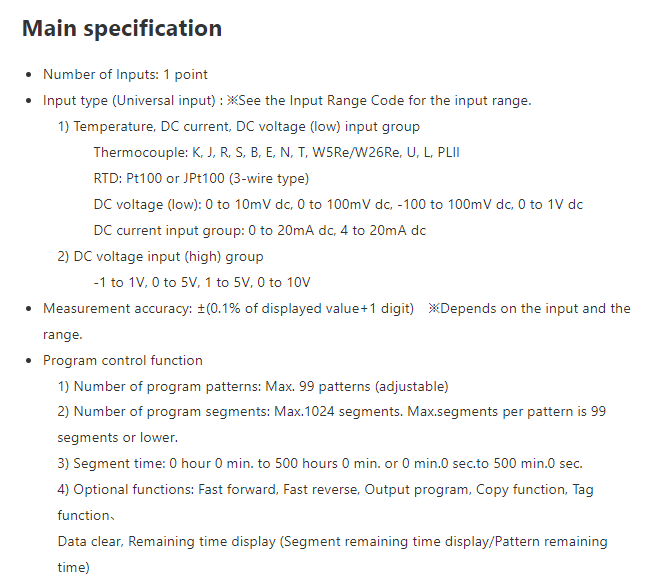

- Measurement accuracy: ±0.1% of displayed value
- Sampling time: 0.1 sec.
- 99 patterns x 10 segments to 10 patterns pattern by 99 segments (Max.1024 segments)

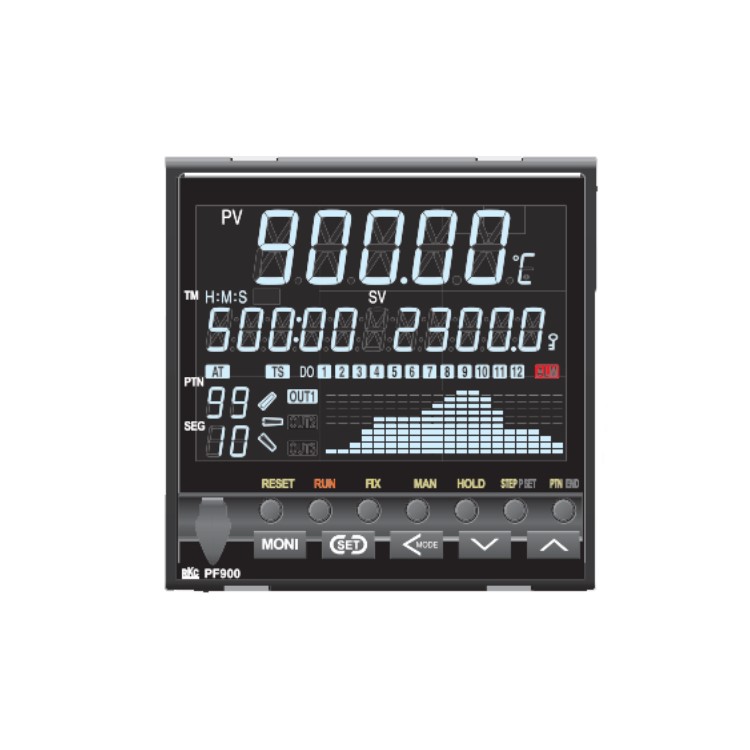

- Graphical program display
- Front loader communication
- Plug-in construction
클릭 하시면 이동합니다.
알케이씨 ・ RKC
PF900
프로그램 컨트롤러 (온도 컨트롤러)
PF900 Program Controller (Temperature Controller)
Main features

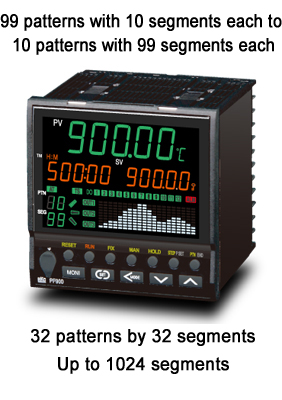

- Large program capacity (Max.1024 segments)
 | Program setting is possible between 99 patterns by 10 segments and 10 patterns by x99 segments. When setting 32 segments by 32 patterns is used with the pattern link (Link all patterns), the largest program of 1024 segments can be created. |

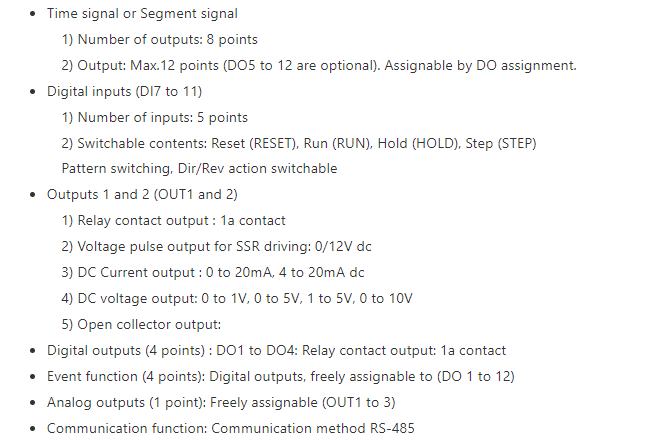

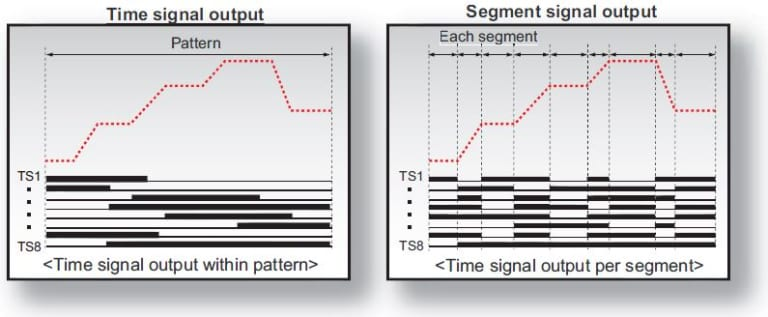

- Time signal output / Segment signal output (selectable)
 | Time signal output produces output during the time period set in the pattern. Segment signal output produces output over the segment. Either of these can be selected. |

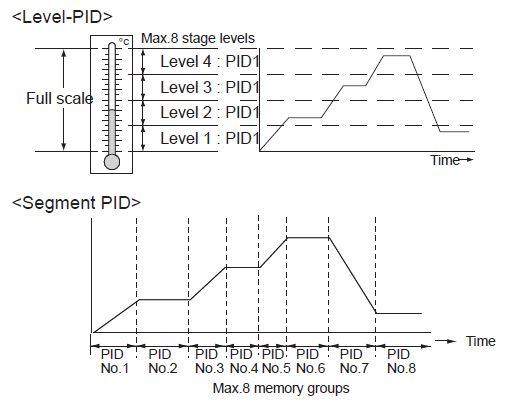

- Selection of Level-PID or Segment PID
 | Level PID or Segment PID can be freely assigned to each segment. Set values can be stored in 8-stage Levels (in case of Level-PID) or 8 memory areas (in case of Segment PID) |

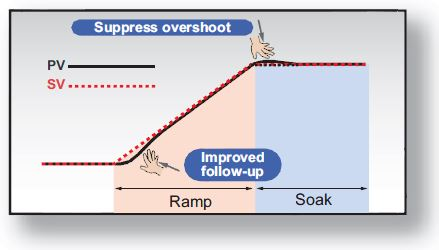

- New control algorithm RSS (Ramp/Soak Stabilizer) is used
 | This algorithm improves follow-up performance at the time of ramp start and suppresses overshoot at the time of switching to Soak simultaneously, thus improves control stability. |

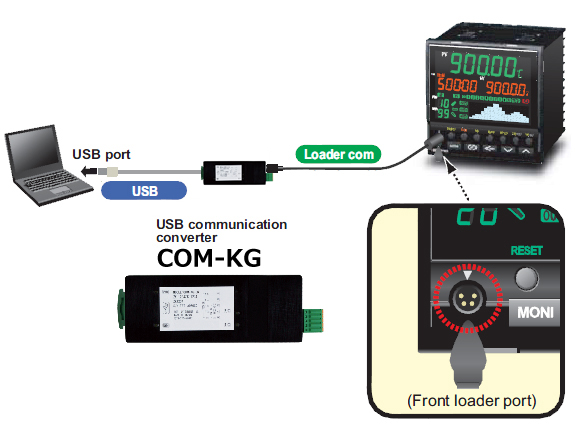

- Easy setup using “Front loader communication and Configuration tool”
 | Combination of the loader communication and the dedicated configuration tool (software) enables easy setting of complicated program patterns. |

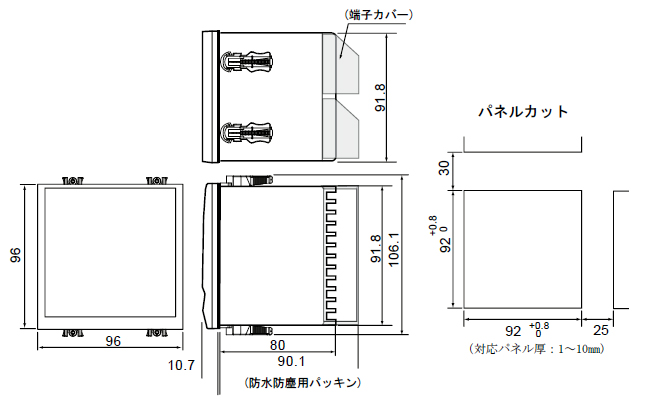

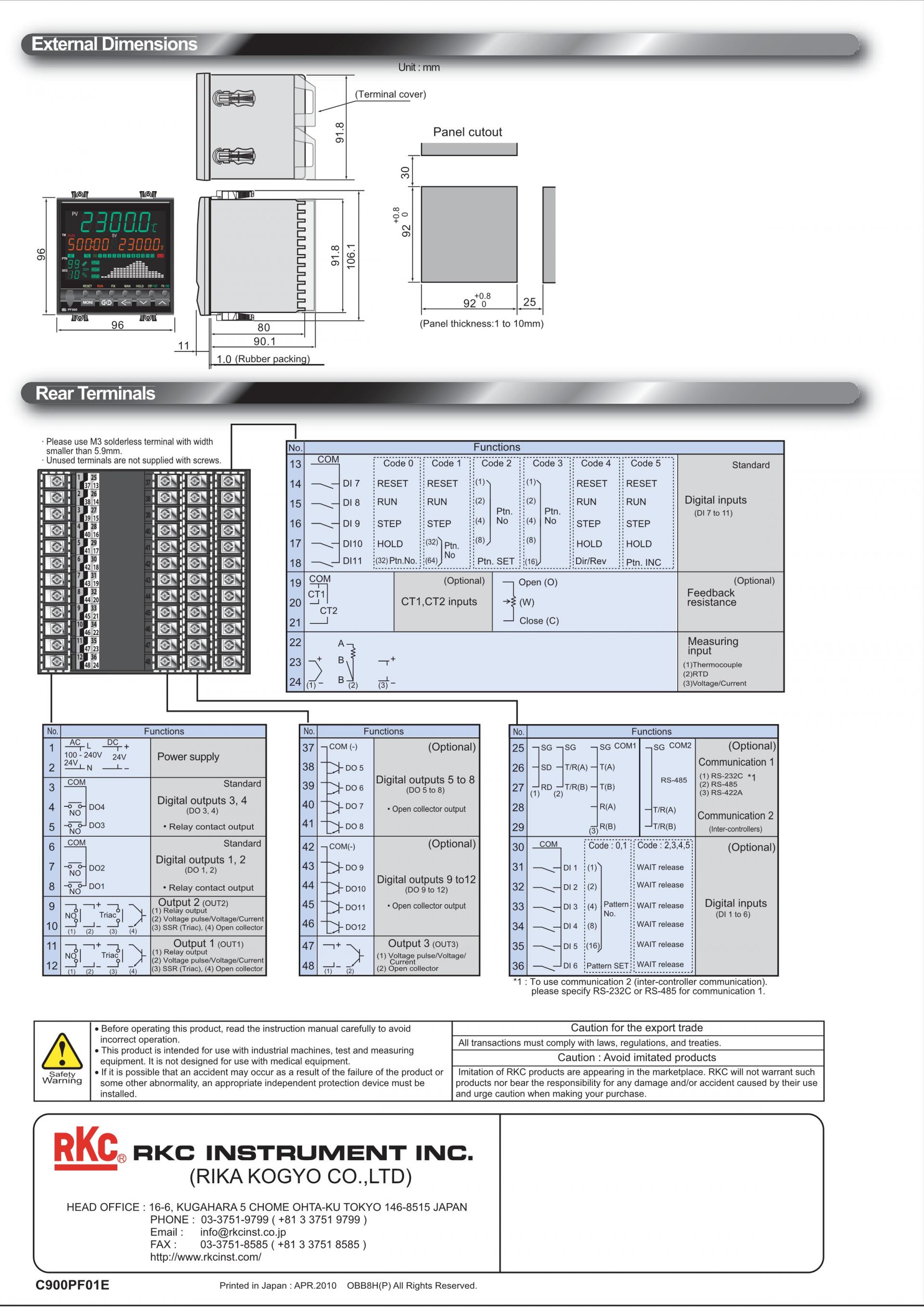

External dimensions
PF900 PF900 RKC RKC PF900 PF900 알케이씨 알케이씨 PF900
