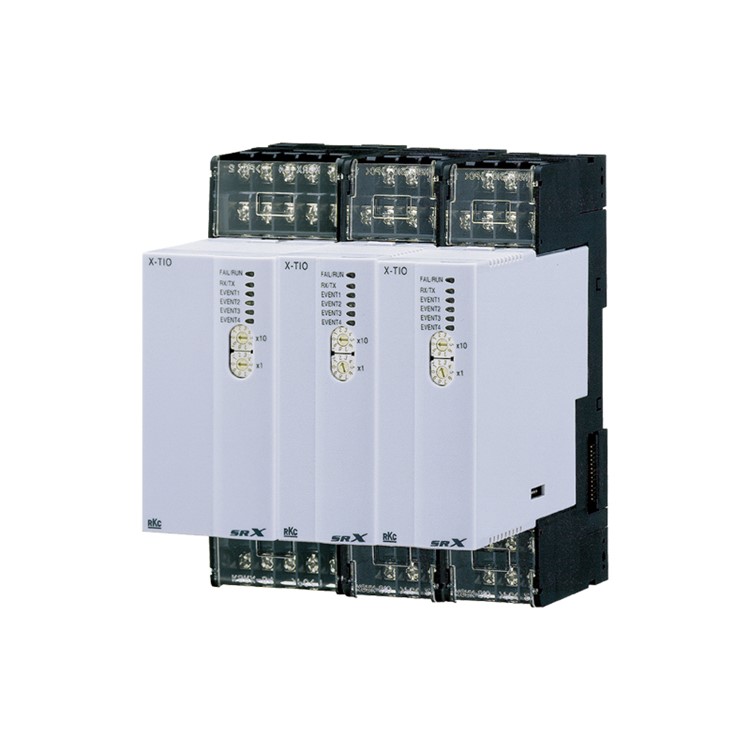

RKC SRX SERIES 모듈 컨트롤러 (프로세스 / 온도)

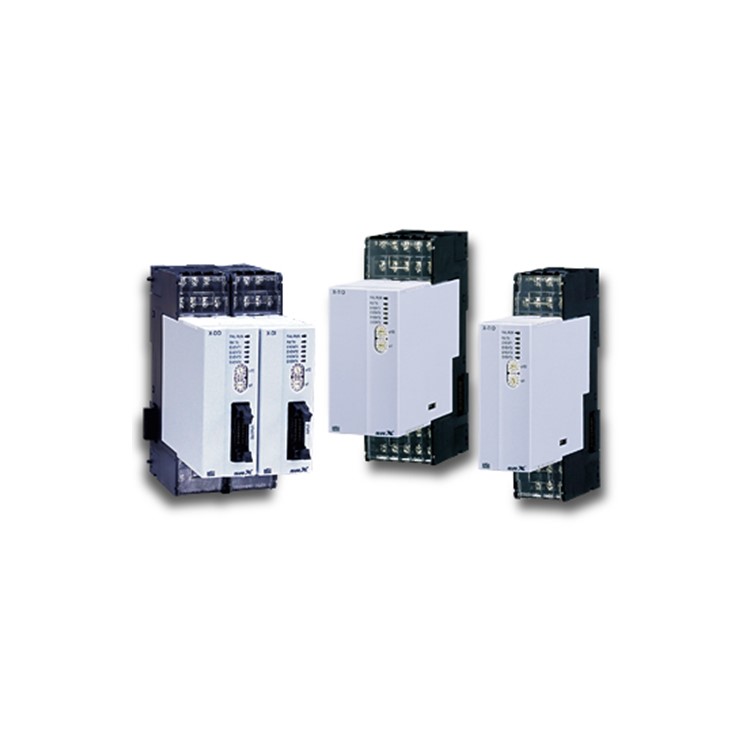

RKC SRX SERIES Modular Controllers (Process/Temperature Controllers)

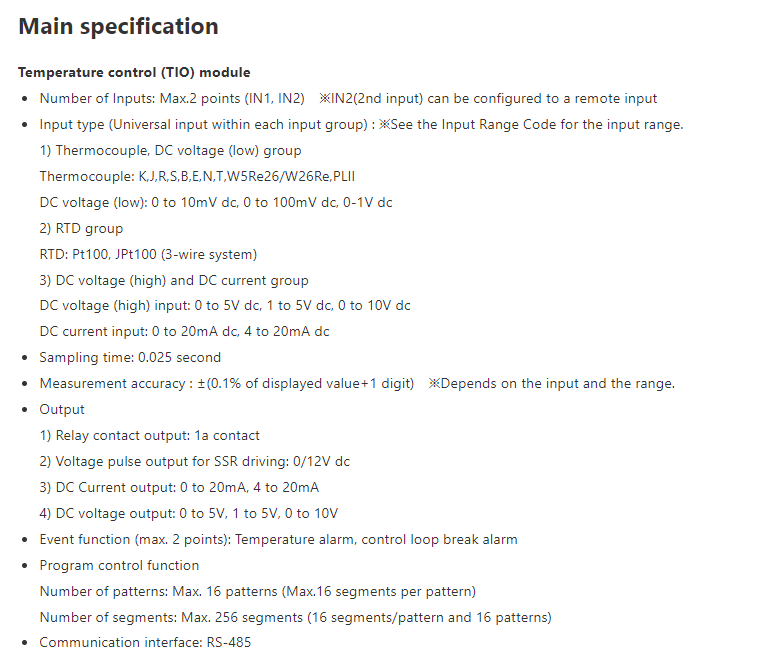

- Measurement accuracy: ±0.1% of displayed value
- Sampling time: 0.025 sec.
- 2 control loops per module
- Digital Input/Output module
- Up to 31 modules can be connected
클릭 하시면 이동합니다.
알케이씨 ・ RKC
SRX SERIES
모듈 컨트롤러 (프로세스 / 온도)
SRX SERIES Modular Controllers (Process/Temperature Controllers)

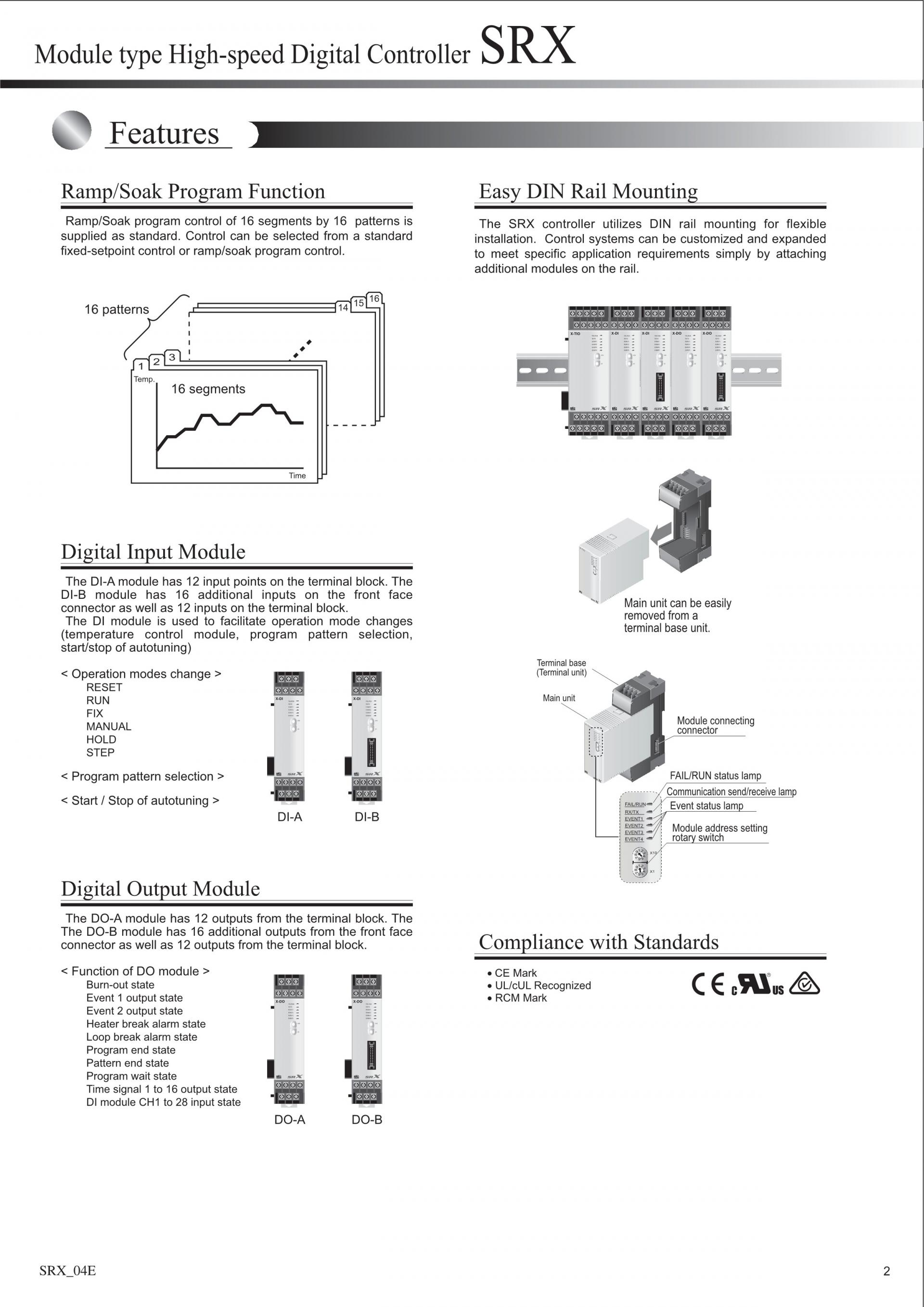

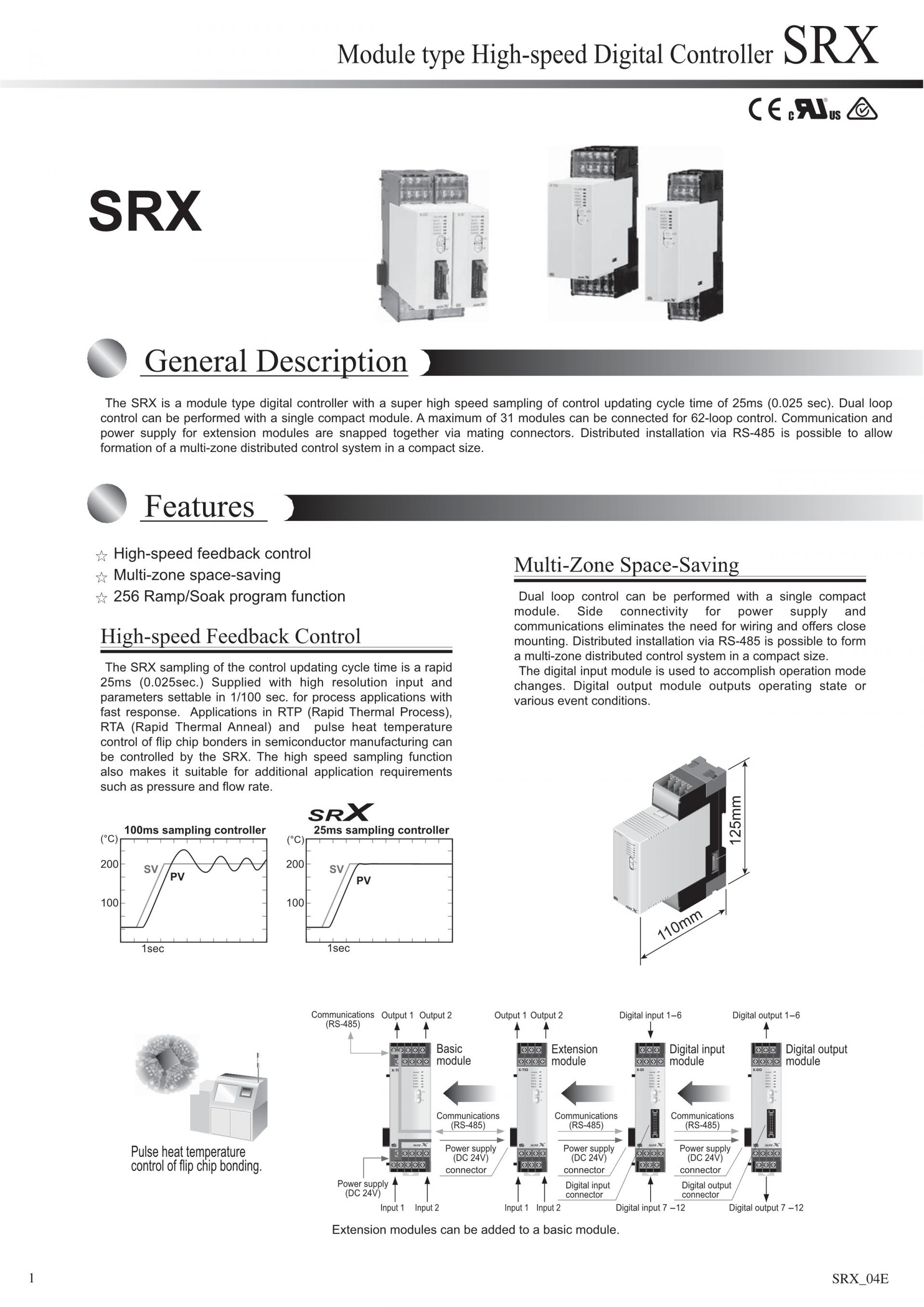

Main features

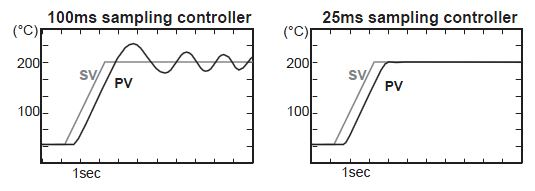

- Fast sampling time of 0.025 second
 | Feedback control with 0.025 second sampling time enables controlling a fast changing process. PID and other parameters can be set in the unit of 1/100 seconds |

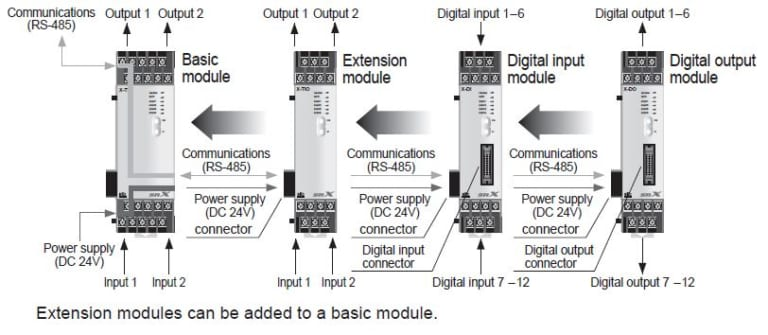

- Max.2 loops per module and Wire-saving
 | One compact module enables 2-channel control. Power supply and communication lines of extended modules are consolidated on the connecting connector for wire saving. |

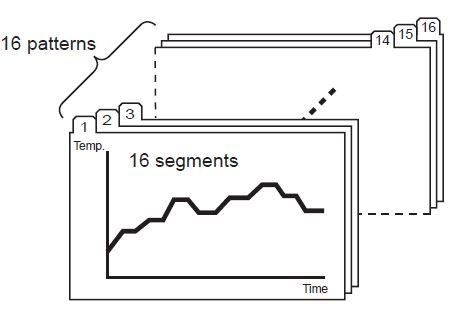

- Program control function available
 | Ramp/Soak control of 16 segments by 16 patterns (Pattern link) is available independently on each channel. ※Fixed setpoint control and ramp/soak control are switchable |

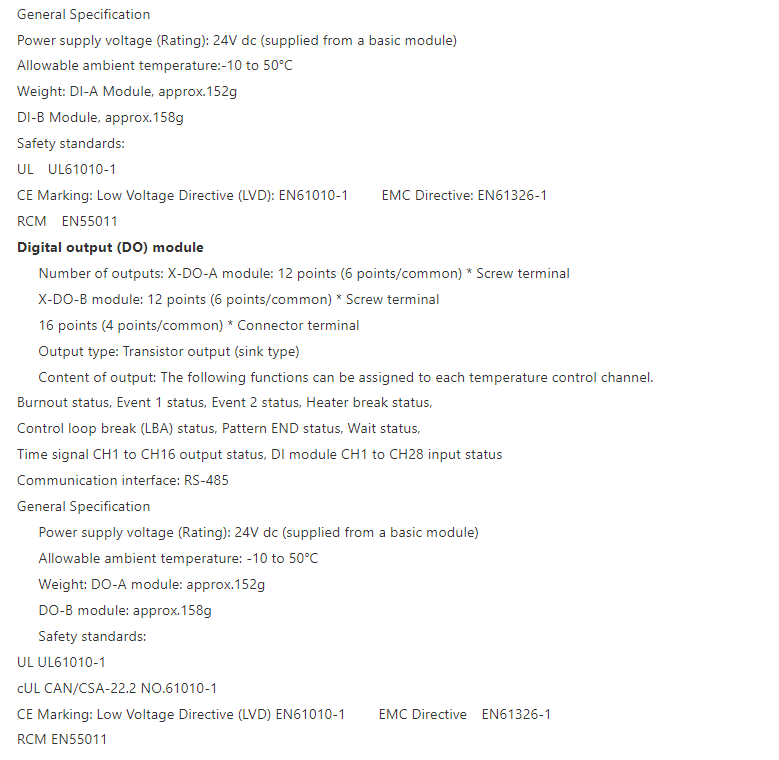

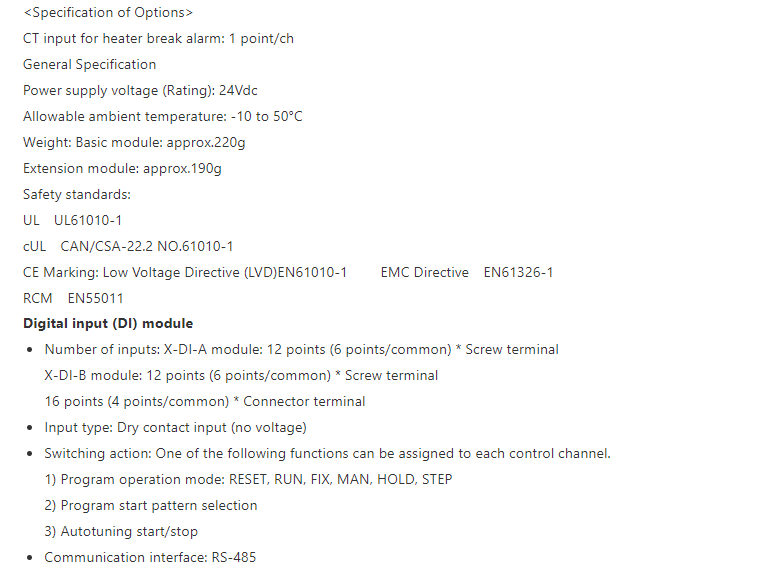

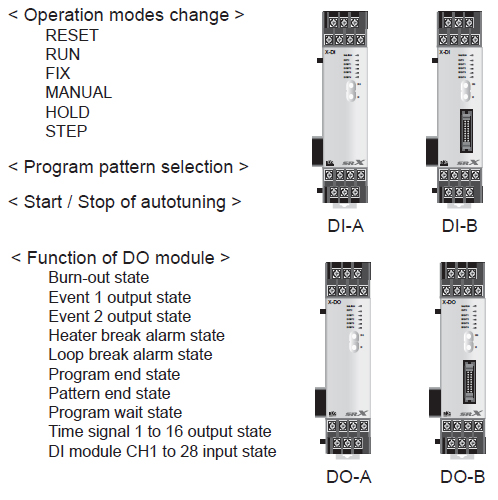

- Flexible digital inputs/outputs
 | Digital input and output modules with a maximum of 28 inputs/outputs per module is available. Digital input can be used to switch operation mode. Digital output module can be used to provide output for operation status, event status, etc. |

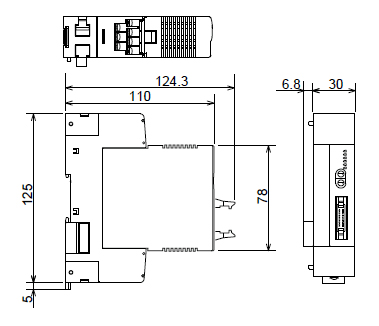

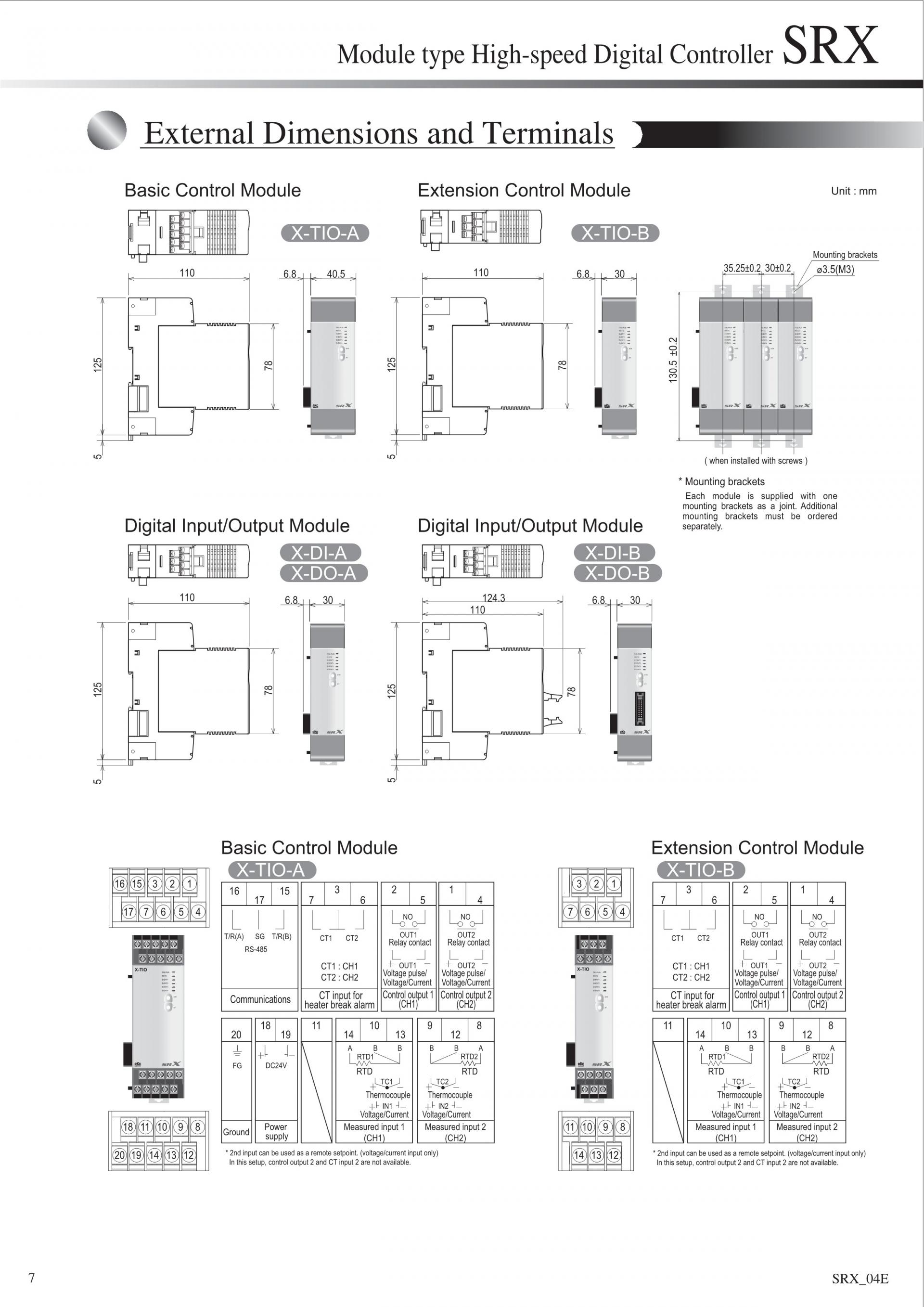

External dimensions

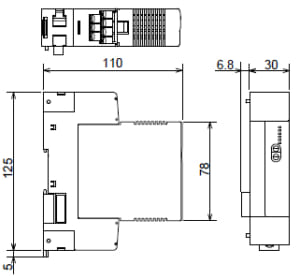

X-TIO-A

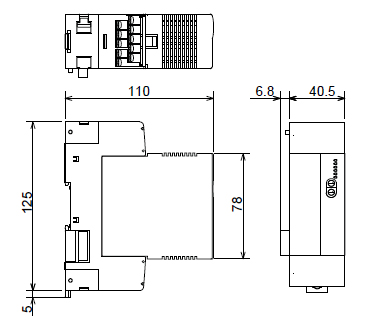

X-TIO-B,X-DI-A,X-DO-A
X-DI-B,X-DO-B
