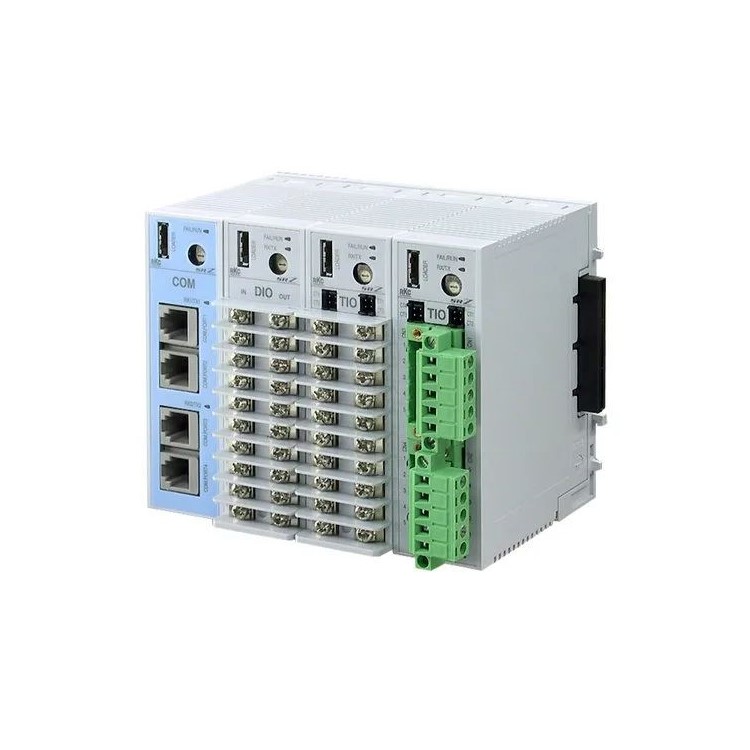

RKC SRZ 모듈 컨트롤러 (프로세스 / 온도)
RKC SRZ Modular Controllers (Process/Temperature Controllers)
- Measurement accuracy: ±0.2% of displayed value
- Sampling time: 0.25 sec.
- 4-channel control per module
- Front loader communication port
- Digital Input/Output and CT Input Modules
- Communication converters of various field bus communication can be connected.
클릭 하시면 이동합니다.
알케이씨 ・ RKC
SRZ
모듈 컨트롤러 (프로세스 / 온도)
SRZ Modular Controllers (Process/Temperature Controllers)
Main features

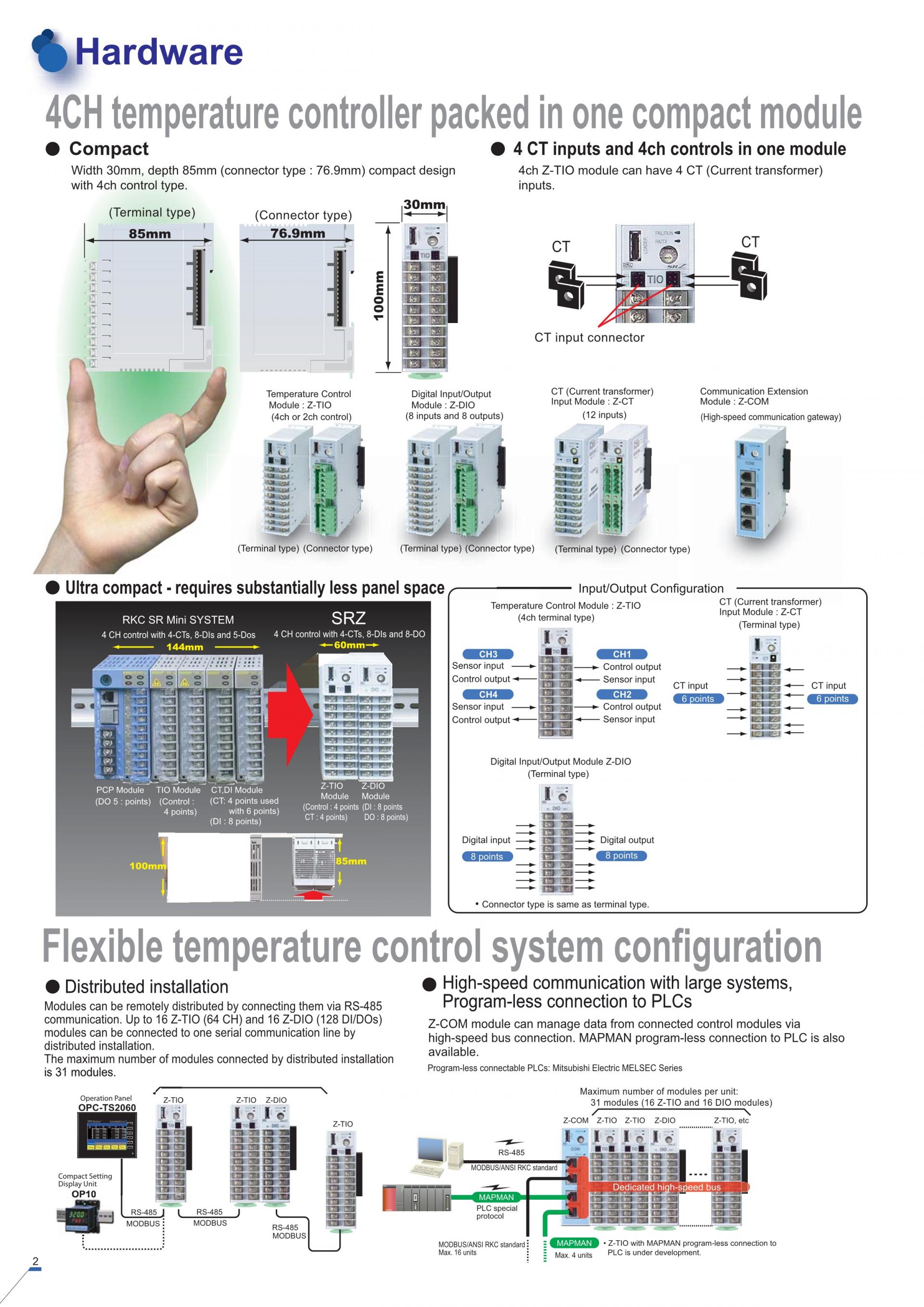

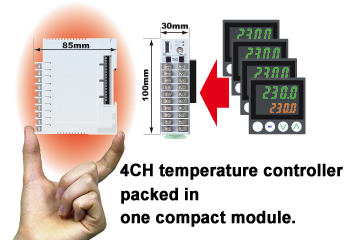

- Four temperature controllers are concentrated into one compact module.
 | One compact module enables 4-channel control. (2 channels per heat/cool control type) Up to 16 (max.64 channels) Temperature control modules (Z-TIO) can be connected. |

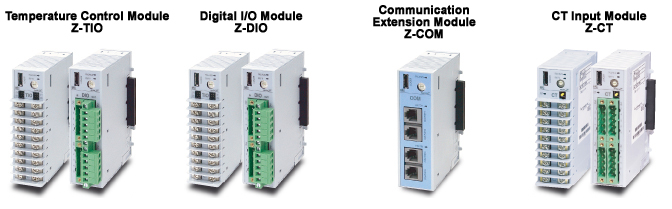

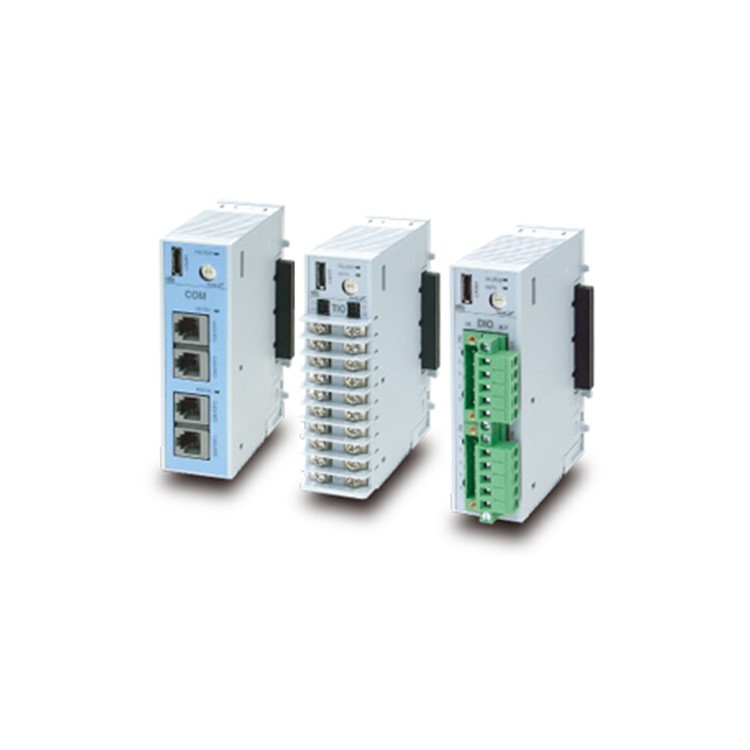

- Various dedicated modules are available
 |

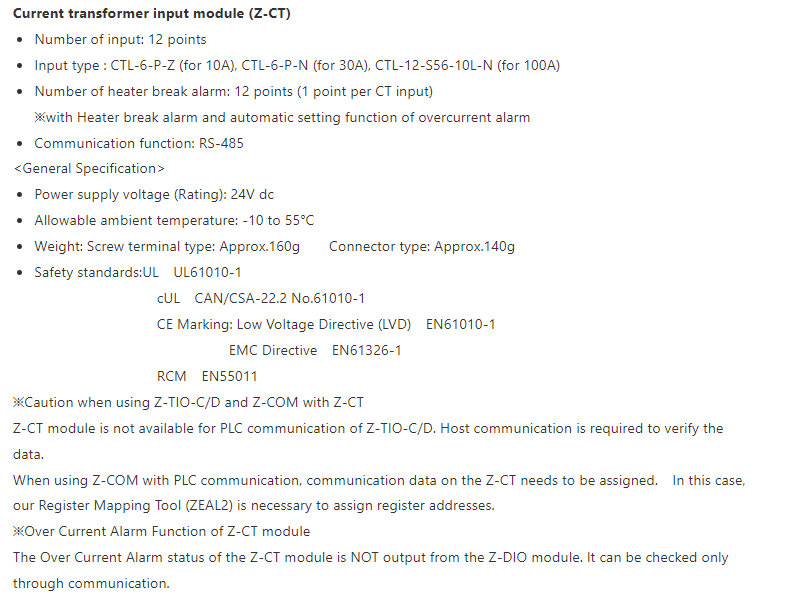

Z-TIO: Temperature control modules : Z-DIO: Digital input/output modules : Z-COM: Extended communication module : Z-CT: CT Input Module : |

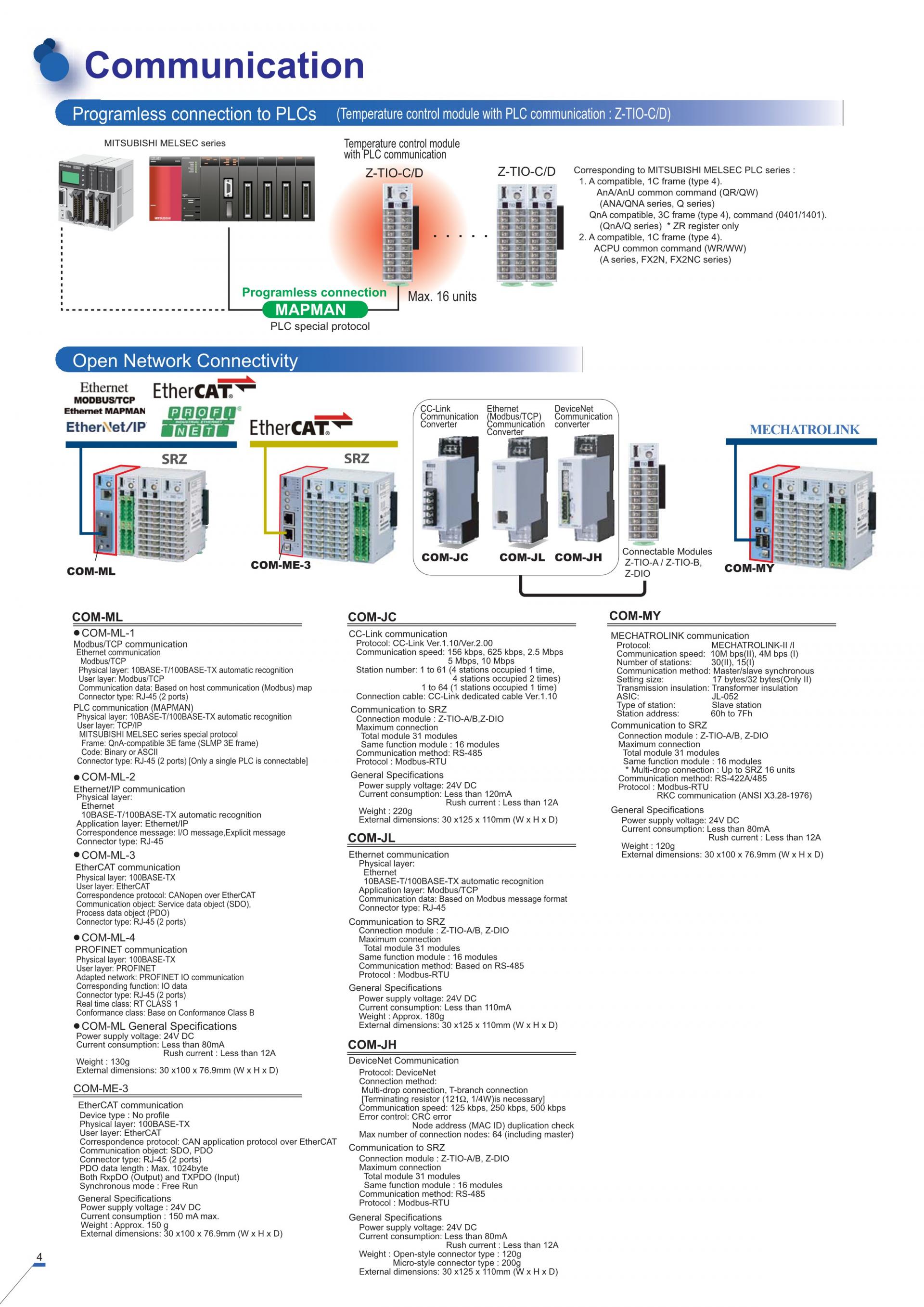

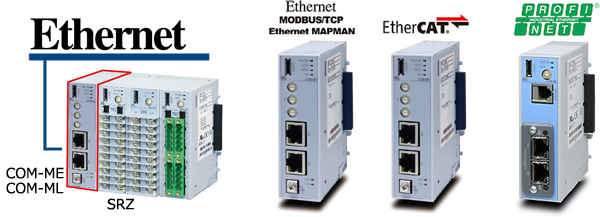

- Connected to various field bus network (Communication converter)
 |
Connection to Ethernet network (MODBUS/TCP, EtherCAT, PROFINET) We can also provide communication converters that can handle connection to CC-Link, DeviceNet, PROFIBUS, and MECHATROLINK. |

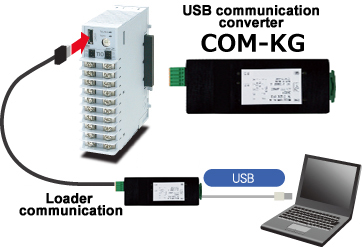

- Loader communication
 | All modules are equipped with a front loader communication port for ease of maintenance. Configuration data management software (PROTEM2) is available. |

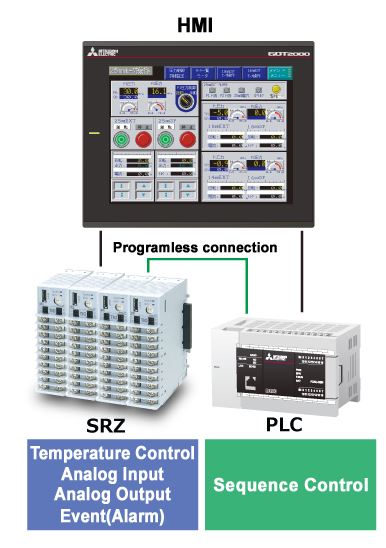

- A system using an HMI and a PLC can be built up
 | Operation and monitoring of multi-loop control system can be centralized on the HMI for easy management of the system. A complete system building including a PLC can be supported. |

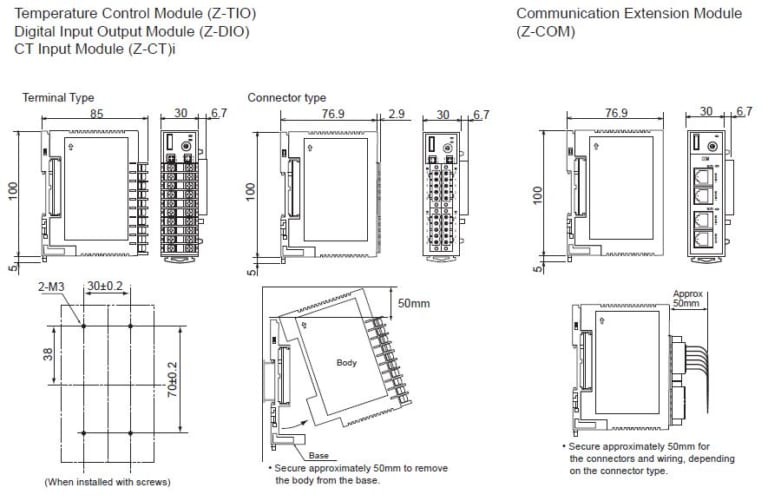

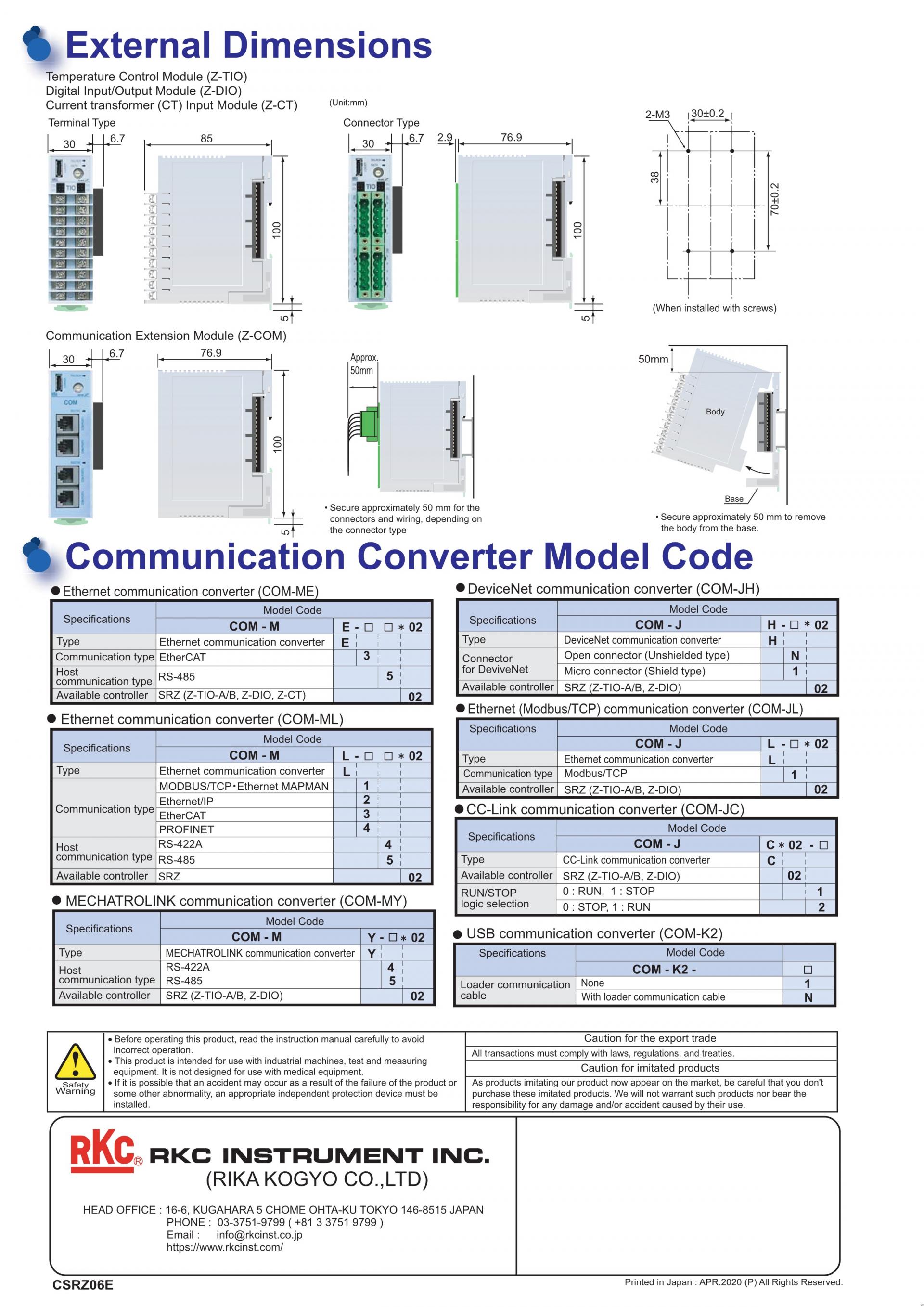

External dimensions
RSZ Z-TIO Z-DIO Z-CT RSZ RKC RKC RSZ RSZ 알케이씨 알케이씨 RSZ Z-TIO RKC RKC Z-TIO Z-TIO 알케이씨 알케이씨 Z-TIO Z-DIO RKC RKC Z-DIO Z-DIO 알케이씨 알케이씨 Z-DIO Z-CT RKC RKC Z-CT Z-CT 알케이씨 알케이씨 Z-CT Z- IO Z-DIO Z-CT RSZ RKC RKC RSZ RSZ 알케이씨 알케이씨 RSZ Z TIO RKC RKC Z TIO Z TIO 알케이씨 알케이씨 Z TIO Z DIO RKC RKC Z DIO Z DIO 알케이씨 알케이씨 Z DIO Z CT RKC RKC Z CT Z CT 알케이씨 알케이씨 Z CT
