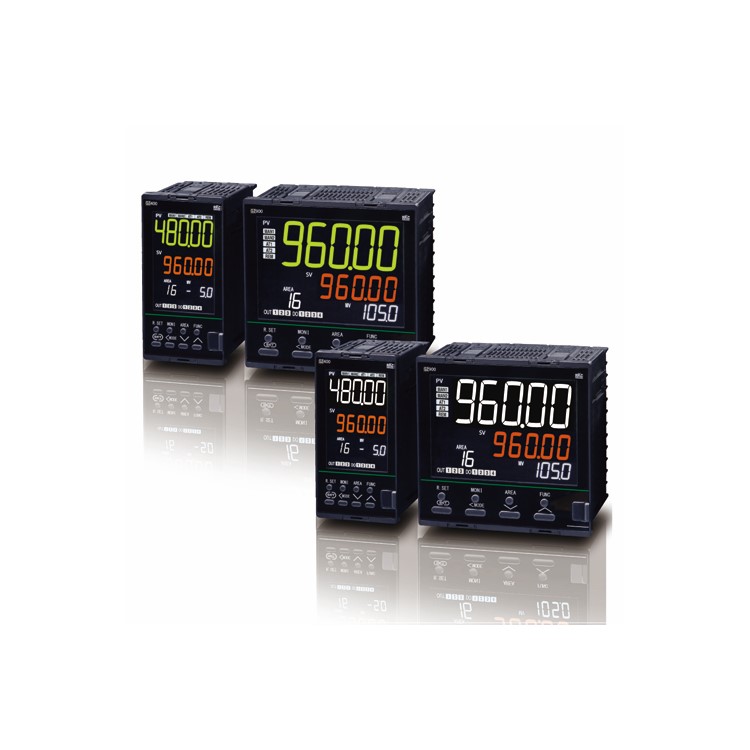

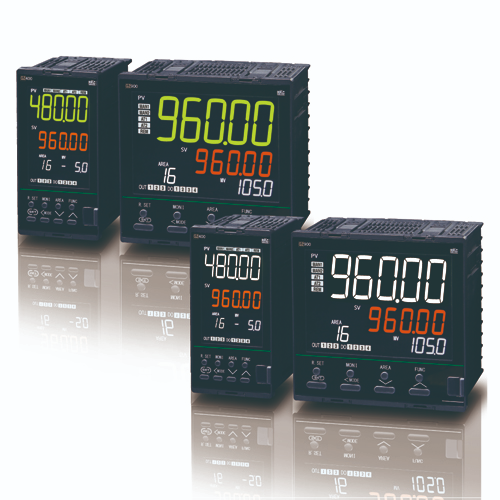

RKC GZ SERIES (GZ400 / GZ900) 디지털 프로세스 & 온도 컨트롤러
가격문의(상세정보 참조)
RKC GZ SERIES (GZ400 / GZ900) 디지털 프로세스 & 온도 컨트롤러
RKC GZ SERIES (GZ400 / GZ900) Digital Controllers (Process and Temperature Controllers)

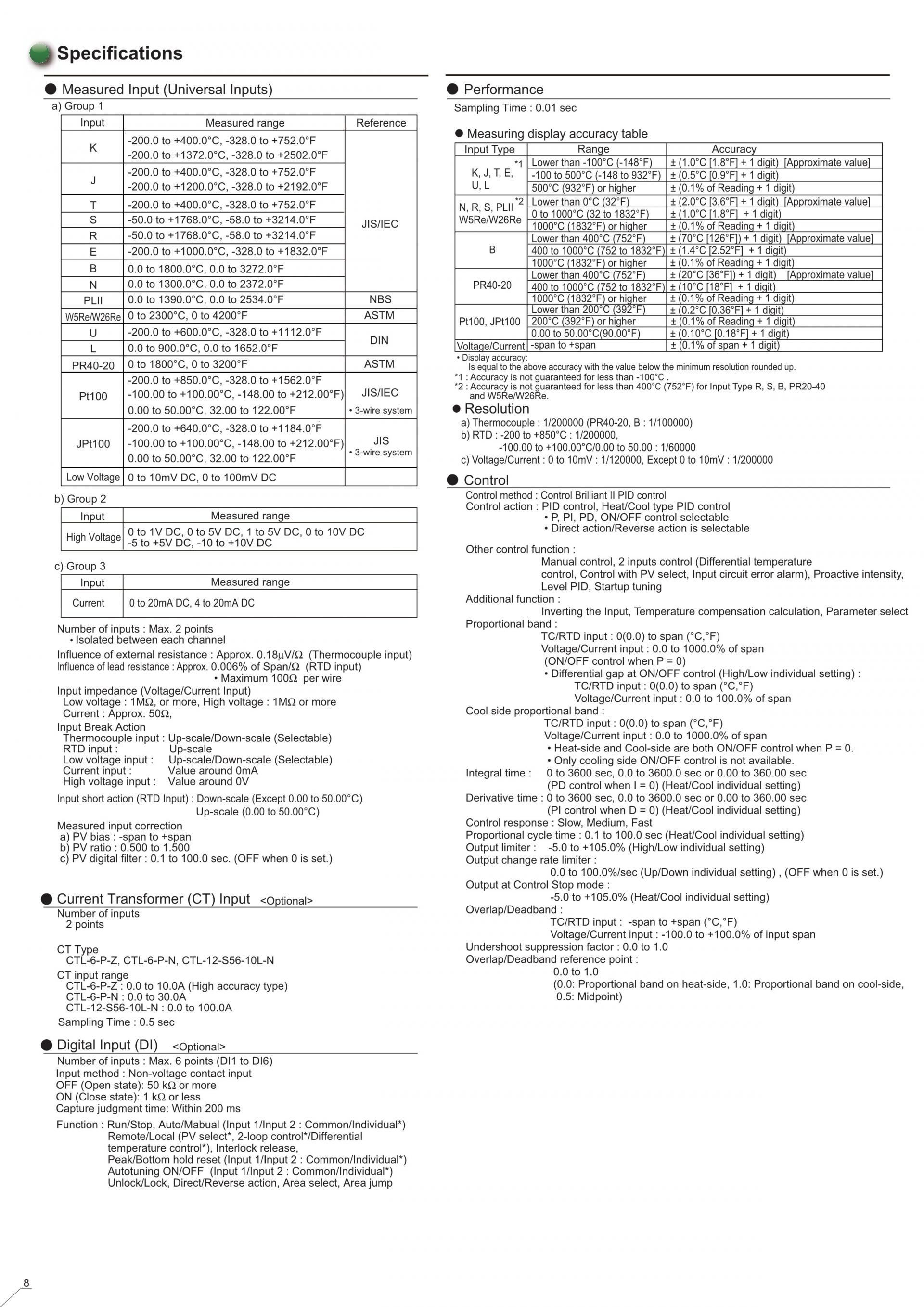

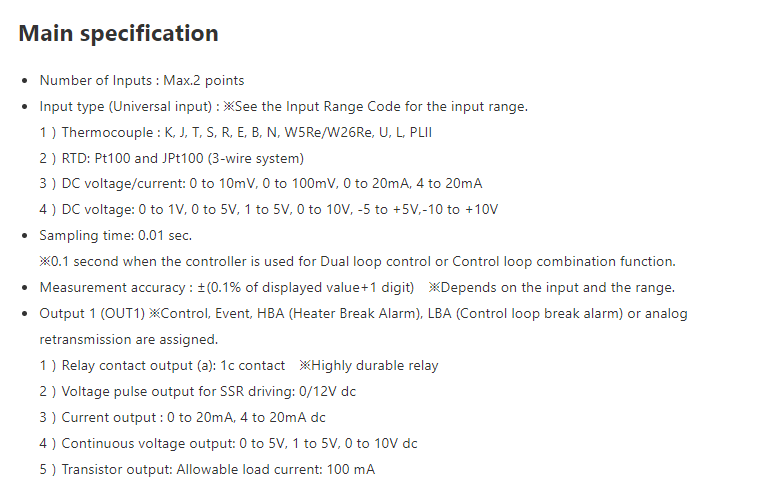

- Universal Input
- (Selectable from Thermocouple, RTD Pt100, Voltage, Current)
- Measurement accuracy: ±0.1% of displayed value
- Sampling time: 0.01 sec.
- 11-segment 5 digit LCD display
- Front loader communication port
- Dual input function
- Plug-in construction
클릭 하시면 이동합니다.
알케이씨 ・ RKC
GZ SERIES (GZ400 / GZ900)
디지털 프로세스 & 온도 컨트롤러
GZ SERIES (GZ400 / GZ900) Digital Controllers (Process and Temperature Controllers)
Main features

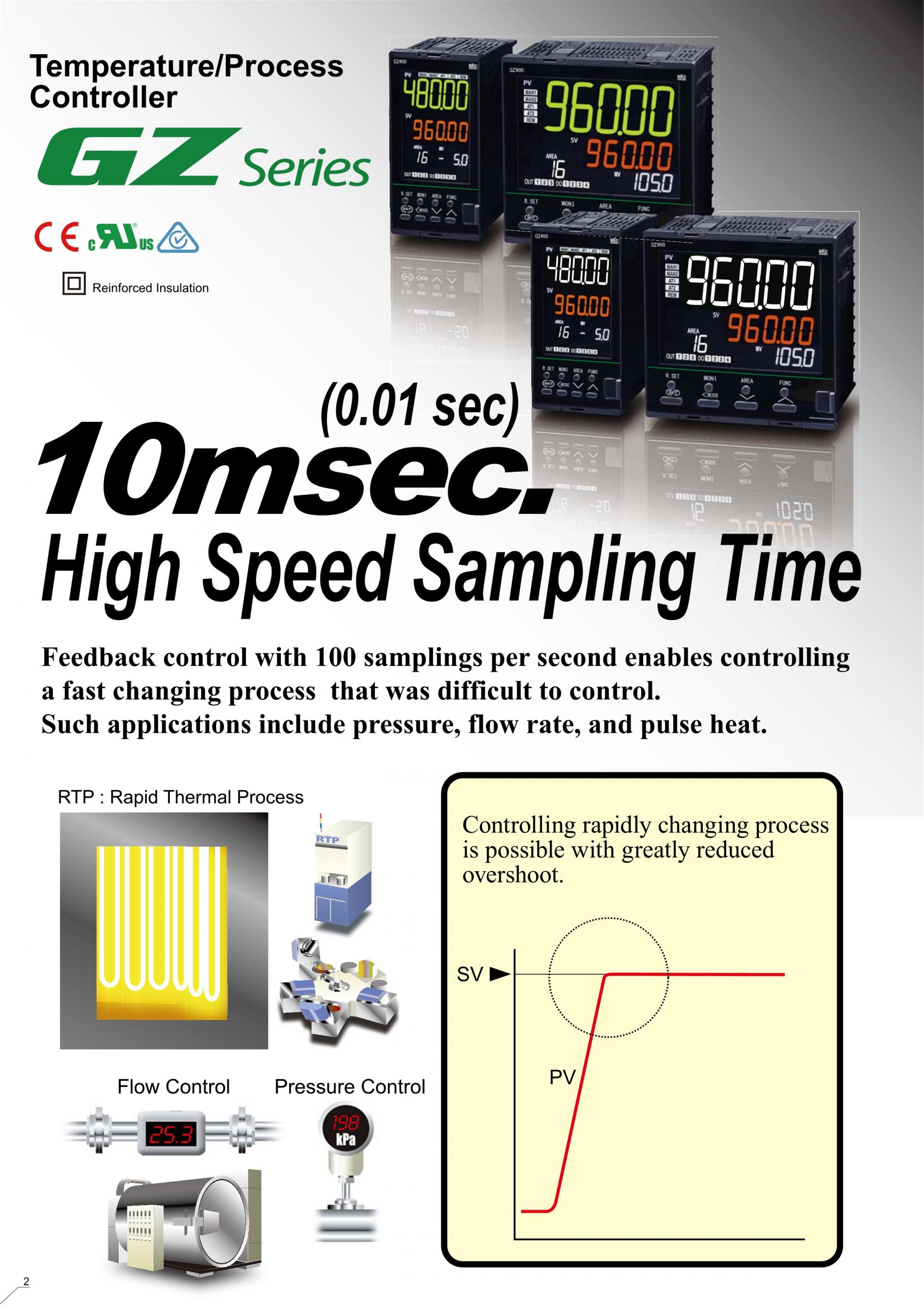

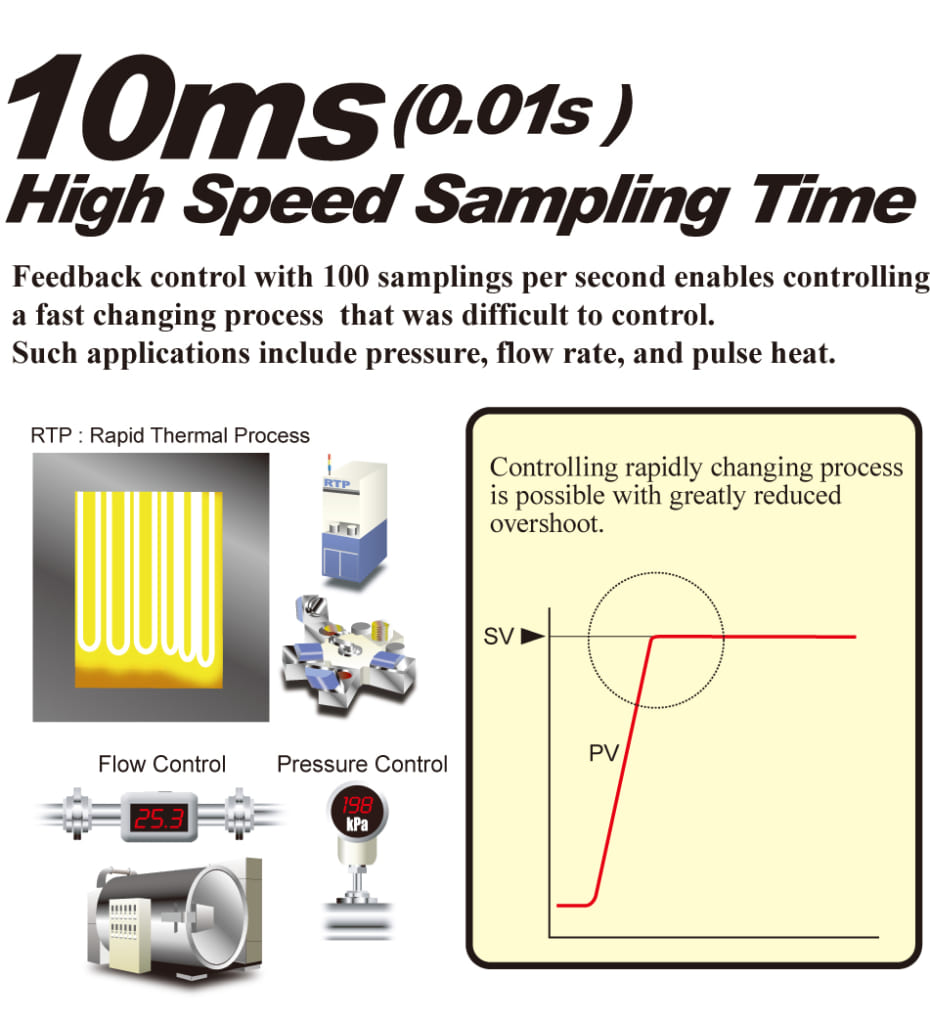

- High Speed Sampling Time 10ms
 |
| Feedback control with 100 samplings per second enables controlling a fast changing process that was difficult to control. Such applications include pressure, flow rate, and pulse heat. |

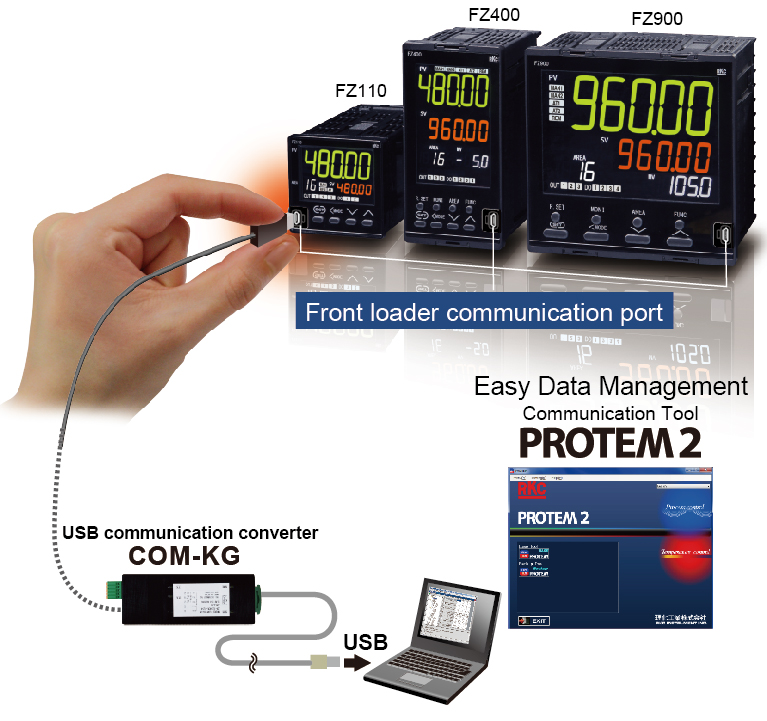

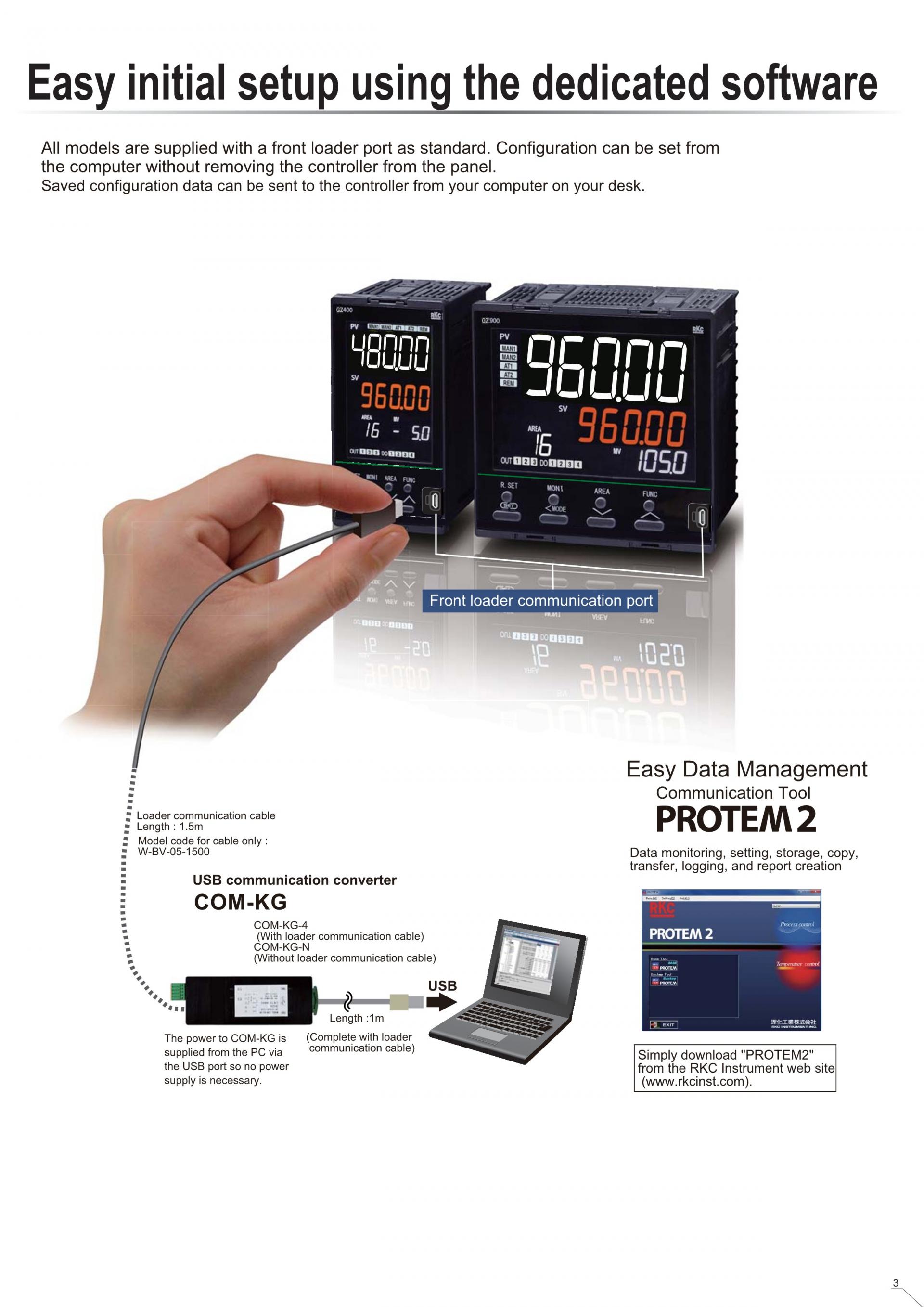

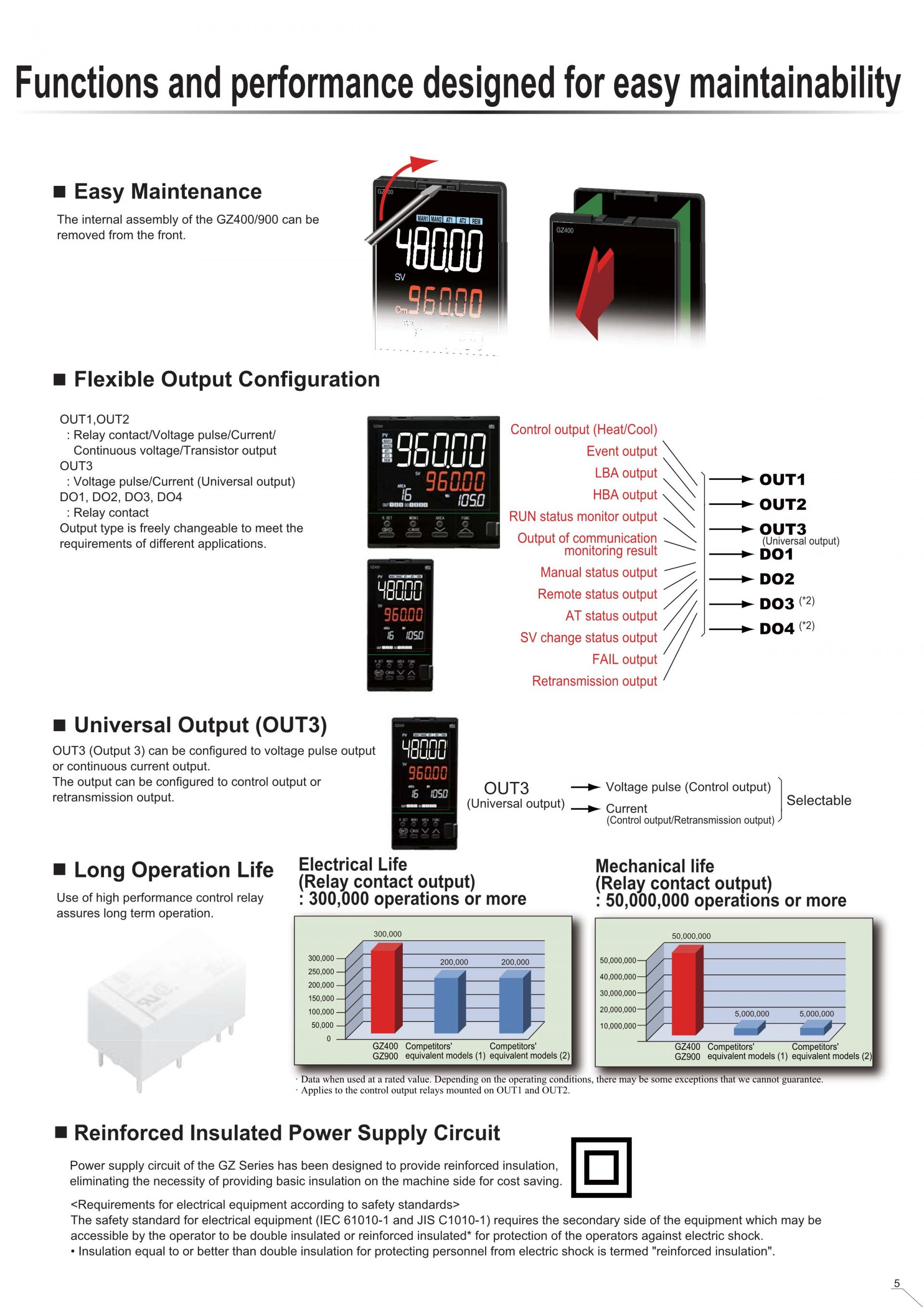

- Front loader communication port
 |
| All models are equipped with a front loader communication port for improved maintainability Configuration data management software (PROTEM2) is available |

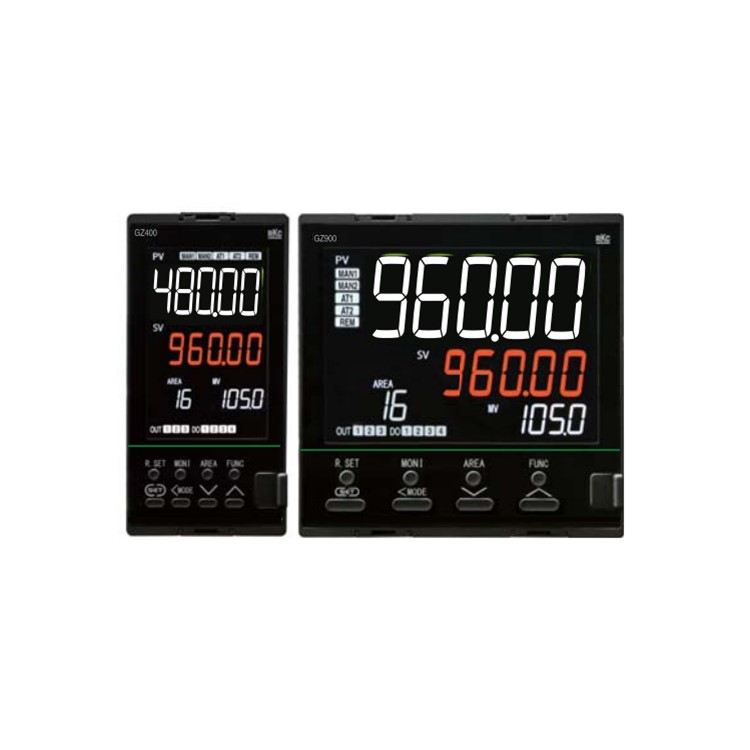

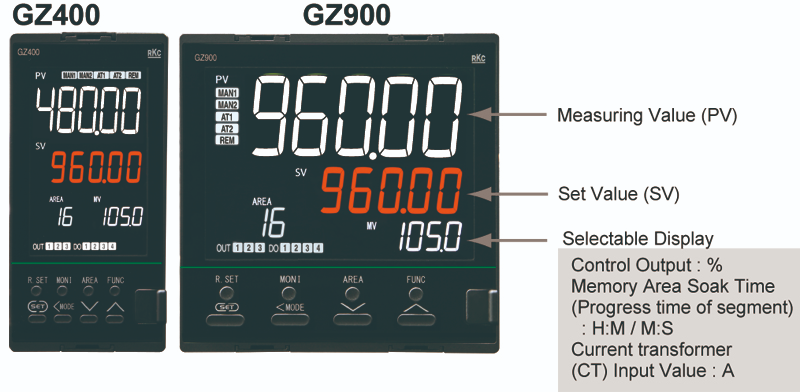

- Large high intensity LCD display
 | Large easy-to-read PV display on a compact front panel |

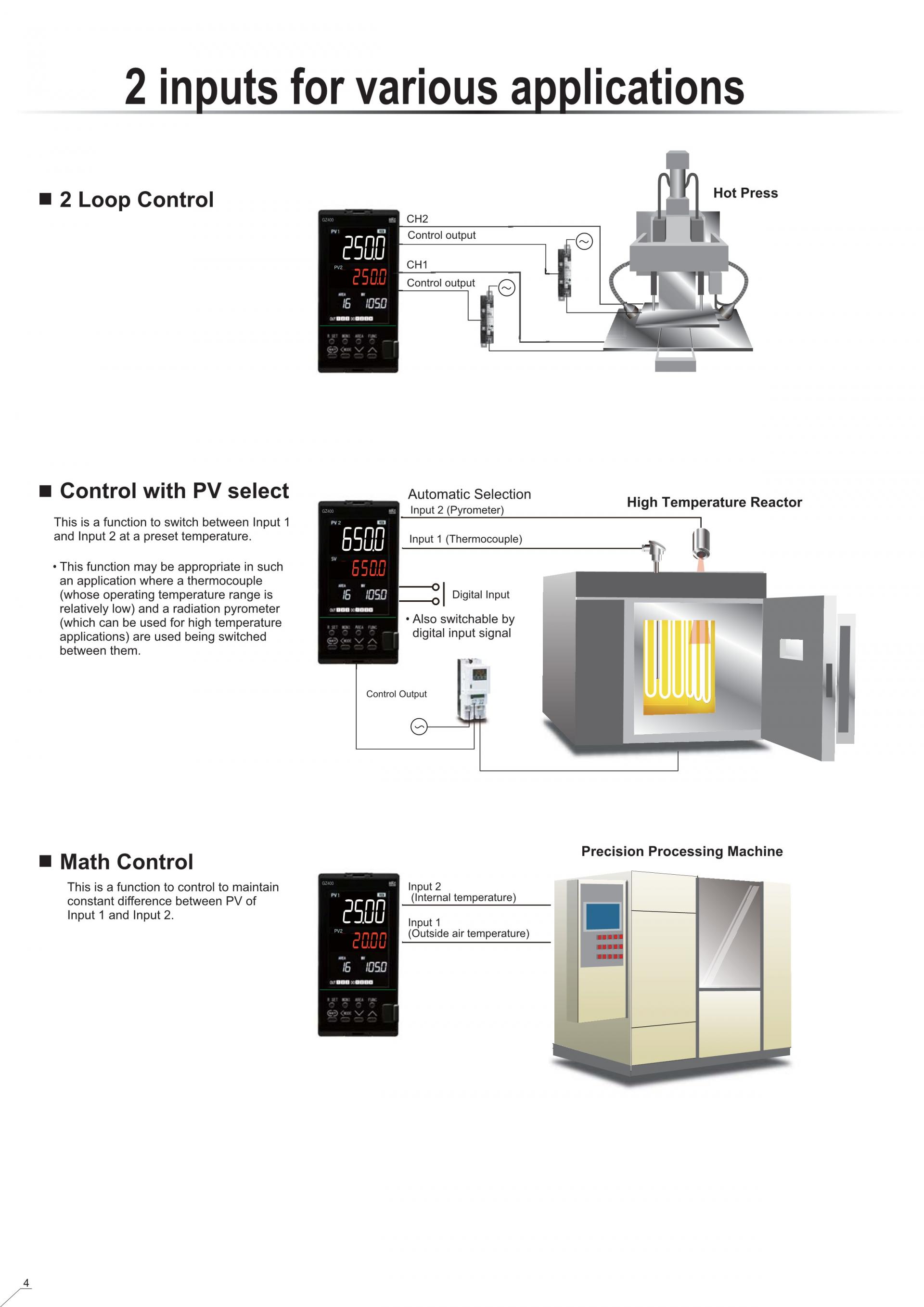

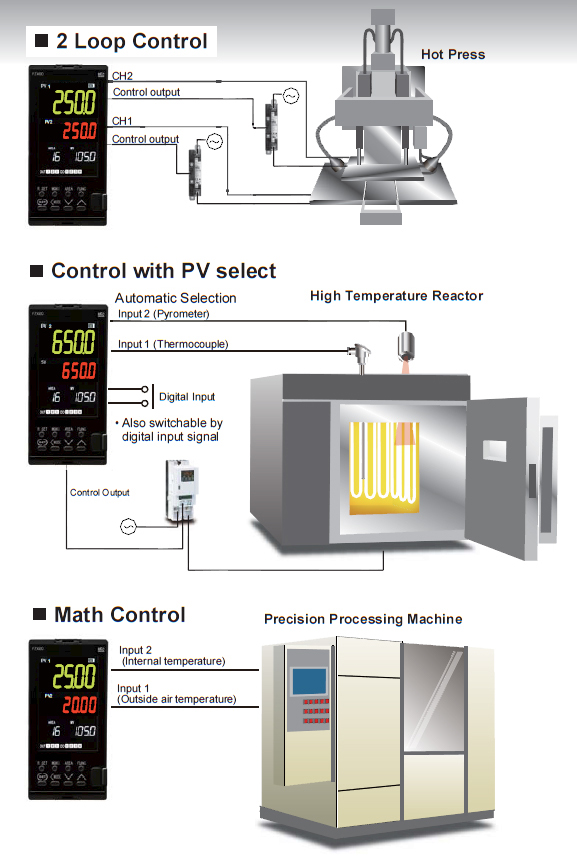

- 2 inputs for various applications
 |
Dual loop control is available on a single controller.
Input 1 and Input 2 are switched over at a preset level.
This is a function to control to maintain the difference between PV1 and PV2 is kept constant. |

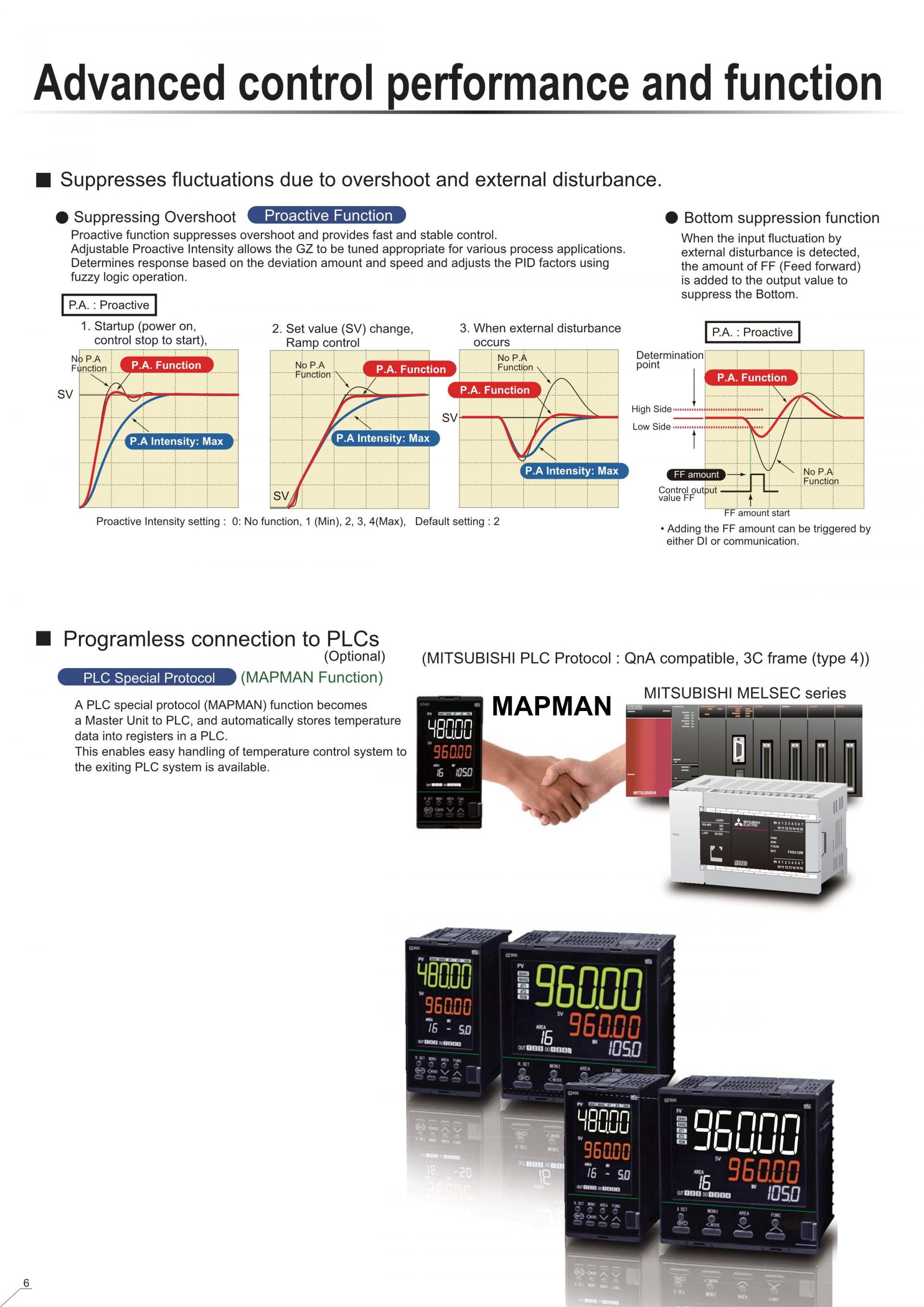

- Further advanced control performance and function

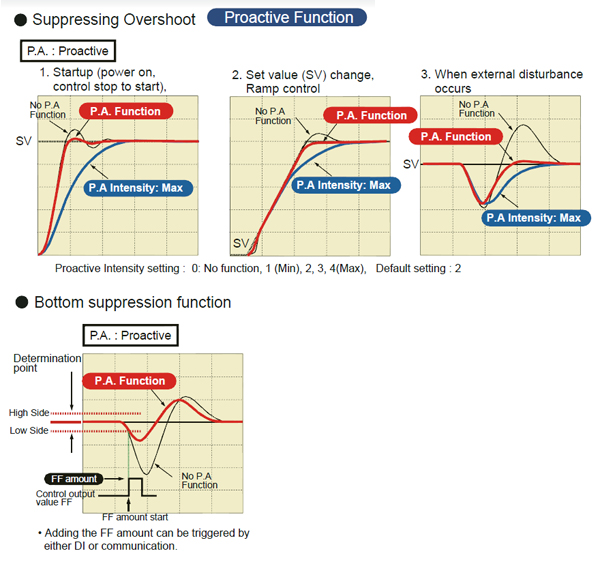

 | Proactive function is supplied to suppress overshoot and bottom (lowering amount) |

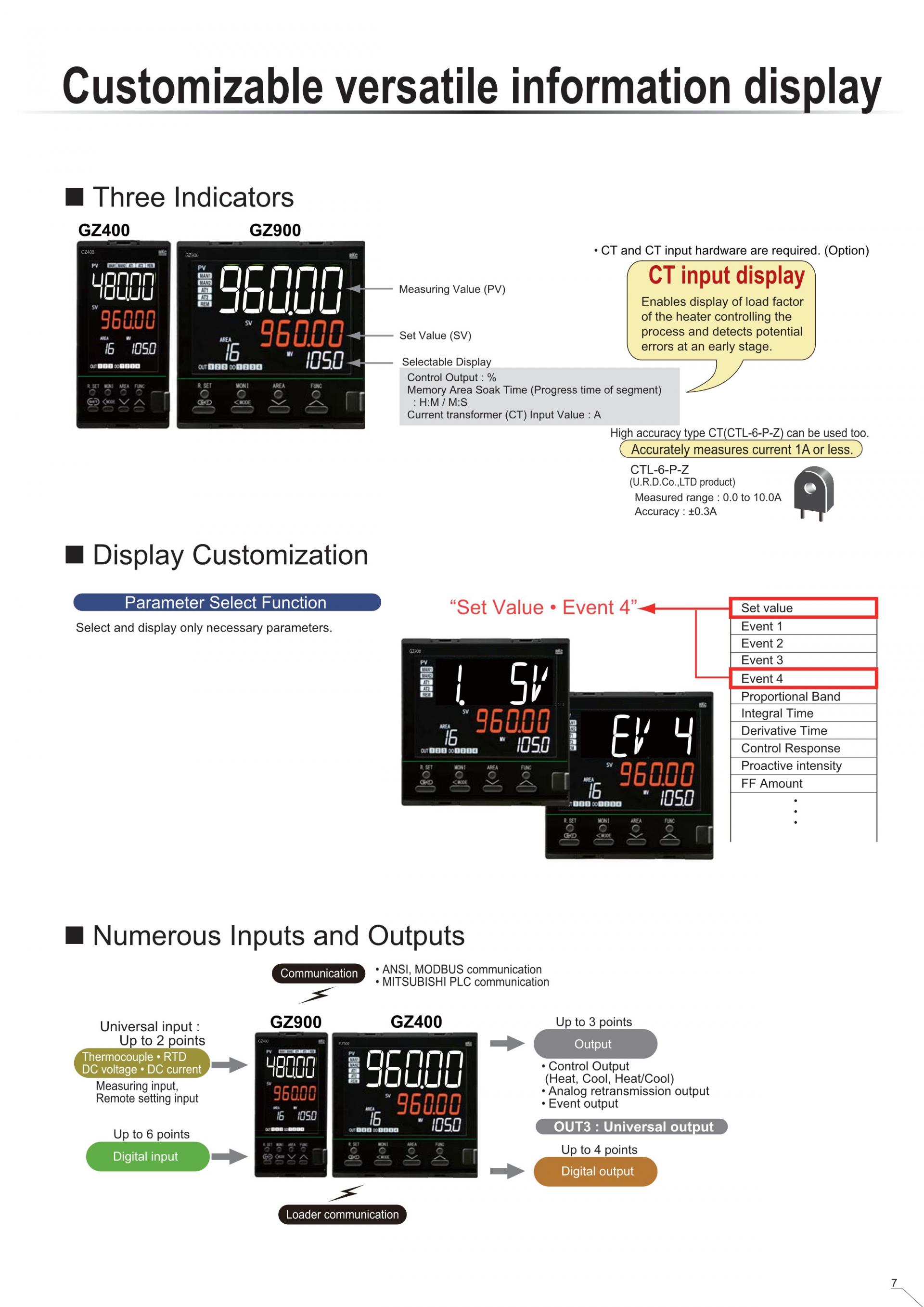

- Versatile customizable information display
 |
Three-stage display shows abundant information. Parameter select function enables displaying necessary parameters only. |

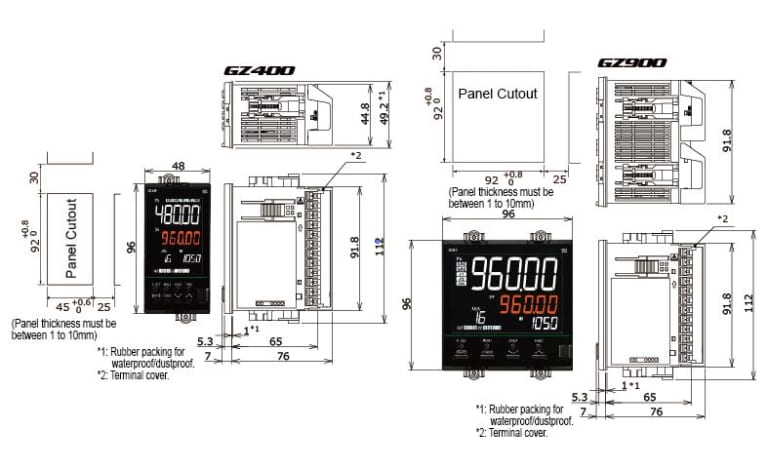

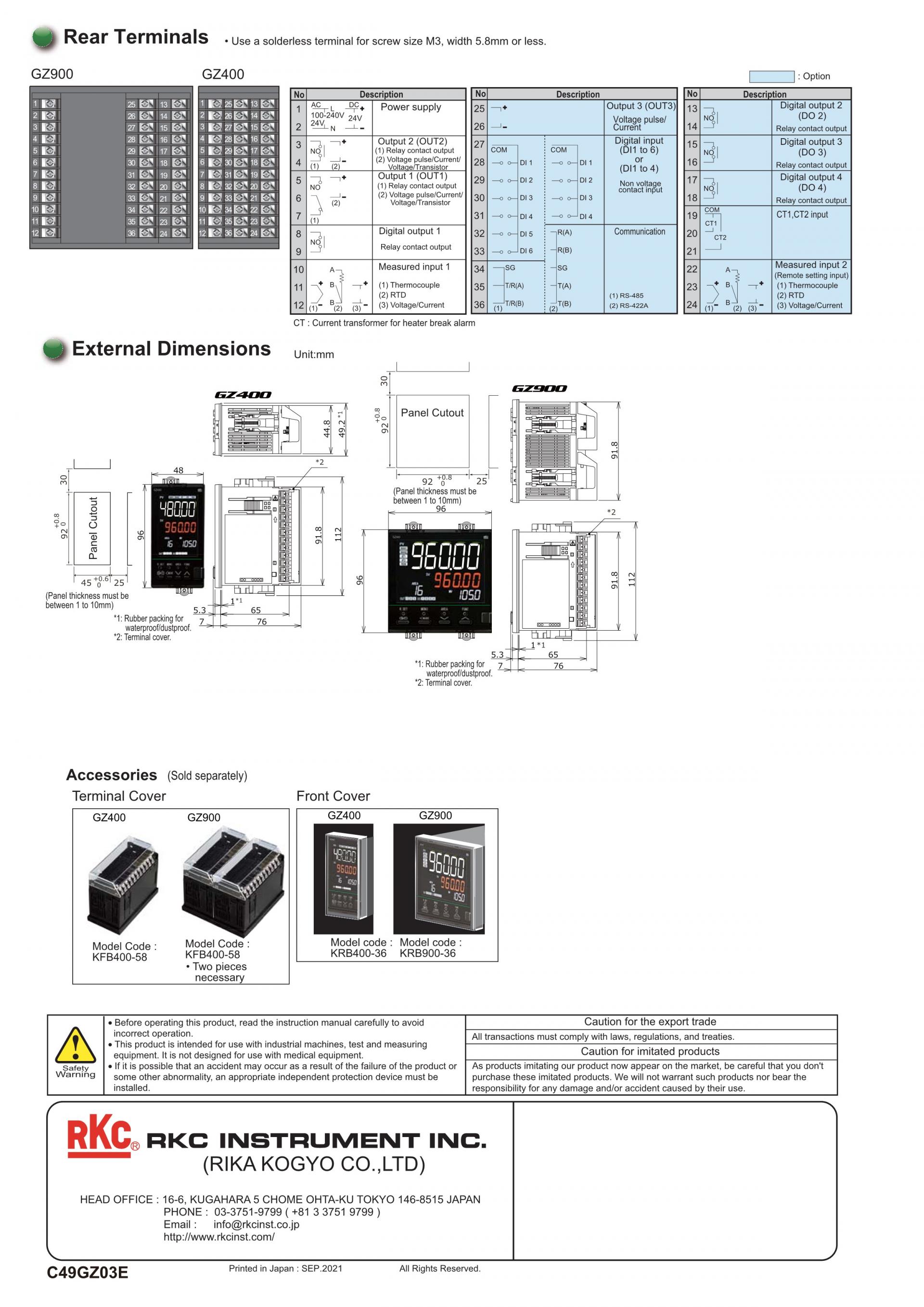

- External dimensions
GZ SERIES GZ 400 GZ 900 GZ SERIES RKC RKC GZ SERIES GZ SERIES 알케이씨 알케이씨 GZ SERIES GZ 400 RKC RKC GZ 400 GZ 400 알케이씨 알케이씨 GZ 400 GZ 900RKC RKC GZ 900 GZ 900 알케이씨 알케이씨 GZ 900
