RKC FB SERIES (FB100 / FB400 / FB900) 디지털 프로세스 & 온도 컨트롤러
가격문의(상세정보 참조)

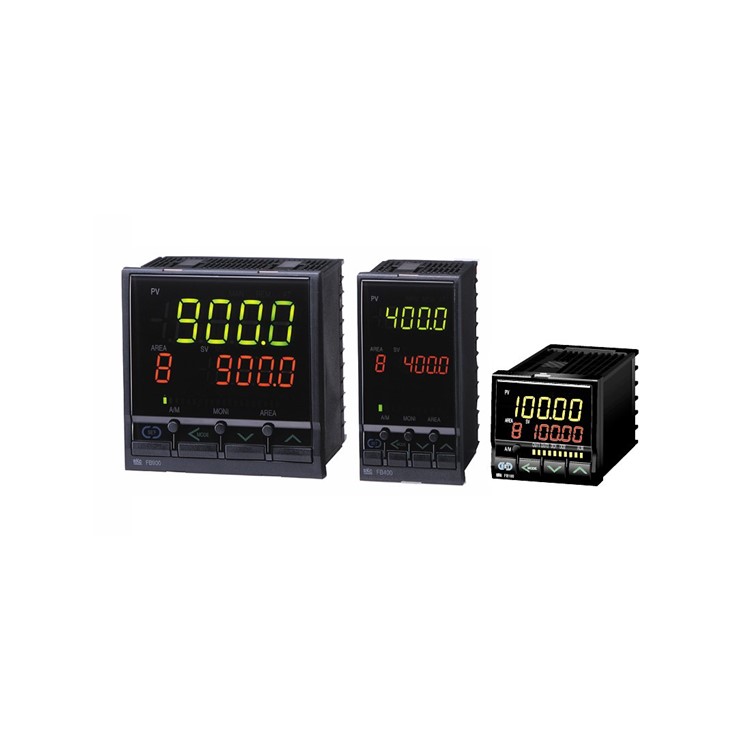

RKC FB SERIES (FB100 / FB400 / FB900) 디지털 프로세스 & 온도 컨트롤러
RKC FB SERIES (FB100 / FB400 / FB900) Digital Controllers (Process and Temperature Controllers)

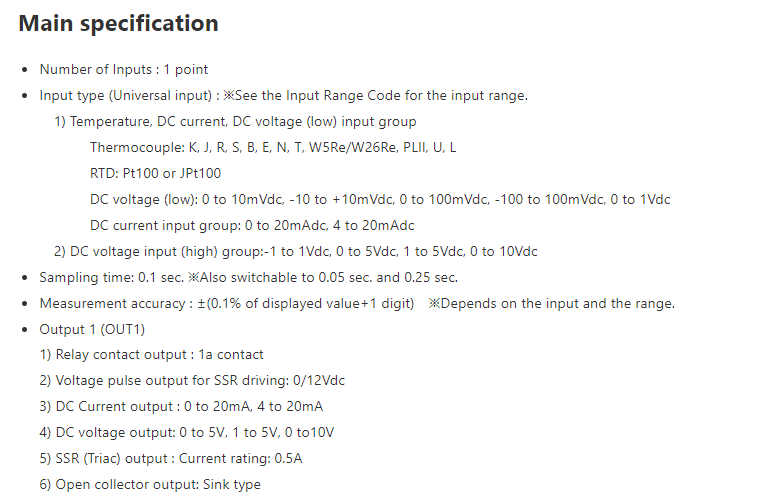

- Measurement accuracy: ±0.1% of displayed value
- Sampling time: 0.1 sec.
- Abundant event inputs/outputs
- Loader communication
- Intercontroller Communication
- Plug-in construction
클릭 하시면 이동합니다.
알케이씨 ・ RKC
FB SERIES (FB100 / FB400 / FB900)
디지털 프로세스 & 온도 컨트롤러
FB SERIES (FB100 / FB400 / FB900) Digital Controllers (Process and Temperature Controllers)

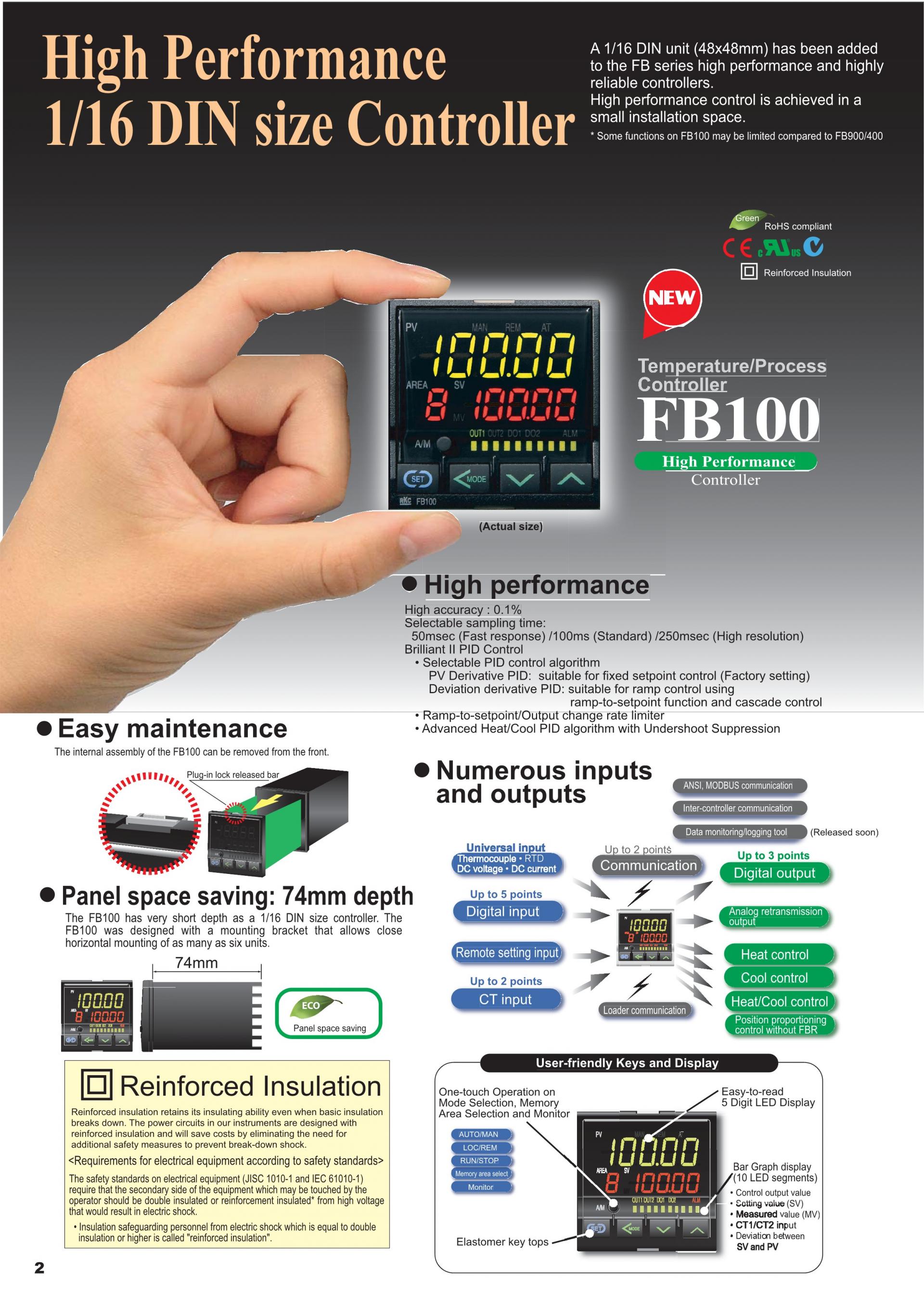

Main features

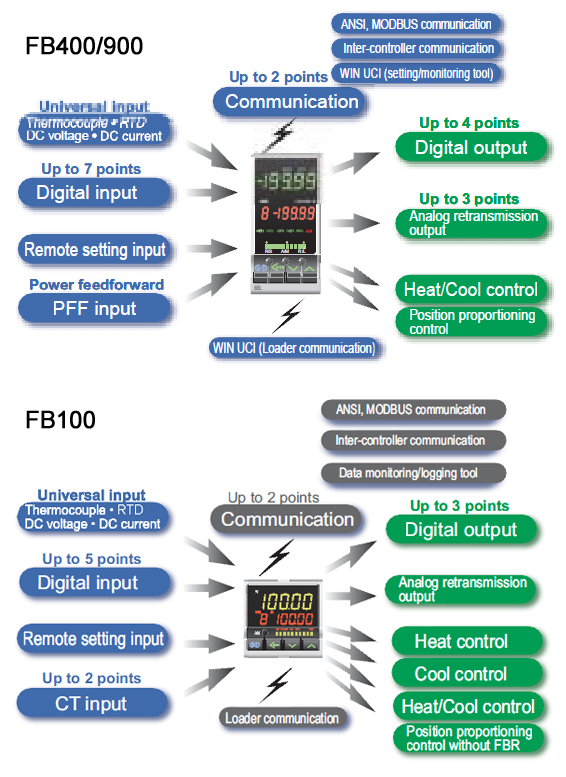

- Abundant Inputs/Outputs
 | Varieties of combinations of various optional inputs/outputs |

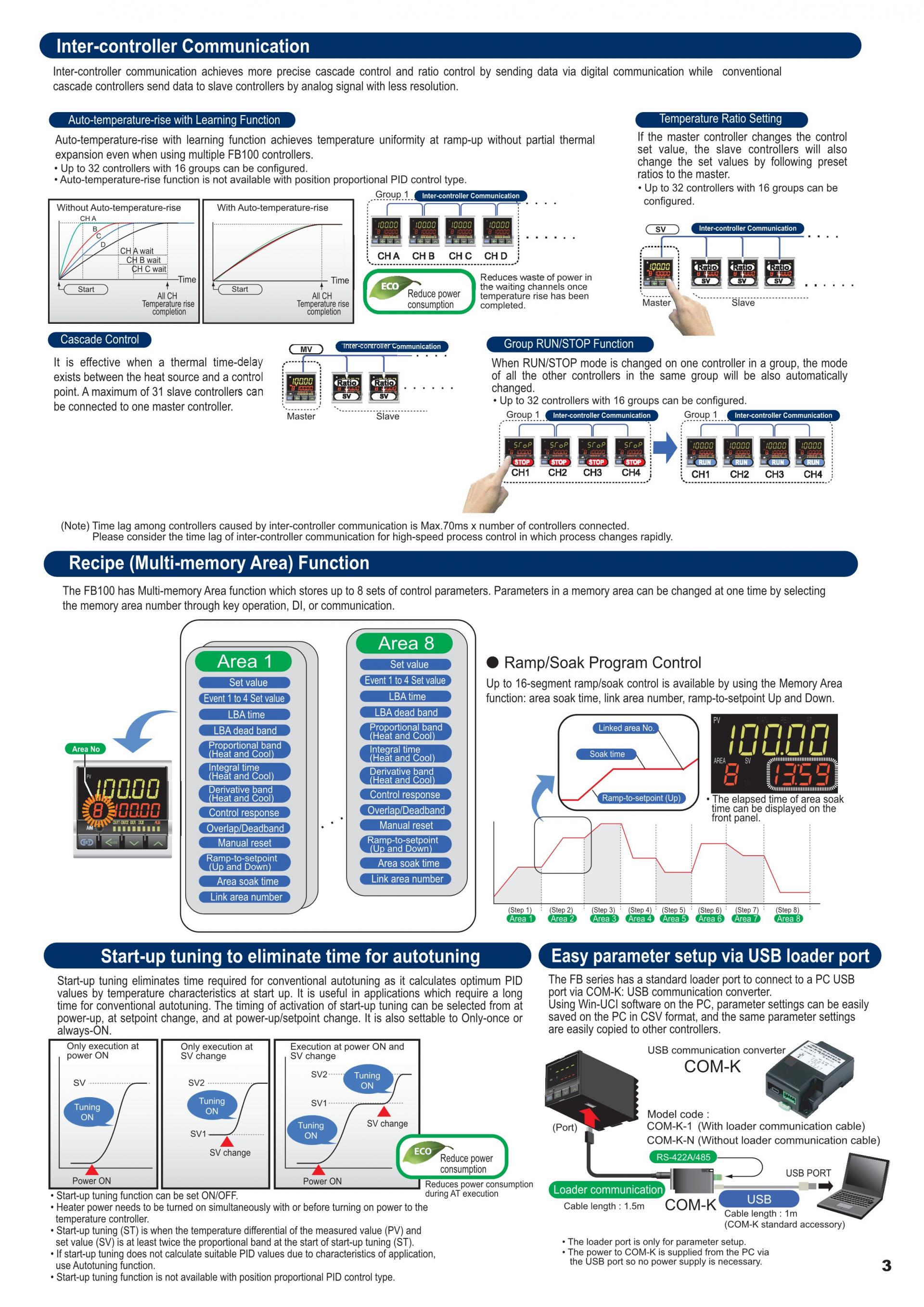

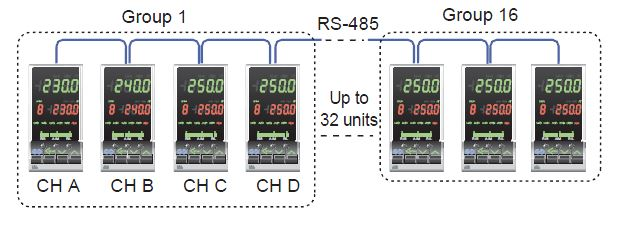

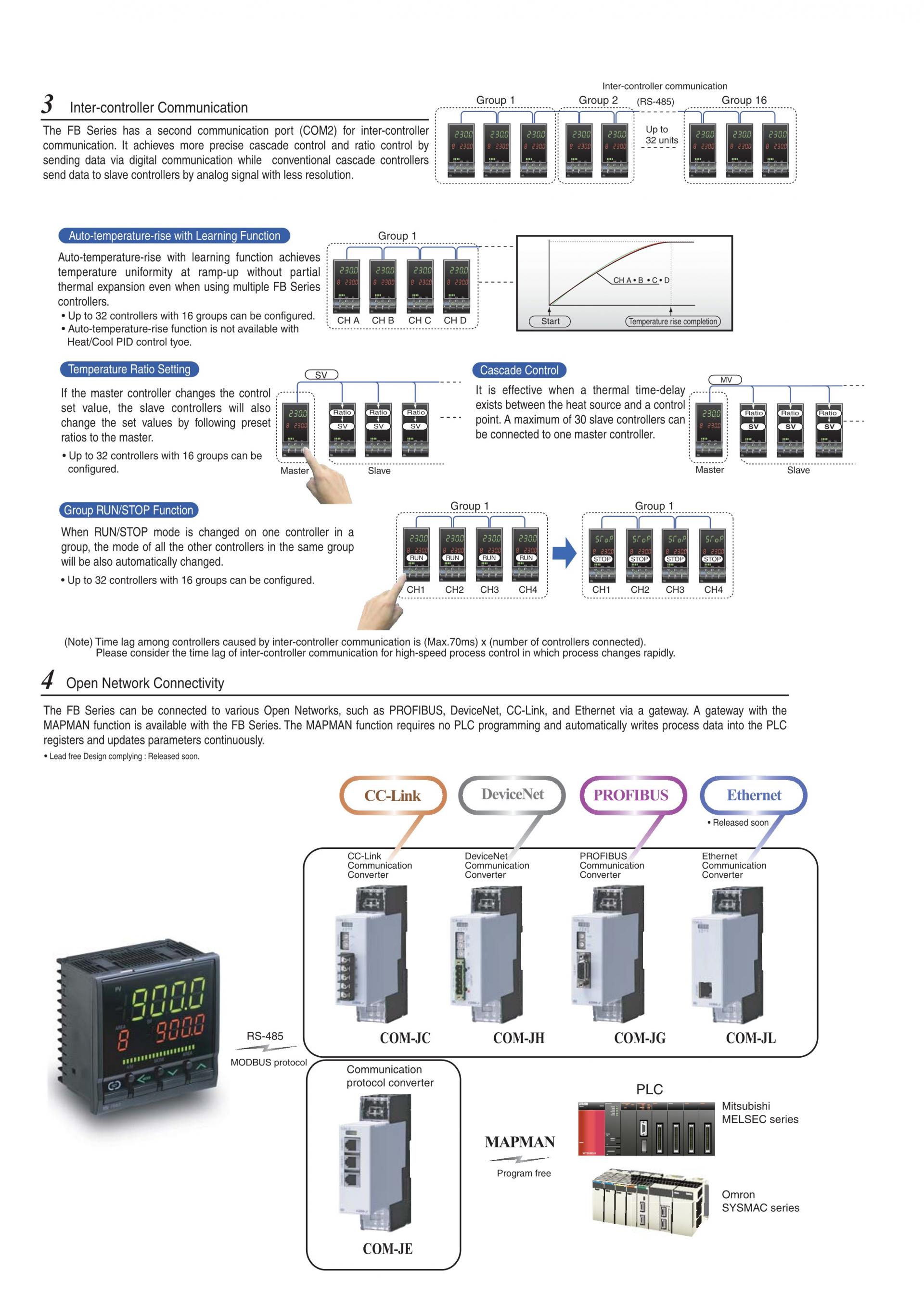

- Link operation through communication
 | Various types of link operation are available through intercontroller communication.
|

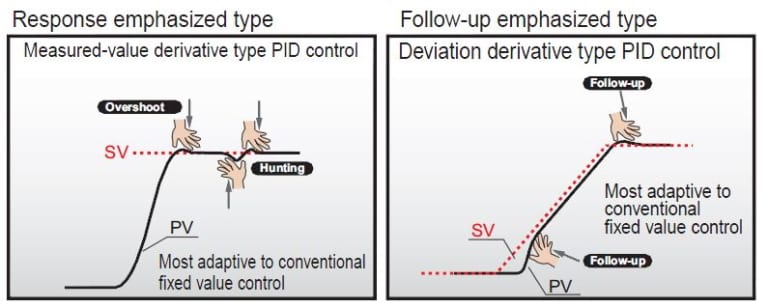

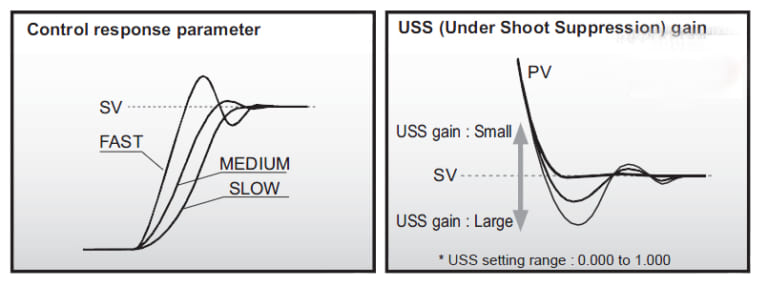

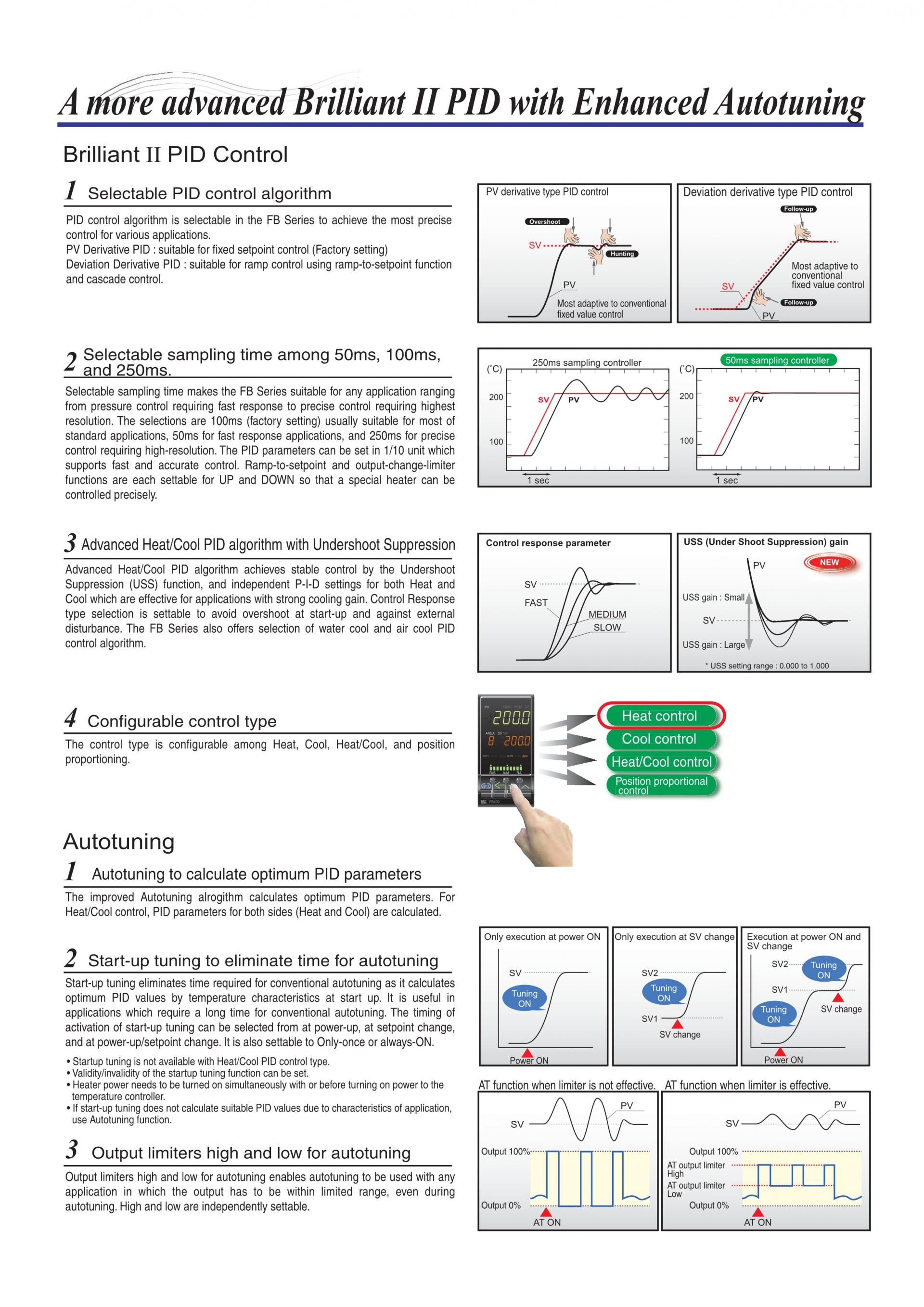

- Selectable from two types of PID control; “Response focused” and “Follow-up focused”
 | PV-derivative PID control (Response focused) and deviation derivative PID control (Follow-up focused) |
- Enhanced new heat/cool PID control with enhanced undershoot suppression (USS) on the cooling side.
| Undershoot Suppression Function (USS) is installed in the cooling control. ※USS：Undershoot Suppression Dedicated control algorithm for water-cooling or air-cooling is selectable. |

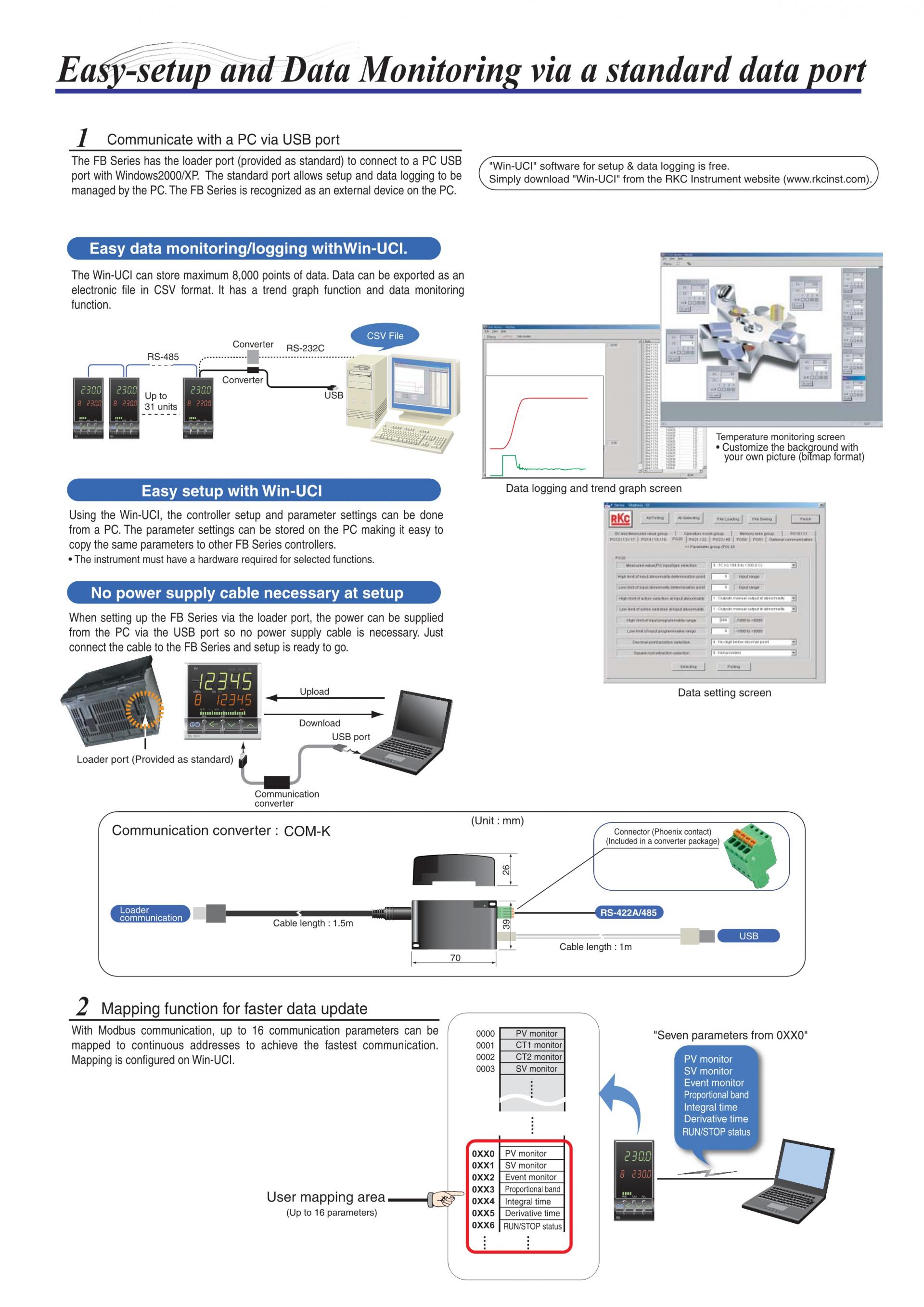

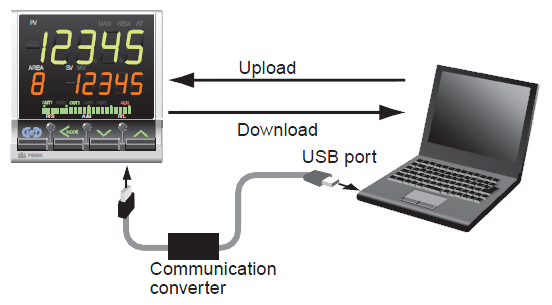

- Loader communication
 | All models are equipped with loader communication function. Configuration data management software (PROTEM2) is available |

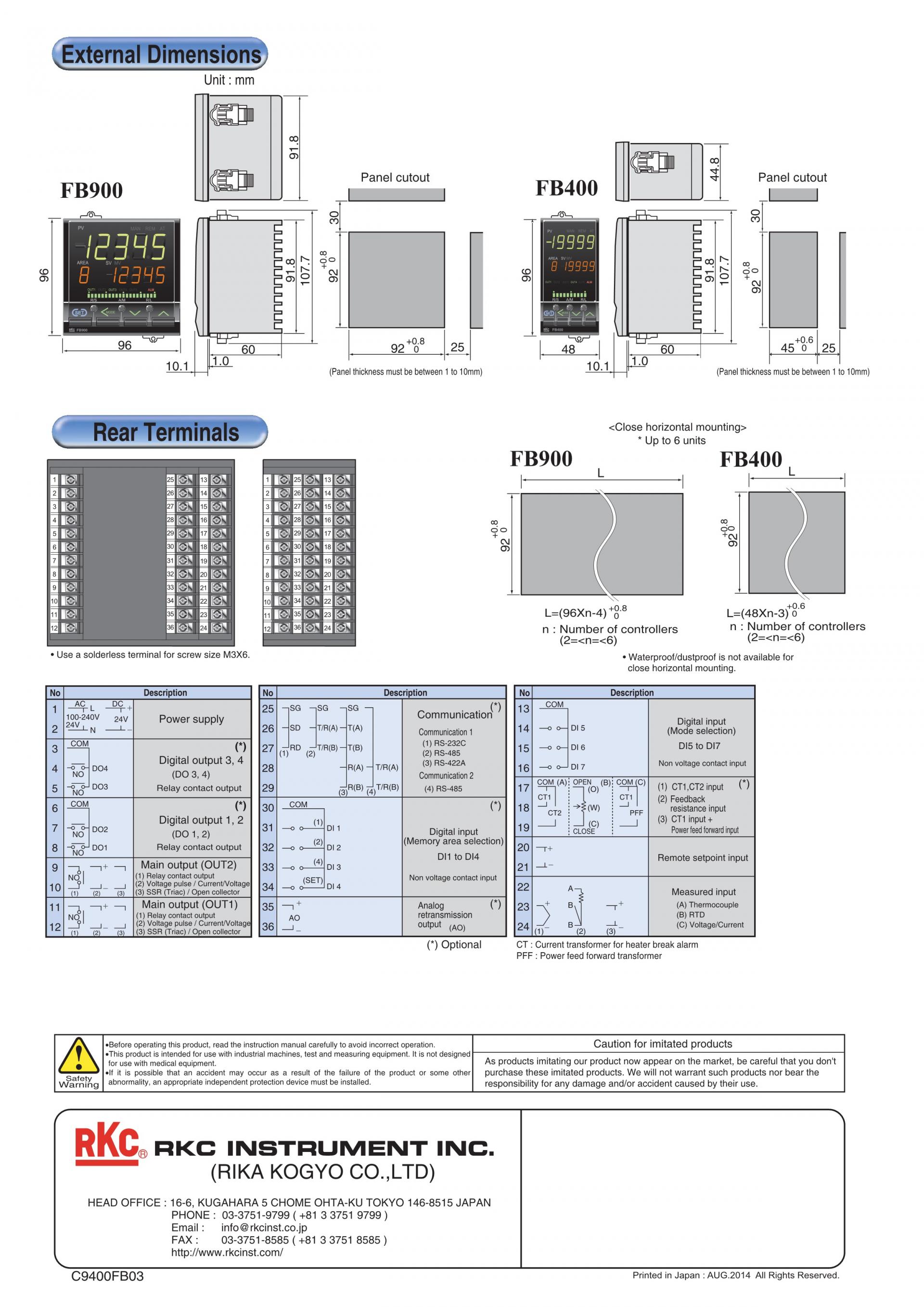

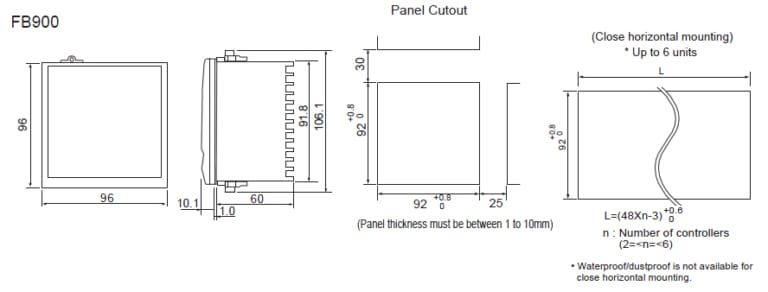

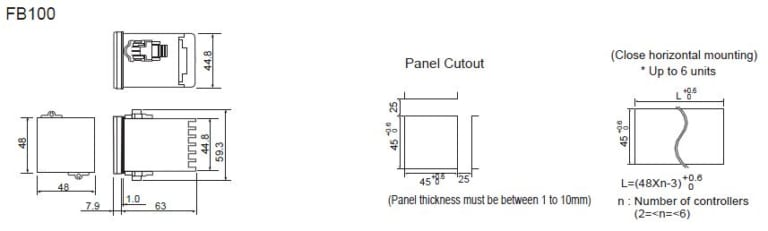

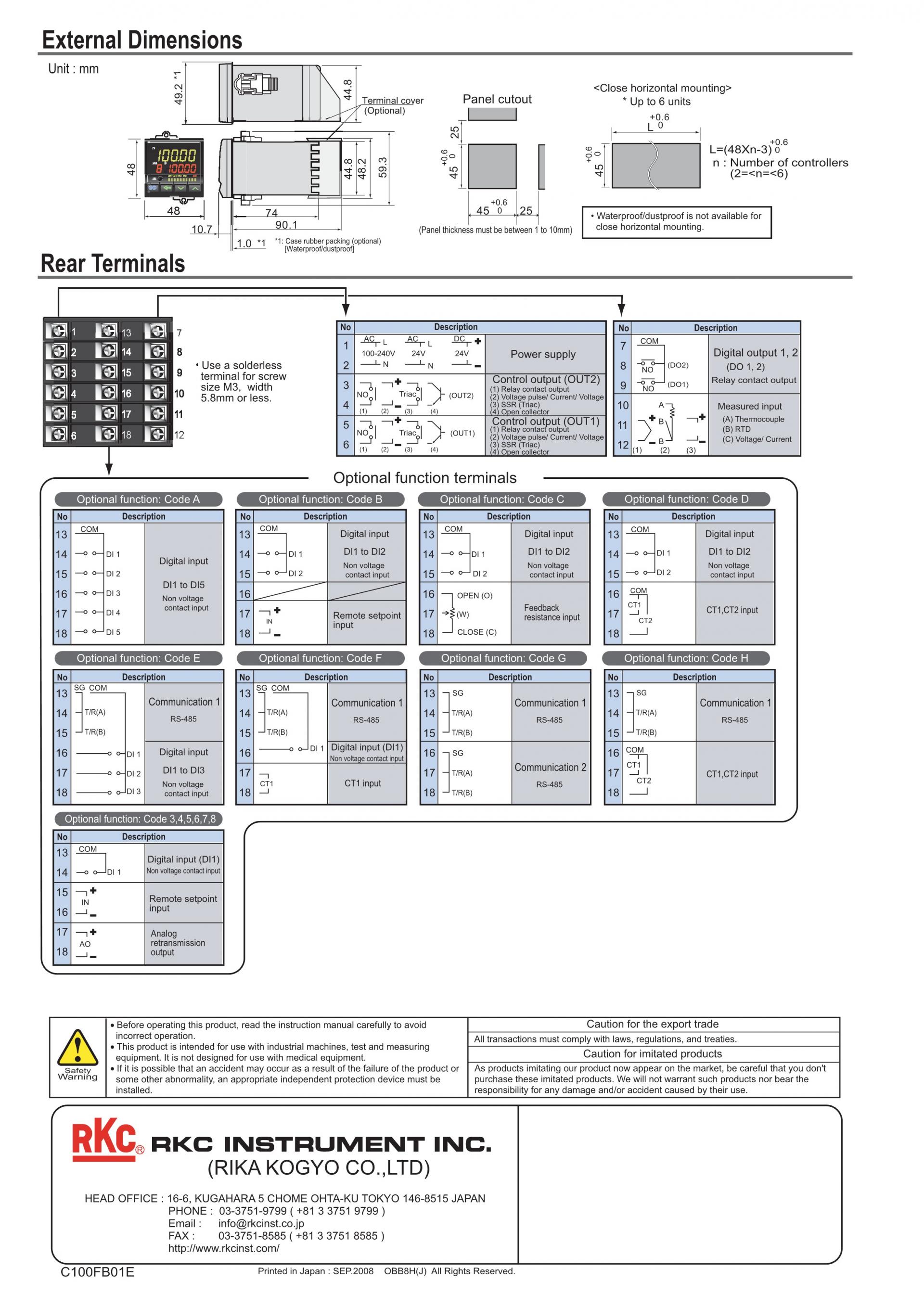

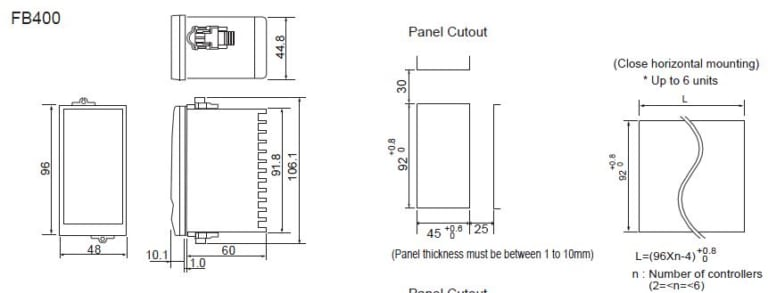

External dimensions
FB SERIES FB 100 FB 400 FB 900 FB SERIES RKC RKC FB SERIES FB SERIES 알케이씨 알케이씨 FB SERIES FB 100 RKC RKC FB 100 FB 100 알케이씨 알케이씨 FB 100 FB 400 RKC RKC FB 400 FB 400 알케이씨 알케이씨 FB 400 FB 900RKC RKC FB 900 FB 900 알케이씨 알케이씨 FB 900
