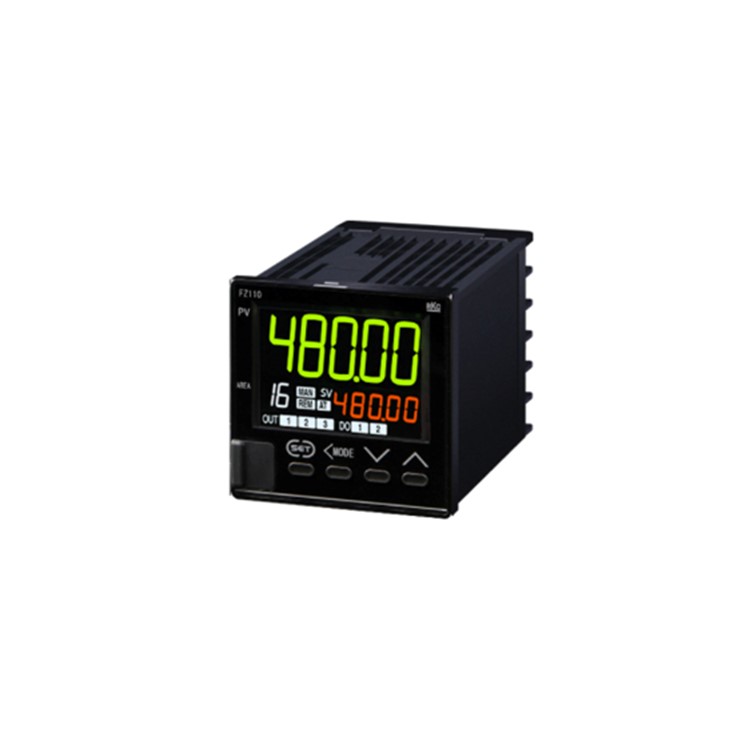

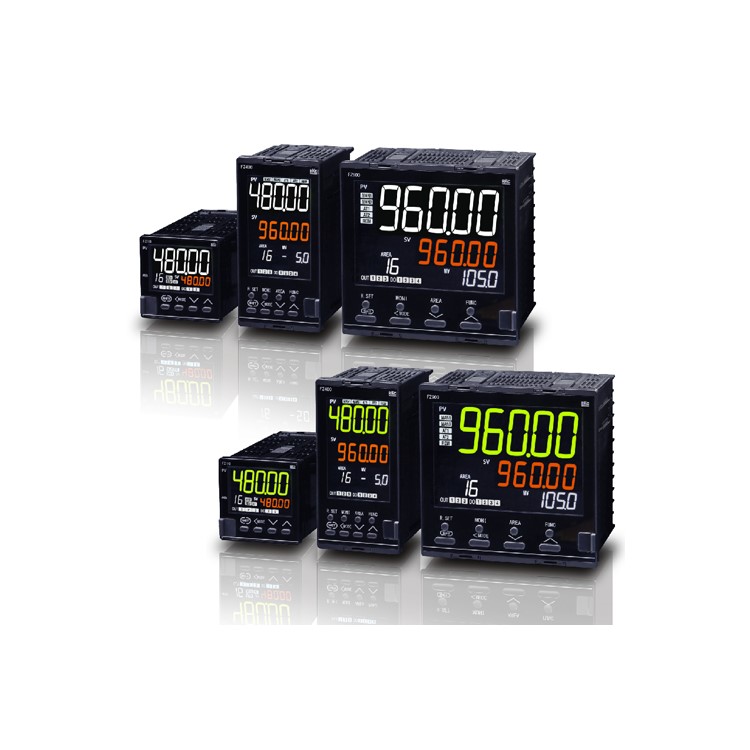

RKC FZ SERIES (FZ110 / FZ400 / FZ900) 디지털 온도컨트롤러
가격문의(상세정보 참조)
RKC FZ SERIES (FZ110 / FZ400 / FZ900) 디지털 온도컨트롤러

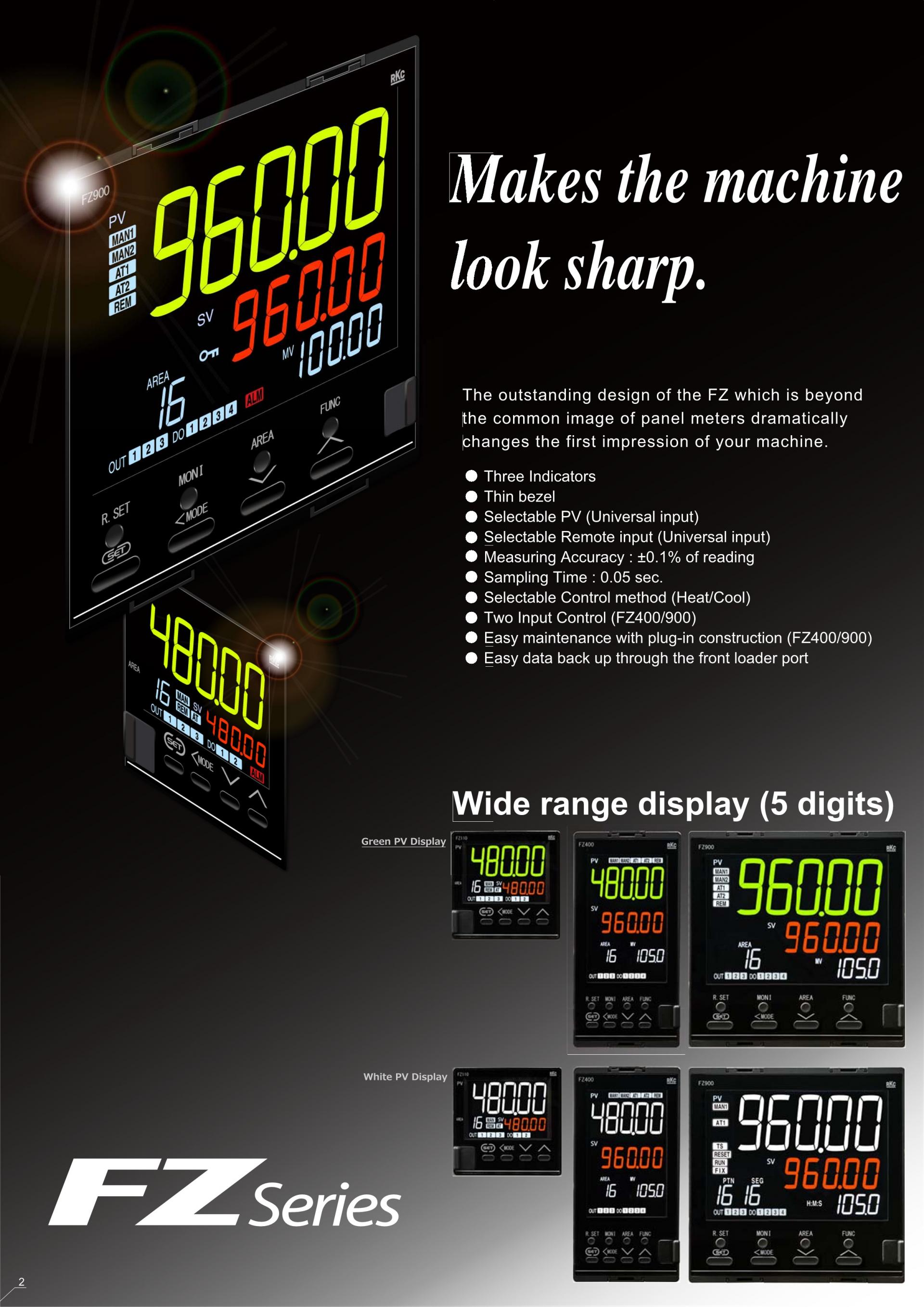

RKC FZ SERIES (FZ110 / FZ400 / FZ900) Digital Controllers (Process and Temperature Controllers)

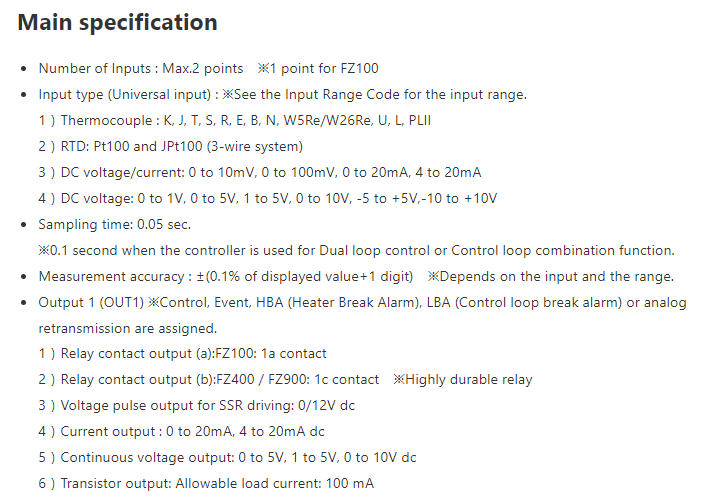

- Universal Input
- (Selectable from Thermocouple, RTD Pt100, Voltage, Current)
- Measurement accuracy: ±0.1% of displayed value
- Sampling time: 0.05 sec.
- 11-segment 5 digit LCD display
- Front loader communication port
- Dual input function (FZ400 / FZ900)
- Plug-in construction (FZ400 / FZ900)

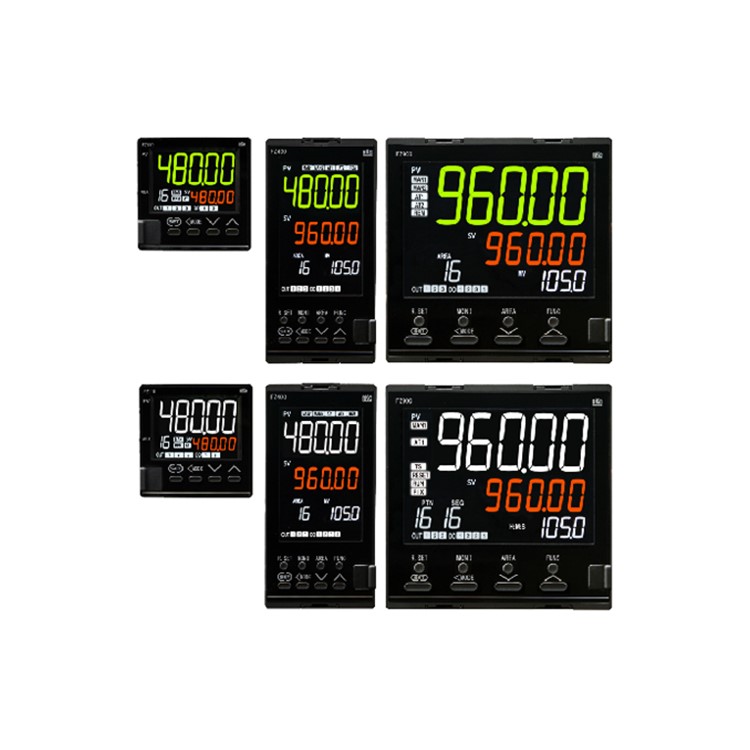

- PV (measured value) is available in green or white
클릭 하시면 이동합니다.
알케이씨 ・ RKC
FZ SERIES (FZ110 / FZ400 / FZ900)
디지털 온도컨트롤러
FZ SERIES (FZ110 / FZ400 / FZ900) Digital Controllers (Process and Temperature Controllers)
Main features

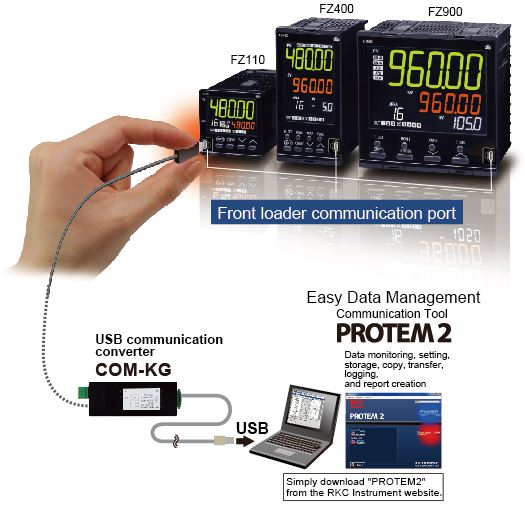

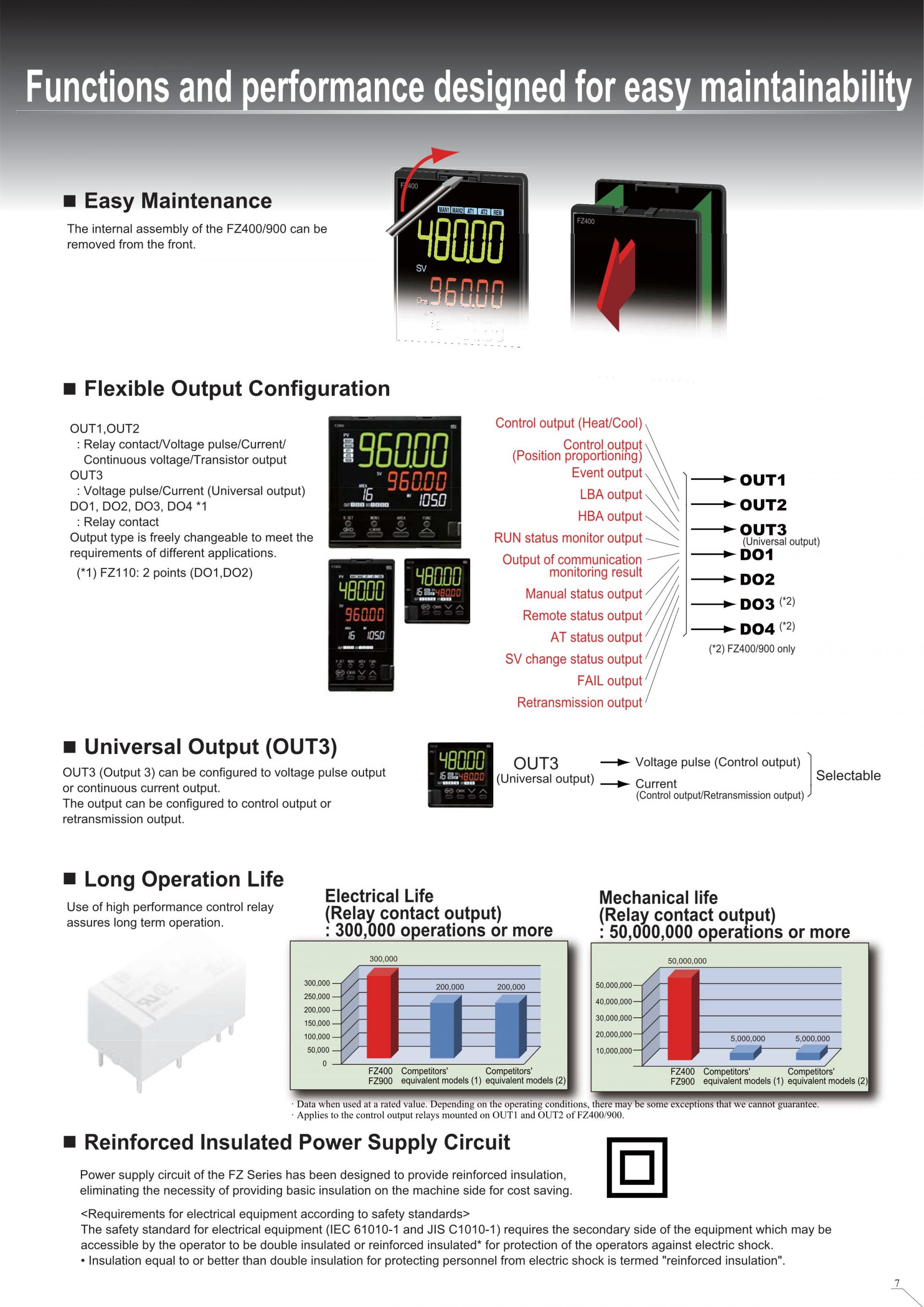

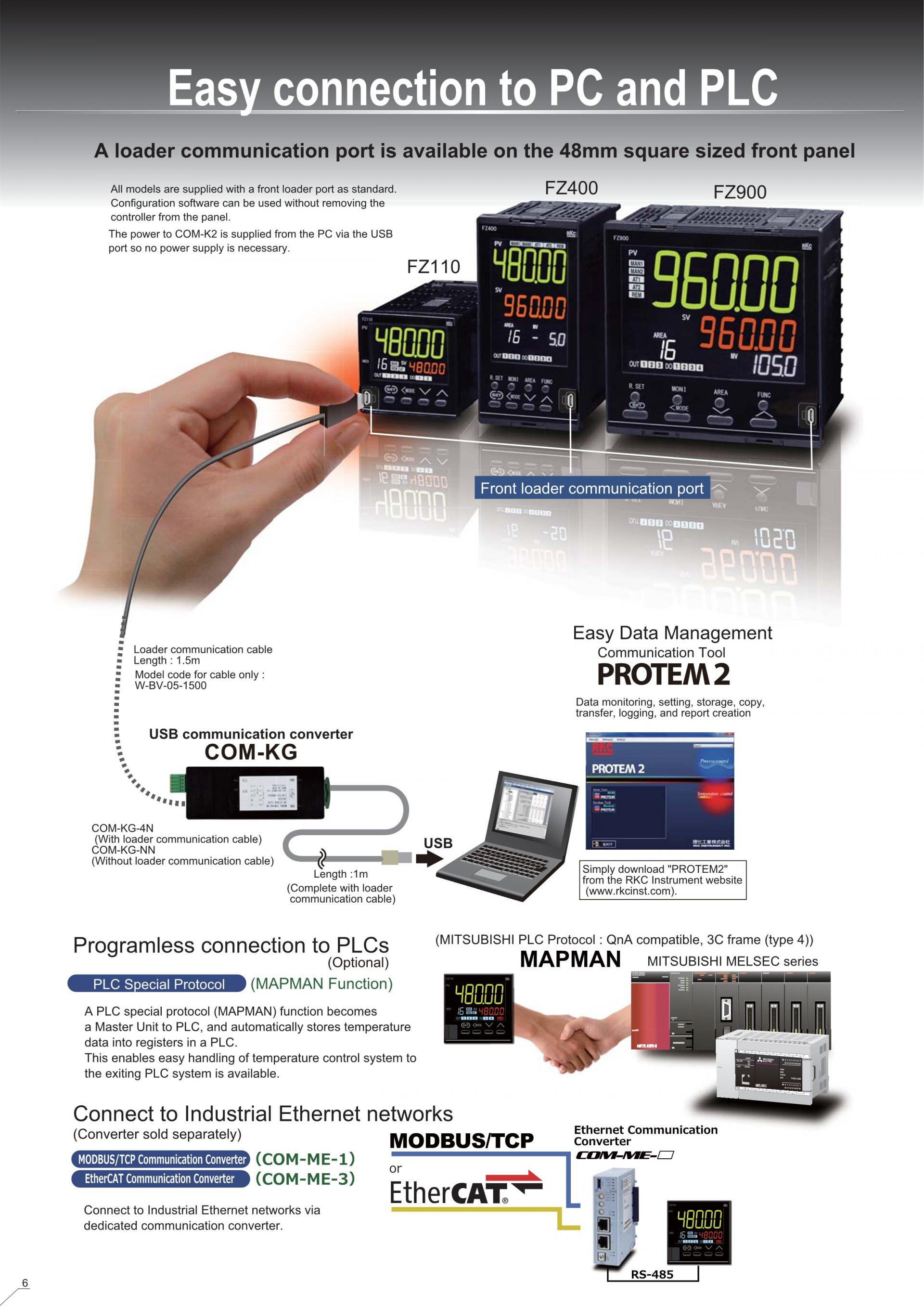

- Front loader communication port on the 48mm square sized controller
 | All models are equipped with a front loader communication port for improved maintainability Configuration data management software (PROTEM2) is available |

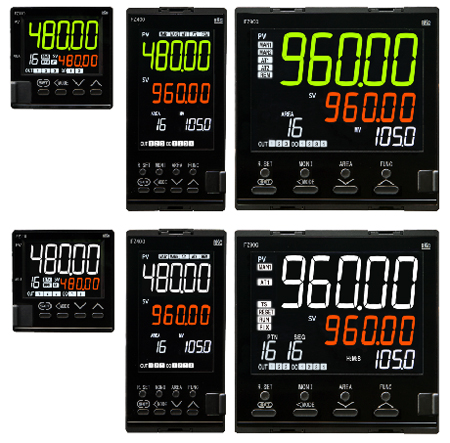

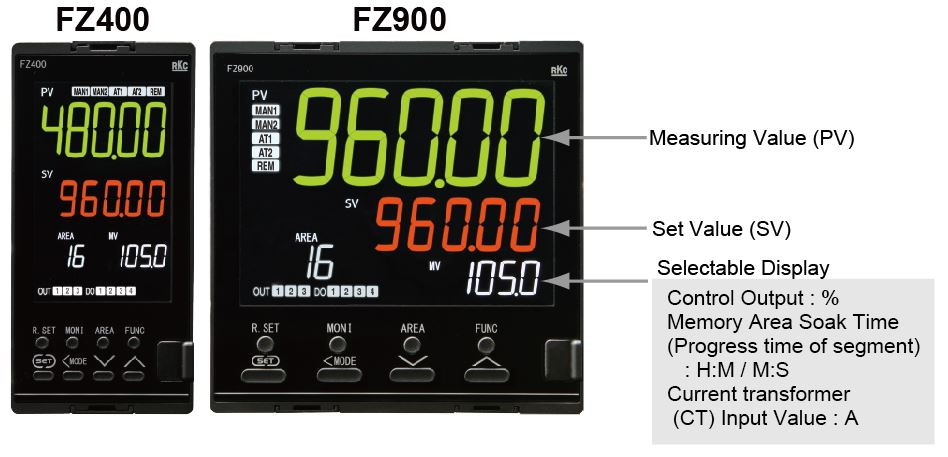

- Large high intensity LCD display
 | Large easy-to-read PV display on a compact front panel. PV (measured value) is available in green or white. |

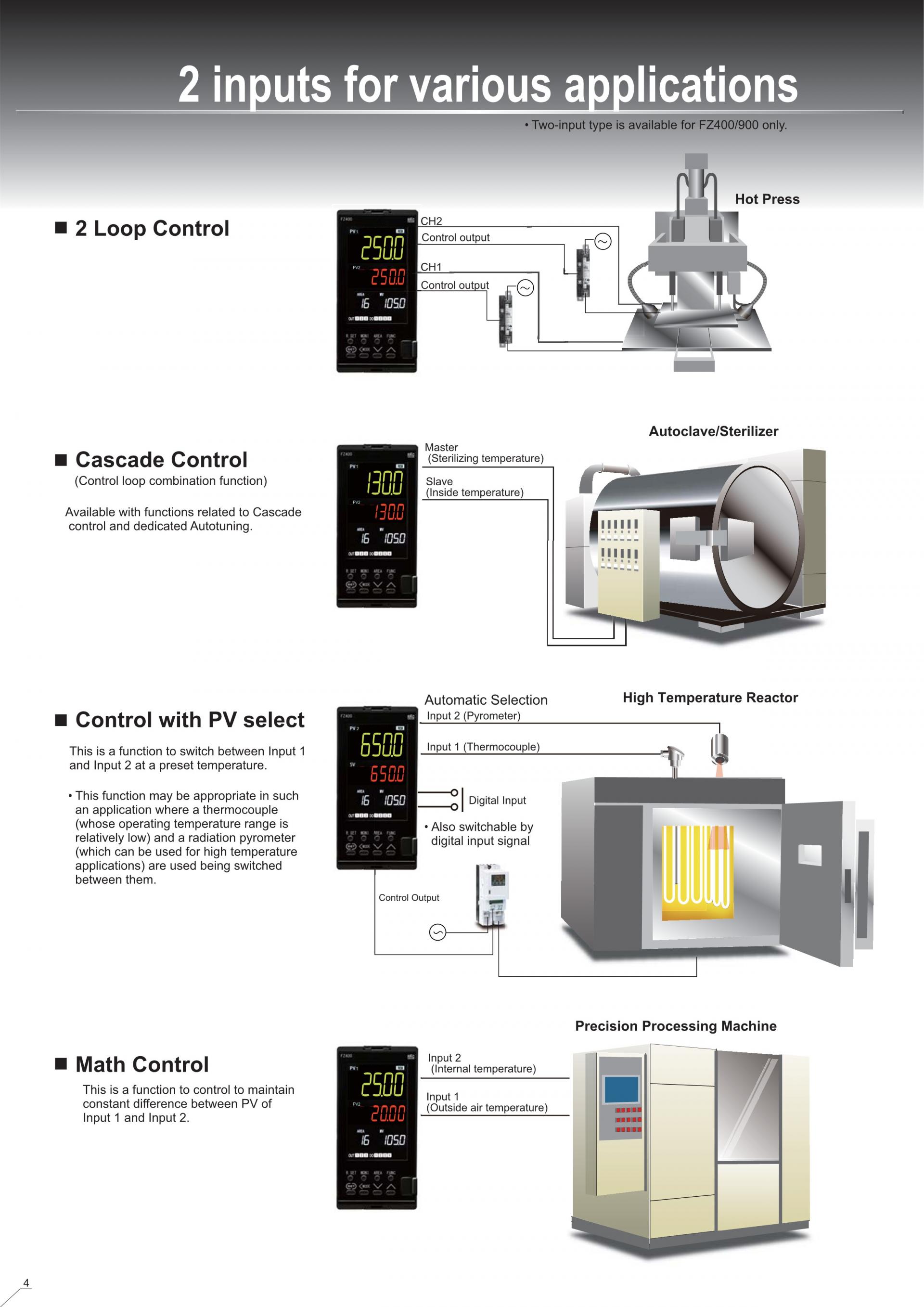

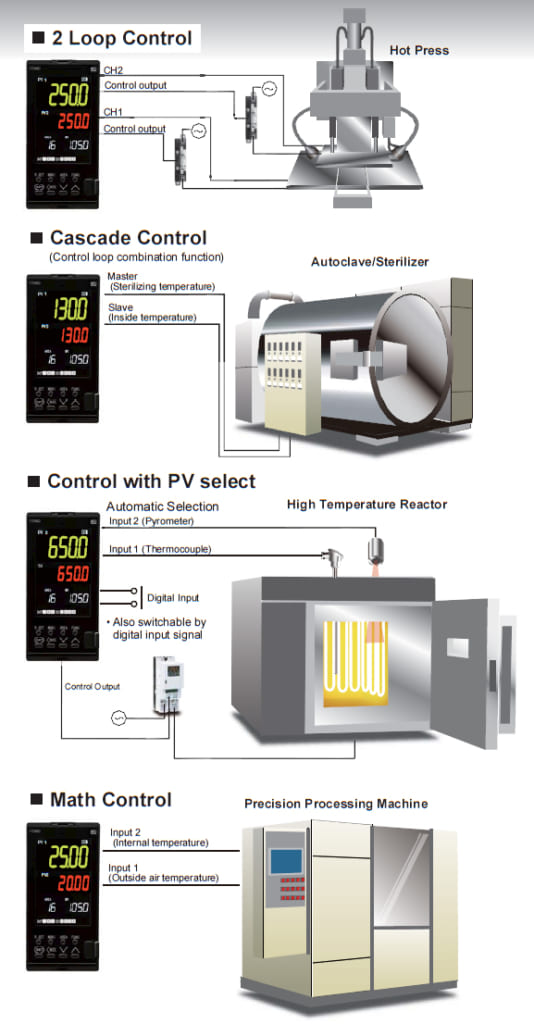

- 2 inputs for various applications
 | 2CH (Dual loop) control Dual loop control is available on a single controller. PV select function Input 1 and Input 2 are switched over at a preset level. Cascade Control (Control loop combination function) Cascade control is performed using the dedicated autotuning. Differential temperature control This is a function to control to maintain the difference between PV1 and PV2 is kept constant. |

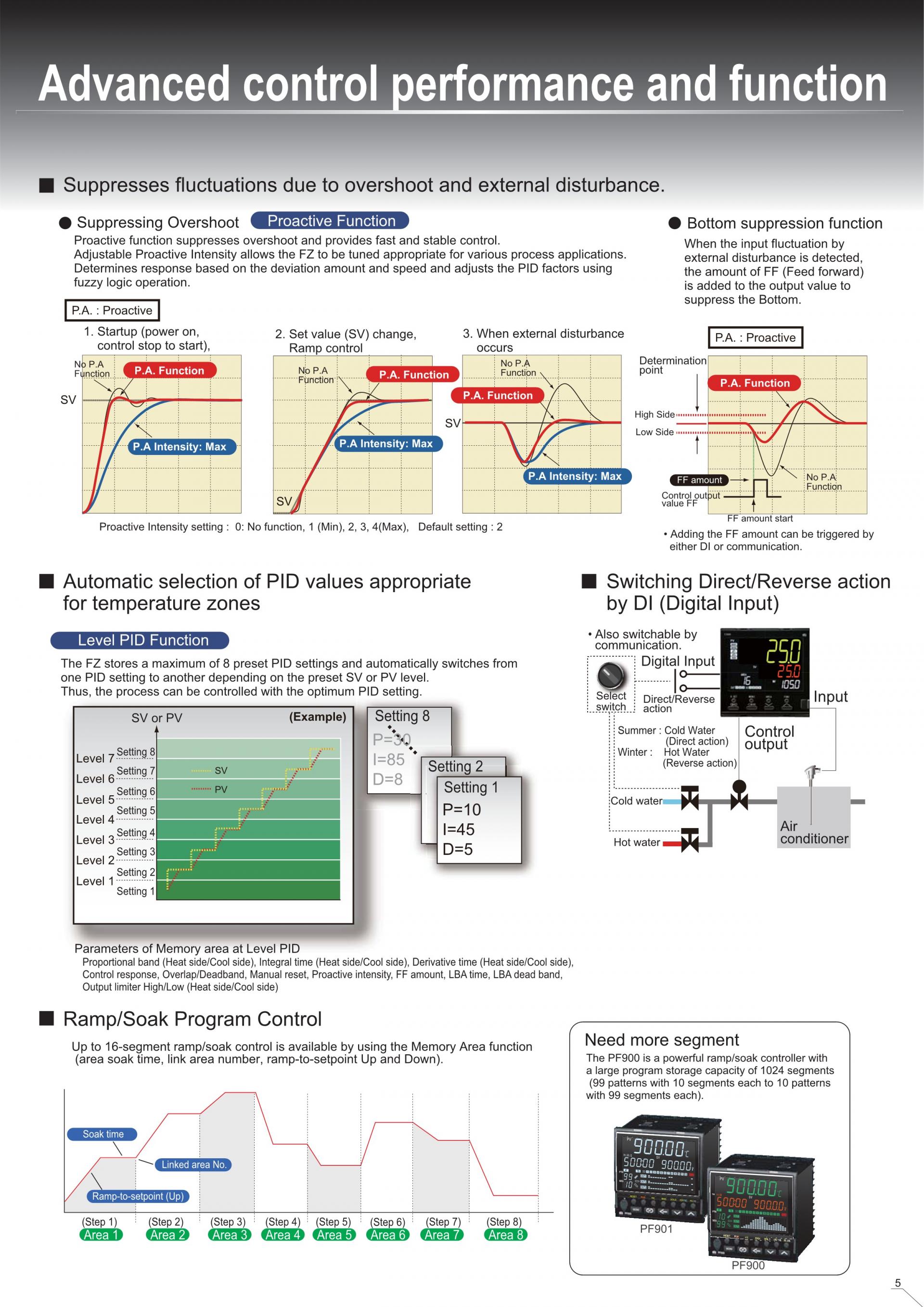

- Further advanced control performance and function
 |

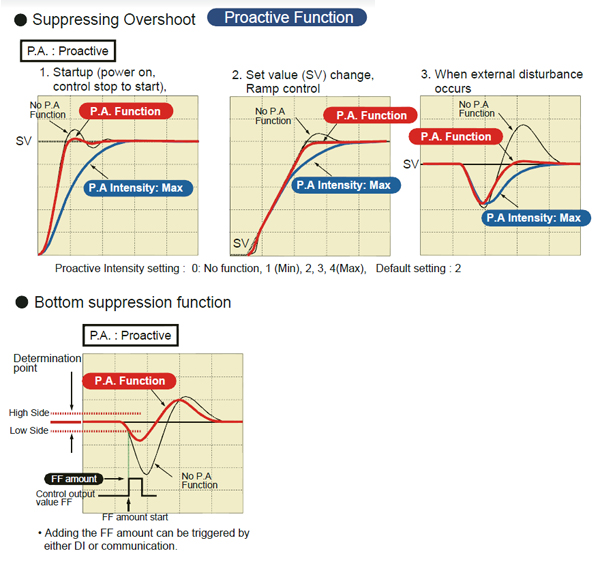

Proactive function is supplied to suppress overshoot and bottom (lowering amount) Level PID function is supplied which is suitable when the controller is used as a ramp/soak controller or when the setpoint change is large. |

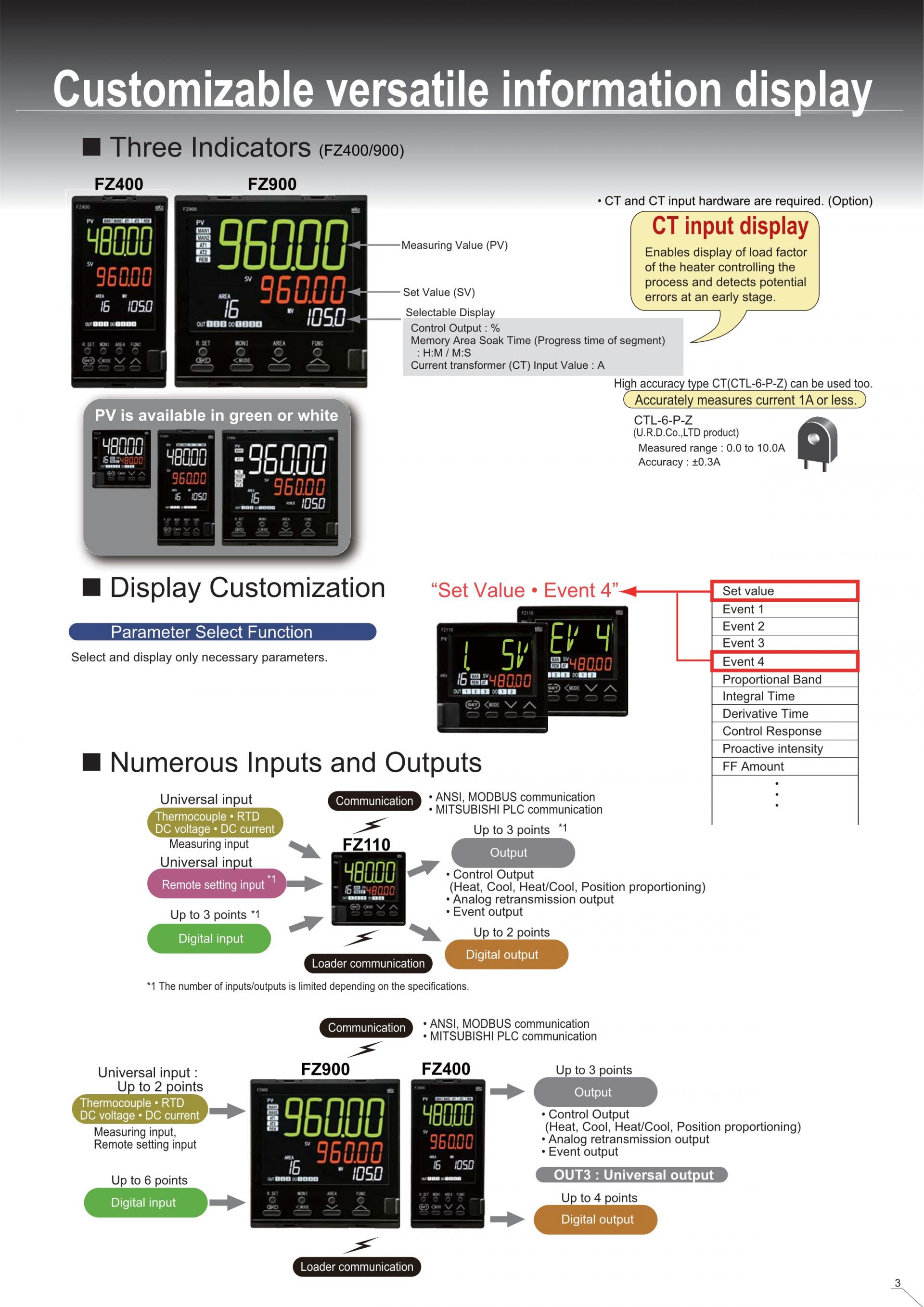

- Versatile customizable information display
 |
Three-stage display shows abundant information. ※Three stage display is available only on FZ400 / FZ900. Parameter select function enables displaying necessary parameters only. |
