RKC SA100 디지털 온도 컨트롤러
가격문의(상세정보 참조)
RKC SA100 디지털 온도 컨트롤러
RKC SA100 Digital controllers (Temperature controllers)
- Measurement accuracy: ±0.3% of displayed value
- Sampling time: 0.5 sec.
- DIN rail mounting type (Also installable on a panel)
- Plug-in construction
클릭 하시면 이동합니다.
알케이씨 ・ RKC
SA100
디지털 온도 컨트롤러
SA100 Digital controllers (Temperature controllers)

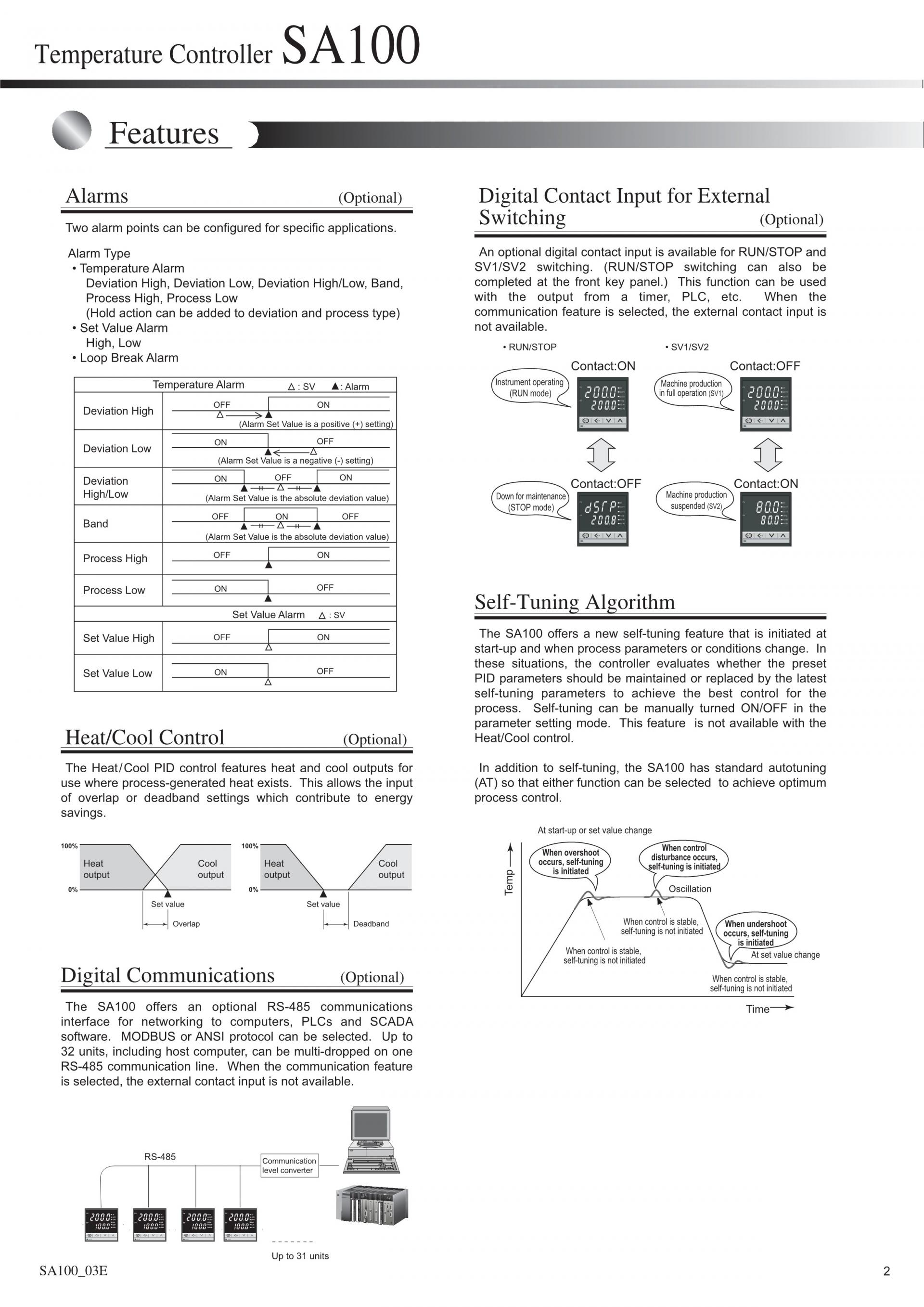

Main features

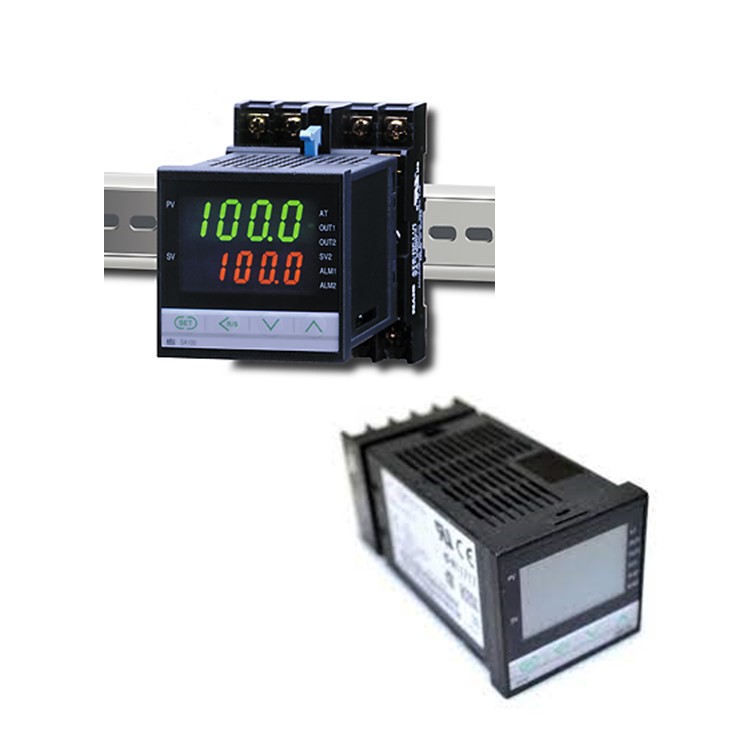

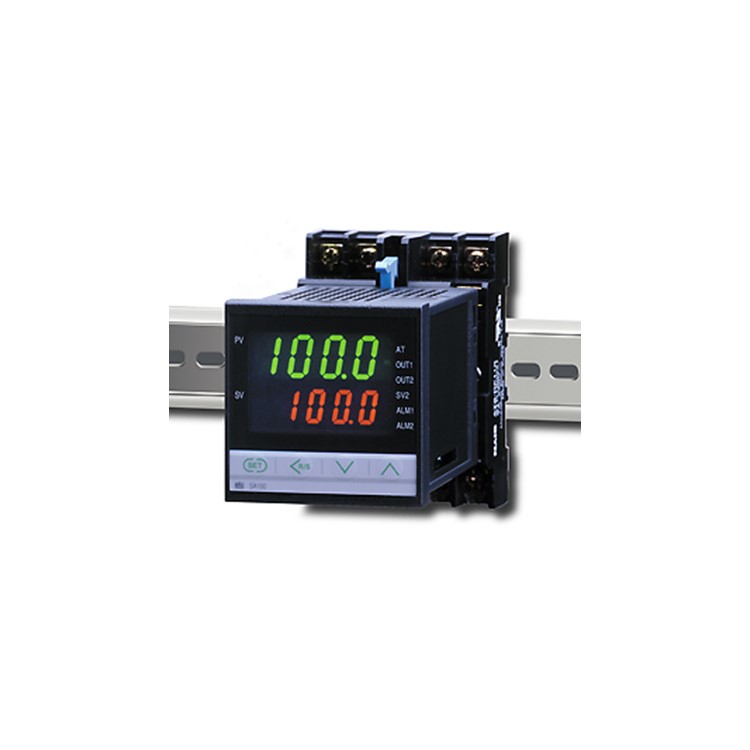

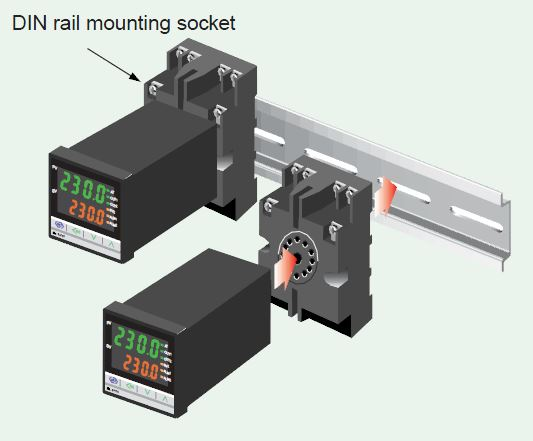

- DIN rail mounting type temperature controller
 | Installable on the DIN rail inside the control cabinet. Removable terminal socket for easy maintenance. |

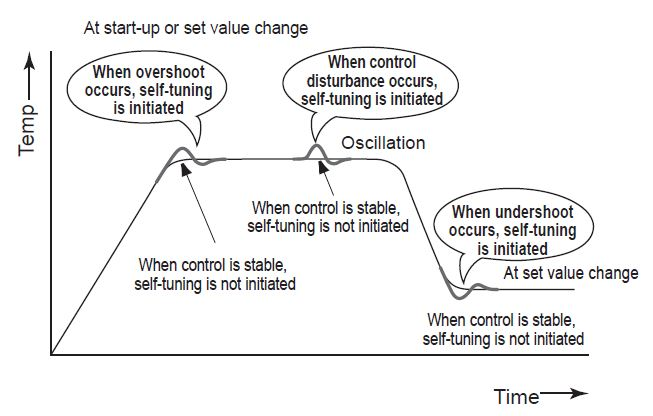

- Control state discriminating type self-tuning
 | PID parameters are automatically tuned when control is determined to be disturbed Autotuning function is also available |

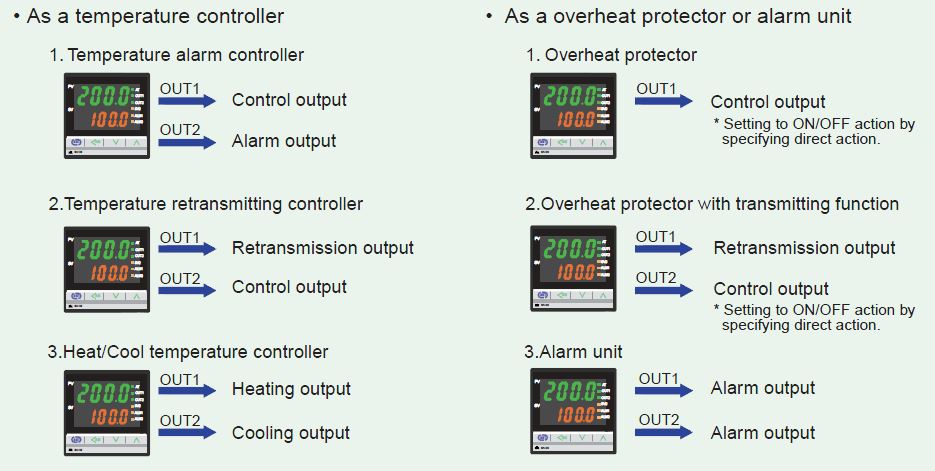

- Two outputs can be assigned to control output, alarm output, or analog retransmission output
 | This instrument can be used as a temperature controller, an alarm, or an overtemperature protection device depending on the output assignment. |

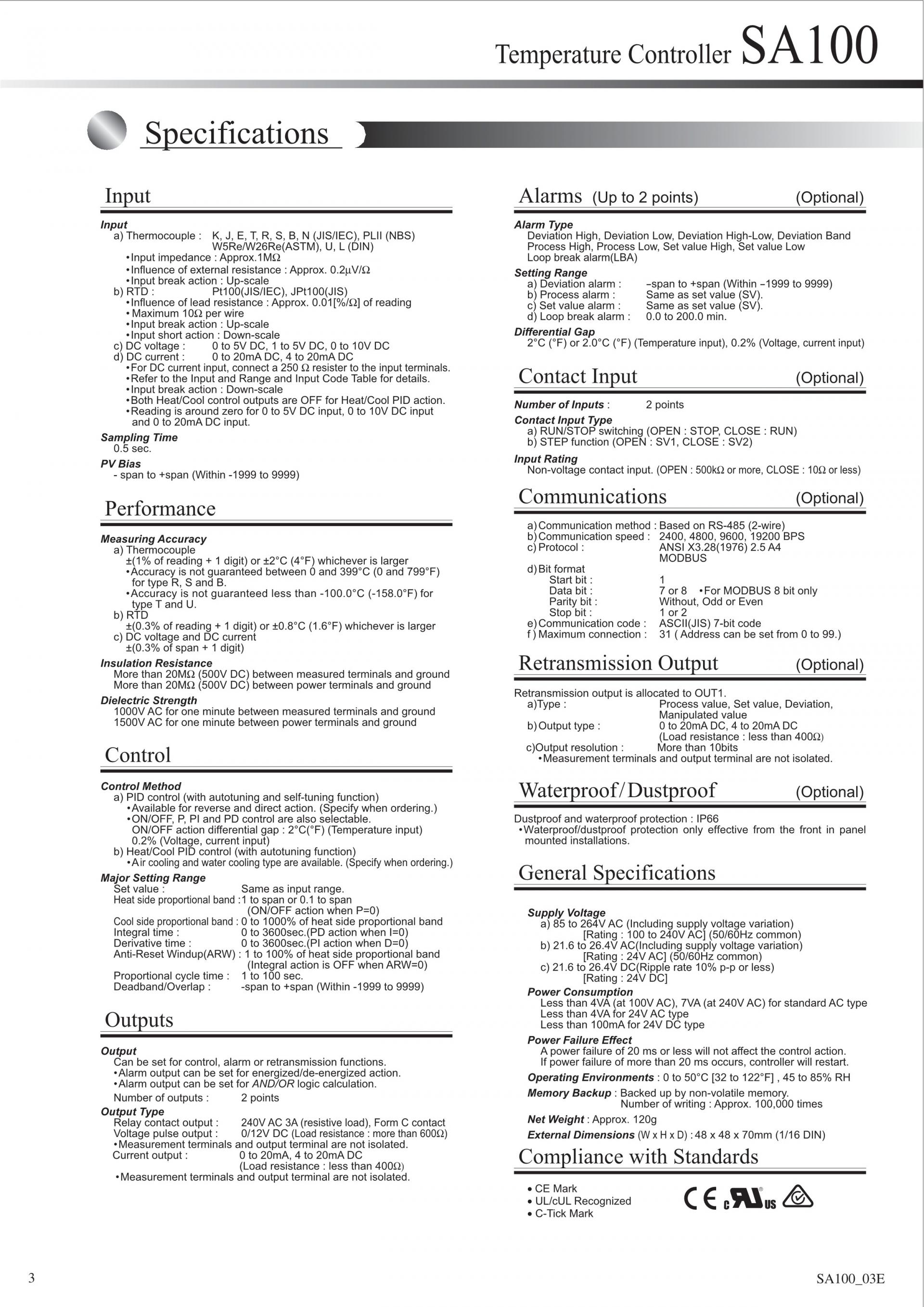

Main specification
- Number of Inputs :1 point

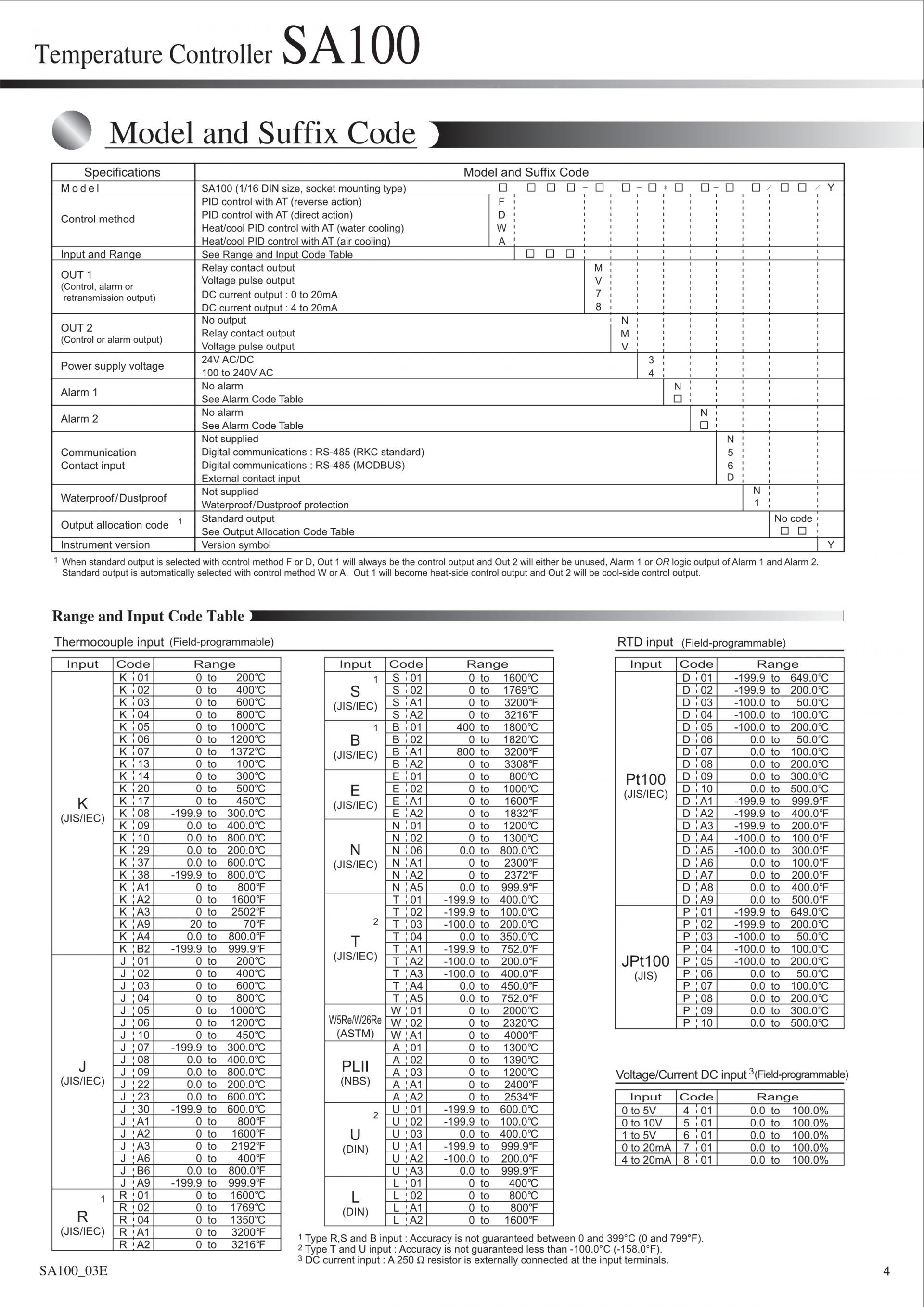

- Input type : ※See the Input Range Code for the input range.
1）Thermocouple : K, J, T, S, R, E, B, N, W5Re/W26Re, U, L, PLII
2）RTD: Pt100 or JPt100
3）DC voltage: 0 to 5V dc, 1 to 5V dc
4）DC current: 0 to 20mA dc, 4 to 20mA dc ※ A 250Ω external resistor is required.
- Sampling time: 0.5 sec.
- Measurement accuracy：±(0.3% of displayed value+1 digit) ※Depends on the input and the range.
- Output (OUT1) ※To be assigned from a control output, an alarm output, or an analog retransmission output.
1) Relay contact output : 1a contact
2) Voltage pulse output for SSR driving: 0/12V dc
3) DC Current output : 0 to 20mA, 4 to 20mA dc
<Specification for Optional Functions>
- Output2（OUT2）※To be assigned from a control output or an alarm output.
1) Relay contact output : 1a contact
2) Voltage pulse output for SSR driving: 0/12V dc
- Alarm outputs (max.2 points): Temperature alarm or Control loop break alarm
- External contact inputs (max.2 points): RUN/STOP switching or SV1/SV2 switching
- Communication function: Communication method RS-485
<General Specification>
- Power supply voltage (Rating): 100 to 240V ac/24Vac/24Vdc
- Ambient temperature: 0 to 50°C
- weight: Approx.120g (excluding a socket)
- Safety standards: UL UL61010-1
cUL CAN/CSA-22.2 NO.61010-1
CE Marking: Low Voltage Directive (LVD) EN61010-1
EMC Directive EN61326-1
RCM EN55011

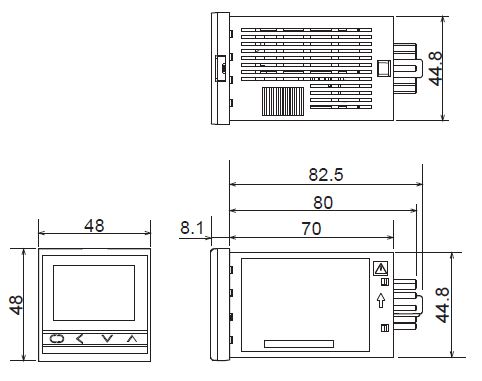

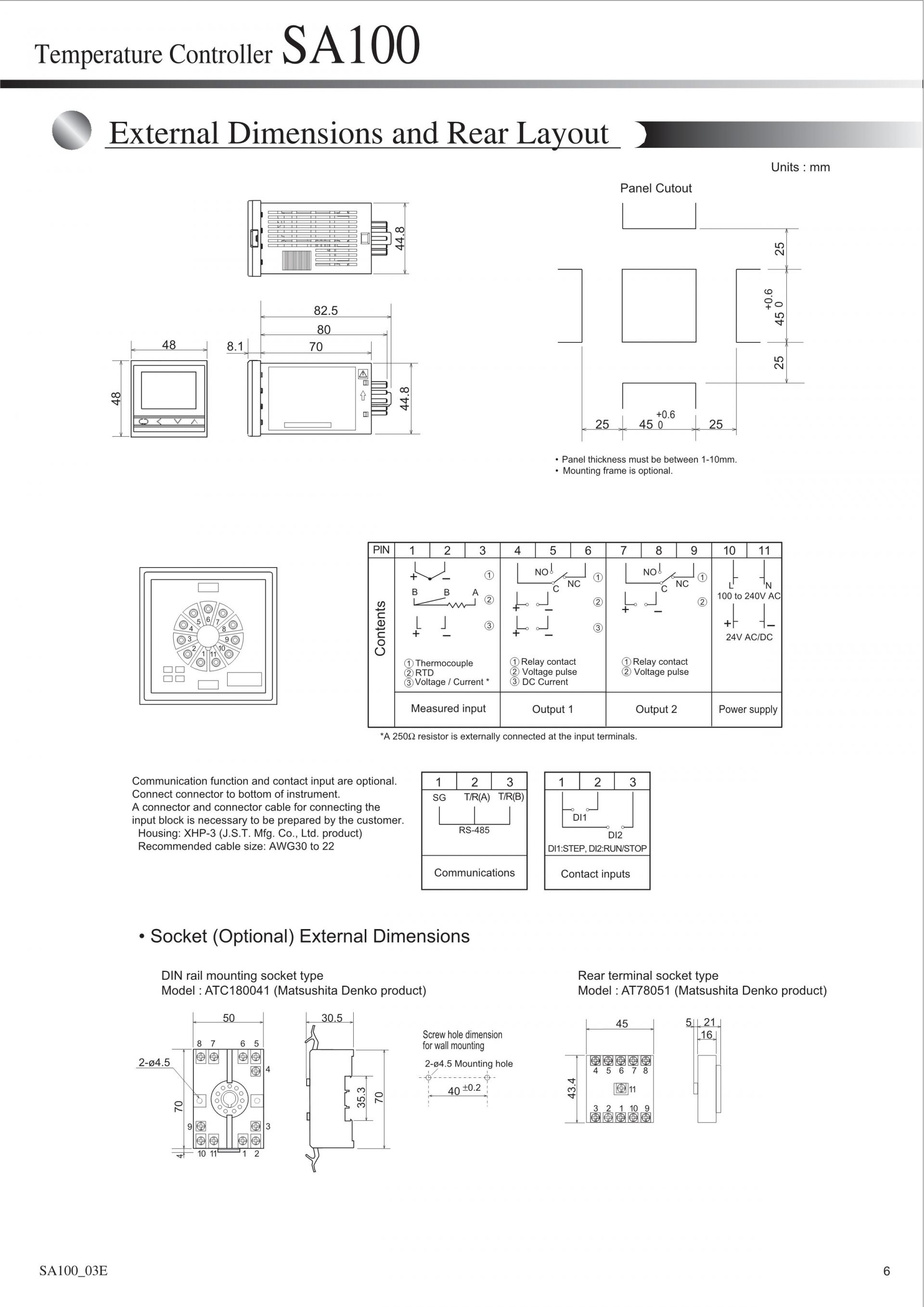

External dimensions
SA100 RKC SA100 SA100 RKC 알케이씨 SA100 SA100 알케이씨
