SAFEGAS SG100 CH4 설치형 가스감지기
가격문의(상세정보 참조)

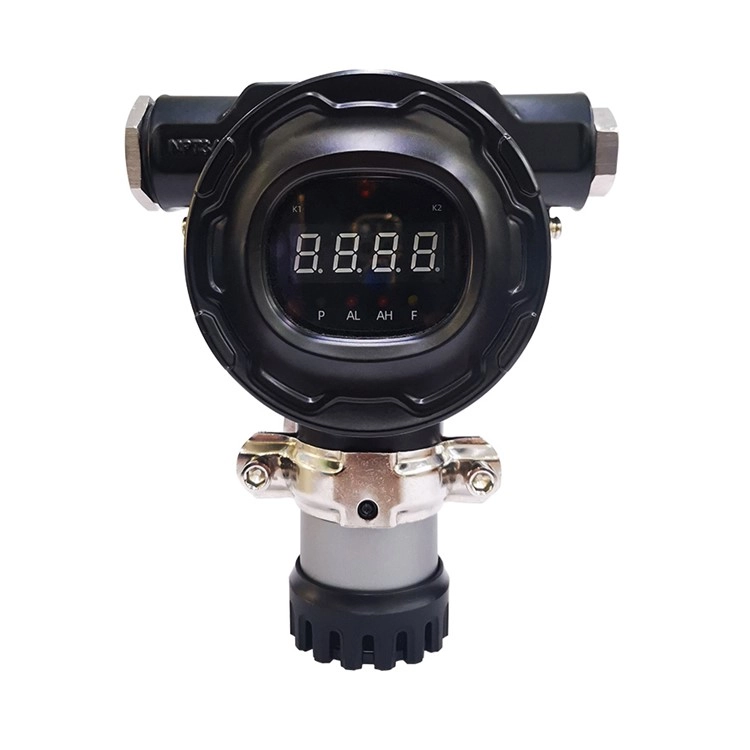

SAFEGAS SG100 CH4 설치형 가스감지기
SAFEGAS SG100 CH4 ONLINE GAS DETECTOR
SG100-CH4 gas detector is an intelligent hot-pluggable fixed gas detector, which is easily for maintenance after installation and continuous monitoring of toxic gases, oxygen, flammable gases. With IECEx, ATEX certifciates, explosion level reaches Ex db IIC T6 GB/E x db ia IIC T6 G B/Ex da db ia IIC T6 GB. Having a 3-wire 4 to 20 mA analog output with relays, it also offers HART, RS485 Modbus protocol, making it compatible with most control systems. Adopt magnetic wand design, it’s safe and easy to do menu navigation in explosion areas.
클릭 하시면 이동합니다.
세이프가스 ・ SAFEGAS
SG100
설치형 가스감지기
SG100 CH4 ONLINE GAS DETECTOR
- High accuracy & Reliable
- Specialized in gas detection for 15 years, using world first brand sensors, high precision, the detection result is approved by the third testing organization
- Modular gas chamber for maintenance simply and conveniently
- Modular air chamber structure, no need to disassemble the whole machine, only need to replace the air chamber part
- No need to return to the factory calibration, the real implementation of plug and play
- Two-key magnetic bar design, no need to open the cover, to achieve on-site maintenance and operation of the detector in any explosion-proof area
- Online monitoring
- 24h continuously monitoring, data will real-time display
- Class ia intrinsic safety explosion-proof circuit design, safe and reliable
- At the same time, the instrument has obtained international IECEx, ATEX and China explosion-proof three certifications
- Explosion-proof class up to Ex db IIC T6 Gb /Ex db ia IIC T6 Gb /Ex da db ia IIC T6 Gb
- The protection level reaches IP66/IP67
- Compact appearance, simple and user-friendly installation
- The whole machine weighs only 1kg and is easy to install
- Simple and convenient installation, complete accessories, only need to be fixed after wiring, can be used normally
- Variety of installation methods
- Wall mounted type, installed on the wall directly, real time monitoring
- Piping type, installed on the pipeline, monitoring the gas concentration inside
- Flow type, connected with external sampling pump and tube, measure the gas concentration in enclosed space
- Data transmission diversity
- Standard 4-20mA current signal, RS485 digital signal, 1 set of relay signal output
- Optional 2 groups of relay signals, voltage 1 ~ 5V, standard Hart
- Optional LORA, 4G and other wireless transmission methods (optional)
- Data transmission connection
- Can be installed with computer software, to transmit the data to computer, workers can remote monitor the data
- High quality case
- Die-cast aluminum case, strong and durable; Stainless steel case is available for choose, meeting the demand of different situations
- IP66/67 protection degree, water-proof, dust-proof, explosion-proof
- Industry Application
- Petrochemical & Chemical Industry, Municipal Engineering & Utilities, Agricultural & Environmental Protection, Electronic, Food & Pharmaceutical Industry, Other Industries
