WIKA PGU23.100 & PGU26.100 Bourdon tube pressure gauge for connection to WIKA radio unit
가격문의(상세정보 참조)

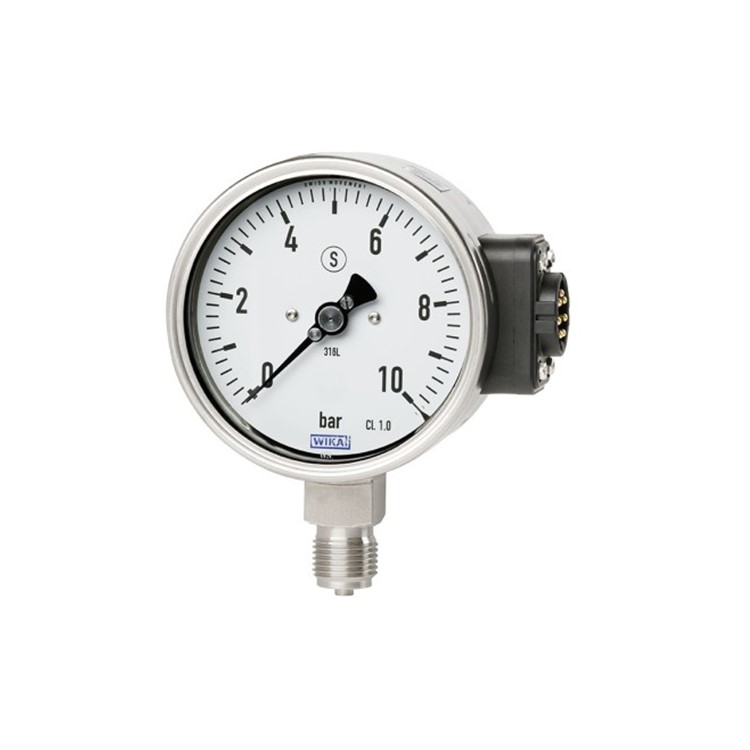

WIKA PGU23.100 & PGU26.100 Bourdon tube pressure gauge for connection to WIKA radio unit
Safety version, NS 100 [4"]
클릭 하시면 이동합니다.
비카 ・ WIKA
PGU23.100 & PGU26.100
Bourdon tube pressure gauge for connection to WIKA radio unit
- 적용 분야
- Remote monitoring of the process pressure for non-critical applications in combination with WIKA radio unit, model NETRIS®3
- Process industry: Oil and gas, chemical and petrochemical industries, water and wastewater, power generation
- For gaseous and liquid aggressive media that are not highly viscous or crystallising
- Increased safety requirements for personal protection
- 주요 특징
- IIoT-capable measuring instrument in combination with WIKA radio unit, model NETRIS®3
- Mechanical on-site indication with integrated digital interface

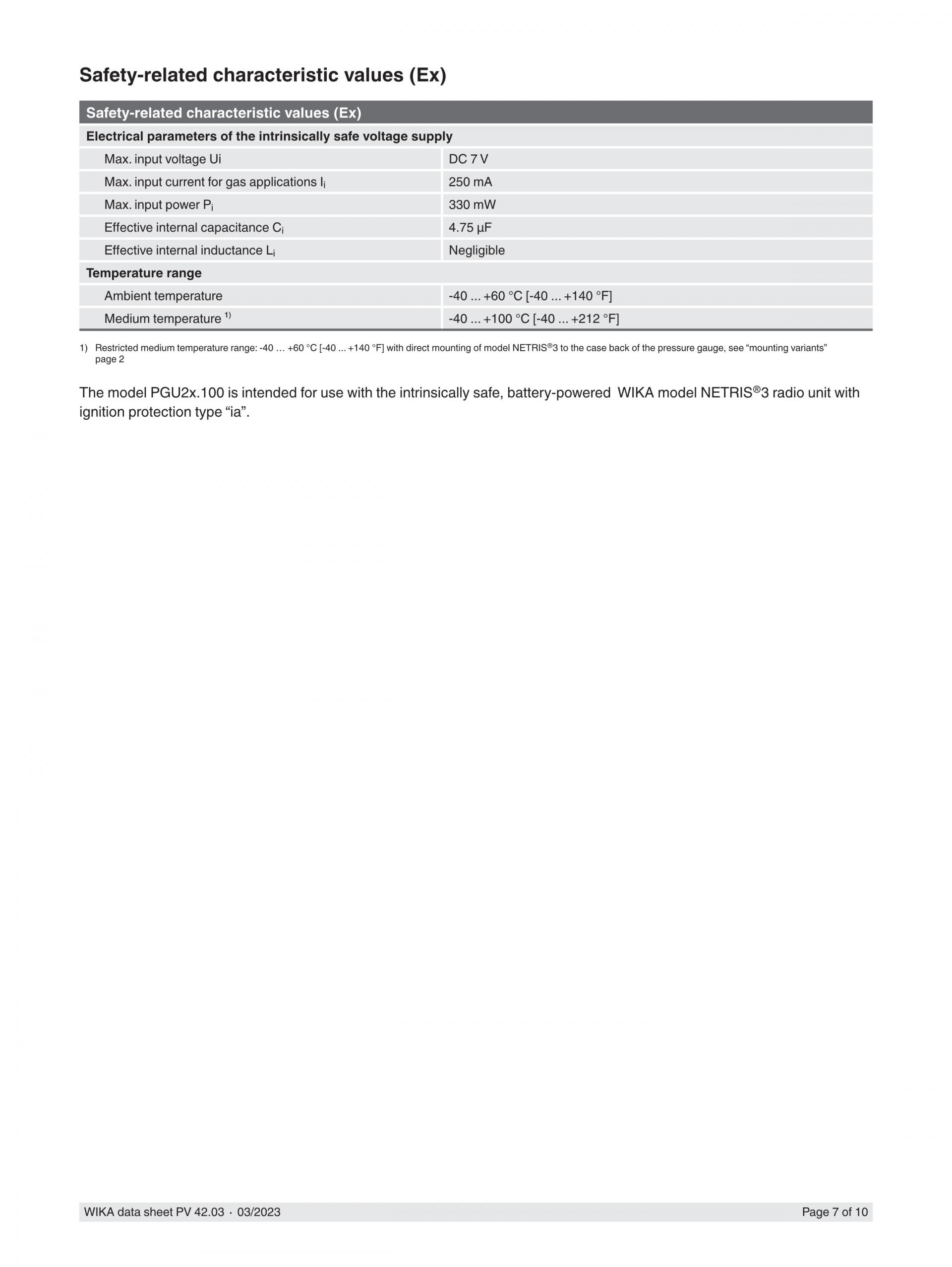

- Intrinsically safe version Ex i per ATEX, IECEx

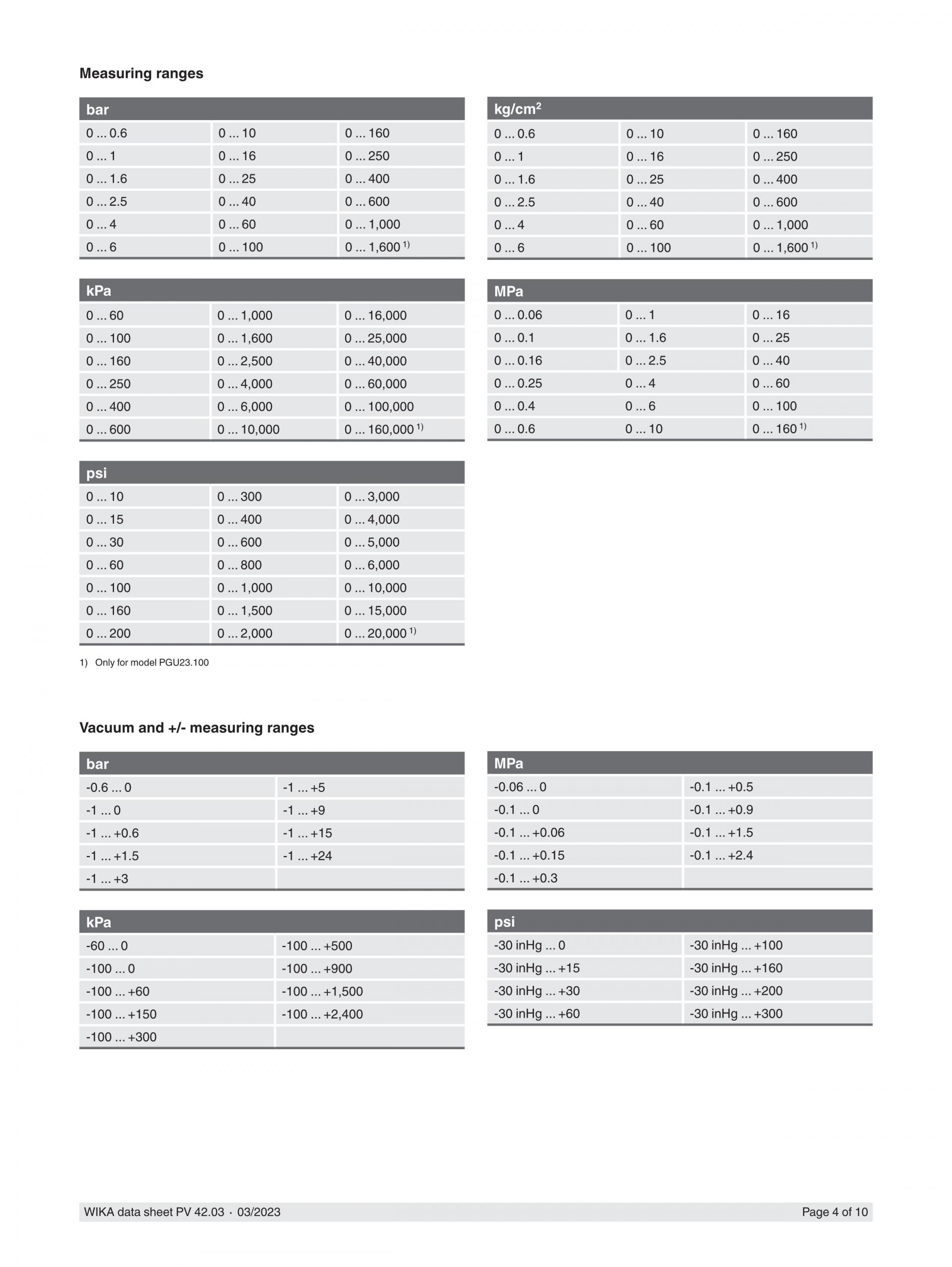

- Measuring ranges from 0 … 0.6 to 0 … 1,600 bar [0 ... 10 to 0 ... 20,000 psi] as well as vacuum and +/- measuring ranges
- 제품 설명
The model PGU2x.100 pressure gauge in combination with the model NETRIS®3 radio unit is used wherever web-based remote monitoring of the process pressure is desired in addition to on-site indication.
The model PGU2x.100 combines a mechanical measuring system with electronic signal processing and is intended for connection to the WIKA model NETRIS®3 radio unit. In this way, cloud based process and plant monitoring can be realised in industrial applications. Condition-based and preventive maintenance through centralised big data analysis is thus possible.
The model PGU2x.100 pressure gauge fulfils safety-related requirements of the relevant standards and regulations for the on-site indication of the operating pressure of pressure vessels.
The model PGU2x is based upon a model 2xx.30 high-quality, safety pressure gauge with a nominal size of 100, which corresponds to the S3 safety version of the EN 837-1.
The WIKA measuring instrument PGU2x.100 is part of the WIKA IIoT solution. With this, WIKA offers a holistic solution for your digitalisation strategy.
