WIKA A2G-mini 차압계
가격문의(상세정보 참조)
WIKA A2G-mini 차압계
WIKA A2G-mini Differential pressure gauge
클릭 하시면 이동합니다.
비카 ・ WIKA
A2G-mini
차압계
A2G-mini Differential pressure gauge
- 적용 분야
- For monitoring the differential pressure of air and dry, clean and non-aggressive gases
- Differential pressure monitoring in filters
- Overpressure monitoring in cleanrooms
- For very low pressures
- 주요 특징
- Optimal readability with minimal space requirements
- Available as a built-in or add-on version
- All-metal design (built-in version)
- Simple and quick mounting
- Silicone-free
- 제품 설명

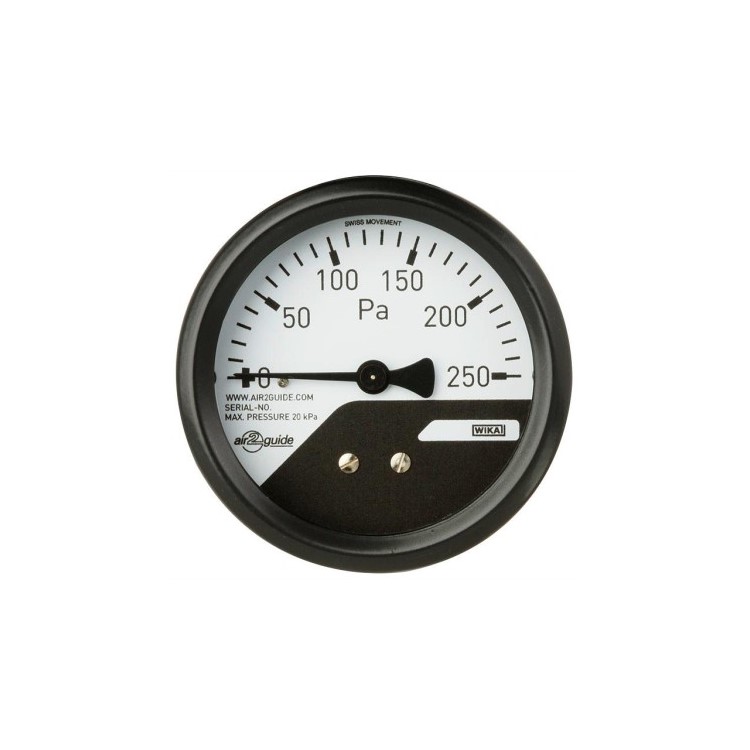

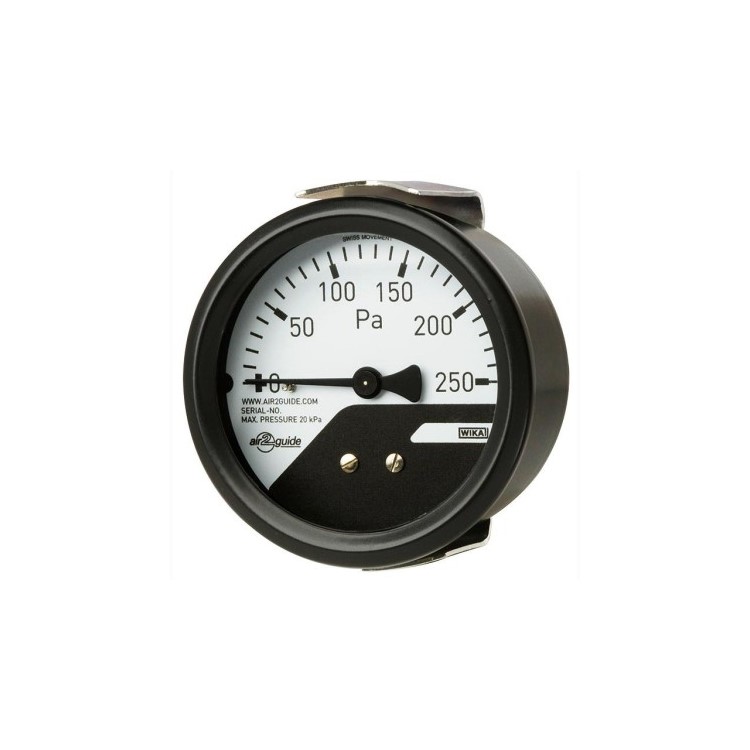

The model A2G-mini differential pressure measuring instrument is used for monitoring differential pressures of the filter units in small and medium-sized central air-handling units. Further application cases are in industrial air extraction units and dust extraction plants as well as in the cleanroom industry. Its compact design and flush panel mounting enable an optimal integration in the enclosure structures of ventilation equipment.
The pure metal design of the built-in version – with the case from stainless steel and the measuring system and movement from copper alloy – ensures maximum hygiene. Due to its silicone-free materials the instrument can also be used in the painting industry and its applications.
The high IP68 ingress protection and the UV-stabilised window also enable operation in outdoor areas.
A2G-mini A2G mini A2G-mini WIKA WIKA A2G-mini A2G-mini 비카 비카A2G-mini A2G mini WIKA WIKA A2G mini A2G mini 비카 비카 A2G mini
가격이 궁금하신가요?
더 많은 자료는?
클릭 하시면 이동합니다.
비카 ・ WIKA
A2G-mini
차압계
A2G-mini Differential pressure gauge
- 적용 분야
- For monitoring the differential pressure of air and dry, clean and non-aggressive gases
- Differential pressure monitoring in filters
- Overpressure monitoring in cleanrooms
- For very low pressures
- 주요 특징
- Optimal readability with minimal space requirements
- Available as a built-in or add-on version
- All-metal design (built-in version)
- Simple and quick mounting
- Silicone-free
- 제품 설명
The model A2G-mini differential pressure measuring instrument is used for monitoring differential pressures of the filter units in small and medium-sized central air-handling units. Further application cases are in industrial air extraction units and dust extraction plants as well as in the cleanroom industry. Its compact design and flush panel mounting enable an optimal integration in the enclosure structures of ventilation equipment.
The pure metal design of the built-in version – with the case from stainless steel and the measuring system and movement from copper alloy – ensures maximum hygiene. Due to its silicone-free materials the instrument can also be used in the painting industry and its applications.
The high IP68 ingress protection and the UV-stabilised window also enable operation in outdoor areas.
