WIKA 151.10 & 151.12 부르동관 압력계
가격문의(상세정보 참조)

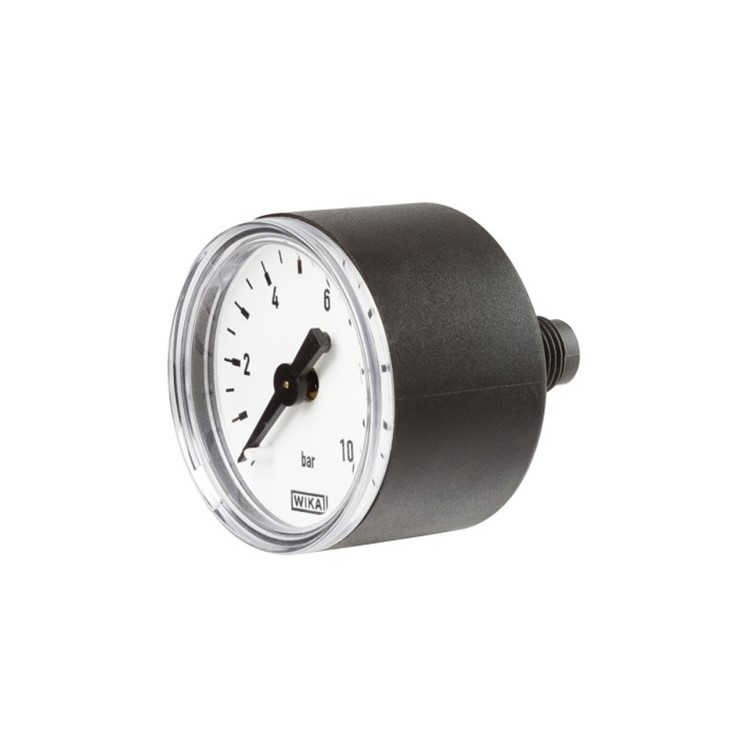

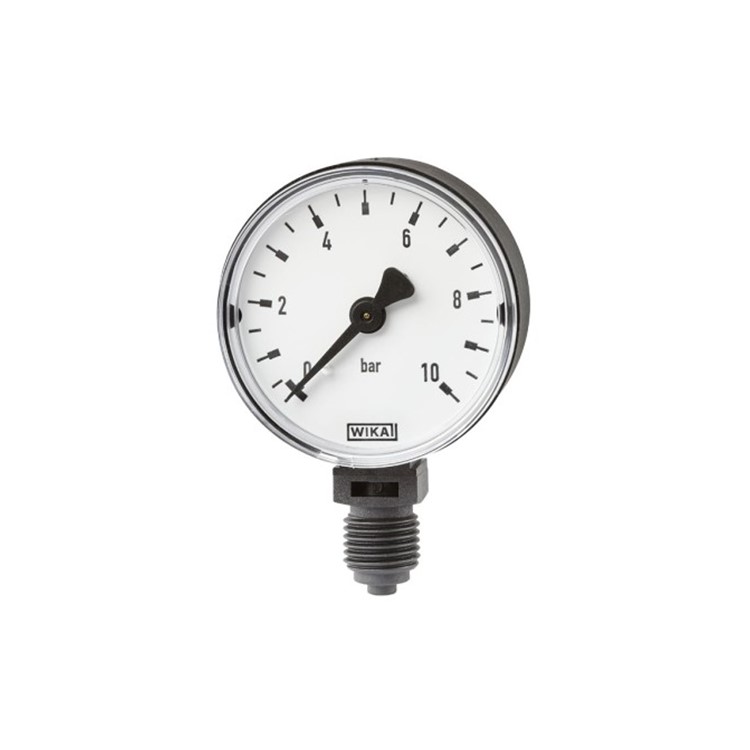

WIKA 151.10 & 151.12 부르동관 압력계
WIKA 151.10 & 151.12 Bourdon tube pressure gauge
OEM 버전
클릭 하시면 이동합니다.
비카 ・ WIKA
151.10 & 151.12
부르동관 압력계
151.10 & 151.12 Bourdon tube pressure gauge
- 적용 분야
- For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts and polyamide
- Air pumps, compressors
- Plant protection
- Pneumatics
- Heating and sanitary techology
- 제품 특징
- One-piece construction of case and process connection from glass-fibre reinforced polyamide (PA)
- Cost-effective, modular design with low weight
- Nominal size 40 [1 ½"], 50 [2"] and 63 [2 ½"]
- Scale ranges from 0 … 2.5 to 0 … 25 bar [0 ... 30 to 0 ... 300 psi]
- 제품 설명
The modular design of this pressure gauge is cost-effective and specifically aimed at OEM customers. The one-piece construction of case and process connection makes the instrument resistant to mechanical damage and ensures a low weight.
The modular measuring system guarantees low temperature influence and high measuring stability.
This proven design concept of pressure gauges is ideal for customers who require customised, light-weight but robust pressure gauges.
Thanks to many years of experience in manufacturing and development for the OEM business, WIKA is able to offer support at every stage, from design and production to the delivery of customised solutions that meet individual requirements.
151.10 151 10 WIKA 151.10 WIKA 151 10 151.10 WIKA 151 10 WIKA 비카 151.10 비카 151 10 151.10 비카 151 10 비카 151.12 151 12 WIKA 151.12 WIKA 151 12 151.12 WIKA 151 12 WIKA 비카 151.12 비카 151 12 151.12 비카 151 12 비카
