DEWESOFT SIRIUS XHS 고속 데이터수집 시스템
DEWESOFT SIRIUS XHS High-Speed Data Acquisition (DAQ) System
SIRIUS XHS is a high-speed data acquisition system (15 MS/s) with the new HybridADC signal conditioning technology capable of high-bandwidth transient recording and very high-dynamic, alias-free data acquisition.
Modern data interfaces such as USB 3.0, GLAN, XCP, CAN, and OPC UA, with PTP synchronisation allow for open and flexible connectivity. SIRIUS XHS is the ultimate high-speed DAQ.
클릭 하시면 이동합니다.
데베소프트 ・ DEWESOFT

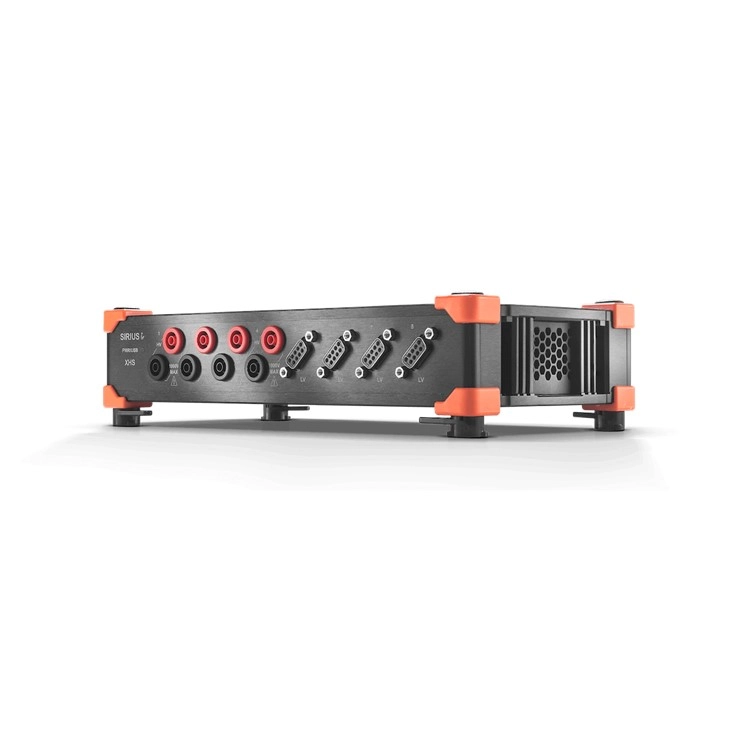

SIRIUS XHS
고속 데이터수집 시스템
SIRIUS XHS High-Speed Data Acquisition (DAQ) System
- HybridADC signal conditioning technology
HybridADC offers the best of both worlds. The high-dynamic alias-free acquisition of 24-bit ADC systems with up to 1 MS/s acquisition rate. High 5MHz bandwidth of 16-bit ADCs up to 15 MS/s sampling rate. Modes are software selectable for every input channel.
- 15 MS/s @ 5 MHz bandwidth
SIRIUS® XHS instruments offers up to 15 MS/s sampling rate with 5 MHz bandwidth. It captures transients down to microseconds levels. The sampling rate is software selectable for every analog input channel.
- High dynamic alias-free acquisition
SIRIUS® XHS implements alias-free filtering which allows the acquisition of analog signals in 24-bit resolution with up to 150 dB dynamic range at 1 MS/s sampling rate.
- PTP synchronisation
Even though users can select some channels to be high bandwidth and some to be alias-free, filtering is designed in such a way that all signals are perfectly time aligned with zero phase shift. Multiple devices can be synced together using the PTP synchronization method.
- Modern Data Interfaces
GLAN interface allows the distribution of devices with the PTPv2 synchronization. The USB 3.0 interface is there for the fastest data transfer to the PC computer. OPC UA, CAN and XCP data interfaces allow easy integration into the 3rd party system and test benches.
- Open protocol support
Data is transferred to any host using the open OPC UA industry-standard protocol. In parallel the data is available over XCP or CAN protocols, allowing connection to ECU calibration software packages like ETAS INCA or Vector Canape.
- High galvanic isolation
High channel-to-channel and channel-to-ground isolation up to CATII 1000V. This prevents damage to the systems from excessive voltage and avoids ground loops.
- Smallest Form Factor
With the standard SIRIUS-sized chassis you can easily carry the SIRIUS XHS in your backpack along with your laptop for field measurements.
- Software included
Every Dewesoft data acquisition system is bundled with award-winning DewesoftX data acquisition software. The software is easy to use but very rich and deep in functionality. All software updates are free forever with no hidden licensing or yearly maintenance fees.
- Dewesoft quality and 7-year warranty
Enjoy our industry-leading 7-year warranty. Our data acquisition systems are made in Europe, utilizing only the highest build quality standards. We offer free and customer-focused technical support. Your investment into the Dewesoft solutions is protected for years ahead.
The new SIRIUS XHS looks the same on the outside, but on the inside, it is a completely new beast. Everything is new and designed from scratch to face the future of high-speed data acquisition systems:
We have been developing SIRIUS XHS high-speed data acquisition system for the last 6 years and the results are astonishing. We simply love how the technology supersedes even our expectations and lays foundations for the future of data acquisition. |
The SIRIUS XHS provides several amplifiers that utilize our new HybridADC technology. The input channel configuration can be freely configured with one of the following signal amplifiers:
Noise floor, common-mode rejection, and gain and offset drifts at lower sampling rates are comparable to the SIRIUS DualCoreADC amplifiers. SIRIUS XHS amplifiers are perfect for high-speed data acquisition, transient recording, e-mobility measurements, and power analysis where the highest precision is an absolute necessity. |
SIRIUS® XHS instruments utilize Precision Time Protocol (PTP) synchronization. The Precision Time Protocol is a protocol used to synchronize clocks throughout a computer network. If you combine and mix analog channels coming through Sigma-Delta and SAR ADCs (high-bandwidth and alias-free), channels are delayed due to the sigma-delta filter group delay. SIRIUS® XHS can run both modes perfectly aligned and synchronized. This is achieved by the nature of the HybridADC and filtering design. Multiple SIRIUS® XHS devices can be connected together in synchronization with each other using the PTPv2 synchronization method, IRIG, NTP, or PPS signal. This provides absolute time synchronization using in-house time servers or GPS time. SIRIUS® XHS is also backward compatible and it can be synchronized with any other Dewesoft data acquisition devices like standard SIRIUS, KRYPTON, IOLITE, DEWE-43A, etc. |
SIRIUS DAQ devices offer high galvanic channel-to-channel and channel-to-ground isolation (±1000 V). The DAQ systems even offer isolated sensor excitation. With such isolation, we have no problem measuring high voltage potentials and no problem with common-mode voltages. We are also safe with measurements like vibrations, temperatures, or any other measurement where non-isolated sensors are placed next to the high voltage potential against the DAQ system ground. In such cases, a non-isolated DAQ system would burn or at least give faulty wrong results. With SIRIUS it is just one thing less to worry about. Digital isolation has another big advantage - preserving the frequency bandwidth of the amplifiers. SIRIUS provides "worry-free" measurements, less noise, no ground loops, and the best possible signal quality. For less demanding measurement and lower-cost applications, SIRIUS DAQs are also available in a differential version where only power supply isolation is offered. |
Using Dewesoft data acquisition systems does not require any complex configuration setups or programming knowledge. We also kept this in mind when designing SIRIUS® XHS. Plug-and-play technology with smart sensors and advanced TEDS is supported by default. This makes performing measurements with the Dewesoft DAQ systems easier than riding a bike. You will be ready to measure in no time. Getting precise and graphically rich results is easier than ever. The drag-and-drop user interface of bundled DewesoftX software will allow you to define your measurement screens and results in no time. A rich mathematics library for signal processing is also available one click away. Just connect the right widget with your input channel and Voila! Works like magic. |
SIRIUS® XHS has two ways of transmitting the data to the PC:
SIRIUS® XHS acquires data with a very low load on the computer's CPU. It uses a DMA transfer on the system level to reduce loads. In today’s world of open toolchains and intercommunication, devices should be compliant with standard protocols. SIRIUS® XHS can serve acquired data via these protocols, all in parallel to storing data on a PC running DewesoftX software.
|
SIRIUS® XHS slices can be used as a stand-alone DAQ device or stacked and daisy-chained together into a larger channel count system. Stacking systems together is made simple with easy click-mechanism. If you need a distributed data acquisition system, then SIRIUS® XHS devices can easily be distributed via the GLAN interface. Data and PTP synchronization are available with a single ethernet cable running from node to node. SIRIUS® XHS devices are also compatible and can be interconnected with other Dewesoft DAQ systems like SIRIUS, KRYPTON, or IOLITE. Working with multiple SIRIUS® XHS instruments is as easy as working with a single unit. Configuration is seamless inside our DewesoftX data acquisition software. |
The SIRIUS® XHS is a high-speed data acquisition system that can acquire voltage and current signals at speeds up to 15 MS/s and 5 MHz bandwidth. This makes it a perfect power analyzer and power quality analyzer device with the highest precision possible. SIRIUS® XHS is shipped with DewesoftX software which offers a power analysis module for calculating power and energy parameters, such as P, Q, S, D, power factor, Cos φ for each harmonic, and many other power parameters. SIRIUS® XHS will not only store raw data from all the connected channels but also automatically calculate mentioned power and power quality parameters. Each parameter can be displayed visually in an array of different visual displays - recorder graphs, digital and analog displays, vectorscopes, etc. Utilizing a computer graphics card (GPU card) as a multi-threaded calculation platform, the DewesoftX software, and its power module can calculate power parameters at the full 15 MS/s sampling rate for multiple phases in real-time. |
The SIRIUS® XHS-PWR is a high-speed DAQ device, specially designed for direct in-vehicle measurement of current, voltage, and power in the E-Mobility market. An integrated and patented DC-CT current transducer offers very precise current measurement for the most demanding applications such as high current peak detection and current leakage measurement. The current transducer uses special patented DC-CT technology based on the Platiše flux sensor. It represents the latest current sensing technology with ranges from 50A up to 2000A, a wide 500 kHz bandwidth, and ultimate performance. Excellent linearity, precision, accuracy, immunity to external magnetic fields, low offsets, extremely low-temperature drift are achieved at low power operation. The SIRIUS-XHS-PWR can also directly measure the voltage up to 2000V peak (CAT II 1000V) with up to 5 MHz bandwidth and 15 MS/s sampling rate. The device is extremely compact and perfectly sized for direct installation into the vehicles with the power lines leading through the device. An IP65 degree of environmental protection makes it suitable for use in harsh and rugged environments and during real test drives. |
The high-speed SIRIUS® XHS data acquisition system has been in development for more than 5 years. At first, there was a dream. An idea. A drawing about something that we didn't know would work. After numerous revisions of electronics, firmware, and software versions, we realized that the dream finally became a reality. SIRIUS® XHS is an effort of many hardware, software, and mechanical engineers and is definitely a data acquisition system of the future. To celebrate the release of SIRIUS® XHS we have recorded a special video tribute to the very successful SIRIUS data acquisition system. We climbed the tallest chimney in Europe (360m) and we compared the climb to 20 years of the Dewesoft company history. Enjoy the video. |
SIRIUS XHS DEWESOFT SIRIUS XHS SIRIUS XHS DEWESOFT 데베소프트 SIRIUS XHS SIRIUS XHS 데베소프트 데베소프트 시리우스 XHS 시리우스 XHS 데베소프트 DEWESOFT 시리우스 XHS 시리우스 XHS DEWESOFT
