PANAMETRICS MOISTURE.IQ 수분 분석기
가격문의(상세정보 참조)

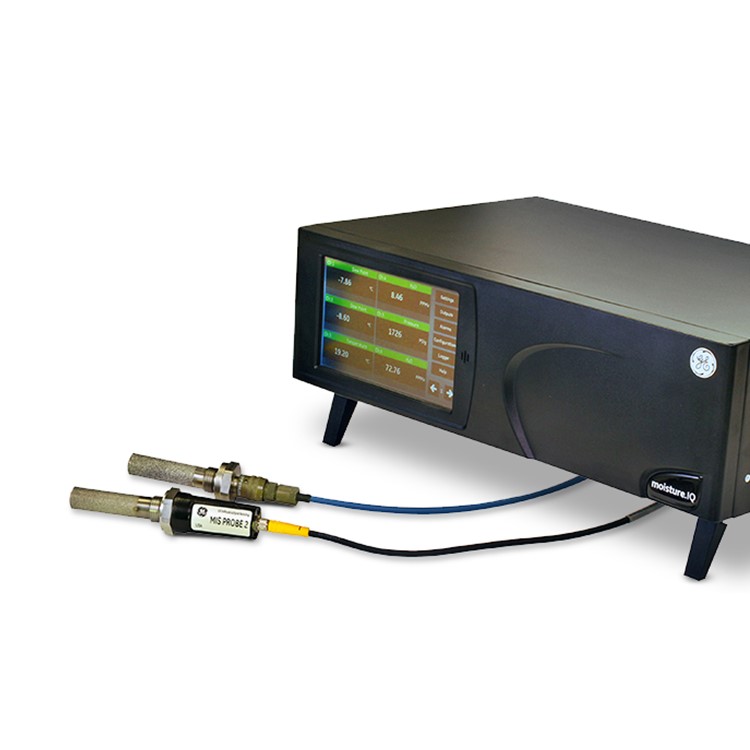

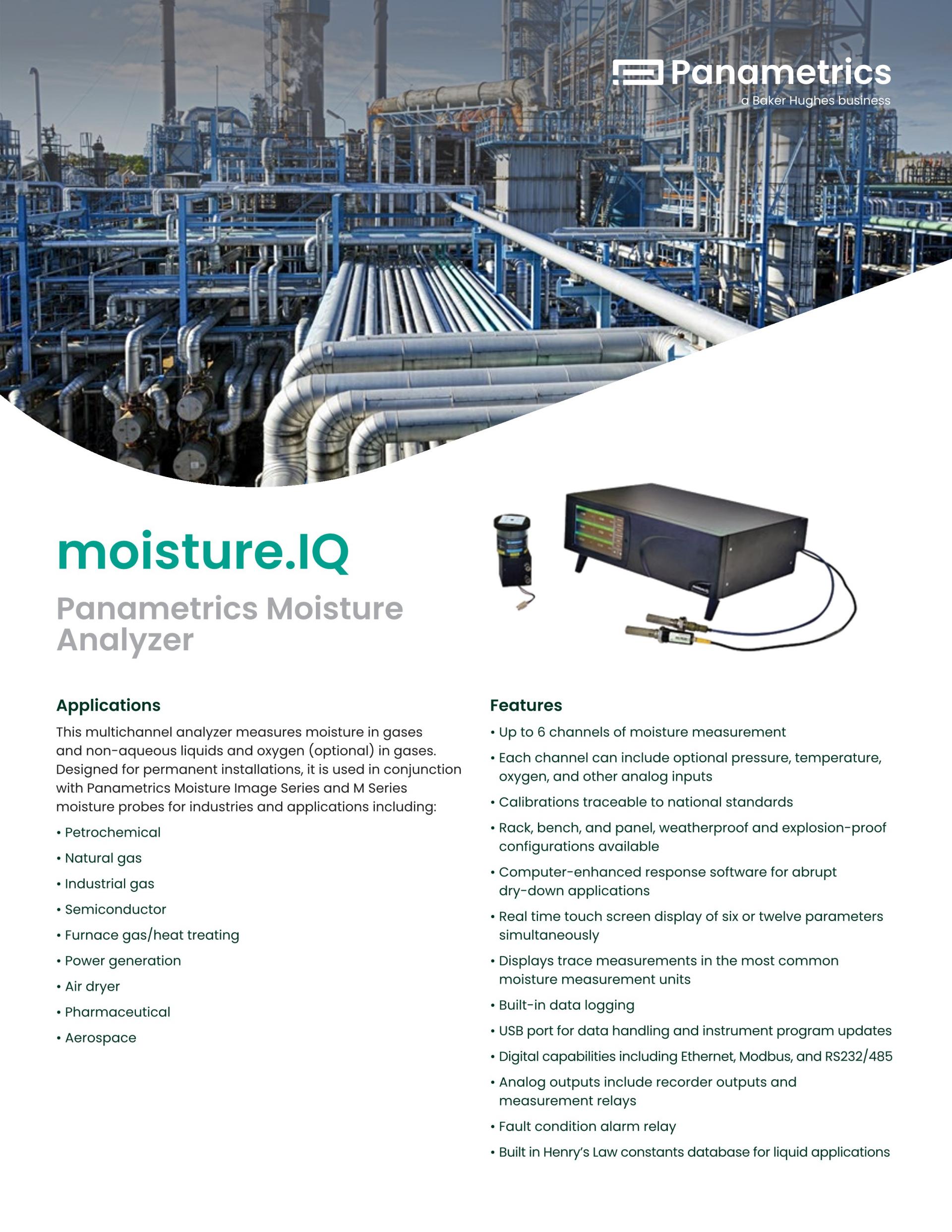

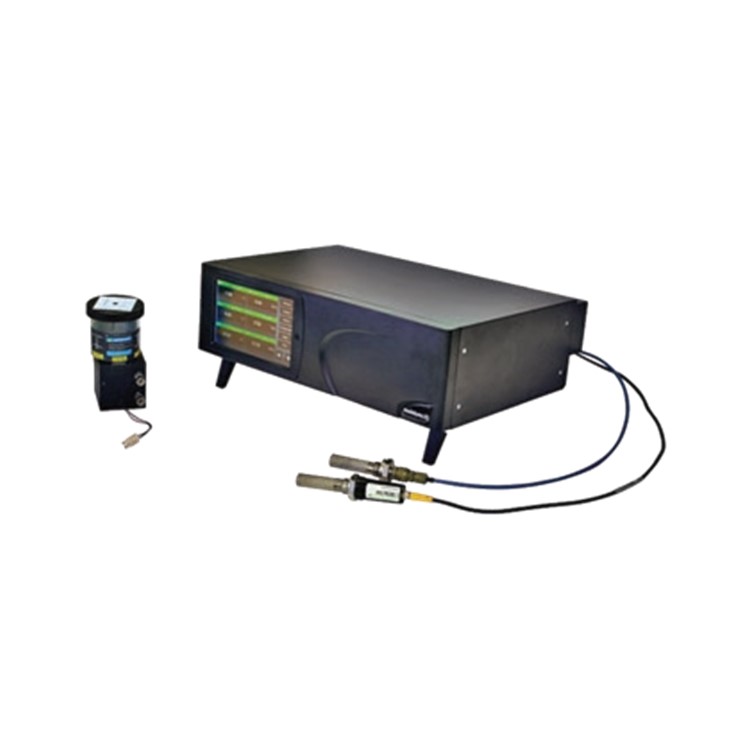

PANAMETRICS MOISTURE.IQ 수분 분석기
PANAMETRICS MOISTURE.IQ MOISTURE ANALYZER
- Up to 6 channels of moisture measurement
- Each channel can include optional pressure, temperature, oxygen, and other analog inputs
- Calibrations traceable to national standards

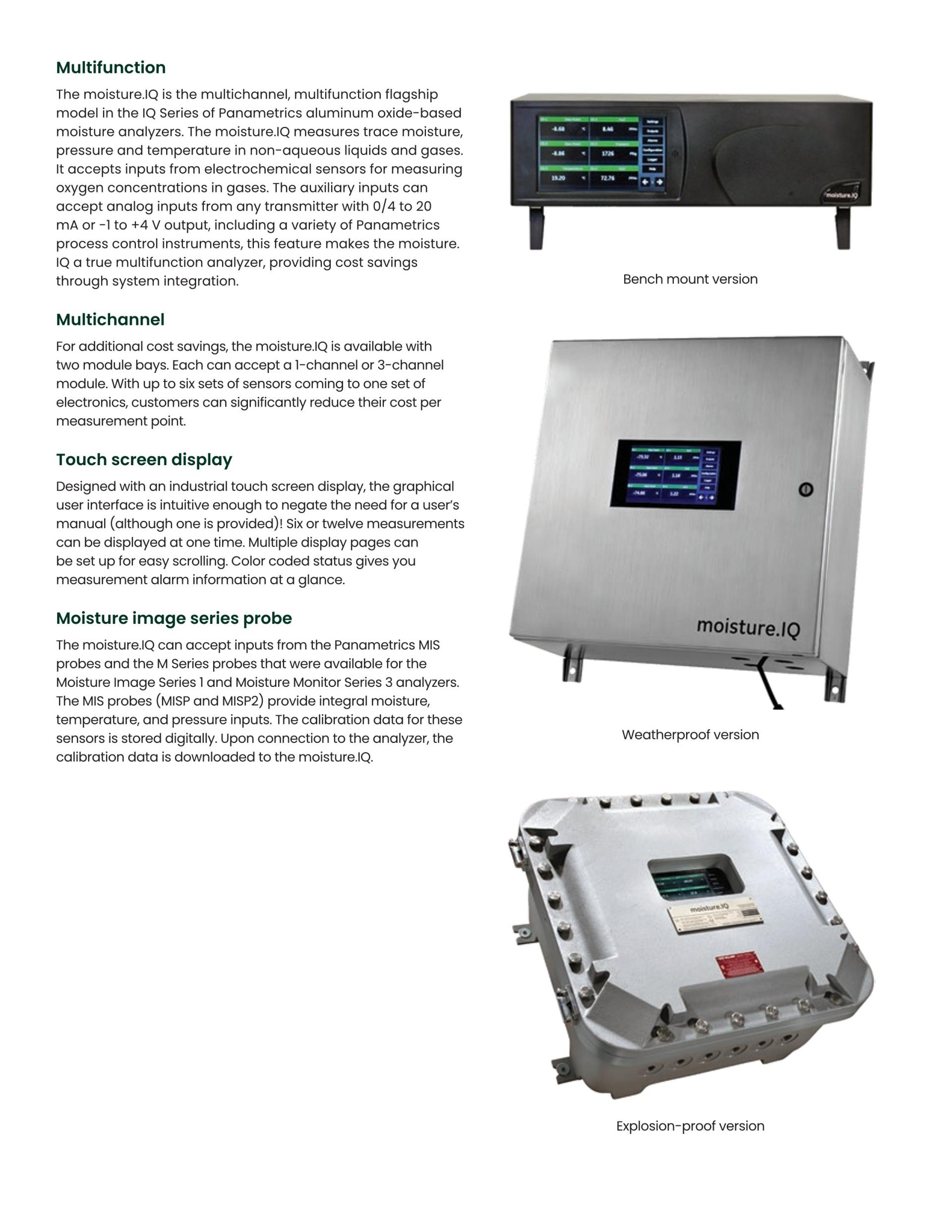

- Rack, bench, and panel, weatherproof and explosion-proof configurations available
- Computer-enhanced response software for abrupt dry-down applications
- Real time touch screen display of six or twelve parameters simultaneously
- Displays trace measurements in the most common moisture measurement units
- Built-in data logging
- USB port for data handling and instrument program updates
- Digital capabilities including Ethernet, Modbus, and RS232/485
- Analog outputs include recorder outputs and measurement relays
- Fault condition alarm relay
- Built in Henry’s Law constants database for liquid applications
클릭 하시면 이동합니다.
파나메트릭스 ・ PANAMETRICS
MOISTURE.IQ
수분 분석기
MOISTURE.IQ MOISTURE ANALYZER

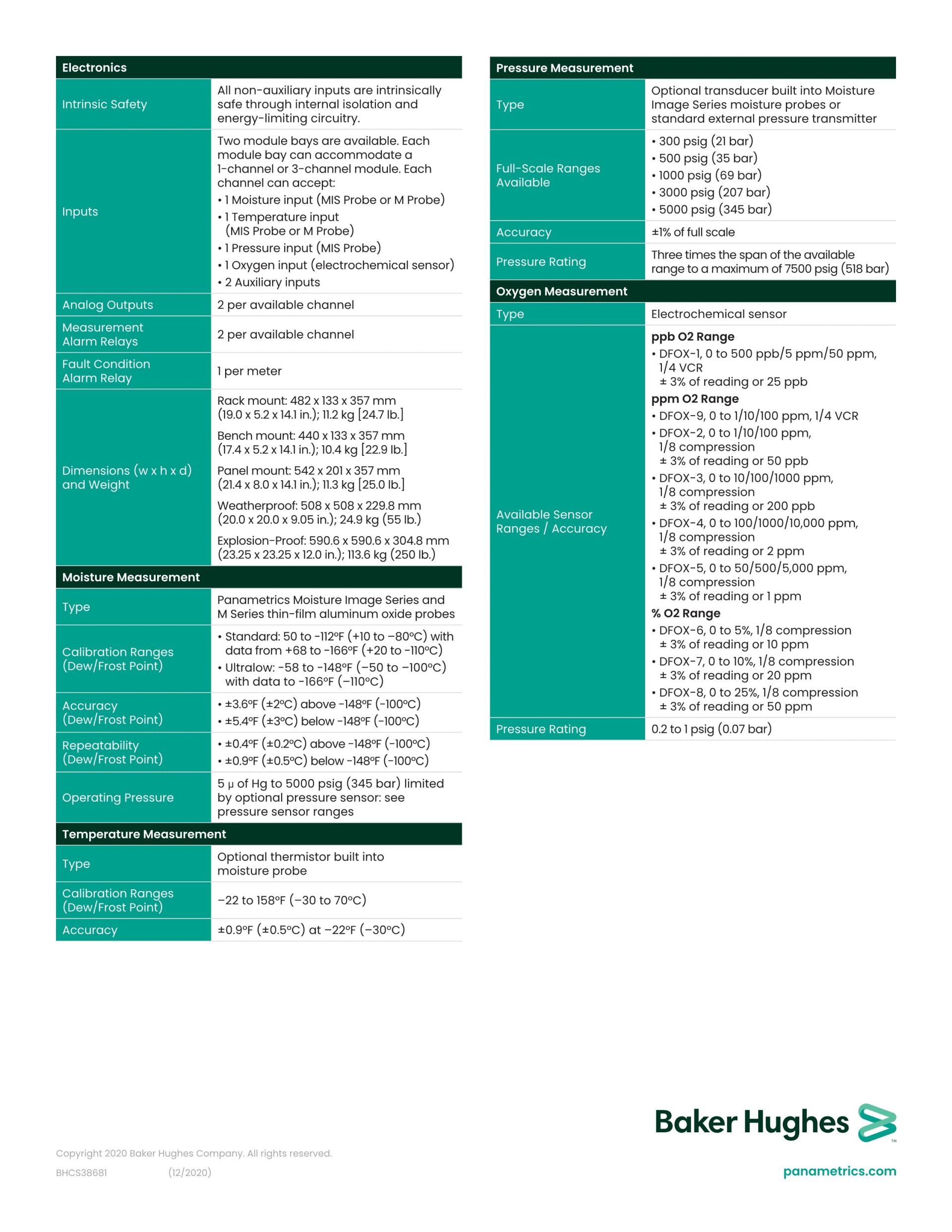

- 사양
- Intrinsic Safety : All non-auxiliary inputs are intrinsically safe through internal isolation and energy-limiting circuitry.
- Inputs : Two module bays are available. Each module bay can accommodate a 1-channel or 3-channel module. Each channel can accept:
1 Moisture input (MIS Probe or M Probe)
1 Temperature input (MIS Probe or M Probe)
1 Pressure input (MIS Probe)
1 Oxygen input (electrochemical sensor)
2 Auxiliary inputs
- Accuracy (Dew/Frost Point)
±3.6°F (±2°C) from 50°F to -85°F (10°C to -65°C)
±5.4°F (±3°C) from -86°F to -112°F (–66°C to -80°C)
- Repeatability (Dew/Frost Point)
±0.9°F (±0.5°C) from 50°F to -85°F (10°C to -65°C)
±1.8°F (±1.0°C) from -86°F to -112°F (–66°C to –80°C)
- Operating Pressure : 5 μ of Hg to 5000 psig (345 bar) limited by optional pressure sensor: see pressure sensor ranges
- Ranges
0 to 0.5 / 5 / 50 ppm
0 to 1 / 10 / 100 ppm
0 to 10 / 100 / 1000 ppm
0 to 100 / 1000 / 10,000 ppm
0 to 50 / 500 / 5000 ppm
0 to 5%
0 to 10%
0 to 25%
- 어플리케이션
- Petrochemical
- Natural gas
- Industrial gas
- Semiconductor
- Furnace gas/heat treating• Power generation
- Air dryer
- Pharmaceutical
- Aerospace
