OPTEX FA PT-S80 & PT-U80 장거리 좁은 시야각 온도센서
가격문의(상세정보 참조)
OPTEX FA PT-S80 & PT-U80 장거리용 좁은 시야각 온도센서
OPTEX FA PT-S80 & PT-U80 Long Range with Narrow FOV Thermometers
Striving for "easier readability" "convenience"
- EL backlight mounted on liquid crystal part
- Recorded data can be sent to and received from PC via USB
- （PT-U80 only）
- Long focus design that can be measured away
클릭 하시면 이동합니다.
옵텍스 FA ・ OPTEX FA
PT-S80 & PT-U80
장거리용 좁은 시야각 온도센서
PT-S80 & PT-U80 Long Range with Narrow FOV Thermometers

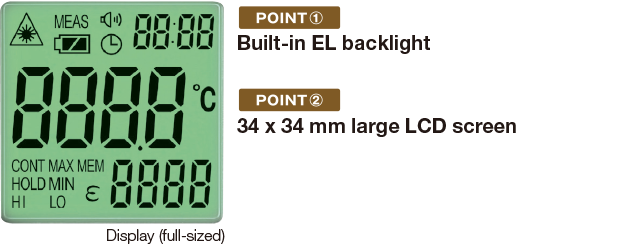

The product’s LCD is equipped with an EL backlight to make measurement results more easily readable. In addition, the large-size LCD screen includes a three-area display for a brighter, bigger presentation of information. Designed to be energy-efficient, the EL backlight includes an illuminance sensor that automat  |

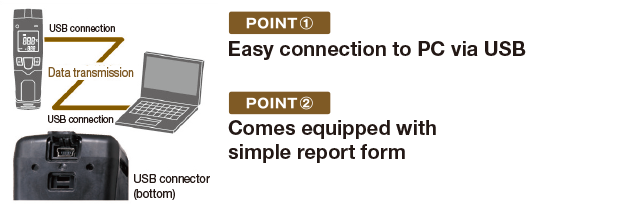

In order to make the most effective use of measured data, the PT-U80 is equipped with a function that allows data recorded onto the unit to be transmitted to a PC via USB. The captured data can then be applied to a report form prepared in advance for easy report creation. Configuration of various settings and performing various operations on the PT-U80 can also be done from the PC. Access the Optex FA homepage to download the necessary PC software. Dedicated software is downloaded from here and used.  |

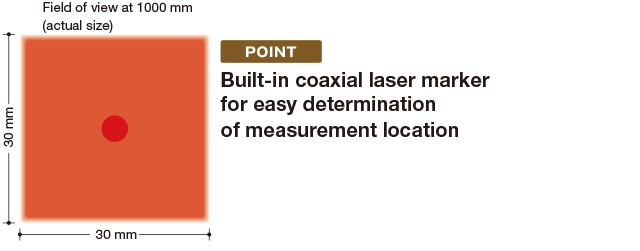

Knowing an exact measurement point is difficult if the location of the laser pointer is not in line with the actual measurement point. The PT-80, however, is equipped with a coaxial laser marker (PSC-certified high-brightness laser) that provides a constant red dot at the center of the measurement area.
|

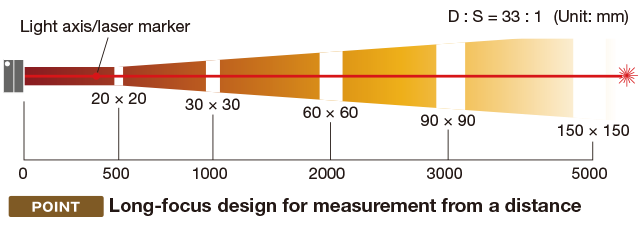

At a distance of 1 m, the PT-80 measurement area is 30 × 30 mm. At a distance of 5 m, the product’s long-focus design provides a measurement area of 150 × 150 mm. This enables safe, reliable measurement even in situations where approaching the target can be dangerous.  |
